基于自定义值绘制多边形GeoJson填充颜色

Question

我拥有与GeoDataFrame中的标识符相关联的lat/long值的多边形，如下所示。考虑一个有两个标识符A和B的例子，多边形A有三个点，B有四个点，它们的lat/long值如下所示。对应于每一点(lat/long)，我还有一个相关的数值，如最后一列所示。

id    geometry                                                                         values
A   POLYGON((lat_A_1 long_A_1, lat_A_2 long_A_2, lat_A_3 long_A_3))                    10,12,13
B   POLYGON((lat_B_1 long_B_1, lat_B_2 long_B_2, lat_B_3 long_B_3, lat_B_4 long_B_4))  4,8,16,20

我在GeoDataFrame上迭代并使用下面的代码在地图上绘制这些多边形

    geo_j = folium.GeoJson(data=geo_j,
                           style_function={
                               'fillColor': 'blue'
                           })

是否有一种方法可以根据values列填充多边形，如红色0-5，蓝色6-10，绿色11-20。这是如何做到的呢？

Answer 1

• 首先获取一些多边形并定义一个值(生成MWE样本数据集)
• ，这意味着与多边形相关的值与多边形中的点相同。您使用folium请求一个解决方案，该解决方案使用自定义颜色映射值填充多边形。这意味着您需要一个函数将所有这些值同化为多边形(颜色)的单个值。我使用了模式，这是最常见的值。这可能是平均的，中位数或任何其他function.
• solution然后变得简单，它是folium.GeoJson()使用和适当结构的style_function
• extended答案。您可以将多边形拆分为较小的多边形，并将子多边形的颜色与点相关联。view
• shapley提供了两种拆分多边形https://shapely.readthedocs.io/en/stable/manual.html#shapely.ops.triangulate的方法，folium的生产没有改变(包括iso_a3)。发现沃罗诺伊是更有效的

生成MWE数据

# some polygons
gdf = gpd.read_file(gpd.datasets.get_path("naturalearth_lowres")).loc[lambda d: d["iso_a3"].isin(["BEL", "LUX", "NLD", "DEU", "AUT"]), ["geometry"]]

# comma separated values column... between 0 and 20...
gdf["values"] = gdf.geometry.apply(lambda p: ",".join([str(int(sum(xy)) % 20) for xy in p.exterior.coords]))
# id column
gdf["id"] = list("ABCDEFGHIJ")[0 : len(gdf)]
gdf = gdf.set_index("id", drop=False)

数据

                                   geometry                                   values id
id
A   POLYGON ((16.97967 48.12350, 16.9037...  5,4,4,4,3,2,1,1,0,19,19,18,17,17,16,...  A
B   POLYGON ((14.11969 53.75703, 14.3533...  7,7,7,7,6,6,6,5,5,4,4,3,2,2,2,2,2,1,...  B
C   POLYGON ((6.04307 50.12805, 6.24275 ...                     16,16,15,15,15,15,16  C
D   POLYGON ((6.15666 50.80372, 6.04307 ...  16,16,15,15,14,14,13,13,13,13,14,14,...  D
E   POLYGON ((6.90514 53.48216, 7.09205 ...  0,0,19,18,17,16,16,16,15,14,14,15,17...  E

解决方案

import statistics as st
import branca.colormap
import geopandas as gpd
import folium

m = folium.Map(
    location=[
        sum(gdf.geometry.total_bounds[[1, 3]]) / 2,
        sum(gdf.geometry.total_bounds[[0, 2]]) / 2,
    ],
    zoom_start=5,
    control_scale=True,
)

# style the polygons based on "values" property
def style_fn(feature):
    cm = branca.colormap.LinearColormap(["mistyrose", "tomato", "red"], vmin=0, vmax=20)
    most_common = st.mode([int(v) for v in feature["properties"]["values"].split(",")])
    ss = {
        "fillColor": cm(most_common),
        "fillOpacity": 0.8,
        "weight": 0.8,
        "color": cm(most_common),
    }
    return ss

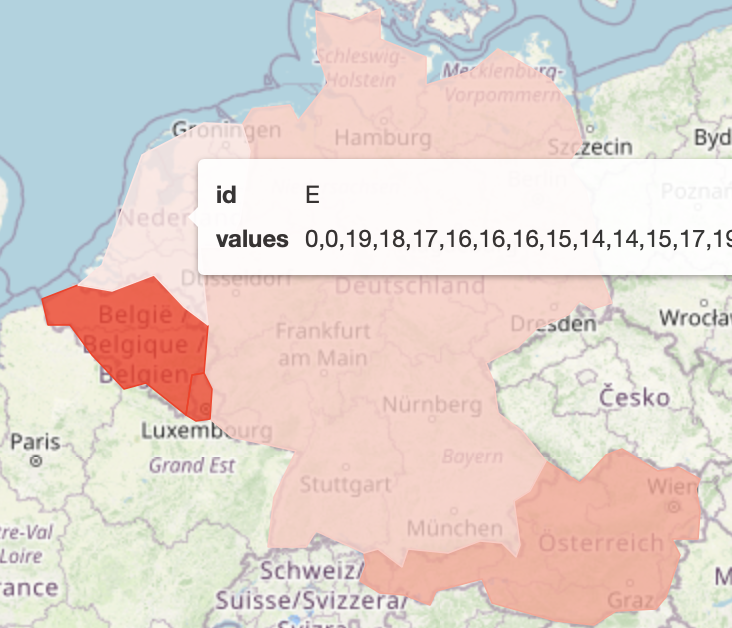

folium.GeoJson(
    gdf.__geo_interface__,
    style_function=style_fn,
    tooltip=folium.features.GeoJsonTooltip(["id", "values"]),
).add_to(m)

m

​

​

将多边形分成几个部分

import statistics as st
import branca.colormap
import geopandas as gpd
import folium
import shapely.geometry
import shapely.ops
import pandas as pd

# some polygons
# fmt: off
gdf = gpd.read_file(gpd.datasets.get_path("naturalearth_lowres")).loc[lambda d: d["iso_a3"].isin(["BEL", "LUX", "NLD", "DEU", "AUT","POL"]), ["geometry", "iso_a3"]]

# comma separated values column... between 0 and 20...
gdf["values"] = gdf.geometry.apply(lambda p: ",".join([str(int(sum(xy)) % 20) for xy in p.exterior.coords]))
# id column
gdf["id"] = list("ABCDEFGHIJ")[0 : len(gdf)]
gdf = gdf.set_index("id", drop=False)
# fmt: on


def sub_polygons(r, method="voronoi"):
    g = r["geometry"]
    # split into sub-polygons
    if method == "voronoi":
        geoms = shapely.ops.voronoi_diagram(g).geoms
    elif method == "triangulate":
        geoms = [
            p
            for p in shapely.ops.triangulate(g)
            if isinstance(p.intersection(g), shapely.geometry.Polygon)
        ]
    else:
        raise "invalid polygon ops method"

    # clip sub-geometries
    geoms = [p.intersection(g) for p in geoms]
    vs = r["values"].split(",")
    vr = []
    # order or sub-polygons and points are differenct.  use value from point
    # in sub-polygon
    for vg in geoms:
        for i, xy in enumerate(g.exterior.coords):
            if not shapely.geometry.Point(xy).intersection(vg).is_empty:
                break
        vr.append(vs[i])
    return [{**r.to_dict(), **{"geometry": g, "values": v}} for g, v in zip(geoms, vr)]


gdf2 = gpd.GeoDataFrame(
    gdf.apply(sub_polygons, axis=1, method="voronoi").explode().apply(pd.Series)
)


m = folium.Map(
    location=[
        sum(gdf.geometry.total_bounds[[1, 3]]) / 2,
        sum(gdf.geometry.total_bounds[[0, 2]]) / 2,
    ],
    zoom_start=5,
    control_scale=True,
)

# style the polygons based on "values" property
def style_fn(feature):
    cm = branca.colormap.LinearColormap(["mistyrose", "tomato", "red"], vmin=0, vmax=20)
    most_common = st.mode([int(v) for v in feature["properties"]["values"].split(",")])
    ss = {
        "fillColor": cm(most_common),
        "fillOpacity": 0.8,
        "weight": 0.8,
        "color": cm(most_common),
    }
    return ss

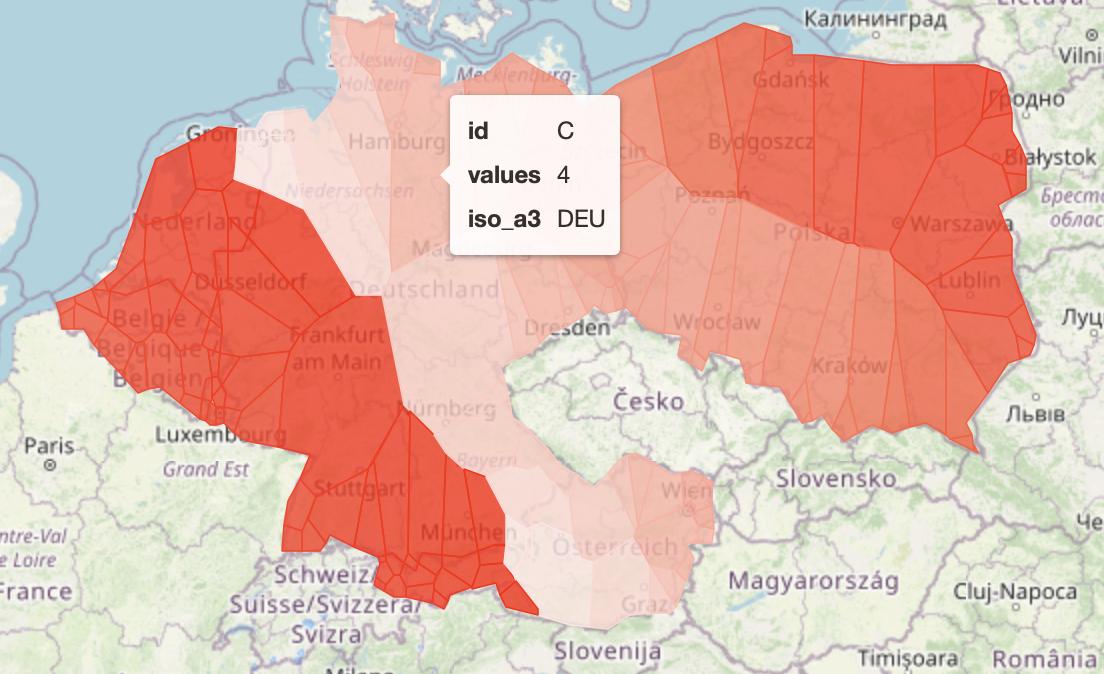

folium.GeoJson(
    gdf2.__geo_interface__,
    style_function=style_fn,
    tooltip=folium.features.GeoJsonTooltip(["id", "values", "iso_a3"]),
).add_to(m)

m

​

​

用FeatureGroup

m = folium.Map(
    location=[
        sum(gdf.geometry.total_bounds[[1, 3]]) / 2,
        sum(gdf.geometry.total_bounds[[0, 2]]) / 2,
    ],
    zoom_start=5,
    control_scale=True,
)

for g, d in gdf2.groupby(level=0):
    fg = folium.map.FeatureGroup(name=g)
    folium.GeoJson(
        d.__geo_interface__,
        style_function=style_fn,
        tooltip=folium.features.GeoJsonTooltip(["id", "values", "iso_a3"]),
    ).add_to(fg)
    fg.add_to(m)

folium.LayerControl().add_to(m)
m
