在两个范畴变量之间形成冲积图的数据？

Question

我有一个包含三个分类变量的数据：

• classification1："1“、"2”、"3“、"4"
• classification2："Low”、"Med“、"High"
• survival："1”(活着)、"2“(死了)

dataframe由多个行组成，每个行对应一个行。前20行：

classification1 <- c(4, 3, 1, 2, 3, 1, 2, 2, 2, 2, 1, 1, 4, 2, 2, 1, 2, 1, 3, 2)
classification2 <- c("Medium", "Medium", "Low", "High", "High", "Low", "Medium", "Medium", "High", "Low", "Low", "Low", "High", "High", "Medium", "Low", "Medium", "Low", "Medium", "Medium")
survival <- c(2, 1, 1, 1, 2, 1, 1, 2, 2, 1, 1, 1, 2, 2, 1, 2, 2, 1, 2, 1)
df <- data.frame(classification1, classification2, survival)

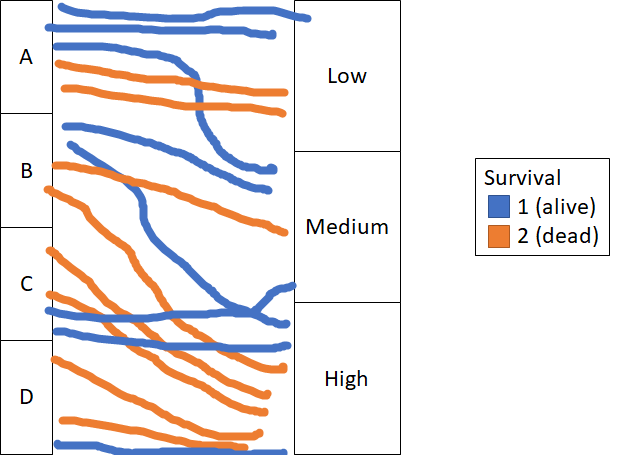

我想用ggalluvial和ggplot2一起建一个这样的冲积图，但是我不知道怎么做！

​

​

以下代码返回一个错误( Error in FUN(X[[i]], ...) : objet 'Freq' introuvable )，因为我不知道什么是"Freq"：

ggplot(data = df, aes(axis1 = classification1, axis2 = classification2, y = Freq)) +
  scale_x_discrete(limits = c("classification1", "classification2"), expand = c(.2, .05)) +
  geom_alluvium(aes(fill = survival)) +
  geom_stratum() +
  geom_text(stat = "stratum", aes(label = after_stat(stratum)))

关于如何格式化我的数据以适应ggaluvial的任何线索

Answer 1

您可以使用例如dplyr::count来聚合数据集，以添加一个频率如下的列：

library(ggalluvial)
library(dplyr)

df <- df %>%
  count(classification1, classification2, survival, name = "Freq")

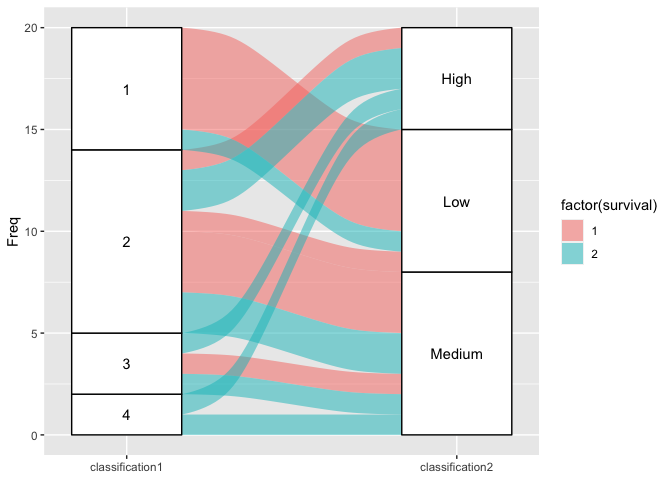

ggplot(data = df, aes(axis1 = classification1, axis2 = classification2, y = Freq)) +
  scale_x_discrete(limits = c("classification1", "classification2"), expand = c(.2, .05)) +
  geom_alluvium(aes(fill = factor(survival))) +
  geom_stratum() +
  geom_text(stat = "stratum", aes(label = after_stat(stratum)))

​

​
