Django，xlsxwriter和图像

Question

我有django站点，在那里我试图创建一个包含图像的excel文件。

该图像位于AWS：https://unord-tools-django-project-static.s3.eu-central-1.amazonaws.com/media/public/10e8f47bb84901d20ff435071577c58b_TFxmjcV.jpg上

我正在使用: xlsxwriter==1.4.5，并试图用：

worksheet_s.insert_image(5, thisColumn, str('https://unord-tools-django-project-static.s3.eu-central-1.amazonaws.com/media/public/'+image))

我的模型看起来是这样的：

class Room(models.Model):

    # Relationships
    location = models.ForeignKey("asset_app.Locations",  on_delete=models.SET_NULL, blank=True, null=True)
    room_type = models.ForeignKey("asset_app.Room_type", on_delete=models.SET_NULL, blank=True, null=True)

    # Fields

    name = models.CharField(max_length=30)
    image = models.ImageField(storage=PublicMediaStorage(), null=True, blank=True

)

我得到的错误是：

worksheet_s.insert_image(5, thisColumn, str('https://unord-tools-django-project-static.s3.eu-central-1.amazonaws.com/media/public/'+image))
TypeError: can only concatenate str (not "ImageFieldFile") to str

Answer 1

XlsxWriter不直接从那样的urls插入图像。您需要先读取数据。就像这样：

from io import BytesIO
from urllib.request import urlopen
import xlsxwriter

# Create the workbook and add a worksheet.
workbook  = xlsxwriter.Workbook('image.xlsx')
worksheet = workbook.add_worksheet()

# Read an image from a remote url.
url = 'https://unord-tools-django-project-static.s3.eu-central-1.amazonaws.com/media/public/10e8f47bb84901d20ff435071577c58b_TFxmjcV.jpg'

image_data = BytesIO(urlopen(url).read())

# Write the byte stream image to a cell. Note, a dummy filename
# or description must be specified, or use a blank string.
worksheet.insert_image('B2', 'image name', {'image_data': image_data})


workbook.close()

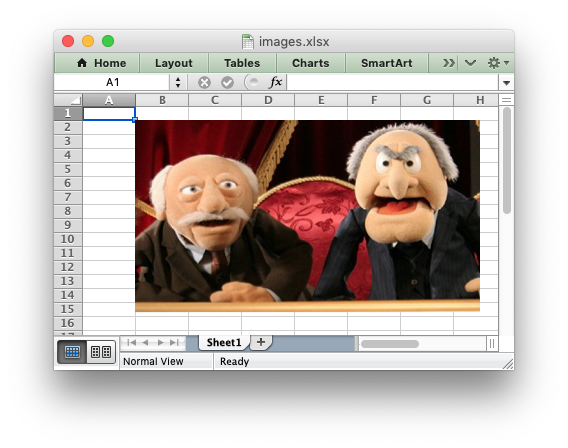

输出

​

​
