用Matplotlib Python改进时间序列子图

Question

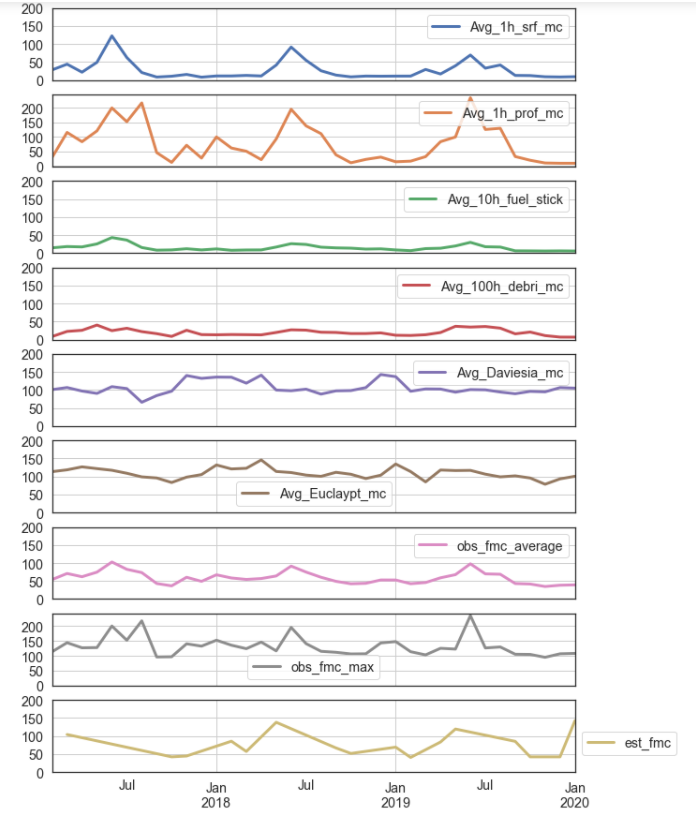

我正试图从熊猫的多个栏目中制作子图。下面的代码在某种程度上起了作用，但是我想通过将所有的传说移到图的外部(向右)并在每个图中添加est_fmc变量来改进它。

L = new_df_honeysuckle[["Avg_1h_srf_mc", "Avg_1h_prof_mc", "Avg_10h_fuel_stick", "Avg_100h_debri_mc", "Avg_Daviesia_mc",
                        "Avg_Euclaypt_mc", "obs_fmc_average", "obs_fmc_max", "est_fmc"]].resample("1M").mean().interpolate().plot(figsize=(10,15),
                        subplots=True, linewidth = 3, yticks = (0, 50, 100, 150, 200))

plt.legend(loc='center left', markerscale=6, bbox_to_anchor=(1, 0.4))

任何帮助都非常感谢。

​

​

Answer 1

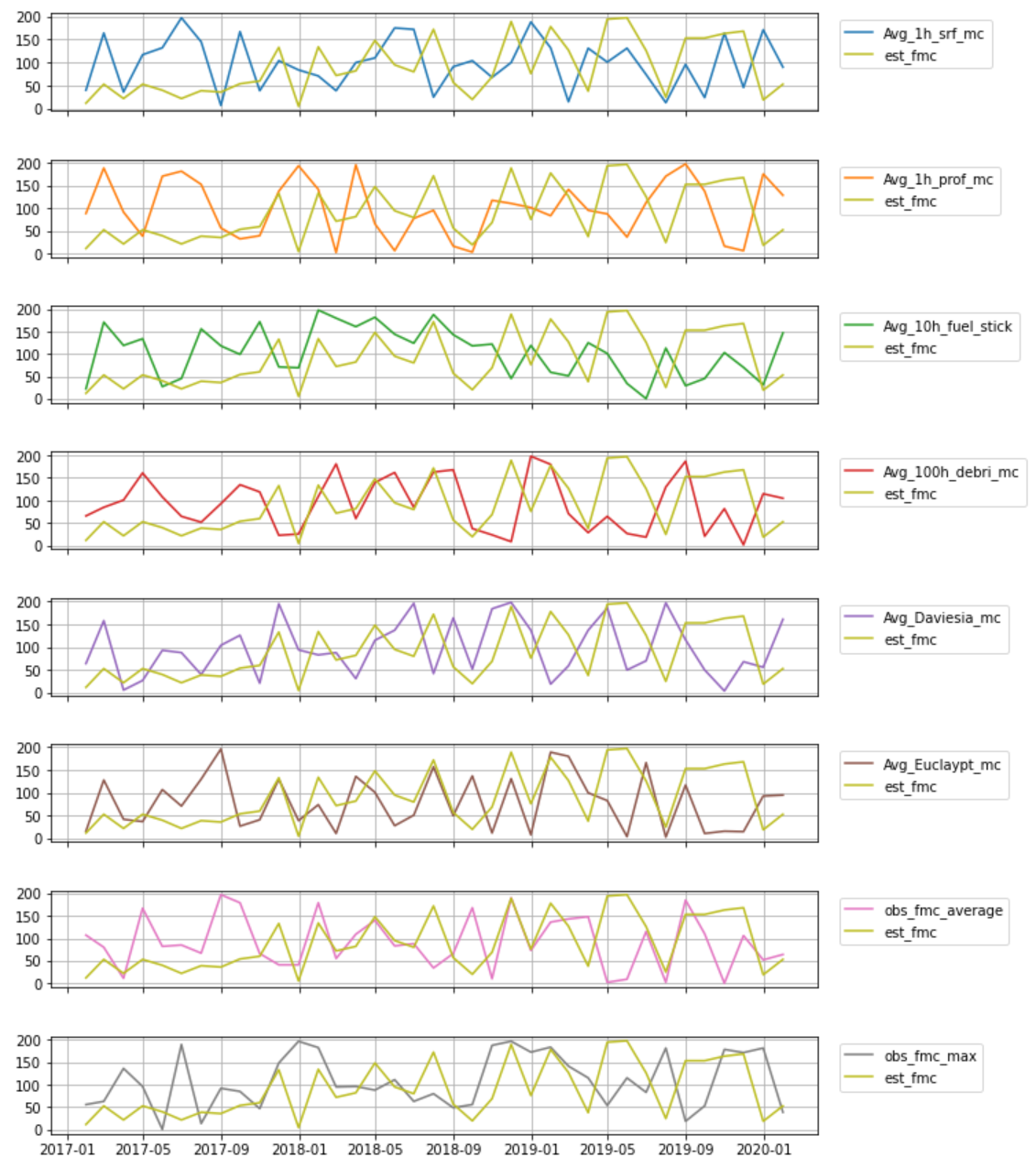

由于熊猫的绘图功能不允许精细控制，所以最容易使用mpl的子绘图功能，并通过循环处理来处理。还不清楚您是要添加'est_fmc‘行还是注释它，所以我添加了这一行。有关注释，请参见这。

import pandas as pd
import matplotlib.pyplot as plt
from matplotlib import colors as mcolors
import numpy as np
import itertools

columns = ["Avg_1h_srf_mc", "Avg_1h_prof_mc", "Avg_10h_fuel_stick", "Avg_100h_debri_mc", "Avg_Daviesia_mc", "Avg_Euclaypt_mc", "obs_fmc_average", "obs_fmc_max",'est_fmc']

date_rng = pd.date_range('2017-01-01','2020-02-01', freq='1m')

df = pd.DataFrame({'date':pd.to_datetime(date_rng)})

for col in columns:
    tmp = np.random.randint(0,200,(37,))
    df = pd.concat([df, pd.Series(tmp, name=col, index=df.index)], axis=1)

fig, axs = plt.subplots(len(cols[:-1]), 1, figsize=(10,15), sharex=True)
fig.subplots_adjust(hspace=0.5)
colors = mcolors.TABLEAU_COLORS

for i,(col,cname) in enumerate(zip(columns[:-1], itertools.islice(colors.keys(),9))):
    axs[i].plot(df['date'], df[col], label=col, color=cname)
    axs[i].plot(df['date'], df['est_fmc'], label='est_fmc', color='tab:olive')
    axs[i].set_yticks([0, 50, 100, 150, 200])
    axs[i].grid()
    axs[i].legend(loc='upper left', bbox_to_anchor=(1.02, 1.0))

plt.show()

​

​
