I assume you want to know how to style the default content type &quot;image&quot;.
This content type usually renders a gallery view (grid) of images.

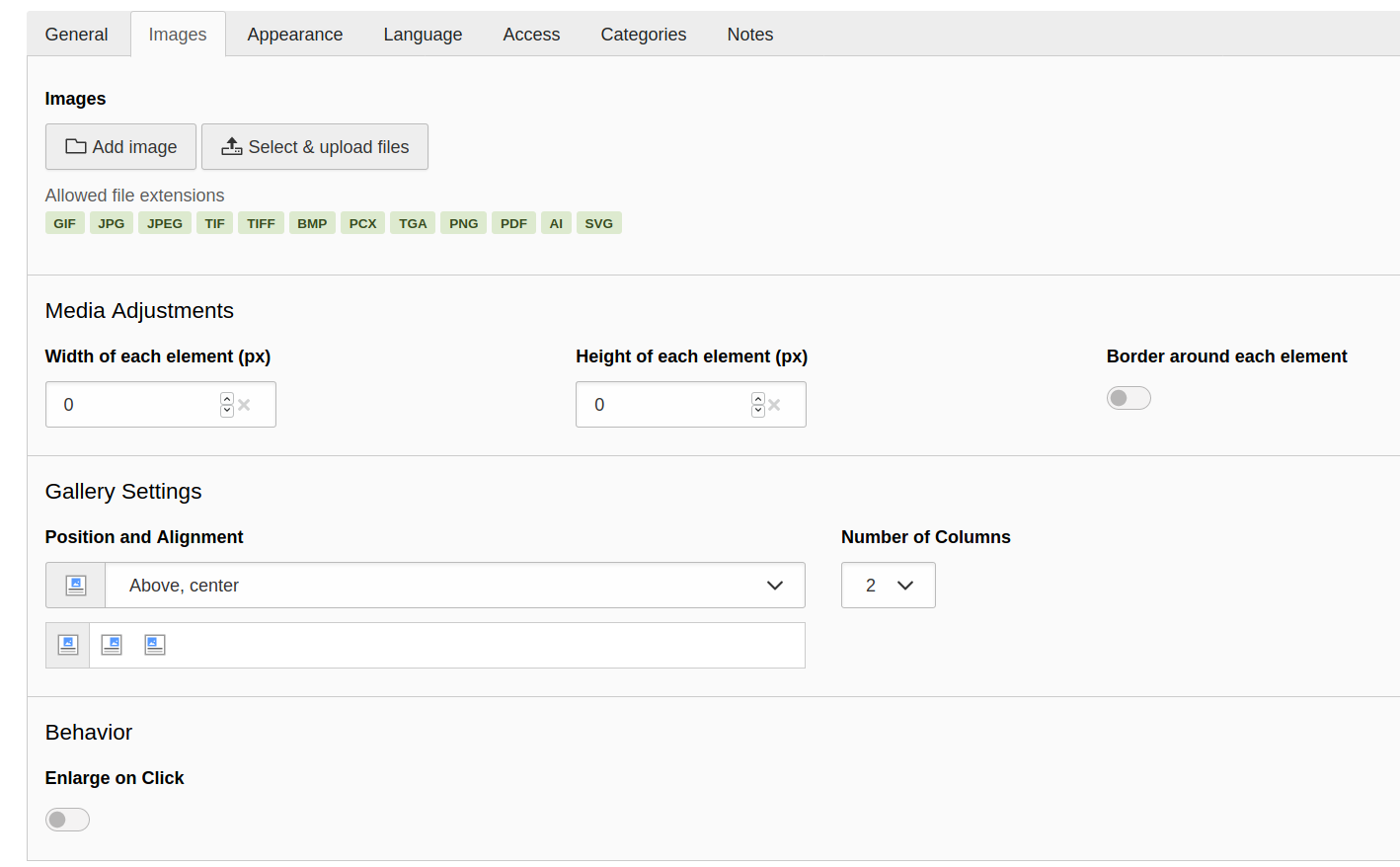

First of all you have these options by default:
<a href="https://i.stack.imgur.com/exLiN.png" rel="nofollow noreferrer"><img src="https://i.stack.imgur.com/exLiN.png" alt="editor interface for content type &quot;image&quot;" /></a>
Selecting &quot;Number of columns: 1&quot; would make the image use a bigger space.
If you want to directly influence the HTML output, here are some pointers:
The default rendering engine of TYPO3 is <code>fluid_styled_content</code>.
Here is a guide how to override templates for a specific content type:
<a href="https://docs.typo3.org/c/typo3/cms-fluid-styled-content/10.4/en-us/Configuration/OverridingFluidTemplates/Index.html" rel="nofollow noreferrer">https://docs.typo3.org/c/typo3/cms-fluid-styled-content/10.4/en-us/Configuration/OverridingFluidTemplates/Index.html</a>
That specific content type uses a <code>GalleryProcessor</code>:
<a href="https://github.com/TYPO3/TYPO3.CMS/blob/10.4/typo3/sysext/fluid_styled_content/Configuration/TypoScript/ContentElement/Image.typoscript" rel="nofollow noreferrer">https://github.com/TYPO3/TYPO3.CMS/blob/10.4/typo3/sysext/fluid_styled_content/Configuration/TypoScript/ContentElement/Image.typoscript</a>
It renders this template:
<a href="https://github.com/TYPO3/TYPO3.CMS/blob/10.4/typo3/sysext/fluid_styled_content/Resources/Private/Templates/Image.html" rel="nofollow noreferrer">https://github.com/TYPO3/TYPO3.CMS/blob/10.4/typo3/sysext/fluid_styled_content/Resources/Private/Templates/Image.html</a>
... which uses some partials to render the media.
<code>Media/Gallery</code> sets up the layout for the image grid:
<a href="https://github.com/TYPO3/TYPO3.CMS/blob/10.4/typo3/sysext/fluid_styled_content/Resources/Private/Partials/Media/Gallery.html" rel="nofollow noreferrer">https://github.com/TYPO3/TYPO3.CMS/blob/10.4/typo3/sysext/fluid_styled_content/Resources/Private/Partials/Media/Gallery.html</a>
<code>Media/Rendering/Image</code> finally renders the image. The value of <code>dimension</code> has been calculated by the <code>GalleryProcessor</code>:
<a href="https://github.com/TYPO3/TYPO3.CMS/blob/10.4/typo3/sysext/fluid_styled_content/Resources/Private/Partials/Media/Rendering/Image.html" rel="nofollow noreferrer">https://github.com/TYPO3/TYPO3.CMS/blob/10.4/typo3/sysext/fluid_styled_content/Resources/Private/Partials/Media/Rendering/Image.html</a>

I have TYPO3 10 and want to render the images in specific dimensions. I have a content element with only images, and these pictures are rendered with the dimension 495px x 331px. How can I change that? I've uploaded a much bigger original picture. The preview images are always in these dimensions. If I click on the image to enlarge it, it shows a much bigger picture.
The content element is a pictures only element with two columns.
When I set one column, the preview pictures are bigger. How is TYPO3 calculating the dimensions of the pictures?

TYPO3 image rendering
