如何在C#中使用画布创建线条图？另外，我希望这条线只画在XY方向，而不是在XZ或YZ方向。

Question

我创建一条线的工作是：

XAML代码

<Viewbox x:Name="Img_VB"
         HorizontalAlignment="Center"
         VerticalAlignment="Top"
         Stretch="Uniform">
    <ScrollViewer x:Name="rootScrollViewer"
                  ZoomMode="Enabled" MaxZoomFactor="5" MinZoomFactor="0.5"
                  HorizontalScrollMode="Auto" HorizontalScrollBarVisibility="Auto"
                  VerticalScrollMode="Auto" VerticalScrollBarVisibility="Auto">
        <Grid x:Name="img_grid"
          Width="600"
          Height="800"
          Background="{ThemeResource ApplicationPageBackgroundThemeBrush}"
          ManipulationMode="Scale">
            <Image
               x:Name="RoomPlan_Img"
               VerticalAlignment="Stretch"
               HorizontalAlignment="Stretch"
               Stretch="Uniform"
               Height="800"
               ManipulationMode="Scale">
            </Image>
            <Canvas x:Name="selectionCanvas"
                Width="600"
                Background="Transparent"
                Height="800" >
            </Canvas>
            <InkCanvas x:Name="inker" />
            <InkToolbar x:Name="img_inktoolbar"
                    InitialControls="None"
                    TargetInkCanvas="{x:Bind inker}"
                    VerticalAlignment="Top" >
            </InkToolbar>
        </Grid>
    </ScrollViewer>
</Viewbox>

代码在中的应用

public RoomPlanEditCD()
{
    this.InitializeComponent();

    inker.InkPresenter.InputDeviceTypes = CoreInputDeviceTypes.Mouse | CoreInputDeviceTypes.Touch;
    inker.InkPresenter.UnprocessedInput.PointerPressed += StartLine;
    inker.InkPresenter.UnprocessedInput.PointerMoved += ContinueLine;
    inker.InkPresenter.UnprocessedInput.PointerReleased += CompleteLine;
    inker.InkPresenter.InputProcessingConfiguration.RightDragAction = InkInputRightDragAction.LeaveUnprocessed;
}

private void StartLine(InkUnprocessedInput sender, PointerEventArgs args)
{
    line = new Line();
    line.X1 = args.CurrentPoint.RawPosition.X;
    line.Y1 = args.CurrentPoint.RawPosition.Y;
    line.X2 = args.CurrentPoint.RawPosition.X;
    line.Y2 = args.CurrentPoint.RawPosition.Y;

    line.Stroke = new SolidColorBrush(Colors.Black);
    line.StrokeThickness = 2;
    selectionCanvas.Children.Add(line);
}

private void ContinueLine(InkUnprocessedInput sender, PointerEventArgs args)
{
    line.X2 = args.CurrentPoint.RawPosition.X;
    line.Y2 = args.CurrentPoint.RawPosition.Y;
}

private void CompleteLine(InkUnprocessedInput sender, PointerEventArgs args)
{
    List<InkPoint> points = new List<InkPoint>();
    InkStrokeBuilder builder = new InkStrokeBuilder();

    InkPoint pointOne = new InkPoint(new Point(line.X1, line.Y1), 0.5f);
    points.Add(pointOne);
    InkPoint pointTwo = new InkPoint(new Point(line.X2, line.Y2), 0.5f);
    points.Add(pointTwo);
    InkStroke stroke = builder.CreateStrokeFromInkPoints(points, System.Numerics.Matrix3x2.Identity);
    InkDrawingAttributes ida = inker.InkPresenter.CopyDefaultDrawingAttributes();
    stroke.DrawingAttributes = ida;
    inker.InkPresenter.StrokeContainer.AddStroke(stroke);
    selectionCanvas.Children.Remove(line);
}

private async void ChooseFileClick(ContentDialog sender, ContentDialogButtonClickEventArgs args)
{
    //some code to pick a file create a stream of it and show it in the Image box

    RoomPlan_Img.Source = bmpimage;
    _ = await ShowAsync();
}

private async void SaveEditedWorkClick(ContentDialog sender, ContentDialogButtonClickEventArgs args)
{
    img_inktoolbar.Visibility = Visibility.Collapsed;
    RenderTargetBitmap bitmap = new RenderTargetBitmap();
    await bitmap.RenderAsync(img_grid);
    var pixelBuffer = await bitmap.GetPixelsAsync();
    byte[] pixels = pixelBuffer.ToArray();
    var displayInformation = DisplayInformation.GetForCurrentView();
    StorageFolder pictureFolder = KnownFolders.SavedPictures;
    var file = await pictureFolder.CreateFileAsync("test2.png", CreationCollisionOption.ReplaceExisting);
    using (var stream = await file.OpenAsync(FileAccessMode.ReadWrite))
    {
        var encoder = await BitmapEncoder.CreateAsync(BitmapEncoder.PngEncoderId, stream);
        encoder.SetPixelData(BitmapPixelFormat.Bgra8,
                             BitmapAlphaMode.Ignore,
                             (uint)bitmap.PixelWidth,
                             (uint)bitmap.PixelHeight,
                             displayInformation.RawDpiX,
                             displayInformation.RawDpiY,
                             pixels);
        await encoder.FlushAsync();
    }
    inker.InkPresenter.StrokeContainer.Clear();
    RoomPlan_Img.Source = null;
    img_inktoolbar.Visibility = Visibility.Visible;
}

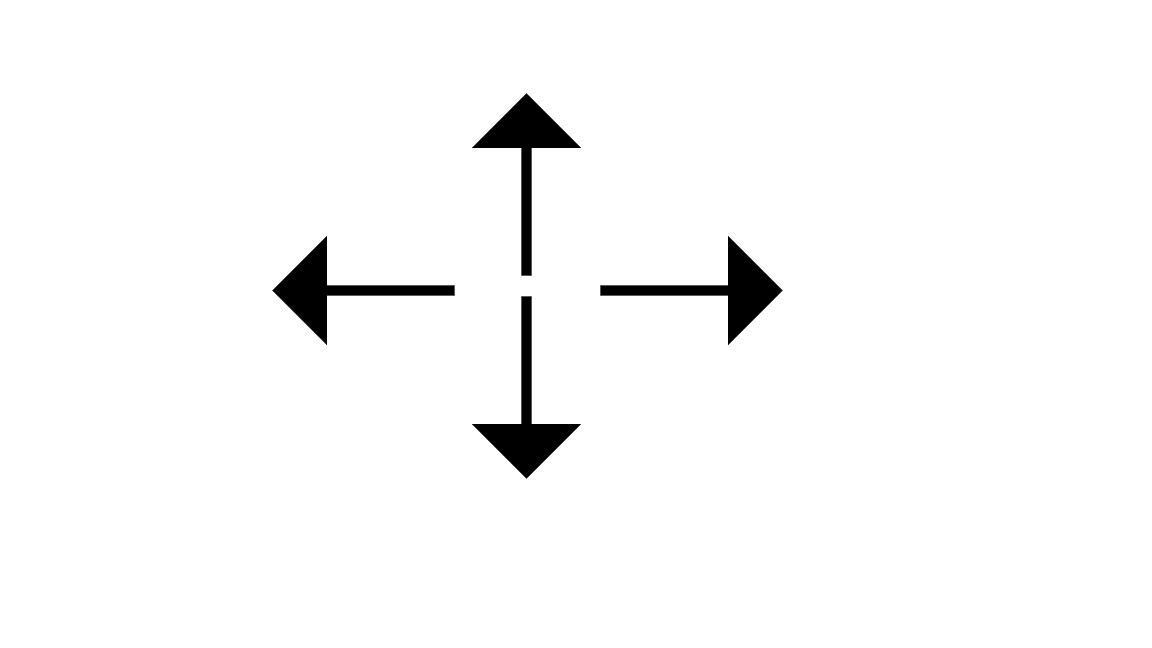

通过这项工作，我能够在图像上创建一条直线，并将工作保存为png文件。我需要的是能在画线的末尾画一条线，

我试过的工作：

line.StrokeEndLineCap = PenLineCap.Triangle;

但仍然是一条简单的线，而不是一条以箭帽作为三角形的线。

还有一件事我不知道，那就是如何只在XY方向画一条线。

​

​

如果用户试图在XZ或YZ方向绘制一条线，则不应该能够这样做。

任何帮助都是非常感谢的谢谢

Answer 1

您看到的线条不是Line对象。实际上，它们实际上是显示在InkCanvas控件区域中的墨迹笔画。为生成行注册的指针事件没有任何效果，例如StartLine、ContinueLine、CompleteLine。行对象为空。

很难在InkCanvas中的“行”中添加linecap，因为它不是一行，而是墨水笔画路径。我建议您可以通过WriteableBitmap和Win2D而不是InkCanvas来实现这一点。您可以将位图看作一个背景层，并在其上绘制一些东西，例如用linecap绘制一行，然后将所有层输出到一个新的WriteableBitmap中。请参考本文件获取更多信息。
