GCP云端点门户没有显示在swagger中定义的xml定义

Question

例如，在云端点门户(开发人员门户)上显示swagger文件中定义的xml结构有问题，它没有显示名称空间和定义的示例，但在swagger编辑器上上传时工作正常。

下面是声明的xml定义示例

MsgResp:
type: object
properties:
  Code:
    type: string
    example: RC_001_SUCCESS
  Message:
    type: string
    example: Message sent
xml:
  name: 'MessageResponse'
  wrapped: true
  namespace: http://MsgResponse

编辑：

昂格格文件

# [START swagger]
swagger: '2.0'
info:
  title: <Endpoint-name>
  description: <Endpoint-name>
  version: 1.0.0
# Connects to the cloud run running the ESP Beta 2 image
host: <Endpoint-address> # CloudRun/Esp url
security: []
schemes:
  - https
paths:
  "/status":
    post:
      description: "Test API for sending  request from system 1 to IIP. "
      operationId: "status-api"
      # Defines which service it should connect to for backend processing, It can be Cloud function/ Cloud Run url
      x-google-backend:
        address: https://<Function1-address> # Backend Cloud function URL
        deadline: 3600.0
      # Defines Authentication mechanism to use, Following mentions to use API KEYS
      security:
      - api_key: []
      # MIME Types expected as request and response
      produces:
      - "application/xml"
      consumes:
      - "application/xml"
      parameters:
        - in: body
          name: schema
          description: Input Schema for /status
          schema:
            $ref: '#/definitions/InSchema'

      responses:
        200:
          description: OK
          schema:
            $ref: '#/definitions/MessageResponse'
        404:
          description: Not Found
        500:
          description: Internal Service Error
definitions:
  InSchema:
    type: object
    xml:
      name: 'Identifier'
      prefix: 'msg'
      wrapped: true
      namespace: 'http://Identifier'
    properties:
      Number:
        type: integer
      LogIdentifier:
        type: object
        properties:
          Code:
            type: integer
          Type:
            type: string
        xml:
          name: 'LogicalIdentifier'
          wrapped: true
          namespace: http://LogicalIdentifier
          prefix: sample
    example:   # <----------
      Number: 38
      LogIdentifier:
        Code: 100
        Type: CDC
  MessageResponse:
    type: object
    properties:
      Code:
        type: string
        example: SUCCESS
      Message:
        type: string
        example: Message sent
# [START securityDef]
securityDefinitions:
  api_key:
    type: "apiKey"
    name: "key"
    in: "query"
# [END securityDef]

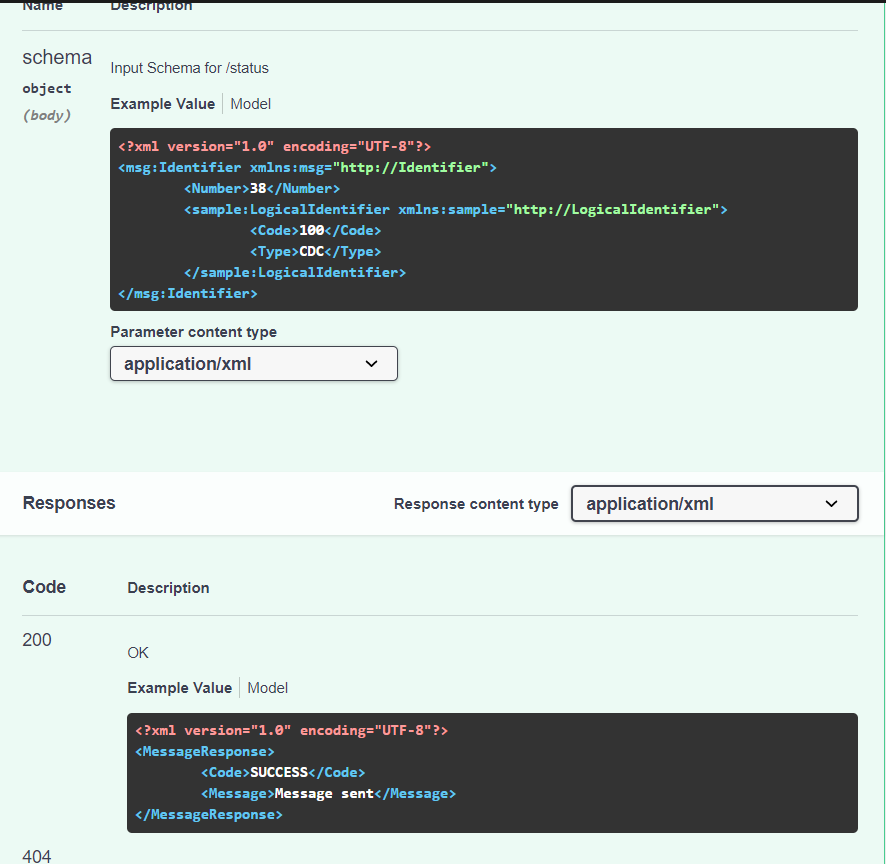

就像在傲慢的编辑器上看到的

​

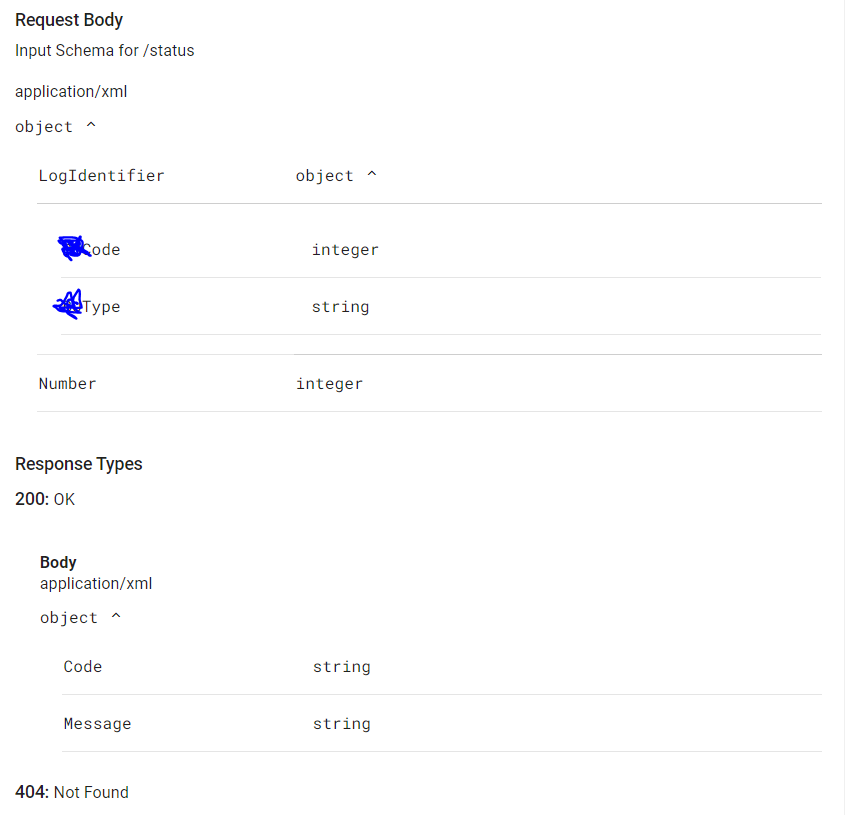

如云端点门户/应用程序门户所示

​

Answer 1

根据云运行的云端点 正式文件，我只能看到示例中使用了.json MimeType。

Cloud服务定义应该基于OpenAPI规范v2.0，也称为Swagger 2，它描述后端服务的表面和任何身份验证需求。

因此，在检查OpenAPI规范v2.0时，我无法在GitHub中看到MimeType科规范。但是，在昂首阔步的正式文件中，我可以看到xml媒体类型也是受支持的。

因此，我想请您检查云运行官方文档上的云终结点中提供的所有步骤。

在屏幕截图中，我可以看到404 NOT_FOUND错误，这个错误在云端点的故障排除部分中提到过，所以请查看它。
