无法找到部署为云运行服务的Spring应用程序

Question

我按照指南(https://cloud.google.com/debugger/docs/setup/java#cloud-run)设置了云运行服务的云调试器。一切看起来都应该正常。但是调试器UI告诉我它找不到任何应用程序。

​

​

然而，我做了文档中提到的所有事情。

• 源代码在源代码库中
• 基于master push的云构建触发器
• 我下载cdbg-java-agent.so
• 我使用-agentpath选项运行java应用程序。
• 云运行服务正在通过cloudbuild.yaml部署。
• 云运行服务健康启动并正常工作。

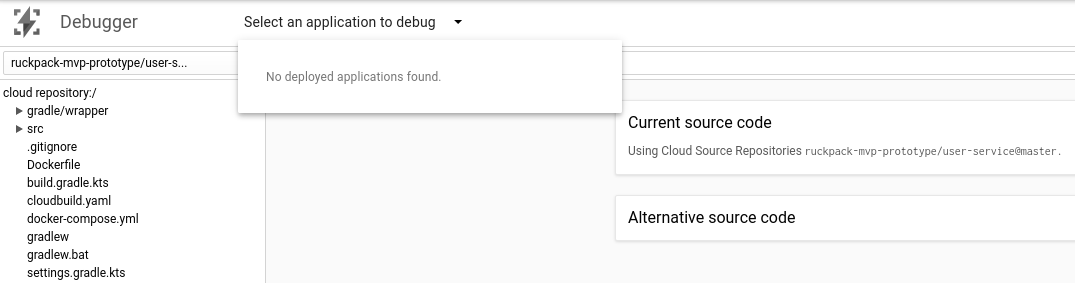

但是，正如您在屏幕截图中看到的那样，在成功部署之后找不到我的应用程序。

下面是我的配置的一些细节：

• 弹簧启动v2.4.2
• 科特林1.4.21

这是我的Dockerfile

FROM gradle:6.7.0-jdk14 as build
USER root
WORKDIR /dist
ADD . /dist
RUN gradle assemble

FROM alpine as agent
USER root
WORKDIR /agent
RUN wget -qO- https://storage.googleapis.com/cloud-debugger/compute-java/debian-wheezy/cdbg_java_agent_gce.tar.gz | tar xvz

FROM openjdk:14-slim
WORKDIR /app
COPY --from=agent /agent/cdbg_java_agent.so agent.so
COPY --from=build /dist/build/libs/user-service.jar app.jar
EXPOSE 8080
CMD ["java", "-agentpath:/app/agent.so", "-Dcom.google.cdbg.breakpoints.enable_canary=false", "-jar", "app.jar"]

下面是停靠程序的生成输出

Deploying '<unknown> Dockerfile: Dockerfile'...
Building image...
Preparing build context archive...
[==================================================>]1855/1855 files
Done

Sending build context to Docker daemon...
[==================================================>] 76.19MB
Done

Step 1/15 : FROM gradle:6.7.0-jdk14 as build
 ---> 5af4d25725b2
Step 2/15 : USER root
 ---> Using cache
 ---> c97e9145e3e1
Step 3/15 : WORKDIR /dist
 ---> Using cache
 ---> 468fff36a2e7
Step 4/15 : ADD . /dist
 ---> c435bd2ffde9
Step 5/15 : RUN gradle assemble
 ---> Running in 70f5c69b7dde

Welcome to Gradle 6.7!

Here are the highlights of this release:
 - File system watching is ready for production use
 - Declare the version of Java your build requires
 - Java 15 support

For more details see https://docs.gradle.org/6.7/release-notes.html

Starting a Gradle Daemon (subsequent builds will be faster)
> Task :compileKotlin
> Task :compileJava NO-SOURCE
> Task :processResources
> Task :classes
> Task :bootJarMainClassName
> Task :bootJar
> Task :inspectClassesForKotlinIC
> Task :jar SKIPPED
> Task :assemble

Deprecated Gradle features were used in this build, making it incompatible with Gradle 7.0.
Use '--warning-mode all' to show the individual deprecation warnings.
See https://docs.gradle.org/6.7/userguide/command_line_interface.html#sec:command_line_warnings

BUILD SUCCESSFUL in 1m 48s
5 actionable tasks: 5 executed
Removing intermediate container 70f5c69b7dde
 ---> 5bbd9485f873

Step 6/15 : FROM alpine as agent
 ---> 28f6e2705743
Step 7/15 : USER root
 ---> Using cache
 ---> 4a0572e8ff4a
Step 8/15 : WORKDIR /agent
 ---> Using cache
 ---> 0374735af05d
Step 9/15 : RUN wget -qO- https://storage.googleapis.com/cloud-debugger/compute-java/debian-wheezy/cdbg_java_agent_gce.tar.gz | tar xvz
 ---> Using cache
 ---> ef141a7d5acc

Step 10/15 : FROM openjdk:14-slim
 ---> 38fca30874ab
Step 11/15 : WORKDIR /app
 ---> Using cache
 ---> 4dd576d38d65
Step 12/15 : COPY --from=agent /agent/cdbg_java_agent.so agent.so
 ---> Using cache
 ---> ff5fc93d2d5e
Step 13/15 : COPY --from=build /dist/build/libs/user-service.jar app.jar
 ---> 4b009124345f
Step 14/15 : EXPOSE 8080
 ---> Running in 99f71fb86534
Removing intermediate container 99f71fb86534
 ---> 38fcd9d00999
Step 15/15 : CMD ["java", "-agentpath:/app/agent.so", "-Dcom.google.cdbg.breakpoints.enable_canary=false", "-jar", "app.jar"]
 ---> Running in 309f35aed48f
Removing intermediate container 309f35aed48f
 ---> 43757d33b2ee

Successfully built 43757d33b2ee
Existing container found: 94d3fab4505461e8e694b61909ba1f7d827d8f7078b4dd8d1d36d4c4e0a0ac08, removing...
Creating container...
Container Id: b99675b5f6c00a0e5bec76999db04abf92eab29d257ee887bcea123a02789850
Container name: '/quirky_stonebraker'
Attaching to container '/quirky_stonebraker'...
Starting container '/quirky_stonebraker'
'<unknown> Dockerfile: Dockerfile' has been deployed successfully.

正如前面提到的部署云运行服务一样，容器运行良好。所以我想不出该怎么做才能做到这一点。我希望这里有人能帮我

我还添加了我的cloudbuild.yaml，以防与此相关

steps:
  - name: 'gradle:6.8.3-jdk11'
    entrypoint: 'gradle'
    args: [ 'check', '-x', 'test']
  - name: 'gradle:6.8.3-jdk11'
    entrypoint: 'gradle'
    args: [ 'test']
  - name: 'gradle:6.8.3-jdk11'
    entrypoint: 'gradle'
    args: [ 'integration-test']
  - name: 'gcr.io/cloud-builders/docker'
    args: [ 'build', '-t', 'eu.gcr.io/$PROJECT_ID/user-service:$BUILD_ID', '.' ]
  - name: 'gcr.io/cloud-builders/docker'
    args: [ 'push', 'eu.gcr.io/$PROJECT_ID/user-service:$BUILD_ID' ]
  - name: 'gcr.io/google.com/cloudsdktool/cloud-sdk'
    entrypoint: gcloud
    args:
      - 'alpha'
      - 'run'
      - 'deploy'
      - 'user-service'
      - '--image=eu.gcr.io/$PROJECT_ID/user-service:$BUILD_ID'
      - '--concurrency=10'
      - '--cpu=1'
      - '--memory=512Mi'
      - '--region=europe-west3'
      - '--max-instances=2'
      - '--platform=managed'
      - '--port=8080'
      - '--timeout=3000'
      - '--set-env-vars=SQL_CONNECTION=10.28.96.3, SQL_USER=test, SQL_PASSWORD=test'
      - '--set-env-vars=AUTH0_DOMAIN=prototype.eu.auth0.com, AUTH0_CLIENT_ID=123, AUTH0_CLIENT_SECRET=123'
      - '--set-env-vars=^#^SPRING_PROFILES_ACTIVE=prod'
      - '--allow-unauthenticated'
      - '--ingress=internal'
      - '--vpc-connector=cloud-run'
      - '--vpc-egress=private-ranges-only'
      - '--set-cloudsql-instances=$PROJECT_ID:europe-west1:prototype'

images:
  - 'eu.gcr.io/$PROJECT_ID/user-service:$BUILD_ID'
timeout: 3000s

Answer 1

如果您查看压缩代理文件中的内容，您会注意到其中有几个文件名为：

1. cdbg_java_agent.so
2. cdbg_java_agent_internals.jar
3. version.txt

您会遇到这个问题，因为您错过了将internals.jar文件复制到/app dir。共享对象文件有一个依赖项，这可以解释为什么指示用户为调试器创建一个单独的目录。

要在这种情况下修复它，请将丢失的文件添加到您的Dockerfile中，如下所示：

COPY --from=agent /agent/cdbg_java_agent.so agent.so
COPY --from=agent /agent/cdbg_java_agent_internals.jar cdbg_java_agent_internals.jar
COPY --from=build /dist/build/libs/user-service.jar app.jar

那就等大约吧。~5分钟后，你的服务就会出现在调试器上。注意，源代码不会出现自动，除非它位于Git上。为此，你必须手动选择源代码。
