代理模型中不需要的空行

Question

关于Qt的模型/视图体系结构，我有一个问题。

我实现了一个继承自QAbstractItemModel的类QAbstractItemModel，使用自定义方法TestModel.addRevision(...)插入新行，TestModel.removeRevision(...)删除行。我的模型有一个层次结构，对于树中的不同层次，我有不同的方法add_X和remove_X。

当然，根据文档，在插入或删除这样的行之前，我会调用所需的函数(省略号处理基于数据源的信息检索，而且我认为没有必要显示)。

def add_revision(self, name:str):
    parent_index = ...
    new_row_in_parent = ...
    self.beginInsertRows(parent_index, new_row_in_parent, new_row_in_parent)
    ...
    self.endInsertRows()

我是一个接一个地插入行，并且注意到，通过使用self.beginInsertRows(parent, start, end)调用end = start +1来添加一个太多行的错误并不常见。

这些方法具有相当相似的结构。

我可以通过附加一个QTreeView来验证我的模型工作得很好。现在我还有一个update方法，它执行以下操作(在伪代码中)：

# models.py
class TestModel(QtCore.QAbstractItemMOdel):
    ...
    def __init__(self, parent=None):
        ...
        self.update()
    def update(self):
        # remove all items one by one using remove_revision in a foreach loop
        # scan the source for new (updated) revisions
        # add all revisions found one by one in a foreach loop

在模型上，此函数也按预期工作，一旦触发更新，视图也会自动更新。注意，我在初始化过程中也使用了update。

下一步，我实现了一个用于排序和筛选的代理模型。我的问题甚至是在没有设置任何过滤器的情况下，默认的QSortFilterProxyModel也是可重复的。

我把视图设置成这样：

...
view = QTreeView(self)
model = TestModel(self)
proxy_model = QSortFilterModel(self)
proxy_model.setSourceModel(model)
view.setModel(proxy_model)

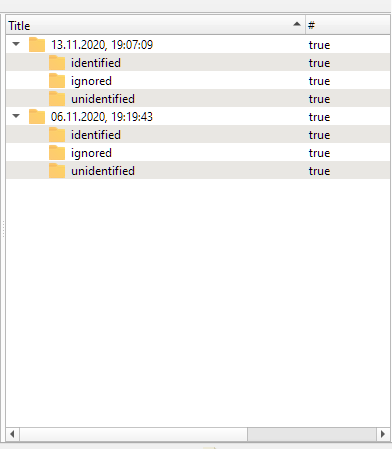

初始化后，视图按预期显示(见下面的屏幕截图)

​

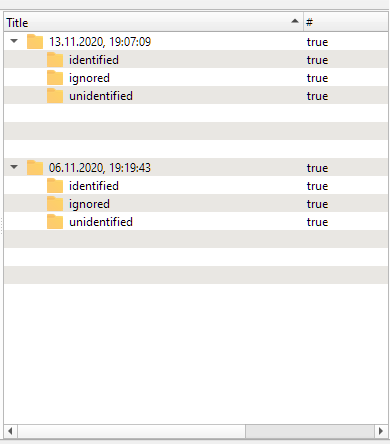

然后，在触发update之后，视图显示更改为

​

​

把这些讨厌的空行加进去。它们是不可选的，不像“好”行，我也不知道它们是从哪里来的。我尝试用一个QSortFilterProxyModel替换QIdentityProxyModel，然后多余的行就消失了，所以我非常确信空行只在QSortFilterProxModel中添加。但是，这是默认的实现，我还没有覆盖任何排序和筛选方法。

有趣的是，当我使用QIdentityProxyModel时，视图将显示调用update后处于折叠状态的所有项，而使用QSortFilterProxyModel时，项目将保持展开状态。

问题：

打电话给beginInserRows和endInsertRows似乎是不够的。我是否需要发出其他信号来通知代理模型更新？

或者，在源模型中完成所有删除之前，代理模型是否更新得太快了？

编辑1

根据请求，这是我的模型的完整update方法。我还包括正在使用的其他类和方法：

更新模型：

def update(self, skip: bool = True):

    revisions_to_remove = []
    files_to_inspect = []

    for (index, key) in enumerate(self.lookup_virtual_paths):
        #  first remove everything beneath file
        obj = self.lookup_virtual_paths.get(key, None)

        if obj is None:
            continue

        if isinstance(obj, Revision):
            revisions_to_remove.append(obj)

        if isinstance(obj, File):
            files_to_inspect.append(obj)

    #  first remove revisions
    for revision in revisions_to_remove:
        self.remove_revision(revision)
        pass

    file: File
    for file in files_to_inspect:
        # add revisions
        # construct the filesystem path to lookup
        scraper: ScraperVFSObject = file.parent().parent()
        if scraper is None:
            log.warning('tbd')
            return

        path_scraper = Path(scraper.fs_storage_path())
        if not path_scraper.exists():
            w = 'path does not exist "%s"' % (
                path_scraper.absolute().as_posix())
            log.warning(w, path_scraper)
            return

        path_file = path_scraper / Path(file.machine_name)
        if not path_file.exists():
            w = 'path does not exist "%s"' % (
                path_file.absolute().as_posix())
            log.warning(w)
            return

        for elem in path_file.glob('*'):
            if not elem.is_dir():
                continue

            if not len(elem.name) == len(ScraperModel.to_timeformat(datetime.now())):
                continue

            actual_file = elem / \
                Path('%s_%s.html' % (file.machine_name, elem.name))
            if not actual_file.exists():
                continue

            self.add_revision(
                ScraperModel.from_timeformat(elem.name),
                actual_file.absolute().as_posix(),
                file.virtual_path())

增加修订：

def add_revision(self, dt: datetime, file: str, to: str, skip=False):
    f = self.lookup_virtual_paths.get(to, None)
    if f is None:
        w = 'trying to add revision "%s" to virtual path "%s"' % (dt, to)
        log.warning(w)
        return

    r = Revision(dt, file, f, self)

    parent_index = r.parent().get_model_index()
    start = r.get_row_in_parent()

    self.beginInsertRows(parent_index, start, start)

    self.add_to_lookup(r)

    # announce that revision has been added
    self.endInsertRows()


    #  immediately add thumbnail groups to the revision,
    #  because a thumbnail-group can only exist in the revision
    known = ThumbnailGroupKnown(r, self)
    unknown = ThumbnailGroupUnknown(r, self)
    ignored = ThumbnailGroupIgnored(r, self)

    start = known.get_row_in_parent()
    end = ignored.get_row_in_parent()
    self.beginInsertRows(r.get_model_index(), start, end)
    self.add_to_lookup([known, unknown, ignored])
    self.endInsertRows()

删除修订：

def remove_revision(self, revision: "Revision"):
    #  first get ModelIndex for the revision
    parent_index = revision.parent().get_model_index()
    start = revision.get_row_in_parent()

    #  first remove all thumbnail groups
    tgs_to_remove = []
    for tg in revision.children():
        tgs_to_remove.append(tg)

    tg: ThumbnailGroup
    for tg in tgs_to_remove:
        self.beginRemoveRows(tg.parent().get_model_index(),
                             tg.get_row_in_parent(),
                             tg.get_row_in_parent())
        vpath = tg.virtual_path()
        tg.setParent(None)
        del self.lookup_virtual_paths[vpath]
        self.endRemoveRows()


    self.beginRemoveRows(parent_index, start, start)
    key = revision.virtual_path()

    # delete the revision from its parent
    revision.setParent(None)

    #  delete the lookup
    del self.lookup_virtual_paths[key]
    self.endRemoveRows()

编辑2

根据@Carlton的建议，我重新排序了remove_revision中的语句。我明白，这很容易成为一个问题(现在或以后)。现在的实施内容如下：

def remove_revision(self, revision: "Revision"):
    #  first remove all thumbnail groups
    tgs_to_remove = []
    for tg in revision.children():
        tgs_to_remove.append(tg)

    tg: ThumbnailGroup
    for tg in tgs_to_remove:
        self.beginRemoveRows(tg.parent().get_model_index(),
                             tg.get_row_in_parent(),
                             tg.get_row_in_parent())
        vpath = tg.virtual_path()
        tg.setParent(None)
        del self.lookup_virtual_paths[vpath]
        self.endRemoveRows()


    parent_index = revision.parent().get_model_index()
    start = revision.get_row_in_parent()
    self.beginRemoveRows(parent_index, start, start)
    key = revision.virtual_path()

    # delete the revision from its parent
    revision.setParent(None)

    #  delete the lookup
    del self.lookup_virtual_paths[key]
    self.endRemoveRows()

后来我计划直接传递索引，但是为了调试，我决定暂时存储它。然而，这种有问题的行为仍然没有改变。

编辑3

因此，根据@Carlton的建议，“幻影行”似乎是rowCount与实际数据不匹配的问题。

我重新安排了add_revision方法中的更多代码，以便为缩略图组提供以下内容：

 def add_revision(self, dt: datetime, file: str, to: str, skip=False):
    ...
    # no changes before here

    print('before (add_revision)', len(r.children()),
          self.rowCount(r.get_model_index()))

    self.beginInsertRows(r.get_model_index(), 0, 2)
    known = ThumbnailGroupKnown(r, self)
    unknown = ThumbnailGroupUnknown(r, self)
    ignored = ThumbnailGroupIgnored(r, self)
    self.add_to_lookup([known, unknown, ignored])
    self.endInsertRows()

    print('after (add_revision)', len(r.children()),
          self.rowCount(r.get_model_index()))

如您所见，我手动选择了start和end参数。通过这种修改，我可以将数据插入到beginInsertRows和endInsertRows以及“幻影行”之间。然而，我有一个新的问题:我通常无法事先知道新行将出现在哪些索引上。这似乎是建议的layoutAboutToBeChanged信号的一个很好的使用，但是我如何在pyside6中传递父列表呢？

编辑4: MWE

下面是一个最小的工作示例。您需要安装PySide6。米维和直接托管在这里的相同代码：

import sys
from PySide6 import (
    QtCore,
    QtWidgets
)


class Node(QtCore.QObject):
    def __init__(self, val: str, model, parent=None):
        super().__init__(parent)
        self.value = val
        self._model = model

    def child_count(self) -> int:
        return len(self.children())

    def get_child(self, row: int) -> "Node":
        if row < 0 or row >= self.child_count():
            return None
        else:
            return self.children()[row]

    def get_model_index(self) -> QtCore.QModelIndex:
        return self._model.index(self.get_row_in_parent(), 0, self.parent().get_model_index())

    def get_row_in_parent(self) -> int:
        p = self.parent()
        if p is not None:
            return p.children().index(self)

        return -1


class RootNode(Node):
    def get_row_in_parent(self) -> int:
        return -1

    def get_model_index(self) -> QtCore.QModelIndex:
        return QtCore.QModelIndex()


class Model(QtCore.QAbstractItemModel):
    def __init__(self, parent=None):
        super().__init__(parent)

        self.root_item = None

        # simulate the changing data
        self._data = [
            (1, 'child 1 of 1'),
            (1, 'child 2 of 1'),
            (1, 'child 3 of 1'),
        ]

        self._initialize_static_part()

        self.update()

    def _initialize_static_part(self):
        """This is the part of my model which never changes at runtime
        """
        self.root_item = RootNode('root', self, self)

        nodes_to_add = []

        for i in range(0, 5):
            new_node = Node(str(i), self)
            nodes_to_add.append(new_node)

        for node in nodes_to_add:
            self.add_node(node, self.root_item)

    def update(self):
        """This is the part which needs update during runtime
        """

        rows_to_add = []
        rows_to_delete = []

        self.layoutAboutToBeChanged.emit()

        for c in self.root_item.children():
            for d in c.children():
                rows_to_delete.append(d)

        for (parent_identifier, name) in self._data:
            node = Node(name, self)
            #  actually, the future parent is a different function, but for the MWE this suffices
            future_parent = self.root_item.get_child(parent_identifier)
            rows_to_add.append((future_parent, node))

        for node in rows_to_delete:
            self.remove_node(node)

        for (parent, node) in rows_to_add:
            self.add_node(node, parent)

        self.layoutChanged.emit()

    def add_node(self, node: Node, parent: Node):
        self.beginInsertRows(parent.get_model_index(),
                            parent.child_count(),
                            parent.child_count())
        node.setParent(parent)
        self.endInsertRows()

    def remove_node(self, node):
        parent_node = node.parent()
        row = parent_node.get_model_index().row()
        self.beginRemoveRows(parent_node.get_model_index(
        ), row, row)
        # print(parent_node.get_model_index().isValid())

        node.setParent(None)

        # print(node)
        # print(parent_node.children())

        self.endRemoveRows()
        # reimplement virtual method

    def columnCount(self, parent: QtCore.QModelIndex = QtCore.QModelIndex()) -> int:
        return 1

    # reimplement virtual method
    def rowCount(self, parent: QtCore.QModelIndex = QtCore.QModelIndex()) -> int:
        if not parent.isValid():
            parent_item = self.root_item
        else:
            parent_item = parent.internalPointer()

        return parent_item.child_count()

    # reimplement virtual method
    def index(self, row: int, column: int, parent: QtCore.QModelIndex = QtCore.QModelIndex()) -> QtCore.QModelIndex:
        if not self.hasIndex(row, column, parent):
            return QtCore.QModelIndex()

        if not parent.isValid():
            parent_item = self.root_item
        else:
            parent_item = parent.internalPointer()

        child_item: Node = parent_item.get_child(row)
        if child_item is not None:
            return self.createIndex(row, column, child_item)

        return QtCore.QModelIndex()

    # reimplement virtual method
    def parent(self, index: QtCore.QModelIndex) -> QtCore.QModelIndex:
        if not index.isValid():
            return QtCore.QModelIndex()

        child_item: Node = index.internalPointer()
        parent_item = child_item.parent()

        if parent_item is not None:
            return parent_item.get_model_index()

        return QtCore.QModelIndex()

    # reimplement virtual method
    def data(self, index: QtCore.QModelIndex, role: int = QtCore.Qt.DisplayRole) -> object:
        if not index.isValid():
            return None

        if role == QtCore.Qt.DisplayRole:
            item: Node = index.internalPointer()
            if item is not None:
                return item.value
            return 'whats this?'

        return None


class MyWindow(QtWidgets.QMainWindow):
    defaultsize = QtCore.QSize(780, 560)

    def __init__(self, app, parent=None):
        super().__init__(parent)
        self.app = app
        self.resize(self.defaultsize)
        main_layout = QtWidgets.QSplitter(QtCore.Qt.Vertical)
        self.panel = Panel(main_layout)
        self.setCentralWidget(main_layout)

        self.model = Model(self)

        proxy_model1 = QtCore.QSortFilterProxyModel(self)
        proxy_model1.setSourceModel(self.model)

        proxy_model2 = QtCore.QIdentityProxyModel(self)
        proxy_model2.setSourceModel(self.model)

        view1 = QtWidgets.QTreeView(self.panel)
        view1.setAlternatingRowColors(True)
        view1.setModel(proxy_model1)
        view1.expandAll()

        view2 = QtWidgets.QTreeView(self.panel)
        view2.setAlternatingRowColors(True)
        view2.setModel(proxy_model2)
        view2.expandAll()

        self.panel.addWidget(view1)
        self.panel.addWidget(view2)

        # we simulate a change, which would usually be triggered manually
        def manual_change_1():
            self.model._data = [
                (1, 'child 2 of 1'),
                (1, 'child 3 of 1'),
            ]
            self.model.update()

        QtCore.QTimer.singleShot(2000, manual_change_1)


class App(QtWidgets.QApplication):
    def __init__(self):
        super().__init__()
        self.window = MyWindow(self)

    def run(self):
        self.window.show()
        result = self.exec_()
        self.exit()


class Panel(QtWidgets.QSplitter):
    pass


if __name__ == '__main__':
    app = App()
    app.startTimer(1000)

    sys.exit(app.run())

Answer 1

虽然有点晚，但我在QT5.X上遇到了同样的问题，并注意到我需要手动连接对行插入/删除信号的无效调用。

// cpp
connect(base, &SomeBaseModel::rowsInserted, proxy, &MyProxyModel::invalidate);
connect(base, &SomeBaseModel::rowsRemoved, proxy, &MyProxyModel::invalidate);

# python
base.rowsInserted.connect(proxy.invalidate)
base.rowsRemoved.connect(proxy.invalidate)

之后，代理和基正确地对齐。我假设对::rowsMoved信号也可以使用同样的方法，但在我的具体情况下不需要这样做。

我选择这种方法而不是layoutChanged方法，以避免对大型、复杂的模型数据进行过度计算。
