如何使用v1beta3 API向发送PDF文档？

Question

我已经成功地发送了一个PDF文件存储在GCS到文件AI v1beta2 API。但是在v1beta3 API中，不再支持文件方法。它要求我在JSON中发送内容。下面是我下面的文档：https://cloud.google.com/document-ai/docs/form-parser#v1beta3

一些问题：

1. 如果我必须对从GET请求返回的PDF内容做些什么呢？PDF内容似乎在一个base64字符串中，这正是API所需要的。
2. 查看API请求，您发现有什么不正确的地方吗？

REQUEST INFORMATION
ID: N/A
Method: POST
URL/Path: https://us-documentai.googleapis.com/v1beta3/projects/38072577434/locations/us/processors/cd8a06d0cd3cb045:process
Headers: Content-Type: application/json, Accept: application/json
Authorization: :censored:6:c2dc31949c: :censored:179:27504afa53:
Params: N/A

Data:
{"document":{"mimeType":"application/pdf","content":["%PDF-1.4\n1 0 obj\n<<\n/Title (��\u0000C\u0000r\u0000y\u0000s\u0000t\u0000a\u0000l\u0000 \u0000R\u0000e\u0000p\u0000o\u0000r\u0000t\u0000 \u0000V\u0000i\u0000e\u0000w\u0000e\u0000r)\n/Creator (��\u0000w\u0000k\u0000h\u0000t\u0000m\u0000l\u0000t\u0000o\u0000p\u0000d\u0000f\u0000 \u00000\u0000.\u00001\u00002\u0000.\u00005)\n/Producer (��\u0000Q\u0000t\u0000 \u00004\u0000.\u00008\u0000.\u00007)\n/CreationDate (D:20201219164504Z)\n>>\nendobj\n3 0 obj\n<<\n/Type /ExtGState\n/SA true\n/SM 0.02\n/ca 1.0\n/CA 1.0\n/AIS false\n/SMask /None>>\nendobj\n4 0 obj\n[/Pattern /DeviceRGB]\nendobj\n8 0 obj\n<<\n/Type /Annot\n/Subtype /Link\n/Rect [3.75000000  339.500000  102.750000  345.500000 ]\n/Border [0 0 0]\n/A <<\n/Type /Action\n/S /URI\n/URI (http://www.schooldude.com/)\n>>\n>>\nendobj\n9 0 obj\n<<\n/Type /Catalog\n/Pages 2 0 R\n>>\nendobj\n5 0 obj\n<<\n/Type /Page\n/Parent 2 0 R\n/Contents 10 0 R\n/Resources 12 0 R\n/Annots 13 0 R\n/MediaBox [0 0 595 842]\n>>\nendobj\n12 0 obj\n<<\n/ColorSpace <<\n/PCSp 4 0 R\n/CSp /DeviceRGB\n/CSpg /DeviceGray\n>>\n/ExtGState <<\n/GSa 3 0 R\n>>\n/Pattern <<\n>>\n/Font <<\n/F6 6 0 R\n/F7 7 0 R\n>>\n/XObject <<\n>>\n>>\nendobj\n13 0 obj\n[ 8 0 R ]\nendobj\n10 0 obj\n<<\n/Length 11 0 R\n/Filter /FlateDecode\n>>\nstream\nx��]M�ܸ\u0011����9���o\u0012\b\u0002x>6@\u000e\u0001\f\u001b�!�!�f\u0013,֋8{��\u000fI}t���\u001eq\u001e=�x�X���*=U�*V\u0015)��\u001f?����oͻ���n>�?\u001f>\u001eڣ3m�_���]~�l>9|m�\u001e>\u001c>Ŀ������\u000b꘾)l����_���h�\u0012.~�NM_���/�k~�\u0002\u0007H\"����w\u001d�x�=�����Jex��#��#�x�nU�\u001c~J\b�j�||�s��\u001b��)��s�׿�\u000f<\u0003�}�\u001c���û\u001f�M���O\u0011sV\\��S�z'T�����I\u0015h>�|x��AQ\u0015'�9J\u0019Z�\u001a���\u0007����C8*i������σ<�������r���rF��T�\u0003�8r��|9����7����,od�e���Y�}�gce��a�}�@'�\u0002#B�(M�g��J|�-���d\u001f��3v1�x��]4����E��d�\tc�\u0013�W���\\�\u001a�7w։:���\u000e��Vh�Ą1ZJx���dި���/�~��d�B�8x�\u00030�����|\u001f9TrI�\r�E}tM�\u0015�\u00006J�䉐\u0004�g\u0002o�BB6w��\n .�\u001e��5\u0018��[\u001a�\u0014;�\u0002%�s�D��\f y�c�ډ�Xe���P&+V�L�$f�sEF��\u0018;�ۉ��nkFO�*�,{\u0014V�Q3I܃��)b%S��]���>��ZDɍ�;!@\u000e��\u0018�M�e@\u0016�e���\u001b�w€\u001c��1@Iz��\"�\f\u0018Q�\u0018��n\u0006\u0001�j�\u0002:\u0016�d\u0006d�\\\u0006�(y\f���\u0001���\f�|�[@��[Aw�b��\\�)�xϚ*�f����P�(�\u0012}#\u0015��#\u0015���0r�ȕ\u0018\u0011Z�G��-Y����\\��[�c��\u0018��q1b$�E��h�`�\\\f�������,1�9\u0004�\u0016ۖ�ň��E�D�(���T�p��0r�ȕ\u0018\u0011\u001a6\u0017�es1a$k�*1�$ag:*�3����E�D�hz�������\\�]]@m�'%�'\u0015��ep�I�\\������?�\u0002H�+����O\"��\u001fQ2\u0019���{�@�\u0002W��PǓ�m�\u001c\u0018Q\u00129���v<\u0017T�\u0003]Ӗʁ$�́\u0011%�\u0003�\u0011�\u0013\u000e�Np5\u000etS7T\u000e$�d\u000e�(�\u001c��A;�@�\u000f�Ɓ��M�z)v����V�>�[]BAH_ک�k;5}q'[��vagw���e���ݸ\u001e\by\u0012y�1=�v��z�\u001d�\u0001Y$�\u0001#J\u001e\u0003Rj�\u0013\u0006�̮\u001a\u0003�4�ʀ,�ˀ\u0011%�\u0001)��\t\u0003r^W�\u0001]S�ʀ,�ˀ\u0011%�\u0001�ͳ\u0013\u0006�.O5\u0006�#\u0000����/v�����w9*�P���?#lbbγ|΢O\u0012o������m�Er�?���?��� @���b@�kh��]�\u0001d���.^\u0004H��>\u0018Ѝ��\u0018��5����+�4}\u0005\u0016W�[/���x��!\u0013�k�\u0012F�\u0016�\u0012#Bk�Z�׺\u0012�h-[�\\��1����y�\u0011�Č�\t�$љ,�=�x��bj�\u0019[�w���O\"��\u001fQ��/T�\u000b\u0001Dj�Uc@Ԭf�EF�Ӣ��\u001cD�\u0012�l�~�D��hD��#��^��H]я��3��\u0019`�\fp�a��ɀ�%%�\u0001I$�\u0001#J\u001e\u0003T?<�\u0001J��\fp��\u001f&\"���\n�X�a$o�E�\u0018)�-�$��b�0r�ȕ\u0018\u0011�\u001f~M\u0012�\u000f�v\u0018�Z�J4�\u0011/M�\u0016\"�t�:\u00171�l\u001ckcN��,�=\u0013 [...]

1. 以下是我收到的错误：

{
  "error": {
    "code": 400,
    "message": "Invalid JSON payload received. Unknown name \"content\" at 'document': Proto field is not repeating, cannot start list.",
    "status": "INVALID_ARGUMENT",
    "details": [
      {
        "@type": "type.googleapis.com/google.rpc.BadRequest",
        "fieldViolations": [
          {
            "field": "document",
            "description": "Invalid JSON payload received. Unknown name \"content\" at 'document': Proto field is not repeating, cannot start list."
          }
        ]
      }
    ]
  }
}

2021-01-05添加代码以显示编码是如何完成的：

//
//Function to call each url in an array of urls
//
const requestAsync = function(url) {
    return z.request(url).then((response) => response.content)
}
//
//Create the array of urls to call synchronously
//
var urlArr = [];
const urls = {
  url: 'https://storage.googleapis.com/cloud-samples-data/documentai/loan_form.pdf',
  method: 'GET',
  headers: {
    'Accept': 'application/pdf',
    'raw': true
  }
}
urlArr.push(urls);
//
//Call the function for each item in the urlArr
//
return Promise.all(urlArr.map(requestAsync))
 .then(function(values){
    //
    // Convert the file data to a Buffer and base64 encode it.
    //
    var fileContent = Buffer.from(values[0]).toString('base64');

    const options = {
    url: 'https://us-documentai.googleapis.com/v1beta3/projects/38072577434/locations/us/processors/cd8a06d0cd3cb045:process',
    method: 'POST',
    headers: {
      'Content-Type': 'application/json',
      'Accept': 'application/json',
      'Authorization': `Bearer ${bundle.authData.access_token}`
    },
    body: {
        document: {
          mimeType: 'application/pdf',
          content: fileContent
        }
      }
  };
  return z.request(options)
    .then((response) => {
      response.throwForStatus();
      const result = response.json;
    // Get all of the document text as one big string
    const {text} = result;
    // Extract shards from the text field
    const getText = textAnchor => {
      // First shard in document doesn't have startIndex property
      const startIndex = textAnchor.textSegments[0].startIndex || 0;
      const endIndex = textAnchor.textSegments[0].endIndex;
      return text.substring(startIndex, endIndex);
    };
/*    // Process the output
    const [page1] = result.pages;
    const {formFields} = page1;
    var fieldList = "";
    for (const field of formFields) {
      var fieldName = getText(field.fieldName.textAnchor);
      var fieldValue = getText(field.fieldValue.textAnchor);
      fieldName = fieldName.replace(/\n/g,'');
      fieldValue = fieldValue.replace(/\n/g,'');
      fieldList += `"${fieldName}": "${fieldValue}"`;
    z.console.log(`\t(${fieldName}, ${fieldValue})`);
    }
*/
  //z.console.log(fieldList)
      return {getText};

    });
 });

Answer 1

您在请求中使用的“内容”似乎不在base64中。如果使用的是Linux，则可以使用base64命令。

base64 your_pdf_to_use.pdf > base64_of_your_pdf.txt

或者您可以使用任何base64转换器。我在网上看到了这个pdf到base64转换器，它也适用于我。

在检查base64输出时，不应该有任何可识别的文本/单词。我尝试使用documentAI快速启动中的示例文件。下面是一个base64输出的片段。

JVBERi0xLjUKJb/3ov4KMiAwIG9iago8PCAvTGluZWFyaXplZCAxIC9MIDI5MDUxIC9IIFsgNzky IDEzNCBdIC9PIDYgL0UgMjg3NzYgL04gMSAvVCAyODc3NSA+PgplbmRvYmoKICAgICAgICAgICAg ICAgICAgICAgICAgICAgICAgICAgICAgICAgICAgICAgICAgICAgICAgICAKMyAwIG9iago8PCAv VHlwZSAvWFJlZiAvTGVuZ3RoIDcwIC9GaWx0ZXIgL0ZsYXRlRGVjb2RlIC9EZWNvZGVQYXJtcyA8 PCAvQ29sdW1ucyA0IC9QcmVkaWN0b3IgMTIgPj4gL1cgWyAxIDIgMSBdIC9JbmRleCBbIDIgMzAg XSAvSW5mbyAxNyAwIFIgL1Jvb3QgNCAwIFIgL1NpemUgMzIgL1ByZXYgMjg3NzYgICAgICAgICAg ICAgICAgIC9JRCBbPGFiYjQ5MjJhYTY5N2NmZDJiODVjYjY5YjNhZGI4MDZmPjxhYmI0OTIyYWE2 OTdjZmQyYjg1Y2I2OWIzYWRiODA2Zj5dID4+CnN0cmVhbQp4nGNiZOBnYGJgOAkkmPiABKMRiNsG YjEACcHDQELhCEhWBkiICYIkpgEJ9ocgliGQEAErrmBgYpwqAdLLwEgxAQD5KwddCmVuZHN0cmVh ICAgICAgICAgICAgICAgICAgICAgICAgICAgICAgICAgICAgICAgICAgICAgICAgICAgICAgICAg....

我的request.json的一个片段：

{
  "document": {
    "mimeType": "application/pdf",
    "content": "JVBERi0xLjUKJb/3ov4KMiAwIG9iago8PCAvTGluZWFyaXplZCAxIC9MIDI5MDUxIC9IIFsgNzky
IDEzNCBdIC9PIDYgL0UgMjg3NzYgL04gMSAvVCAyODc3NSA+PgplbmRvYmoKICAgICAgICAgICAg
ICAgICAgICAgICAgICAgICAgICAgICAgICAgICAgICAgICAgICAgICAgICAgICAgICAgICAgICAg
ICAgICAgICAgICAgICAgICAgICAgICAgICAgICAgICAgICAgICAgICAgICAKMyAwIG9iago8PCAv
VHlwZSAvWFJlZiAvTGVuZ3RoIDcwIC9GaWx0ZXIgL0ZsYXRlRGVjb2RlIC9EZWNvZGVQYXJtcyA8
PCAvQ29sdW1ucyA0IC9QcmVkaWN0b3IgMTIgPj4gL1cgWyAxIDIgMSBdIC9JbmRleCBbIDIgMzAg
XSAvSW5mbyAxNyAwIFIgL1Jvb3QgNCAwIFIgL1NpemUgMzIgL1ByZXYgMjg3NzYgICAgICAgICAg
ICAgICAgIC9JRCBbPGFiYjQ5MjJhYTY5N2NmZDJiODVjYjY5YjNhZGI4MDZmPjxhYmI0OTIyYWE2
OTdjZmQyYjg1Y2I2OWIzYWRiODA2Zj5dID4+CnN0cmVhbQp4nGNiZOBnYGJgOAkkmPiABKMRiNsG...
}
}

卷曲请求：

curl -X POST -H "Authorization: Bearer "$(gcloud auth application-default print-access-token) -H "Content-Type: application/json; charset=utf-8" -d @request.json https://us-documentai.googleapis.com/v1beta3/projects/xxxxxxx/locations/us/processors/xxxxxx:process > result.json

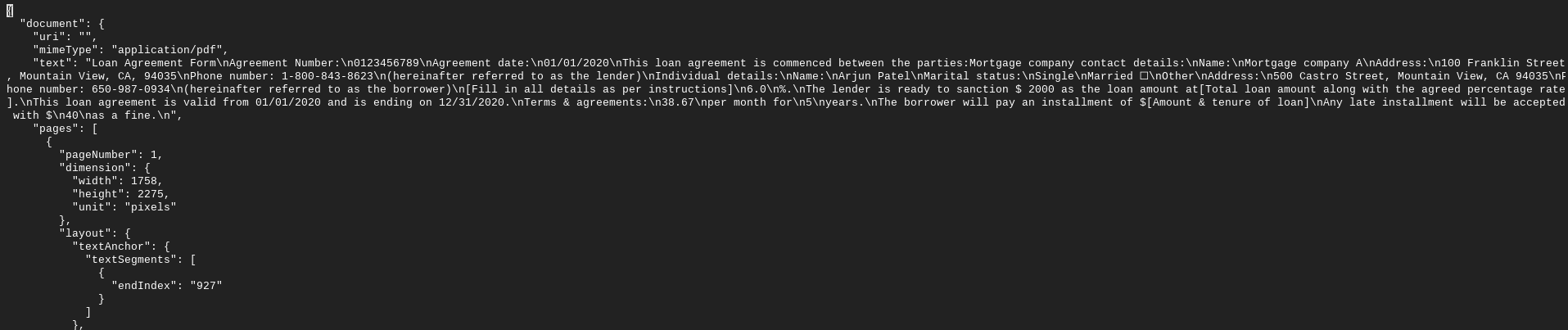

下面是使用端点表单解析器快速启动文件时输出的片段：

​

​

编辑: 20210106

我确实尝试过使用GET访问文件，并且使用base64中的当前请求干净地获得了urls值。但我找到了一个关于将文件转换为base64的帖子

根据请求添加encoding: null选项，这样您肯定会收到Buffer而不是String

添加encoding: null对我也有帮助。值得一试。

下面是base64的GET和encode代码片段：

    const request_img = require('request');
    const urls = {
          url: 'https://storage.googleapis.com/cloud-samples-data/documentai/loan_form.pdf',
          method: 'GET',
          encoding: null,
          headers: {
            'Accept': 'application/pdf',
            'raw': true
          }
        }
        var urlArr = [];
        urlArr.push(urls);

        request_img(urlArr[0], function(err, res, body) {
           var converted_to_base64 = Buffer.from(body).toString('base64');
           console.log(converted_to_base64);
                  });

这是输出的片段。我得到了编码到base64的文件：

JVBERi0xLjUKJb/3ov4KMiAwIG9iago8PCAvTGluZWFyaXplZCAxIC9MIDI5MDUxIC9IIFsgNzkyIDEzNCBdIC9PIDYgL0UgMjg3NzYgL04gMSAvVCAyODc3NSA+PgplbmRvYmoKICAgICAgICAgICAgICAgICAgICAgICAgICAgICAgICAgICAgICAgICAgICAgICAgICAgICAgICAgICAgICAgICAgICAgICAgICAgICAgICAgICAgICAgICAgICAgICAgICAgICAgICAgICAgICAgICAKMyAwIG9iago8PCAvVHlwZSAvWFJlZiAvTGVuZ3RoIDcwIC9GaWx0ZXIgL0ZsYXRlRGVjb2RlIC9EZWNvZGVQYXJtcyA8PCAvQ29sdW1ucyA0IC9QcmVkaWN0b3IgMTIgPj4gL1cgWyAxIDIgMSBdIC9JbmRleCBbIDIgMzAgXSAvSW5mbyAxNyAwIFIgL1Jvb3QgNCAwIFIgL1NpemUgMzIgL1ByZXYgMjg3NzY

顺便说一下，我的NodeJS版本是10.14.2

Answer 2

文档AI文档已经更新，包括了Node.js示例的Node.js编码转换。

https://cloud.google.com/document-ai/docs/process-documents-client-libraries#client-libraries-usage-nodejs

您还可以使用Node.js查看表单分析器的Codelab。对于每个处理器，大多数实际的处理请求都是相同的。

https://codelabs.developers.google.com/codelabs/docai-form-parser-node#7
