winforms面板上的位置不准确

Question

我一直在使用VisualStudio2019版本使用WinForms应用程序，并且在我的代码中遇到了坐标系统的准确性问题。我有一些图形元素(实际上是标签)，你可以点击一个，点击另一个地方，它会被移到那个地方，当我只是在应用程序的背景上这样做的时候，它会相当准确地工作。但是，当我在图形元素后面添加一个面板时，它不能正常工作，而是稍微向上移动标签。我在面板上画了几条线来说明这一点。下面是我的代码，用于当它在面板(称为键合器)内单击时：

private void Bonder_Click(object sender, MouseEventArgs e)
        {
            mousePosInBonder = e.Location;

            foreach (GraphicalElement el in elementsInBonder)
            {
                if (el.Dragging)
                {
                    while (el.Dragging)
                    {
                        if (!(mousePos.X > el.Location.X && mousePos.X < el.Location.X + el.Size.Width && mousePos.Y > el.Location.Y && mousePos.Y < el.Location.Y + el.Size.Height))
                        {
                            el.Location = mousePosInBonder;
                            el.Dragging = false;
                        }
                    }
                    break;
                }
            }
        }

这是我绘制线条的代码(并单击)：

private void GraphicalElement_Drag(object sender, MouseEventArgs e)
        {
            GraphicalElement el = (GraphicalElement)sender;

            if (e.Button == MouseButtons.Left)
            {
                if (el.Dragging)
                {
                    el.Dragging = false;
                }
                else if (!el.Dragging)
                {
                    el.Dragging = true;
                }
            }
            else if (e.Button == MouseButtons.Right)
            {
                if (el.Bonding)
                {
                    if (BONDING_ELEMENTS)
                    {
                        g = Bonder.CreateGraphics();
                        g.DrawLine(bonder, el.Location, LAST_BONDED_ELEMENT.Location);
                        BONDING_ELEMENTS = false;
                    }
                    else if (!BONDING_ELEMENTS)
                    {
                        LAST_BONDED_ELEMENT = el;
                        BONDING_ELEMENTS = true;
                    }
                }
            }
        }

这是在单击元素时调用的(因为标签不能被拖动)。这是显示元素的GraphicalElement类的代码。

public partial class GraphicalElement:Label
    {
        // Attributes
        private bool dragging = false;
        private bool bonding = false;
        private string info = "";

        public GraphicalElement() { }

        public GraphicalElement(Element el)
        {
            Tag = el.ToString();
            Text = el.ChemicalFormula;
            AutoSize = true;
            Location = new Point(100, 100);

            info = el.Info;

            if (el.Type == "alkali metal")
            {
                BackColor = Color.Crimson;
            }
            else if (el.Type == "alkaline earth")
            {
                BackColor = Color.DarkOrange;
            }
            else if (el.Type == "transition metal")
            {
                BackColor = Color.Yellow;
            }
            else if (el.Type == "basic metal")
            {
                BackColor = Color.Green;
            }
            else if (el.Type == "semimetal")
            {
                BackColor = Color.Cyan;
            }
            else if (el.Type == "nonmetal")
            {
                BackColor = Color.Blue;
            }
            else if (el.Type == "halogen")
            {
                BackColor = Color.Pink;
            }
            else if (el.Type == "noble gas")
            {
                BackColor = Color.DarkMagenta;
            }
            else if (el.Type == "lathanide")
            {
                BackColor = Color.HotPink;
            }
            else if (el.Type == "actinide")
            {
                BackColor = Color.Maroon;
            }
        }

        // Getters and setters
        public bool Dragging
        {
            get { return dragging; }
            set { dragging = value; }
        }
        public bool Bonding
        {
            get { return bonding; }
            set { bonding = value; }
        }
        public string Info
        {
            get { return info; }
            set { info = value; }
        }

        protected override void OnPaint(PaintEventArgs e)
        {
            base.OnPaint(e);
        }

    }

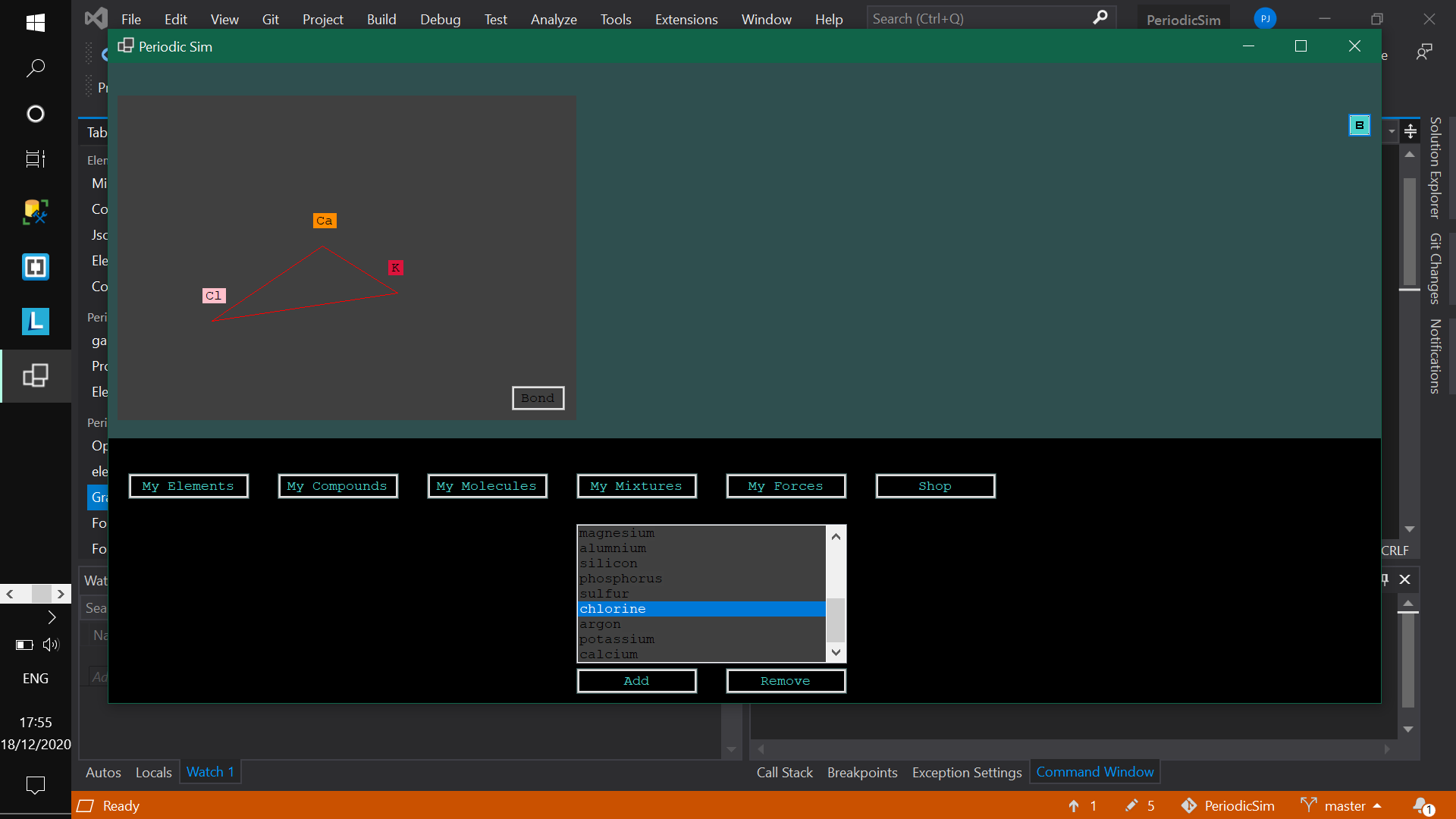

这就是它看起来的样子：

​

我该如何解决这个问题，因为它很误导人。

编辑--这是将元素添加到elementsInBonder的位置：

private void GraphicalElement_Bond(object sender, MouseEventArgs e)
        {
            GraphicalElement el = (GraphicalElement)sender;

            if (el.Bonding)
            {
                elementsInBonder.Remove(el);
                elementsOnScreen.Add(el);
                el.Location = new Point(1011, 43);
                el.BringToFront();
                el.Bonding = false;
            }
            else if (!el.Bonding && BONDER_ON)
            {
                elementsOnScreen.Remove(el);
                elementsInBonder.Add(el);
                el.Location = new Point(12, 43);
                el.BringToFront();
                el.Bonding = true;
            }
        }

这种情况发生在双击事件中。

我在一开始就是这样说的。List<GraphicalElement> elementsInBonder;。GraphicalElement不是Panel的子类，因为图形元素可以在两个列表之间跳过: elementsOnScreen，从而在键合面板中上下移动。

Answer 1

我主要是通过反复试验才找到答案的。面板稍微偏离左上角，所以我想知道GraphicalElements是否与面板的距离相同，在这个例子中，右边是12个像素，下面是43个像素。所以，我改变了代码来表示它。

对于Bonder_click()方法，我更改了mousePosInBonder，使其表示出一些像素，如下所示：

private void Bonder_Click(object sender, MouseEventArgs e)
        {
            mousePosInBonder = new Point(e.Location.X+12, e.Location.Y+43);

            foreach (GraphicalElement el in elementsInBonder)
            {
                if (el.Dragging)
                {
                    while (el.Dragging)
                    {
                        if (!(mousePos.X > el.Location.X && mousePos.X < el.Location.X + el.Size.Width && mousePos.Y > el.Location.Y && mousePos.Y < el.Location.Y + el.Size.Height))
                        {
                            el.Location = mousePosInBonder;
                            el.Dragging = false;
                        }
                    }
                    break;
                }
            }
        }
    }

我更改的行是mousePosInBonder = new Point(e.Location.X+12, e.Location.Y+43);，而以前是mousePosInBonder = e.Location;

在画线的时候，我做了一件类似的事情：

private void GraphicalElement_Drag(object sender, MouseEventArgs e)
        {
            GraphicalElement el = (GraphicalElement)sender;

            if (e.Button == MouseButtons.Left)
            {
                if (el.Dragging)
                {
                    el.Dragging = false;
                }
                else if (!el.Dragging)
                {
                    el.Dragging = true;
                }
            }
            else if (e.Button == MouseButtons.Right)
            {
                if (el.Bonding)
                {
                    if (BONDING_ELEMENTS)
                    {
                        g = Bonder.CreateGraphics();
                        g.DrawLine(convalentBonder, new Point(el.Location.X-12, el.Location.Y-43), new Point(LAST_BONDED_ELEMENT.Location.X-12, LAST_BONDED_ELEMENT.Location.Y-43));
                        BONDING_ELEMENTS = false;
                    }
                    else if (!BONDING_ELEMENTS)
                    {
                        LAST_BONDED_ELEMENT = el;
                        BONDING_ELEMENTS = true;
                    }
                }
            }
        }

在这方面，我更改的行是g.DrawLine(convalentBonder, new Point(el.Location.X-12, el.Location.Y-43), new Point(LAST_BONDED_ELEMENT.Location.X-12, LAST_BONDED_ELEMENT.Location.Y-43));。
