多个ICC分组杆图R

Question

我试图为同一数量变量的多个类内系数，在标准化前后对不同因素(“构造者”、“政变”.“音调”)的多个类内系数进行分组作图。下面是我的数据集的第5行：

ICC_intra_observ_3D <- read.csv2("~/Documents/ICC_intra_observ_3D_av_ap_H.csv")
ICC_intra_observ_3D[c(1:5),]
      Texture_Feature ICC_intra_observ_3D_av_H ICC_ap_H_constructeur ICC_ap_H_coup ICC_ap_H_detect ICC_ap_H_filter ICC_ap_H_kv ICC_ap_H_mAs ICC_ap_H_pitch
1  CONVENTIONAL_HUmin                    11.18                 22.26          11.3           13.86           22.94       11.74        18.84          14.26
2 CONVENTIONAL_HUmean                    91.16                 91.06         91.05           92.09           89.33       90.79         88.2          92.26
3  CONVENTIONAL_HUstd                    60.16                 62.09         60.34           62.26           63.64       60.22        61.94          59.96
4  CONVENTIONAL_HUmax                    76.36                 77.09         76.41           80.12           74.75       75.74        73.37          77.21
5   CONVENTIONAL_HUQ1                    88.81                 88.86          88.7           90.04           87.29       88.46        86.17          90.62

下面是一些转换，以便barplot函数可以处理方便的矩阵

rownames(ICC_intra_observ_3D)=ICC_intra_observ_3D$Texture_Feature
ICC_intra_observ_3D=ICC_intra_observ_3D[,-1]
ICC_intra_observ_3D=t(ICC_intra_observ_3D)

之后的结果是：

CONVENTIONAL_HUmin CONVENTIONAL_HUmean CONVENTIONAL_HUstd CONVENTIONAL_HUmax CONVENTIONAL_HUQ1 CONVENTIONAL_HUQ2 CONVENTIONAL_HUQ3
ICC_intra_observ_3D_av_H "11.18"            "91.16"             "60.16"            "76.36"            "88.81"           "89.91"           "91.1"
ICC_ap_H_constructeur    "22.26"            "91.06"             "62.09"            "77.09"            "88.86"           "89.89"           "91.04"
ICC_ap_H_coup            "11.3"             "91.05"             "60.34"            "76.41"            "88.7"            "89.84"           "91.1"
ICC_ap_H_detect          "13.86"            "92.09"             "62.26"            "80.12"            "90.04"           "90.96"           "91.47"
ICC_ap_H_filter          "22.94"            "89.33"             "63.64"            "74.75"            "87.29"           "88.12"           "89.07"
ICC_ap_H_kv              "11.74"            "90.79"             "60.22"            "75.74"            "88.46"           "89.62"           "90.79"
ICC_ap_H_mAs             "18.84"            "88.2"              "61.94"            "73.37"            "86.17"           "87.03"           "87.92"
ICC_ap_H_pitch           "14.26"            "92.26"             "59.96"            "77.21"            "90.62"           "91.26"           "91.88"

但在跑步时：

barplot(ICC_intra_observ_3D,beside=T)

错误消息:错误在-0.01 *高度:二进制运算符的非数值参数

知道默认的参数，beside = F，我有一个堆叠的条形图，似乎运行正常，但我需要比较不同的国际商会，所以把它们放在旁边更合适。

请注意，我没有尝试使用ggplot()，因为重新组织输入数据集似乎更加困难，但任何建议都是受欢迎的。

谢谢你的帮忙

Answer 1

我建议采用一种tidyverse方法。将最终数据作为df使用，下面的代码如下：

首先是数据：

#Data
df <- structure(list(Var = c("ICC_intra_observ_3D_av_H", "ICC_ap_H_constructeur",
"ICC_ap_H_coup", "ICC_ap_H_detect", "ICC_ap_H_filter", "ICC_ap_H_kv",
"ICC_ap_H_mAs", "ICC_ap_H_pitch"), CONVENTIONAL_HUmin = c(11.18,
22.26, 11.3, 13.86, 22.94, 11.74, 18.84, 14.26), CONVENTIONAL_HUmean = c(91.16,
91.06, 91.05, 92.09, 89.33, 90.79, 88.2, 92.26), CONVENTIONAL_HUstd = c(60.16,
62.09, 60.34, 62.26, 63.64, 60.22, 61.94, 59.96), CONVENTIONAL_HUmax = c(76.36,
77.09, 76.41, 80.12, 74.75, 75.74, 73.37, 77.21), CONVENTIONAL_HUQ1 = c(88.81,
88.86, 88.7, 90.04, 87.29, 88.46, 86.17, 90.62), CONVENTIONAL_HUQ2 = c(89.91,
89.89, 89.84, 90.96, 88.12, 89.62, 87.03, 91.26), CONVENTIONAL_HUQ3 = c(91.1,
91.04, 91.1, 91.47, 89.07, 90.79, 87.92, 91.88)), class = "data.frame", row.names = c(NA,
-8L))

现在是密码。

为了使ggplot2函数正常工作，最好是重新调整变量。您可以将所有列从pivot_longer从tidyverse移到行中，然后用geom_bar()绘制绘图图。

df %>% pivot_longer(cols = -Var) %>%
  ggplot(aes(x=Var,y=value,fill=name))+
  geom_bar(stat = 'identity',position = position_dodge2(width = 0.9,preserve = 'single'))

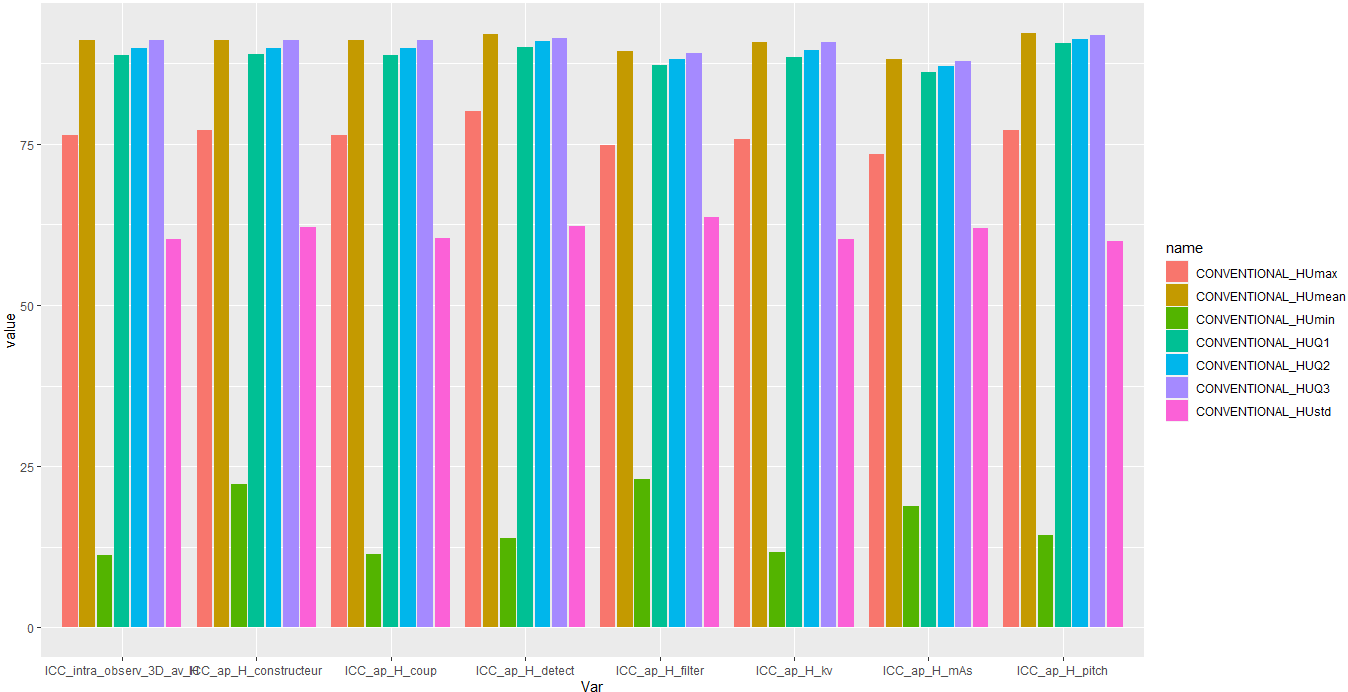

输出：

​

​

在x轴中使用第一个变量，另一种方法是将所有度量都移动到x轴：

df %>% pivot_longer(cols = -Var) %>%
  ggplot(aes(x=name,y=value,fill=Var))+
  geom_bar(stat = 'identity',position = position_dodge2(width = 0.9,preserve = 'single'))

输出：

​

​

更新:为了按照所需的顺序排列Var，请使用以下代码：

#Order x-axis
df %>% pivot_longer(cols = -Var) %>%
  mutate(Var=factor(Var,levels = unique(u1$Var),ordered=T)) %>%
  ggplot(aes(x=Var,y=value,fill=name))+
  geom_bar(stat = 'identity',position = position_dodge2(width = 0.9,preserve = 'single'))

输出：

​

​
