VBA Shapes.AddTextbox自定义布局

Question

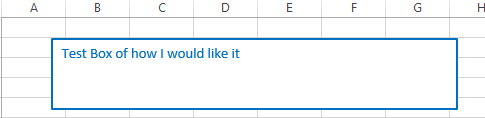

我希望在Excel中使用VBA的文本框如下所示：

​

​

RGB(0,112,192) (蓝色)中的测试框中的

• 文本-- RGB中“1/2”行的文本框的
• 形状轮廓。

我已经创建了这段代码，但我不知道如何编程。

Sub TextBox()

Set myDocument = Worksheets(1)
myDocument.Shapes.AddTextBox(msoTextOrientationHorizontal, _
    100, 100, 200, 50) _
    .TextFrame.Characters.Text = "Test Box of how I would like it"

End Sub

有人能帮我吗？

Answer 1

如果您在设置线宽、线条颜色和文本颜色时打开宏记录器，您将找到用于此操作的代码。

With Selection.ShapeRange.Line
    .Weight = 1.5
    .Visible = msoTrue
    .ForeColor.RGB = RGB(0, 112, 192)
    .Transparency = 0
End With
With Selection.ShapeRange(1).TextFrame2.TextRange.Characters(1, 11).Font.Fill
    .Visible = msoTrue
    .ForeColor.RGB = RGB(0, 112, 192)
    .Transparency = 0
    .Solid
End With

Answer 2

在定义变量和编码之后，它有助于编写代码。

Sub TextBox()
    Dim myDocument As Worksheet
    Dim Shp As Shape
    Dim s As String

    Set myDocument = Worksheets(1)
    Set Shp = myDocument.Shapes.AddTextbox(msoTextOrientationHorizontal, 100, 100, 200, 50)
    With Shp
        With .TextFrame
            s = "Test Box of how I would like it"
            .Characters.Text = s
            .Characters(1, Len(s)).Font.Color = RGB(0, 112, 193)
        End With
        .Line.Weight = 1.5
        .Line.ForeColor.RGB = RGB(0, 112, 193)
    End With

End Sub
