香草Javascript -使用左上角值将节点向上或向下移动

Question

我正在尝试使用Vanilla、CSS和HTML构建一个导航用户界面，并被困在需要上下移动div元素并根据它们的cureent状态active或inactive更改其顶部和右边位置的位置上。

​

const diamond = document.getElementById('main-diamond'),
    pointerArrowTop = document.getElementById('pointer-arrow-top'),
    pointerArrowRight = document.getElementById('pointer-arrow-right'),
    pointerArrowBottom = document.getElementById('pointer-arrow-bottom'),
    pointerArrowLeft = document.getElementById('pointer-arrow-left'),
    mouseoverEvent = new Event('mouseover'),
    radius = 200, // The radius of the semi circle
    nodes = document.querySelectorAll('[data-first]'), // number of nodes in the code
    nodeContainerFirst = document.querySelector('[data-node-level="first"]'), // Get the container of the first level nodes
    nodeWidth = nodes[0].clientWidth, // Defined width of the node
    nodeHeight = nodes[0].clientHeight, // Defined width of the node
    angle = Math.round( 180 / (nodes.length - 1)); // Distance of the gap between nodes;

pointerArrowTop.addEventListener('mouseover', function(){
    diamond.style["boxShadow"] = "-2px -2px 4px rgba(255,255,255,0.4)";
});

pointerArrowTop.addEventListener('mouseout', function(){
    diamond.style["boxShadow"] = null;
    diamond.style.transform = "rotate(45deg)";
});

pointerArrowTop.addEventListener('click', function(e){
    let activeNode = document.querySelector('[data-state="active"]'),
        inactiveNodes = document.querySelectorAll('[data-state="inactive"]'),
        siblingNode = activeNode.nextElementSibling,
        previousSiblingNode = activeNode.previousElementSibling;

    activeNode.setAttribute('style', 'top: -180px; left: -40px');
    activeNode.dataset.state = 'inactive';
    siblingNode.setAttribute('style', 'top: -180px; left: 0px;');
    siblingNode.dataset.state = 'active';

    inactiveNodes.forEach(function(node, index){
        if(previousSiblingNode){
            if(index != 2 && index != 0 && index != 1){
                let leftVal = Math.round(index * -40);
                node.setAttribute('style', 'left: '+leftVal+'px; top: -'+((index+1)+180 *(index))+'px;');
            }
        }else{
            if(index != 0){
                let leftVal = Math.round(index * -40);
                node.setAttribute('style', 'left: '+leftVal+'px; top: -'+((index+1)+180*(index))+'px;');
            }
        }
    });
});

pointerArrowRight.addEventListener('mouseover', function(){
    diamond.style["boxShadow"] = "2px -2px 4px rgba(255,255,255,0.4)";
});

pointerArrowRight.addEventListener('mouseout', function(){
    diamond.style["boxShadow"] = null;
});

pointerArrowBottom.addEventListener('mouseover', function(){
    diamond.style["boxShadow"] = "2px 2px 4px rgba(255,255,255,0.4)";
});

pointerArrowBottom.addEventListener('mouseout', function(){
    diamond.style["boxShadow"] = null;
});

pointerArrowLeft.addEventListener('mouseover', function(){
    diamond.style["boxShadow"] = "-2px 2px 4px rgba(255,255,255,0.4)";
});

pointerArrowLeft.addEventListener('mouseout', function(){
    diamond.style["boxShadow"] = null;
});

document.addEventListener("DOMContentLoaded", function() {
    nodes.forEach(function(node, index) {
        let leftVal = Math.round(index * -40);
        node.setAttribute('style', 'left: '+leftVal+'px; top: -'+(index+1)+'px;');
    });
});

@import url('https://fonts.googleapis.com/css2?family=Montserrat:ital,wght@0,100;0,200;0,300;0,400;0,500;0,600;0,700;0,800;0,900;1,100;1,200;1,300;1,400;1,500;1,600;1,700;1,800;1,900&display=swap');

body {
    height: 100vh;
    width: 100vw;
    margin: 0;
    padding: 0;
    font-family: 'Montserrat', sans-serif;
}

body.dark-mode {
    background: linear-gradient(to bottom right,#15071a,#1a0f29,#1c2b3f,#064a5b) #f7f7f7;
    color: #f7f7f7;

}

.d-flex-center {
    display: flex;
    align-items: center;
}

.centerPointMarker {
    position: absolute;
    width: 10px;
    height: 10px;
    background-color: aqua;
    border-radius: 50%;
}

.app-container {
    width: calc(100% - 34px);
	max-width: 960px;
	height: 100vh;
	margin: 0px 17px;
}

header {
    height: 100px;
    width: 100%;
    display: block;
    margin-bottom: 20px;
}

.p-t-180 {
    padding-top: 180px;
}

main {
    display: block;
    overflow-y: hidden;
    max-height: 700px;
}

.nav-container {
	width: 114px;
	height: 180px;
	display: flex;
	align-items: center;
}

    .nav-container  #main-diamond {
        width: 83px;
        height: 83px;
        border: 1px solid #fff;
        border-radius: 12px;
        background-color: #000;
        transform: rotate(45deg);
        position: relative;
        margin-left: 14px;
        margin-top: 16px;
        margin-bottom: 16px;
        transition: all 300ms ease-in-out;
        shape-outside: circle();
    }

        .nav-container  #main-diamond .controls-container {
            position: relative;
            transform: rotate(-45deg);
            width: 147px;
            height: 147px;
            left: -22px;
            top: -22px;
        }

            .nav-container  #main-diamond .controls-container .pointer-arrow {
                font-size: 8px;
                position: absolute;
                color: #6A696D;
                transition: all 300ms ease-in-out;
            }

                .nav-container  #main-diamond .controls-container .pointer-arrow.top {
                    left: 69px;
                    top: 13px;
                }

                    .nav-container  #main-diamond .controls-container .pointer-arrow.top:hover {
                        cursor: pointer;
                        transform: scale(1.5);
                        color: #FFF;
                    }

                    .nav-container  #main-diamond .controls-container .pointer-arrow.top:hover ~ .center-icon {
                        border-top-color: #FFF;
                    }

                .nav-container  #main-diamond .controls-container .pointer-arrow.right {
                    transform: rotate(90deg);
                    right: 30px;
                    top: 53px;
                }

                    .nav-container  #main-diamond .controls-container .pointer-arrow.right:hover {
                        cursor: pointer;
                        transform: scale(1.5) rotate(90deg);
                        color: #FFF;
                    }

                    .nav-container  #main-diamond .controls-container .pointer-arrow.right:hover ~ .center-icon {
                        border-right-color: #FFF;
                    }

                .nav-container  #main-diamond .controls-container .pointer-arrow.bottom {
                    transform: rotate(180deg);
                    left: 69px;
                    bottom: 45px;
                }

                    .nav-container  #main-diamond .controls-container .pointer-arrow.bottom:hover {
                        cursor: pointer;
                        transform: scale(1.5) rotate(180deg);
                        color: #FFF;
                    }


                    .nav-container  #main-diamond .controls-container .pointer-arrow.bottom:hover ~ .center-icon {
                        border-bottom-color: #FFF;
                    }


                .nav-container  #main-diamond .controls-container .pointer-arrow.left {
                    transform: rotate(-90deg);
                    left: 30px;
                    top: 53px;
                }

                    .nav-container  #main-diamond .controls-container .pointer-arrow.left:hover {
                        cursor: pointer;
                        transform: scale(1.5) rotate(-90deg);
                        color: #FFF;
                    }

                    .nav-container  #main-diamond .controls-container .pointer-arrow.left:hover ~ .center-icon {
                        border-left-color: #FFF;
                    }

                .nav-container  #main-diamond .controls-container .center-icon {
                    width: 59px;
                    height: 59px;
                    display: inline-flex;
                    align-items: center;
                    justify-content: center;
                    border: 1px solid #6A696D;
                    border-radius: 50%;
                    position: absolute;
                    left: 44px;
                    top: 28px;
                    transition: all 300ms ease-in-out;
                }

                .nav-container  #main-diamond .controls-container .center-icon i {
            font-size: 26px;
            position: relative;
            top: 1px;
        }

.node-container {
    display: block;
    position: relative;
    width: 342px;
    height: 181px;
    opacity: 1;
    padding: 20px;
    border-top: 1px solid #fff;
    border-bottom: 1px solid #fff;
}
    .node-container .node-inner-container {
        position: relative;
        height: 100%;
    }

        .node-container .node-inner-container svg.level-diamond {
            position: relative;
            display: inline-block;
            width: 40px;
            height: 40px;
            float: left;
        }

        .node-container .node-inner-container .node-text {
            width: calc(100% - 50px);
            margin-left: 50px;
        }

    span.node-level-counter {
        position: absolute;
        bottom: -5px;
        right: 0px;
        font-weight: 200;
        font-size: 12px;
    }

svg.level-diamond rect.first-level {
    fill: #F6AE3C;
}
    svg.level-diamond text.first-level {
        font-size: 20px;
        font-weight: 600;
    }

svg.level-diamond rect.second-level {
    fill: #69C3C6;
}
    svg.level-diamond text.second-level {
        font-size: 18px;
        font-weight: 500;
    }

svg.level-diamond rect.third-level {
    fill: #6DBD50;
}
    svg.level-diamond text.third-level {
        font-size: 16px;
        font-weight: 500;
    }

svg.level-diamond rect.fourth-level {
    fill: #E4087D;
}
    svg.level-diamond text.fourth-level {
        font-size: 14px;
        font-weight: 500;
    }

footer {
    height: 60px;
    width: 100%;
    display: block;
    margin-top: 20px;
}

.semicircle {
    position: absolute;
    width: 52px;
    height: 52px;
}

<script src="https://kit.fontawesome.com/a8d572acbe.js"></script>
<link href="https://stackpath.bootstrapcdn.com/bootstrap/4.4.1/css/bootstrap.min.css" rel="stylesheet"/>
<body class="dark-mode">
    <header></header>
    <main>
        <div class="container">
            <div class="row">
                <div class="col-2 p-t-180">
                    <div class="nav-container">
                        <div id="main-diamond" style="z-index: 200;">
                            <div class="controls-container">
                                <div class="pointer-arrow top" id="pointer-arrow-top"><i class="fas fa-triangle"></i></div>
                                <div class="pointer-arrow right" id="pointer-arrow-right"><i class="fas fa-triangle"></i></div>
                                <div class="pointer-arrow bottom" id="pointer-arrow-bottom"><i class="fas fa-triangle"></i></div>
                                <div class="pointer-arrow left" id="pointer-arrow-left"><i class="fas fa-triangle"></i></div>
                                <div class="center-icon">
                                    <i class="fad fa-fingerprint"></i>
                                </div>
                            </div>
                        </div>
                    </div>
                </div>
                <div class="col-4 pl-1 p-t-180">
                    <div class="node-container" data-first data-state="active" data-node-number="1">
                        <div class="node-inner-container clearfix">
                            <svg viewBox="0 0 50 50" class="level-diamond" data-level="first" data-name="first" id="level-first-1"><rect x="5.95" y="5.95" width="38.1" height="38.1" rx="4.69" transform="translate(-10.36 25) rotate(-45)" class="first-level"></rect><text x="50%" y="50%" dominant-baseline="middle" text-anchor="middle" fill="#fff" class="first-level">1</text></svg>
                            <div class="node-text">Lorem ipsum, dolor sit amet consectetur adipisicing elit. Minus totam, repudiandae dolore.</div>
                            <span class="node-level-counter">Pillar 1 of 6</span>
                        </div>
                    </div>
                    <div class="node-container" data-first data-state="inactive" data-node-number="2">
                        <div class="node-inner-container clearfix">
                            <svg viewBox="0 0 50 50" class="level-diamond" data-level="first" data-name="first" id="level-first-2"><rect x="5.95" y="5.95" width="38.1" height="38.1" rx="4.69" transform="translate(-10.36 25) rotate(-45)" class="first-level"></rect><text x="50%" y="50%" dominant-baseline="middle" text-anchor="middle" fill="#fff" class="first-level">2</text></svg>
                            <div class="node-text">Lorem ipsum, dolor sit amet consectetur adipisicing elit. Minus totam, repudiandae dolore.</div>
                            <span class="node-level-counter">Pillar 2 of 6</span>
                        </div>
                    </div>
                    <div class="node-container" data-first data-state="inactive" data-node-number="3">
                        <div class="node-inner-container clearfix">
                            <svg viewBox="0 0 50 50" class="level-diamond" data-level="first" data-name="first" id="level-first-3"><rect x="5.95" y="5.95" width="38.1" height="38.1" rx="4.69" transform="translate(-10.36 25) rotate(-45)" class="first-level"></rect><text x="50%" y="50%" dominant-baseline="middle" text-anchor="middle" fill="#fff" class="first-level">3</text></svg>
                            <div class="node-text">Lorem ipsum, dolor sit amet consectetur adipisicing elit. Minus totam, repudiandae dolore.</div>
                            <span class="node-level-counter">Pillar 3 of 6</span>
                        </div>
                    </div>
                    <div class="node-container" data-first data-state="inactive" data-node-number="4">
                        <div class="node-inner-container clearfix">
                            <svg viewBox="0 0 50 50" class="level-diamond" data-level="first" data-name="first" id="level-first-4"><rect x="5.95" y="5.95" width="38.1" height="38.1" rx="4.69" transform="translate(-10.36 25) rotate(-45)" class="first-level"></rect><text x="50%" y="50%" dominant-baseline="middle" text-anchor="middle" fill="#fff" class="first-level">4</text></svg>
                            <div class="node-text">Lorem ipsum, dolor sit amet consectetur adipisicing elit. Minus totam, repudiandae dolore.</div>
                            <span class="node-level-counter">Pillar 4 of 6</span>
                        </div>
                    </div>
                    <div class="node-container" data-first data-state="inactive" data-node-number="5">
                        <div class="node-inner-container clearfix">
                            <svg viewBox="0 0 50 50" class="level-diamond" data-level="first" data-name="first" id="level-first-5"><rect x="5.95" y="5.95" width="38.1" height="38.1" rx="4.69" transform="translate(-10.36 25) rotate(-45)" class="first-level"></rect><text x="50%" y="50%" dominant-baseline="middle" text-anchor="middle" fill="#fff" class="first-level">5</text></svg>
                            <div class="node-text">Lorem ipsum, dolor sit amet consectetur adipisicing elit. Minus totam, repudiandae dolore.</div>
                            <span class="node-level-counter">Pillar 5 of 6</span>
                        </div>
                    </div>
                    <div class="node-container" data-first data-state="inactive" data-node-number="6">
                        <div class="node-inner-container clearfix">
                            <svg viewBox="0 0 50 50" class="level-diamond" data-level="first" data-name="first" id="level-first-6"><rect x="5.95" y="5.95" width="38.1" height="38.1" rx="4.69" transform="translate(-10.36 25) rotate(-45)" class="first-level"></rect><text x="50%" y="50%" dominant-baseline="middle" text-anchor="middle" fill="#fff" class="first-level">6</text></svg>
                            <div class="node-text">Lorem ipsum, dolor sit amet consectetur adipisicing elit. Minus totam, repudiandae dolore.</div>
                            <span class="node-level-counter">Pillar 6 of 6</span>
                        </div>
                    </div>
                </div>
            </div>
        </div>
    </main>
    <footer></footer>
    <script src="https://code.jquery.com/jquery-3.4.1.slim.min.js" integrity="sha384-J6qa4849blE2+poT4WnyKhv5vZF5SrPo0iEjwBvKU7imGFAV0wwj1yYfoRSJoZ+n" crossorigin="anonymous"></script>
    <script src="https://cdn.jsdelivr.net/npm/popper.js@1.16.0/dist/umd/popper.min.js" integrity="sha384-Q6E9RHvbIyZFJoft+2mJbHaEWldlvI9IOYy5n3zV9zzTtmI3UksdQRVvoxMfooAo" crossorigin="anonymous"></script>
    <script src="https://stackpath.bootstrapcdn.com/bootstrap/4.4.1/js/bootstrap.min.js" integrity="sha384-wfSDF2E50Y2D1uUdj0O3uMBJnjuUD4Ih7YwaYd1iqfktj0Uod8GCExl3Og8ifwB6" crossorigin="anonymous"></script>
    <script type="text/javascript" src="assets/js/app.js"></script>
</body>

​

正如您从上面的示例中可以看到，当用户单击向上箭头时，第一个节点移动到它应该选择的位置，但是节点3-6堆栈在彼此之上，单击向上箭头时，应该再次级联节点3，将焦点集中在中间，而节点2将定位于上面的left: -40px，而节点1位于上面的节点1上，使用left: -80px。

我想不出该如何正确地做这件事，而且已经走了许多死胡同。

我使用，因为这个项目不支持jQuery。任何帮助都是很好的，谢谢！

Answer 1

问题

你的解决方案几乎是正确的。您的问题在于position: relative和top值的调整。在pointer-arrow-top的第一次单击中，您将调整以下活动节点元素的顶部值，使其成为-180 +索引(-180px、-361px等)的乘数。在进一步探讨这个问题之前，我建议重新讨论position: relative的概念。

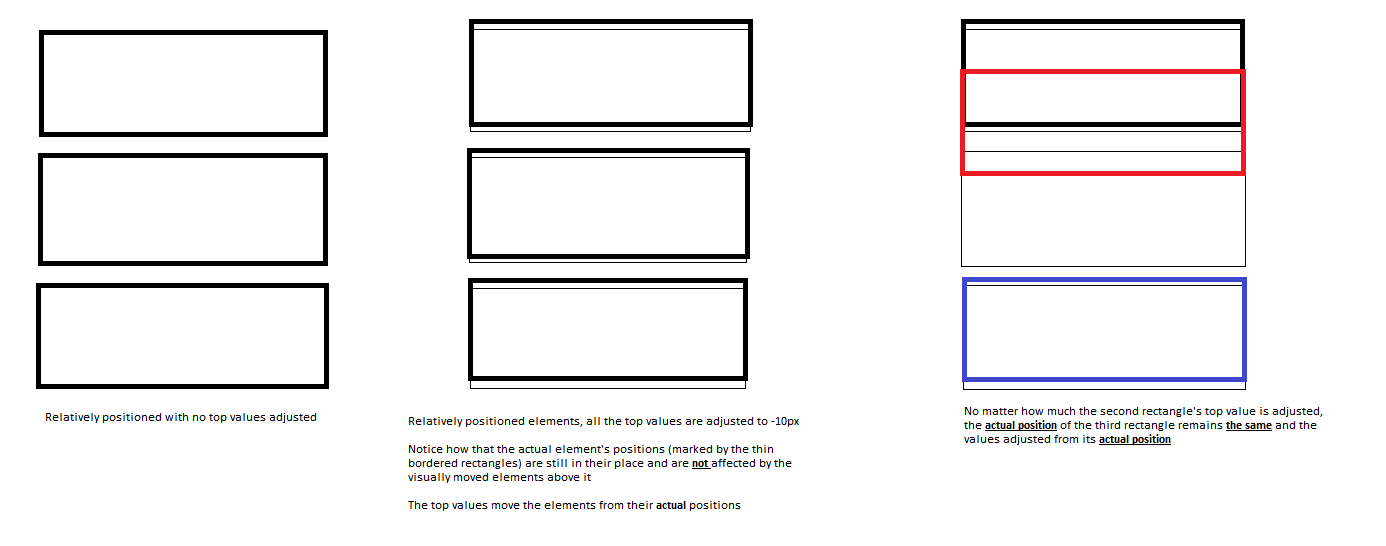

当您调整相对定位元素的顶部值时，元素是可视从其实际位置移动。浏览器仍然跟踪元素的实际位置。然后，下一个兄弟姐妹也根据上一个元素的实际位置(视觉移动之前的位置)而不是视觉上的位置来放置。这是一张图片来展示我的意思。我还建议阅读 on MDN一节。

​

​

这就是为什么当您的第一个元素的最高值被调整为-180 it，而您的第二个元素的最高值被调整为-180 it时，它可以工作。但是，第三个元素的最高值调整到-182 to，第四个元素的最高值调整到-363 to，导致它们重叠。想想看：-180 of意味着上升一级。当您将第四个元素的最高值调整为-363 to时，将使其上升两个级别；从而使其处于与第三个元素相同的级别(同样的逻辑适用于第五个和第六个元素)。我们想要的是，每次单击顶部箭头时，调整每个元素，使其上升一个级别。

现在，很明显，我们可以通过调整所有元素，使其每一次点击一个级别，然后根据索引添加一些额外的顶级值来解决这个问题。

解决方案

如前所述，我们不需要调整顶部的值乘以索引。相反，所有元素的顶部值都需要相同。这是一个可行的解决方案。与代码的主要区别(使其按预期工作)是在click侦听器上。请尝试运行它;-)我添加了一个data-node-position的数据属性，以跟踪我应该给每个元素多少最高值。

​

const diamond = document.getElementById('main-diamond'),
      pointerArrowTop = document.getElementById('pointer-arrow-top'),
      pointerArrowRight = document.getElementById('pointer-arrow-right'),
      pointerArrowBottom = document.getElementById('pointer-arrow-bottom'),
      pointerArrowLeft = document.getElementById('pointer-arrow-left'),
      pointerArrows = document.querySelectorAll('.controls-container [class^="pointer-arrow"]'),
      mouseoverEvent = new Event('mouseover'),
      radius = 200, // The radius of the semi circle
      nodes = document.querySelectorAll('[data-first]'), // get all the pillar nodes
      nodeContainerFirst = document.querySelector('[data-node-level="first"]'), // Get the container of the first level nodes
      nodeWidth = nodes[0].clientWidth, // Defined width of the node
      nodeHeight = nodes[0].clientHeight, // Defined width of the node
      angle = Math.round(180 / (nodes.length - 1)) // Distance of the gap between nodes;


function initializeNodes() {
  nodes.forEach(function(node, index) {
    let leftVal = Math.round(index * -40)
    let topVal = -1 * (index + 1)

    // You should use transform instead of adjusting top and left values
    // node.style.transform = `translate(${leftVal}px, ${topVal}px)`
    node.style.left = `${leftVal}px`
    node.style.top = `${topVal}px`
    node.dataset.nodePosition = index + 1
    // Limit to two visible nodes on the bottom side
    if (node.dataset.nodePosition > 3) node.style.opacity = '0'
  })
}

function initializePointerArrowsOnHover() {
  const pointerOnHoverBoxShadowValues = {
    'top': '-2px -2px 4px rgba(255,255,255,0.4)',
    'right': '2px -2px 4px rgba(255,255,255,0.4)',
    'bottom': '2px 2px 4px rgba(255,255,255,0.4)',
    'left': '-2px 2px 4px rgba(255,255,255,0.4)'
  }

  pointerArrows.forEach(pointerArrow => {
    let pointerDirection
    if (pointerArrow.classList.contains('top')) pointerDirection = 'top'
    else if (pointerArrow.classList.contains('right')) pointerDirection = 'right'
    else if (pointerArrow.classList.contains('bottom')) pointerDirection = 'bottom'
    else pointerDirection = 'left'

    pointerArrow.addEventListener('mouseover', function(e) {
      diamond.style["boxShadow"] = pointerOnHoverBoxShadowValues[pointerDirection]
    })
    pointerArrow.addEventListener('mouseout', function(e) {
      diamond.style["boxShadow"] = null
    })
  })
}

function initializePointerArrowsOnClick() {
  function adjustPositionAndOpacity(clickEvent, direction) {
    const activeNode = document.querySelector('[data-state="active"]'),
          previousActiveNode = activeNode.previousElementSibling,
          nextActiveNode = activeNode.nextElementSibling,
          adjustPositionByValue = direction === 'up' ? -1 : 1,
          // Top value offset by -180 multiplied by the number of elements on the top side after adjusting position
          firstNodePosition = parseInt(nodes[0].dataset.nodePosition),
          topValueOffset = Math.abs((firstNodePosition + adjustPositionByValue - 1)) * -180

    if (direction === 'up' && !nextActiveNode) return
    else if (direction === 'down' && !previousActiveNode) return

    nodes.forEach((node, index) => {
      let newNodePosition = parseInt(node.dataset.nodePosition) + adjustPositionByValue
      node.dataset.nodePosition = newNodePosition

      // Adjust opacity for a fade-in fade-out effect
      // Some nodes are hidden when there is more than one node on the top side and more than two nodes on the bottom side
      if (newNodePosition > 3 || newNodePosition < 0) node.style.opacity = '0'
      // Nodes that are hidden are displayed when they are supposed to be visible
      else node.style.opacity = '1'

      if (newNodePosition === 1) node.dataset.state = 'active'
      else node.dataset.state = 'inactive'

      const leftValue = Math.abs(newNodePosition - 1) * -40
      const topValue = topValueOffset + -1 * newNodePosition

      // You should use transform instead of adjusting top and left values
      // node.style.transform = `translate(${leftValue}px, ${topValue}px)`
      node.style.top = `${topValue}px`
      node.style.left = `${leftValue}px`
    })
  }

  pointerArrowTop.addEventListener('click', function(e) {
    adjustPositionAndOpacity(e, 'up')
  })

  pointerArrowBottom.addEventListener('click', function(e) {
    adjustPositionAndOpacity(e, 'down')
  })
}

document.addEventListener("DOMContentLoaded", function() {
  initializeNodes()
  initializePointerArrowsOnHover()
  initializePointerArrowsOnClick()
})

@import url('https://fonts.googleapis.com/css2?family=Montserrat:ital,wght@0,100;0,200;0,300;0,400;0,500;0,600;0,700;0,800;0,900;1,100;1,200;1,300;1,400;1,500;1,600;1,700;1,800;1,900&display=swap');
body {
  width: 100%;
  margin: 0;
  padding: 0;
  font-family: 'Montserrat', sans-serif;
}

body.dark-mode {
  background: linear-gradient(to bottom right, #15071a, #1a0f29, #1c2b3f, #064a5b) #f7f7f7;
  color: #f7f7f7;
}

.d-flex-center {
  display: flex;
  align-items: center;
}

.centerPointMarker {
  position: absolute;
  width: 10px;
  height: 10px;
  background-color: aqua;
  border-radius: 50%;
}

.app-container {
  width: calc(100% - 34px);
  max-width: 960px;
  height: 100vh;
  margin: 0px 17px;
}

header {
  height: 100px;
  width: 100%;
  display: block;
  margin-bottom: 20px;
}

.p-t-180 {
  padding-top: 180px;
}

main {
  display: block;
  overflow-y: hidden;
  max-height: 700px;
}

.nav-container {
  width: 114px;
  height: 180px;
  display: flex;
  align-items: center;
}

.nav-container #main-diamond {
  width: 83px;
  height: 83px;
  border: 1px solid #fff;
  border-radius: 12px;
  background-color: #000;
  transform: rotate(45deg);
  position: relative;
/*   margin-left: 14px;
  margin-top: 16px;
  margin-bottom: 16px; */
  margin: 14px;
  transition: all 300ms ease-in-out;
/*   shape-outside: circle(); */
}

.nav-container #main-diamond .controls-container {
  position: relative;
  transform: rotate(-45deg);
  width: 147px;
  height: 147px;
  left: -22px;
  top: -22px;
}

.nav-container #main-diamond .controls-container .pointer-arrow {
  font-size: 8px;
  position: absolute;
  color: #6A696D;
  transition: all 300ms ease-in-out;
}

.nav-container #main-diamond .controls-container .pointer-arrow.top {
  left: 69px;
  top: 13px;
}

.nav-container #main-diamond .controls-container .pointer-arrow.top:hover {
  cursor: pointer;
  transform: scale(1.5);
  color: #FFF;
}

.nav-container #main-diamond .controls-container .pointer-arrow.top:hover~.center-icon {
  border-top-color: #FFF;
}

.nav-container #main-diamond .controls-container .pointer-arrow.right {
  transform: rotate(90deg);
  right: 30px;
  top: 53px;
}

.nav-container #main-diamond .controls-container .pointer-arrow.right:hover {
  cursor: pointer;
  transform: scale(1.5) rotate(90deg);
  color: #FFF;
}

.nav-container #main-diamond .controls-container .pointer-arrow.right:hover~.center-icon {
  border-right-color: #FFF;
}

.nav-container #main-diamond .controls-container .pointer-arrow.bottom {
  transform: rotate(180deg);
  left: 69px;
  bottom: 45px;
}

.nav-container #main-diamond .controls-container .pointer-arrow.bottom:hover {
  cursor: pointer;
  transform: scale(1.5) rotate(180deg);
  color: #FFF;
}

.nav-container #main-diamond .controls-container .pointer-arrow.bottom:hover~.center-icon {
  border-bottom-color: #FFF;
}

.nav-container #main-diamond .controls-container .pointer-arrow.left {
  transform: rotate(-90deg);
  left: 30px;
  top: 53px;
}

.nav-container #main-diamond .controls-container .pointer-arrow.left:hover {
  cursor: pointer;
  transform: scale(1.5) rotate(-90deg);
  color: #FFF;
}

.nav-container #main-diamond .controls-container .pointer-arrow.left:hover~.center-icon {
  border-left-color: #FFF;
}

.nav-container #main-diamond .controls-container .center-icon {
  width: 59px;
  height: 59px;
  display: inline-flex;
  align-items: center;
  justify-content: center;
  border: 1px solid #6A696D;
  border-radius: 50%;
  position: absolute;
  left: 44px;
  top: 28px;
  transition: all 300ms ease-in-out;
}

.nav-container #main-diamond .controls-container .center-icon i {
  font-size: 26px;
  position: relative;
  top: 1px;
}

.node-container {
  display: block;
  position: relative;
  width: 342px;
  height: 181px;
  opacity: 1;
  padding: 20px;
  border-top: 1px solid #fff;
  border-bottom: 1px solid #fff;
  transition: top 300ms ease, left 300ms ease, opacity 300ms ease;

  /* Use this instead
  transition: transform 300ms ease, opacity 300ms ease;
  */
}

.node-container .node-inner-container {
  position: relative;
  height: 100%;
}

.node-container .node-inner-container svg.level-diamond {
  position: relative;
  display: inline-block;
  width: 40px;
  height: 40px;
  float: left;
}

.node-container .node-inner-container .node-text {
  width: calc(100% - 50px);
  margin-left: 50px;
}

span.node-level-counter {
  position: absolute;
  bottom: -5px;
  right: 0px;
  font-weight: 200;
  font-size: 12px;
}

svg.level-diamond rect.first-level {
  fill: #F6AE3C;
}

svg.level-diamond text.first-level {
  font-size: 20px;
  font-weight: 600;
}

svg.level-diamond rect.second-level {
  fill: #69C3C6;
}

svg.level-diamond text.second-level {
  font-size: 18px;
  font-weight: 500;
}

svg.level-diamond rect.third-level {
  fill: #6DBD50;
}

svg.level-diamond text.third-level {
  font-size: 16px;
  font-weight: 500;
}

svg.level-diamond rect.fourth-level {
  fill: #E4087D;
}

svg.level-diamond text.fourth-level {
  font-size: 14px;
  font-weight: 500;
}

footer {
  height: 60px;
  width: 100%;
  display: block;
  margin-top: 20px;
}

.semicircle {
  position: absolute;
  width: 52px;
  height: 52px;
}

<script src="https://kit.fontawesome.com/a8d572acbe.js"></script>
<link href="https://stackpath.bootstrapcdn.com/bootstrap/4.4.1/css/bootstrap.min.css" rel="stylesheet" />

<body class="dark-mode">
  <header></header>
  <main>
    <div class="container">
      <div class="row">
        <div class="col-2 p-t-180">
          <div class="nav-container">
            <div id="main-diamond">
              <div class="controls-container">
                <div class="pointer-arrow top" id="pointer-arrow-top"><i class="fas fa-triangle"></i></div>
                <div class="pointer-arrow right" id="pointer-arrow-right"><i class="fas fa-triangle"></i></div>
                <div class="pointer-arrow bottom" id="pointer-arrow-bottom"><i class="fas fa-triangle"></i></div>
                <div class="pointer-arrow left" id="pointer-arrow-left"><i class="fas fa-triangle"></i></div>
                <div class="center-icon">
                  <i class="fad fa-fingerprint"></i>
                </div>
              </div>
            </div>
          </div>
        </div>
        <div class="col-4 pl-1 p-t-180">
          <div class="node-container" data-first data-state="active" data-node-number="1">
            <div class="node-inner-container clearfix">
              <svg viewBox="0 0 50 50" class="level-diamond" data-level="first" data-name="first" id="level-first-1"><rect x="5.95" y="5.95" width="38.1" height="38.1" rx="4.69" transform="translate(-10.36 25) rotate(-45)" class="first-level"></rect><text x="50%" y="50%" dominant-baseline="middle" text-anchor="middle" fill="#fff" class="first-level">1</text></svg>
              <div class="node-text">Lorem ipsum, dolor sit amet consectetur adipisicing elit. Minus totam, repudiandae dolore.</div>
              <span class="node-level-counter">Pillar 1 of 6</span>
            </div>
          </div>
          <div class="node-container" data-first data-state="inactive" data-node-number="2">
            <div class="node-inner-container clearfix">
              <svg viewBox="0 0 50 50" class="level-diamond" data-level="first" data-name="first" id="level-first-2"><rect x="5.95" y="5.95" width="38.1" height="38.1" rx="4.69" transform="translate(-10.36 25) rotate(-45)" class="first-level"></rect><text x="50%" y="50%" dominant-baseline="middle" text-anchor="middle" fill="#fff" class="first-level">2</text></svg>
              <div class="node-text">Lorem ipsum, dolor sit amet consectetur adipisicing elit. Minus totam, repudiandae dolore.</div>
              <span class="node-level-counter">Pillar 2 of 6</span>
            </div>
          </div>
          <div class="node-container" data-first data-state="inactive" data-node-number="3">
            <div class="node-inner-container clearfix">
              <svg viewBox="0 0 50 50" class="level-diamond" data-level="first" data-name="first" id="level-first-3"><rect x="5.95" y="5.95" width="38.1" height="38.1" rx="4.69" transform="translate(-10.36 25) rotate(-45)" class="first-level"></rect><text x="50%" y="50%" dominant-baseline="middle" text-anchor="middle" fill="#fff" class="first-level">3</text></svg>
              <div class="node-text">Lorem ipsum, dolor sit amet consectetur adipisicing elit. Minus totam, repudiandae dolore.</div>
              <span class="node-level-counter">Pillar 3 of 6</span>
            </div>
          </div>
          <div class="node-container" data-first data-state="inactive" data-node-number="4">
            <div class="node-inner-container clearfix">
              <svg viewBox="0 0 50 50" class="level-diamond" data-level="first" data-name="first" id="level-first-4"><rect x="5.95" y="5.95" width="38.1" height="38.1" rx="4.69" transform="translate(-10.36 25) rotate(-45)" class="first-level"></rect><text x="50%" y="50%" dominant-baseline="middle" text-anchor="middle" fill="#fff" class="first-level">4</text></svg>
              <div class="node-text">Lorem ipsum, dolor sit amet consectetur adipisicing elit. Minus totam, repudiandae dolore.</div>
              <span class="node-level-counter">Pillar 4 of 6</span>
            </div>
          </div>
          <div class="node-container" data-first data-state="inactive" data-node-number="5">
            <div class="node-inner-container clearfix">
              <svg viewBox="0 0 50 50" class="level-diamond" data-level="first" data-name="first" id="level-first-5"><rect x="5.95" y="5.95" width="38.1" height="38.1" rx="4.69" transform="translate(-10.36 25) rotate(-45)" class="first-level"></rect><text x="50%" y="50%" dominant-baseline="middle" text-anchor="middle" fill="#fff" class="first-level">5</text></svg>
              <div class="node-text">Lorem ipsum, dolor sit amet consectetur adipisicing elit. Minus totam, repudiandae dolore.</div>
              <span class="node-level-counter">Pillar 5 of 6</span>
            </div>
          </div>
          <div class="node-container" data-first data-state="inactive" data-node-number="6">
            <div class="node-inner-container clearfix">
              <svg viewBox="0 0 50 50" class="level-diamond" data-level="first" data-name="first" id="level-first-6"><rect x="5.95" y="5.95" width="38.1" height="38.1" rx="4.69" transform="translate(-10.36 25) rotate(-45)" class="first-level"></rect><text x="50%" y="50%" dominant-baseline="middle" text-anchor="middle" fill="#fff" class="first-level">6</text></svg>
              <div class="node-text">Lorem ipsum, dolor sit amet consectetur adipisicing elit. Minus totam, repudiandae dolore.</div>
              <span class="node-level-counter">Pillar 6 of 6</span>
            </div>
          </div>
        </div>
      </div>
    </div>
  </main>
  <footer></footer>
  <script src="https://code.jquery.com/jquery-3.4.1.slim.min.js" integrity="sha384-J6qa4849blE2+poT4WnyKhv5vZF5SrPo0iEjwBvKU7imGFAV0wwj1yYfoRSJoZ+n" crossorigin="anonymous"></script>
  <script src="https://cdn.jsdelivr.net/npm/popper.js@1.16.0/dist/umd/popper.min.js" integrity="sha384-Q6E9RHvbIyZFJoft+2mJbHaEWldlvI9IOYy5n3zV9zzTtmI3UksdQRVvoxMfooAo" crossorigin="anonymous"></script>
  <script src="https://stackpath.bootstrapcdn.com/bootstrap/4.4.1/js/bootstrap.min.js" integrity="sha384-wfSDF2E50Y2D1uUdj0O3uMBJnjuUD4Ih7YwaYd1iqfktj0Uod8GCExl3Og8ifwB6" crossorigin="anonymous"></script>
  <script type="text/javascript" src="assets/js/app.js"></script>
</body>

​

个人关切

我在你的代码里看到了一些与我有关的东西。以下是一些：

，

• ，你在身体上使用100vw的宽度和100vh的高度。高度(当内容变大时不会膨胀)使你的身体有一个固定的高度，从而导致线性梯度背景重复出现。相反，我已经把你身体的高度调整成自动了。宽度会使水平滚动条出现(因为appear
• You're不考虑垂直滚动条的宽度，因此x轴中会发生溢出)，因此我将其调整为100%，这样水平滚动条就不会使用固定的max-height: 700px值来隐藏溢出的柱柱/节点。当节点内容大小可以使用大量固定像素值change
• You're时，此可能不能很好地工作。当possible
• Some CSS属性没有任何影响时，基于百分比的值总是更有利，例如shape-outside: circle()和z-index: 200在#main-diamond上的内联样式。此外，作为一般的经验规则，避免内联样式，因此CSS更多地不使用JS中的manageable
• Some变量声明：angle、nodeHeight、nodeWidth和nodeContainerFirst。我想，如果您将max-height (从第二点起)调整为基于许多元素乘以max-height，并且在node-container上添加了一些转换，这样导航就不会让
• 感到不那么烦人了--我已经将mouseover和mouseout事件侦听器“分组”了，这样就更容易阅读

了

Answer 2

这就是你要找的吗？

​

function init(){
  const diamond = document.getElementById('main-diamond'),
  pointerArrowTop = document.getElementById('pointer-arrow-top'),
  pointerArrowRight = document.getElementById('pointer-arrow-right'),
  pointerArrowBottom = document.getElementById('pointer-arrow-bottom'),
  pointerArrowLeft = document.getElementById('pointer-arrow-left'),
  mouseoverEvent = new Event('mouseover'),
  radius = 200, // The radius of the semi circle
  nodes = document.querySelectorAll('[data-first]'), // number of nodes in the code
  nodeContainerFirst = document.querySelector('[data-node-level="first"]'), // Get the container of the first level nodes
  nodeWidth = nodes[0].clientWidth, // Defined width of the node
  nodeHeight = nodes[0].clientHeight, // Defined width of the node
  angle = Math.round( 180 / (nodes.length - 1)); // Distance of the gap between nodes;

  pointerArrowTop.addEventListener('mouseover', function(){
      diamond.style["boxShadow"] = "-2px -2px 4px rgba(255,255,255,0.4)";
  });

  pointerArrowTop.addEventListener('mouseout', function(){
      diamond.style["boxShadow"] = null;
      diamond.style.transform = "rotate(45deg)";
  });

  pointerArrowTop.addEventListener('click', function(e){
    moveNodes(nodes, 'up');
  });
  pointerArrowBottom.addEventListener('click', function(e){
    moveNodes(nodes, 'down');
  });

  pointerArrowRight.addEventListener('mouseover', function(){
      diamond.style["boxShadow"] = "2px -2px 4px rgba(255,255,255,0.4)";
  });

  pointerArrowRight.addEventListener('mouseout', function(){
      diamond.style["boxShadow"] = null;
  });

  pointerArrowBottom.addEventListener('mouseover', function(){
      diamond.style["boxShadow"] = "2px 2px 4px rgba(255,255,255,0.4)";
  });

  pointerArrowBottom.addEventListener('mouseout', function(){
      diamond.style["boxShadow"] = null;
  });

  pointerArrowLeft.addEventListener('mouseover', function(){
      diamond.style["boxShadow"] = "-2px 2px 4px rgba(255,255,255,0.4)";
  });

  pointerArrowLeft.addEventListener('mouseout', function(){
      diamond.style["boxShadow"] = null;
  });
}

function moveNodes(nodes, direction){
  if((direction=="up" && nodes[5].dataset.index=="0")||(direction=="down" && nodes[0].dataset.index=="0")){return;}
  var left, top;
  nodes.forEach(function(node, index) {
    top = (direction == "up" ? parseInt(node.style.top) - 180 : parseInt(node.style.top) + 180);
    left = parseInt(node.style.left);
    left = (((node.dataset.index <= 0) && direction=="up") || ((node.dataset.index >= 0) && direction=="down") ? left - 40 : left + 40);
    node.dataset.index = (direction=='up' ? parseInt(node.dataset.index) - 1 : parseInt(node.dataset.index) + 1);
    node.setAttribute('style', 'left: '+left+'px; top:'+top+'px;');
  });
}

window.addEventListener("load", () => { init() }, false);

body {
    height: 100vh;
    width: 100vw;
    margin: 0;
    padding: 0;
    font-family: 'Montserrat', sans-serif;
}

body.dark-mode {
    background: linear-gradient(to bottom right,#15071a,#1a0f29,#1c2b3f,#064a5b) #f7f7f7;
    color: #f7f7f7;

}

.d-flex-center {
    display: flex;
    align-items: center;
}

.centerPointMarker {
    position: absolute;
    width: 10px;
    height: 10px;
    background-color: aqua;
    border-radius: 50%;
}

.app-container {
    width: calc(100% - 34px);
	max-width: 960px;
	height: 100vh;
	margin: 0px 17px;
}

header {
    height: 100px;
    width: 100%;
    display: block;
    margin-bottom: 20px;
}

.p-t-180 {
    padding-top: 180px;
}

main {
    display: block;
    overflow-y: hidden;
    /* max-height: 700px; */
}

.nav-container {
	width: 114px;
	height: 180px;
	display: flex;
	align-items: center;
}

    .nav-container  #main-diamond {
        width: 83px;
        height: 83px;
        border: 1px solid #fff;
        border-radius: 12px;
        background-color: #000;
        transform: rotate(45deg);
        position: relative;
        margin-left: 14px;
        margin-top: 16px;
        margin-bottom: 16px;
        transition: all 300ms ease-in-out;
        shape-outside: circle();
    }

        .nav-container  #main-diamond .controls-container {
            position: relative;
            transform: rotate(-45deg);
            width: 147px;
            height: 147px;
            left: -22px;
            top: -22px;
        }

            .nav-container  #main-diamond .controls-container .pointer-arrow {
                font-size: 8px;
                position: absolute;
                color: #6A696D;
                transition: all 300ms ease-in-out;
            }

                .nav-container  #main-diamond .controls-container .pointer-arrow.top {
                    left: 69px;
                    top: 13px;
                }

                    .nav-container  #main-diamond .controls-container .pointer-arrow.top:hover {
                        cursor: pointer;
                        transform: scale(1.5);
                        color: #FFF;
                    }

                    .nav-container  #main-diamond .controls-container .pointer-arrow.top:hover ~ .center-icon {
                        border-top-color: #FFF;
                    }

                .nav-container  #main-diamond .controls-container .pointer-arrow.right {
                    transform: rotate(90deg);
                    right: 30px;
                    top: 53px;
                }

                    .nav-container  #main-diamond .controls-container .pointer-arrow.right:hover {
                        cursor: pointer;
                        transform: scale(1.5) rotate(90deg);
                        color: #FFF;
                    }

                    .nav-container  #main-diamond .controls-container .pointer-arrow.right:hover ~ .center-icon {
                        border-right-color: #FFF;
                    }

                .nav-container  #main-diamond .controls-container .pointer-arrow.bottom {
                    transform: rotate(180deg);
                    left: 69px;
                    bottom: 45px;
                }

                    .nav-container  #main-diamond .controls-container .pointer-arrow.bottom:hover {
                        cursor: pointer;
                        transform: scale(1.5) rotate(180deg);
                        color: #FFF;
                    }


                    .nav-container  #main-diamond .controls-container .pointer-arrow.bottom:hover ~ .center-icon {
                        border-bottom-color: #FFF;
                    }


                .nav-container  #main-diamond .controls-container .pointer-arrow.left {
                    transform: rotate(-90deg);
                    left: 30px;
                    top: 53px;
                }

                    .nav-container  #main-diamond .controls-container .pointer-arrow.left:hover {
                        cursor: pointer;
                        transform: scale(1.5) rotate(-90deg);
                        color: #FFF;
                    }

                    .nav-container  #main-diamond .controls-container .pointer-arrow.left:hover ~ .center-icon {
                        border-left-color: #FFF;
                    }

                .nav-container  #main-diamond .controls-container .center-icon {
                    width: 59px;
                    height: 59px;
                    display: inline-flex;
                    align-items: center;
                    justify-content: center;
                    border: 1px solid #6A696D;
                    border-radius: 50%;
                    position: absolute;
                    left: 44px;
                    top: 28px;
                    transition: all 300ms ease-in-out;
                }

                .nav-container  #main-diamond .controls-container .center-icon i {
            font-size: 26px;
            position: relative;
            top: 1px;
        }

.node-container {
    display: block;
    position: relative;
    width: 342px;
    height: 181px;
    opacity: 1;
    padding: 20px;
    border-top: 1px solid #fff;
    border-bottom: 1px solid #fff;
}
    .node-container .node-inner-container {
        position: relative;
        height: 100%;
    }

        .node-container .node-inner-container svg.level-diamond {
            position: relative;
            display: inline-block;
            width: 40px;
            height: 40px;
            float: left;
        }

        .node-container .node-inner-container .node-text {
            width: calc(100% - 50px);
            margin-left: 50px;
        }

    span.node-level-counter {
        position: absolute;
        bottom: -5px;
        right: 0px;
        font-weight: 200;
        font-size: 12px;
    }

svg.level-diamond rect.first-level {
    fill: #F6AE3C;
}
    svg.level-diamond text.first-level {
        font-size: 20px;
        font-weight: 600;
    }

svg.level-diamond rect.second-level {
    fill: #69C3C6;
}
    svg.level-diamond text.second-level {
        font-size: 18px;
        font-weight: 500;
    }

svg.level-diamond rect.third-level {
    fill: #6DBD50;
}
    svg.level-diamond text.third-level {
        font-size: 16px;
        font-weight: 500;
    }

svg.level-diamond rect.fourth-level {
    fill: #E4087D;
}
    svg.level-diamond text.fourth-level {
        font-size: 14px;
        font-weight: 500;
    }

footer {
    height: 60px;
    width: 100%;
    display: block;
    margin-top: 20px;
}

.semicircle {
    position: absolute;
    width: 52px;
    height: 52px;
}

<!DOCTYPE html>
<html lang="en">
<head>
  <meta charset="UTF-8">
  <meta name="viewport" content="width=device-width, initial-scale=1.0">
  <meta http-equiv="X-UA-Compatible" content="ie=edge">
  <title>Document</title>
  <link rel="stylesheet" href="css.css" />
  <script src="https://kit.fontawesome.com/a8d572acbe.js"></script>
  <link href="https://stackpath.bootstrapcdn.com/bootstrap/4.4.1/css/bootstrap.min.css" rel="stylesheet"/>
  <script src="app.js" type="text/javascript"></script>
</head>
<body class="dark-mode">
    <header></header>
    <main>
        <div class="container">
            <div class="row">
                <div class="col-2 p-t-180">
                    <div class="nav-container">
                        <div id="main-diamond" style="z-index: 200;">
                            <div class="controls-container">
                                <div class="pointer-arrow top" id="pointer-arrow-top"><i class="fas fa-triangle"></i></div>
                                <div class="pointer-arrow right" id="pointer-arrow-right"><i class="fas fa-triangle"></i></div>
                                <div class="pointer-arrow bottom" id="pointer-arrow-bottom"><i class="fas fa-triangle"></i></div>
                                <div class="pointer-arrow left" id="pointer-arrow-left"><i class="fas fa-triangle"></i></div>
                                <div class="center-icon">
                                    <i class="fad fa-fingerprint"></i>
                                </div>
                            </div>
                        </div>
                    </div>
                </div>
                <div class="col-4 pl-1 p-t-180">
                    <div class="node-container" data-first data-state="active" data-node-number="1" data-index="0" style="left:0px; top:0px">
                        <div class="node-inner-container clearfix">
                            <svg viewBox="0 0 50 50" class="level-diamond" data-level="first" data-name="first" id="level-first-1"><rect x="5.95" y="5.95" width="38.1" height="38.1" rx="4.69" transform="translate(-10.36 25) rotate(-45)" class="first-level"></rect><text x="50%" y="50%" dominant-baseline="middle" text-anchor="middle" fill="#fff" class="first-level">1</text></svg>
                            <div class="node-text">Lorem ipsum, dolor sit amet consectetur adipisicing elit. Minus totam, repudiandae dolore.</div>
                            <span class="node-level-counter">Pillar 1 of 6</span>
                        </div>
                    </div>
                    <div class="node-container" data-first data-state="inactive" data-node-number="2" data-index="1" style="left:-40px; top:-1px">
                        <div class="node-inner-container clearfix">
                            <svg viewBox="0 0 50 50" class="level-diamond" data-level="first" data-name="first" id="level-first-2"><rect x="5.95" y="5.95" width="38.1" height="38.1" rx="4.69" transform="translate(-10.36 25) rotate(-45)" class="first-level"></rect><text x="50%" y="50%" dominant-baseline="middle" text-anchor="middle" fill="#fff" class="first-level">2</text></svg>
                            <div class="node-text">Lorem ipsum, dolor sit amet consectetur adipisicing elit. Minus totam, repudiandae dolore.</div>
                            <span class="node-level-counter">Pillar 2 of 6</span>
                        </div>
                    </div>
                    <div class="node-container" data-first data-state="inactive" data-node-number="3" data-index="2" style="left:-80px; top:-2px">
                        <div class="node-inner-container clearfix">
                            <svg viewBox="0 0 50 50" class="level-diamond" data-level="first" data-name="first" id="level-first-3"><rect x="5.95" y="5.95" width="38.1" height="38.1" rx="4.69" transform="translate(-10.36 25) rotate(-45)" class="first-level"></rect><text x="50%" y="50%" dominant-baseline="middle" text-anchor="middle" fill="#fff" class="first-level">3</text></svg>
                            <div class="node-text">Lorem ipsum, dolor sit amet consectetur adipisicing elit. Minus totam, repudiandae dolore.</div>
                            <span class="node-level-counter">Pillar 3 of 6</span>
                        </div>
                    </div>
                    <div class="node-container" data-first data-state="inactive" data-node-number="4" data-index="3" style="left:-120px; top:-3px">
                        <div class="node-inner-container clearfix">
                            <svg viewBox="0 0 50 50" class="level-diamond" data-level="first" data-name="first" id="level-first-4"><rect x="5.95" y="5.95" width="38.1" height="38.1" rx="4.69" transform="translate(-10.36 25) rotate(-45)" class="first-level"></rect><text x="50%" y="50%" dominant-baseline="middle" text-anchor="middle" fill="#fff" class="first-level">4</text></svg>
                            <div class="node-text">Lorem ipsum, dolor sit amet consectetur adipisicing elit. Minus totam, repudiandae dolore.</div>
                            <span class="node-level-counter">Pillar 4 of 6</span>
                        </div>
                    </div>
                    <div class="node-container" data-first data-state="inactive" data-node-number="5" data-index="4" style="left:-160px; top:-4px">
                        <div class="node-inner-container clearfix">
                            <svg viewBox="0 0 50 50" class="level-diamond" data-level="first" data-name="first" id="level-first-5"><rect x="5.95" y="5.95" width="38.1" height="38.1" rx="4.69" transform="translate(-10.36 25) rotate(-45)" class="first-level"></rect><text x="50%" y="50%" dominant-baseline="middle" text-anchor="middle" fill="#fff" class="first-level">5</text></svg>
                            <div class="node-text">Lorem ipsum, dolor sit amet consectetur adipisicing elit. Minus totam, repudiandae dolore.</div>
                            <span class="node-level-counter">Pillar 5 of 6</span>
                        </div>
                    </div>
                    <div class="node-container" data-first data-state="inactive" data-node-number="6" data-index="5" style="left:-200px; top:-5px">
                        <div class="node-inner-container clearfix">
                            <svg viewBox="0 0 50 50" class="level-diamond" data-level="first" data-name="first" id="level-first-6"><rect x="5.95" y="5.95" width="38.1" height="38.1" rx="4.69" transform="translate(-10.36 25) rotate(-45)" class="first-level"></rect><text x="50%" y="50%" dominant-baseline="middle" text-anchor="middle" fill="#fff" class="first-level">6</text></svg>
                            <div class="node-text">Lorem ipsum, dolor sit amet consectetur adipisicing elit. Minus totam, repudiandae dolore.</div>
                            <span class="node-level-counter">Pillar 6 of 6</span>
                        </div>
                    </div>
                </div>
            </div>
        </div>
  </main>
    <footer></footer>
    <script src="https://code.jquery.com/jquery-3.4.1.slim.min.js" integrity="sha384-J6qa4849blE2+poT4WnyKhv5vZF5SrPo0iEjwBvKU7imGFAV0wwj1yYfoRSJoZ+n" crossorigin="anonymous"></script>
    <script src="https://cdn.jsdelivr.net/npm/popper.js@1.16.0/dist/umd/popper.min.js" integrity="sha384-Q6E9RHvbIyZFJoft+2mJbHaEWldlvI9IOYy5n3zV9zzTtmI3UksdQRVvoxMfooAo" crossorigin="anonymous"></script>
    <script src="https://stackpath.bootstrapcdn.com/bootstrap/4.4.1/js/bootstrap.min.js" integrity="sha384-wfSDF2E50Y2D1uUdj0O3uMBJnjuUD4Ih7YwaYd1iqfktj0Uod8GCExl3Og8ifwB6" crossorigin="anonymous"></script>
    <script type="text/javascript" src="assets/js/app.js"></script>
</body>
</html>

​

Answer 3

当您单击buton时，您可以尝试隐藏它们并使它们重新出现。
