基于转换属性的另一个路径协调插入svg路径

Question

我想在我已经应用了transform属性的另一条路径上插入一个路径(使用级数param )。

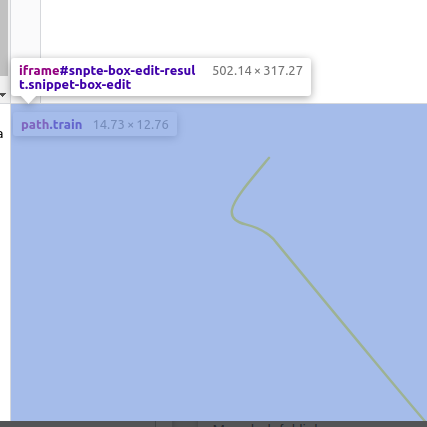

问题是，当我从getPointAtLength(//h2 path//)得到点位置时，x和y参数与h2的位置不一样。

所以他们就能从盒子里出来了。

​

let paths = d3.select('svg').select("#h2").selectAll('path.train').data([1,2]);
let branch=d3.select('svg').select("#h2").select('path')
paths.enter().append('path')
          .attr('d', d3.symbol().type(d3.symbolTriangle))
          .attr('class', 'train')
          .attr('fill','black')
          .attr('transform',(d,i)=>  {
          let point = branch.node()
              .getPointAtLength(30)
           return `translate(${point.x},${point.y}`
          })

<script src="https://cdnjs.cloudflare.com/ajax/libs/d3/4.9.0/d3.min.js"></script>
<svg viewBox="0 0 388.71 412.14">
    <g data-id="branch" id="h2" transform="translate(-885 -562) ">
        <g class="branch-label" id="h2select" transform="translate(-240 -340)"></g>
        <rect fill="rgba(255,255,255,1)" height="11" id="h2" width="12"></rect>
        <path d="M1093.763,1595.658 v -82.417 c 0,0 5,-14.987 -18.452,-16.644 -23.452,-1.657 -40.9,2.386 -54.093,-11.537 -13.193,-13.923 -132.873,-159.193 -132.873,-159.193 0,0 -6.456,-10.249 -24.986,-14.661 -18.53,-4.412 -11.029,-16.736 -2.10392,-28.6309 2.68431,-3.5775 12.32475,-15.4715 21.44325,-26.363" data-name="h2" fill="none" id="h2-3" stroke="#efcf2f" stroke-linecap="round" stroke-width="2" transform="translate(208.67 -656.38)" style="opacity: 1;"></path>
    </g>
</svg>

​

我想要的是如何将三角形定位到路径的30%，而不删除svg上的“`transform属性”？

​

​

Answer 1

我们可以将路径“包装”在g元素中，并将路径进行转换并将其从路径中移除？

那你的方法应该有效吗？

​

var child = document.getElementById('h2-3');
var parent = child.parentNode;
var i = Array.prototype.indexOf.call(parent.children, child);
console.log(i);
child = parent.removeChild(child);

var g = document.createElementNS('http://www.w3.org/2000/svg','g');
g.setAttribute('transform', child.getAttribute('transform'));
child.removeAttribute('transform');
g.appendChild(child);

if (i < parent.childNodes.length) {
  parent.insertBefore(g, parent.childNodes[i]);
} else {
  parent.appendChild(g);
}

const len = child.getTotalLength();
//console.log(len)
const point = child.getPointAtLength(0.99*len);
var circle = document.createElementNS('http://www.w3.org/2000/svg','circle')
circle.setAttribute('cx', point.x);
circle.setAttribute('cy', point.y);
circle.setAttribute('r', 10);
circle.setAttribute('fill', 'black');
g.appendChild(circle);

var myInterval;
var currProgress = 0.995;
var direction = -1;
var count = 0;

myInterval = setInterval(myAnimate, 50);

function myAnimate() {
  if (currProgress <= 0.0 || currProgress >= 1.0) {
    direction *= -1;
  }
  //console.log(currProgress);
  const myPoint = child.getPointAtLength(currProgress * len);
  circle.setAttribute("cx", myPoint.x);
  circle.setAttribute("cy", myPoint.y);
  currProgress += direction * 0.005;

  if (count >= 5) {
    clearInterval(myInterval);
  }
}


/*
let paths = d3.select('svg').select("#h2").selectAll('path.train').data([1,2]);
let branch = d3.select('svg').select("#h2").select('path')
paths.enter().append('path')
          .attr('d', d3.symbol().type(d3.symbolTriangle))
          .attr('class', 'train')
          .attr('fill','black')
          .attr('transform',(d,i)=>  {
          let point = branch.node()
              .getPointAtLength(30)
           return `translate(${point.x},${point.y}`
          })
 */

<script src="https://cdnjs.cloudflare.com/ajax/libs/d3/4.9.0/d3.min.js"></script>
<svg viewBox="0 0 450 500">
    <g data-id="branch" id="h2" transform="translate(-885 -562) ">
        <g class="branch-label" id="h2select" transform="translate(-240 -340)"></g>
        <rect fill="rgba(255,255,255,1)" height="11" id="h2" width="12"></rect>
        <path d="M1093.763,1595.658 v -82.417 c 0,0 5,-14.987 -18.452,-16.644 -23.452,-1.657 -40.9,2.386 -54.093,-11.537 -13.193,-13.923 -132.873,-159.193 -132.873,-159.193 0,0 -6.456,-10.249 -24.986,-14.661 -18.53,-4.412 -11.029,-16.736 -2.10392,-28.6309 2.68431,-3.5775 12.32475,-15.4715 21.44325,-26.363" data-name="h2" fill="none" id="h2-3" stroke="#efcf2f" stroke-linecap="round" stroke-width="2" transform="translate(208.67 -656.38)" style="opacity: 1;"></path>
    </g>
</svg>

​

我们可以使用以下JS来完成这一任务：

var child = document.getElementById('h2-3');
var parent = child.parentNode;
var i = Array.prototype.indexOf.call(parent.children, child);
console.log(i);
child = parent.removeChild(child);

var g = document.createElementNS('http://www.w3.org/2000/svg','g');
g.setAttribute('transform', child.getAttribute('transform'));
child.removeAttribute('transform');
g.appendChild(child);

if (i < parent.childNodes.length) {
  parent.insertBefore(g, parent.childNodes[i]);
} else {
  parent.appendChild(g);
}

这样，您就可以将路径“包装”在g元素中，并将路径进行转换并将其从路径中移除。

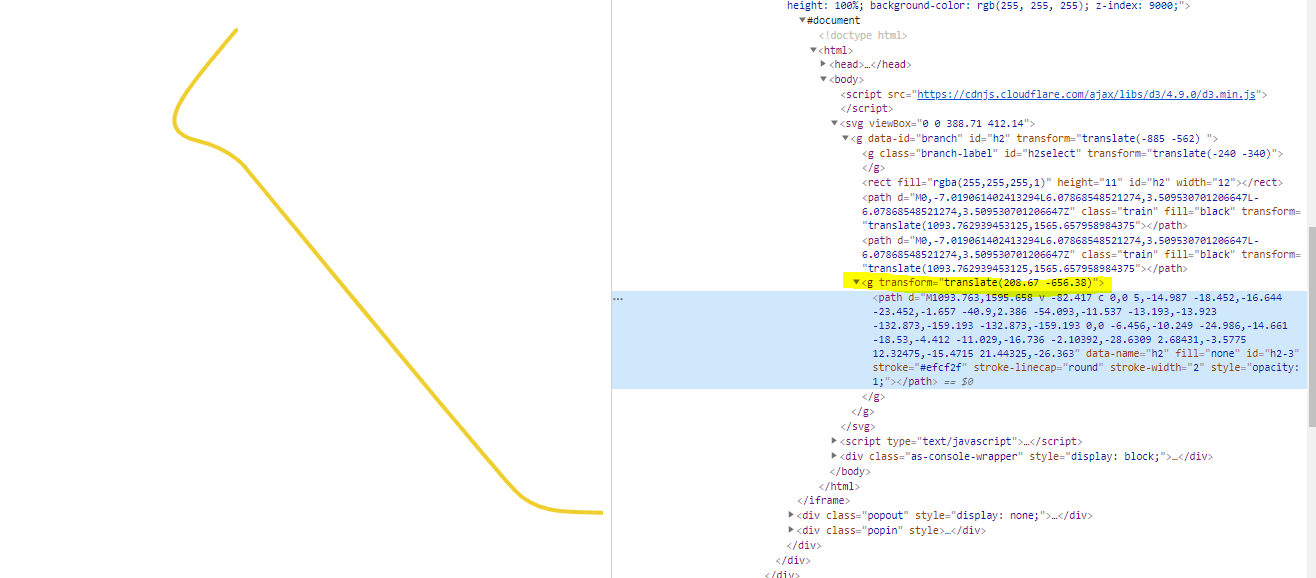

由此产生的DOM是：

​

​

然后，我们可以使用以下JS在路径长度的30%处放置一个圆：

const len = child.getTotalLength();
console.log(len)
const point = child.getPointAtLength(0.3*len);
var circle = document.createElementNS('http://www.w3.org/2000/svg','circle')
circle.setAttribute('cx', point.x);
circle.setAttribute('cy', point.y);
circle.setAttribute('r', 10);
circle.setAttribute('fill', 'black');
g.appendChild(circle);

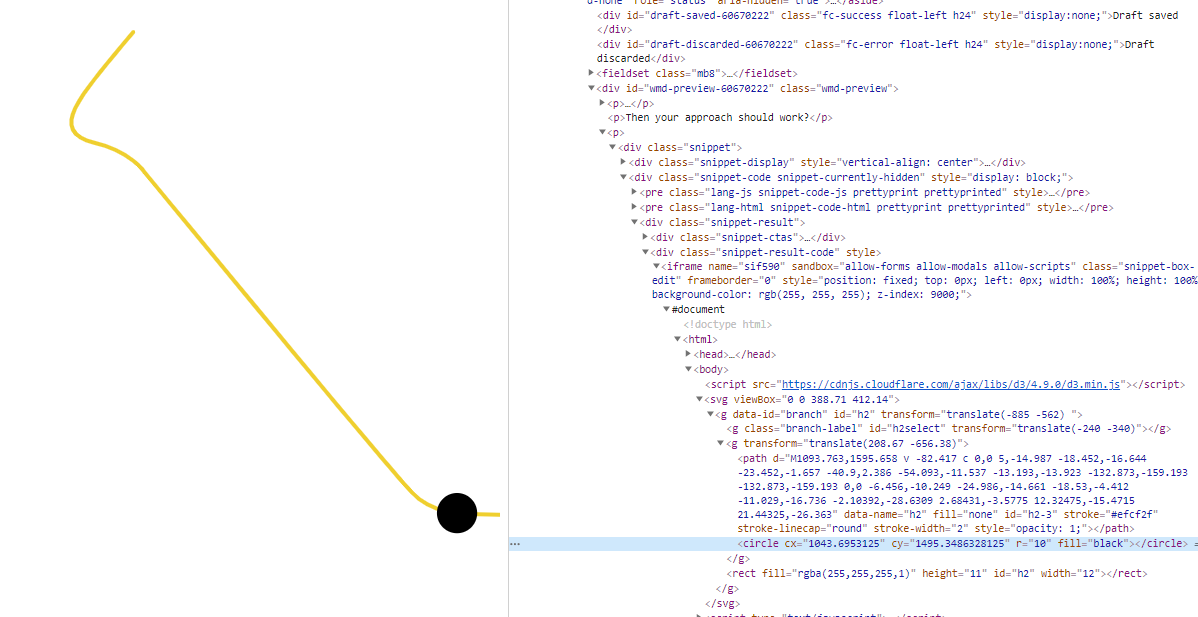

然后我们得到这个输出(您可以使用其他值(如0.6*len来查看其他位置的圆圈)：

​

​

更新

实际上，我注意到有些路径被切断了，因为它位于svg视图框之外，因此我对viewbox进行了如下修改：

<svg viewBox="0 0 450 500">

然后我还添加了一些动画代码，因为，为什么不呢？

var myInterval;
var currProgress = 0.995;
var direction = -1;
var count = 0;

myInterval = setInterval(myAnimate, 50);

function myAnimate() {
  if (currProgress <= 0.0 || currProgress >= 1.0) {
    direction *= -1;
  }
  //console.log(currProgress);
  const myPoint = child.getPointAtLength(currProgress * len);
  circle.setAttribute("cx", myPoint.x);
  circle.setAttribute("cy", myPoint.y);
  currProgress += direction * 0.005;

  if (count >= 5) {
    clearInterval(myInterval);
  }
}

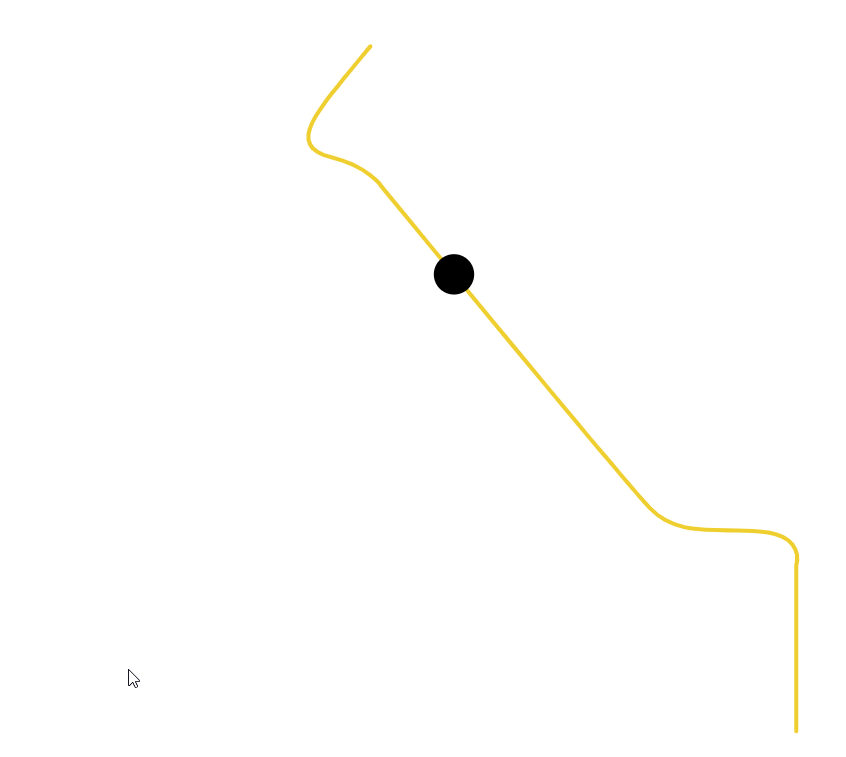

结果是：

​

​
