火山图错误(使用ggplot2)：无数据绘制

Question

我又遇到了另一个问题。我目前正在使用ggplot2制作一个DEG数据的火山图。

问题是我得到了一个没有数据的结果。真奇怪。

为了更准确的诊断，我的数据(火山)是由948 DEG数据(|logFC|>1，FDR<0.05)组成。

library(ggplot2)
volcano["group"] <- "NotSignificant"
volcano[which(volcano['FDR'] < 0.01 & abs(volcano['logFC']) > 2 ),"group"] <- "Increased"
volcano[which(volcano['FDR'] < 0.01 & abs(volcano['logFC']) < -2 ),"group"] <- "Decreased"

# creating color palette
cols <- c("red" = "red", "orange" = "orange", "NotSignificant" = "darkgrey",
          "Increased" = "#00B2FF", "Decreased" = "#00B2FF")
##I didn't even get to use those beautiful colors.

FDR_threshold <- 0.01
logFC_threshold <- 2
deseq.threshold <- as.factor(abs(volcano$logFC) >= logFC_threshold &
                             volcano$FDR < FDR_threshold)
xi <- which(deseq.threshold == TRUE)

deseq.threshold <- as.factor(abs(volcano$logFC) > 2 & volcano$FDR < 0.05)

# Make a basic ggplot2 object
vol <- ggplot(volcano, aes(x = logFC, y =-log10(FDR), colour=deseq.threshold))

# inserting manual colours as per colour palette and more
vol +
  scale_colour_manual(values = cols) +
  ggtitle(label = "Volcano Plot", subtitle = "colon specific volcano plot") +
  geom_point(size = 2.5, alpha = 1, na.rm = T) +
  theme_bw(base_size = 14) +
  theme(legend.position = "none") +
  xlab(expression(log[2]("logFC"))) +
  ylab(expression(-log[10]("FDR"))) +
  geom_hline(yintercept = 1, colour="#990000", linetype="dashed") +
  geom_vline(xintercept = 0.586, colour="#990000", linetype="dashed") +
  geom_vline(xintercept = -0.586, colour="#990000", linetype="dashed")+
  scale_y_continuous(trans = "log1p")

这是我的数据集的lil样本，火山

     genes   logFC       FDR             group
1   INHBA   6.271879    2.070000e-30    Increased
2   COL10A1 7.634386    1.820000e-23    Increased
3   WNT2    9.485133    6.470000e-20    Increased
4   COL8A1  3.974965    6.470000e-20    Increased
5   THBS2   4.104176    2.510000e-19    Increased
6   BGN     3.524484    5.930000e-18    Increased
7   COMP    11.916956   2.740000e-17    Increased
9   SULF1   3.540374    1.290000e-15    Increased
10  CTHRC1  3.937028    4.620000e-14    Increased
11  TRIM29  3.827088    1.460000e-11    Increased
12  SLC6A20 5.060538    5.820000e-11    Increased
13  SFRP4   5.924330    8.010000e-11    Increased
14  CDH3    5.330732    8.940000e-11    Increased
15  ESM1    6.491496    3.380000e-10    Increased
614 TDP2    -1.801368   0.002722461     NotSignificant
615 EPHX2   -1.721039   0.002722461     NotSignificant
616 RAVER2  -1.581812   0.002749728     NotSignificant
617 BMP6    -2.702780   0.002775460     Increased
619 SCNN1G  -4.012111   0.002870500     Increased
620 SLC52A3 -1.868920   0.002931197     NotSignificant
621 VIPR1   -1.556238   0.002945578     NotSignificant
622 SUCLG2  -1.720993   0.003059717     NotSignificant

Answer 1

我认为您的问题来自于deseq.threshold在aes颜色中的使用。相反，我认为您应该使用group列来绘制颜色。

顺便说一句，你定义重要基因的门槛是错误的，因为你在寻找那些绝对值低于-2的基因的“下降”，这是不可能的。

在这里，我使用了一个DEG输出的例子：

library(data.table)
volcano = fread("https://gist.githubusercontent.com/stephenturner/806e31fce55a8b7175af/raw/1a507c4c3f9f1baaa3a69187223ff3d3050628d4/results.txt", header = TRUE)
colnames(volcano) <- c("Gene","logFC","pvalue","FDR")

# Adding group to decipher if the gene is significant or not:
volcano <- data.frame(volcano)
volcano["group"] <- "NotSignificant"
volcano[which(volcano['FDR'] < 0.01 & volcano['logFC'] > 1 ),"group"] <- "Increased"
volcano[which(volcano['FDR'] < 0.01 & volcano['logFC'] < -1 ),"group"] <- "Decreased"

因此，我的示例dataframe看起来像(我稍微改变了您用来获得更多重要基因的阈值)：

> head(volcano)
     Gene   logFC    pvalue       FDR          group
1    DOK6  0.5100 1.861e-08 0.0003053 NotSignificant
2    TBX5 -2.1290 5.655e-08 0.0004191      Decreased
3 SLC32A1  0.9003 7.664e-08 0.0004191 NotSignificant
4  IFITM1 -1.6870 3.735e-06 0.0068090      Decreased
5   NUP93  0.3659 3.373e-06 0.0068090 NotSignificant
6 EMILIN2  1.5340 2.976e-06 0.0068090      Increased

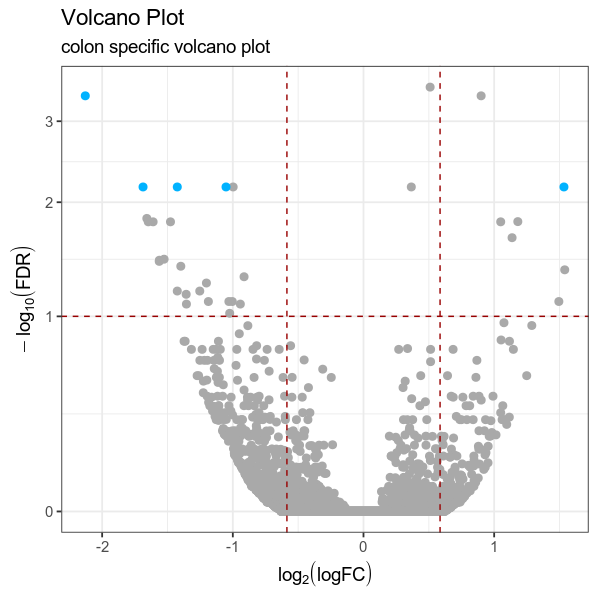

现在，你可以阴谋：

library(ggplot2)
ggplot(volcano, aes(x = logFC, y = -log10(FDR), color = group))+
  scale_colour_manual(values = cols) +
  ggtitle(label = "Volcano Plot", subtitle = "colon specific volcano plot") +
  geom_point(size = 2.5, alpha = 1, na.rm = T) +
  theme_bw(base_size = 14) +
  theme(legend.position = "none") +
  xlab(expression(log[2]("logFC"))) +
  ylab(expression(-log[10]("FDR"))) +
  geom_hline(yintercept = 1, colour="#990000", linetype="dashed") +
  geom_vline(xintercept = 0.586, colour="#990000", linetype="dashed") +
  geom_vline(xintercept = -0.586, colour="#990000", linetype="dashed")+
  scale_y_continuous(trans = "log1p")

​

​
