Barplot表示有统计学差异

Question

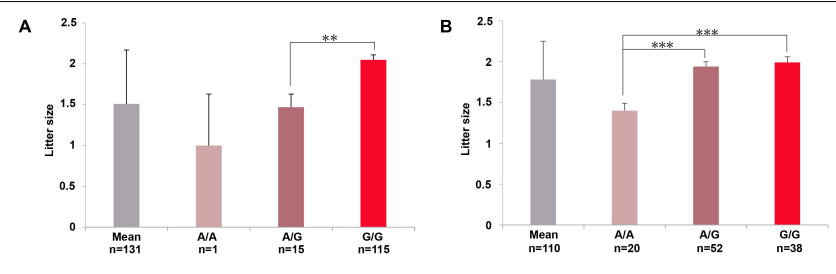

我需要针对相应的表型绘制一个重要的SNP代码(分类)的条形图，类似于这些图：

​

​

我在R中尝试了很多方法，并得到了一些结果，但我在字段中得到了我最喜欢的结果。以下是守则和结果：

### DATA

SNP_code <- as.factor(c("GG","GA","AA","GA","GA","GG","GG","GG","GG","GA","GA","AA","GA","GA","GA","GG","GG","GG","GG","AA","GG","GG","GG","GG","AA","GG","GG","GA","GG","AA","GA","GG","GG","GG","GG","GG","GG","AA","GG","GA","GG","GG","GA","GG","GG","GA","GG","GG","GA","GA","GG","GA","GG","GA","GA","GA","GA","GA","GA","GG","GG","GG","AA","GA","GA","GA","GA","GG","GA","GG","GG","GG","GA","GA","GA","GG","GG","GA","GG","AA","GG","GG","GG","AA"))

EBV <- c(0.06663,-0.03031,-0.122,-0.02021,-0.1157,-0.08131,-0.02034,-0.06324,0.06699,-0.062,0.02736,-0.1201,-0.04846,-0.06934,-0.06023,-0.009244,-0.05648,-0.01908,0.06728,-0.06517,0.08534,0.07618,-0.0814,0.06113,-0.0795,0.1055,0.08305,0.1209,-0.05314,-0.09431,0.05185,0.1347,0.1591,0.08777,0.08326,0.1612,0.09528,-0.1002,0.1561,-0.09327,0.09474,0.1356,0.06384,0.1585,0.03235,0.1081,0.1462,-0.04082,-0.05042,0.01793,-0.1157,-0.1165,-0.009399,-0.02311,-0.108,-0.1143,0.07219,0.01376,-0.05059,-0.052,0.08494,-0.0388,-0.06346,0.07789,0.02961,-0.1126,0.1102,0.133,-0.09317,-0.1181,0.1584,0.122,0.1019,-0.04074,-0.01178,0.09523,-0.03266,-0.01258,-0.0231,-0.08259,0.05823,-0.02894,-0.008242,0.07981)

LS <- c(2,1,1,1,1,1,1,1,2,1,1,1,1,1,1,1,1,1,2,1,2,1,1,2,1,2,2,2,1,1,1,2,2,2,2,2,1,1,2,1,2,2,2,1,2,2,2,1,1,2,1,1,1,1,1,1,1,1,1,1,2,1,1,2,1,1,2,2,1,1,2,1,2,1,1,2,1,1,1,1,1,1,1,2)

IDs <- c(1033,1081,1106,1107,1120,1194,1199,1326,1334,1340,1345,1358,1398,1404,1405,1421,1457,1459,1464,1509,1529,1542,1550,2025,2030,2095,2099,2128,2141,2153,2167,2224,2232,2238,2244,2266,2271,2280,2283,2323,2326,2337,2369,2390,2391,2396,851012,851016,851021,851055,851063,851084,851105,851109,851146,851169,851176,851198,851205,851246,851266,851292,851332,851345,851488,851489,851509,851528,851531,851547,851562,851573,851574,851578,851584,851588,851592,851622,851651,851670,851672,851684,851690,861086)

sig_snp <- data.frame(IDs, SNP_code, EBV, LS)

###方差分析与均值比较

library(dplyr)
### for LS
group_by(sig_snp, SNP_code) %>%
  summarise(
    count = n(),
    mean = mean(LS, na.rm = TRUE),
    sd = sd(LS, na.rm = TRUE))

### for EBV
group_by(sig_snp, SNP_code) %>%
  summarise(
    count = n(),
    mean = mean(EBV, na.rm = TRUE),
    sd = sd(EBV, na.rm = TRUE))

# Compute the analysis of variance
Anova.fit <- aov(EBV ~ SNP_code, data = sig_snp)
summary(Anova.fit)
# Tukey multiple pairwise-comparisons
TukeyHSD(Anova.fit)
# or
library(multcomp)
summary(glht(Anova.fit, linfct = mcp(SNP_code = "Tukey")))

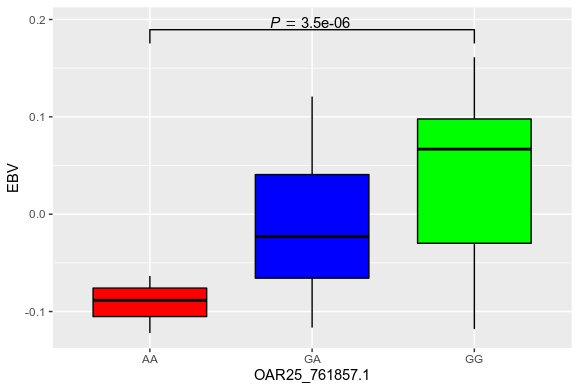

用于EBV的###框图(实际上，我需要用于LS和EBV的Barplot )

library(ggplot2)
library(ggpval)

plot <- ggplot(sig_snp, aes(SNP_code, EBV)) +
geom_boxplot(fill=c("red","blue", "green"), color="black", width=.7); plot
add_pval(plot, pairs = list(c(1, 3)), test='wilcox.test')
add_pval(plot, pairs = list(c(2, 3)), test='wilcox.test')
add_pval(plot, pairs = list(c(1, 2)), test='wilcox.test')

​

​

"add_pval“只使用"wilcox.test”和"t.test"，但我喜欢Tukey。任何帮助都是非常感谢的。

Answer 1

我在下面发布的代码肯定还有改进的余地，但至少给出了一个工作流示例，您可以使用该工作流获取“最喜欢”的参数：

A部分:条形图

( 1)对sig_snp进行了重组，得到了每一个SNP在EBV或LS函数中的均值。

library(tidyverse)
DF1 <- sig_snp %>%
  pivot_longer(., cols = c(EBV,LS), names_to = "Variable", values_to = "Values") %>%
  group_by(SNP_code, Variable) %>%
  summarise(Mean = mean(Values),
            SEM = sd(Values) / sqrt(n()),
            Nb = n()) %>%
  rowwise() %>%
  mutate(Labels = as.character(SNP_code)) %>%
  mutate(Labels = paste(unlist(strsplit(Labels,"")),collapse = "/")) %>%
  mutate(Labels = paste0(Labels,"\nn = ",Nb))

# A tibble: 6 x 6
  SNP_code Variable    Mean    SEM    Nb Labels
  <fct>    <chr>      <dbl>  <dbl> <int> <chr>
1 AA       EBV      -0.0719 0.0202     9 "A/A\nn = 9"
2 AA       LS        1.11   0.111      9 "A/A\nn = 9"
3 GA       EBV      -0.0141 0.0134    31 "G/A\nn = 31"
4 GA       LS        1.23   0.0763    31 "G/A\nn = 31"
5 GG       EBV       0.0422 0.0126    44 "G/G\nn = 44"
6 GG       LS        1.48   0.0762    44 "G/G\nn = 44"

labels列稍后将用于x轴的标记.

2)然后，我们将通过以下方法计算出总平均值(这将有助于绘制“平均值”栏)：

library(tidyverse)
DF2 <- sig_snp  %>%
  pivot_longer(., cols = c(EBV,LS), names_to = "Variable", values_to = "Values") %>%
  group_by(Variable) %>%
  summarise(Mean = mean(Values),
            SEM = sd(Values) / sqrt(n()),
            Nb = n()) %>%
  mutate(SNP_code = "All") %>%
  select(SNP_code, Variable, Mean, SEM, Nb) %>%
  rowwise() %>%
  mutate(Labels = paste0("Mean\nn = ",Nb))

# A tibble: 2 x 6
  SNP_code Variable    Mean     SEM    Nb Labels
  <chr>    <chr>      <dbl>   <dbl> <int> <chr>
1 All      EBV      0.00918 0.00944    84 "Mean\nn = 84"
2 All      LS       1.35    0.0522     84 "Mean\nn = 84"

3)我们结合了DF1和DF2，并重新组织了SNP_code级别，以获得正确的绘图顺序：

library(tidyverse)
DF <- bind_rows(DF1, DF2)
DF$Labels = factor(DF$Labels,levels= c("Mean\nn = 84",
                                       "A/A\nn = 9",
                                       "G/A\nn = 31",
                                       "G/G\nn = 44" ))

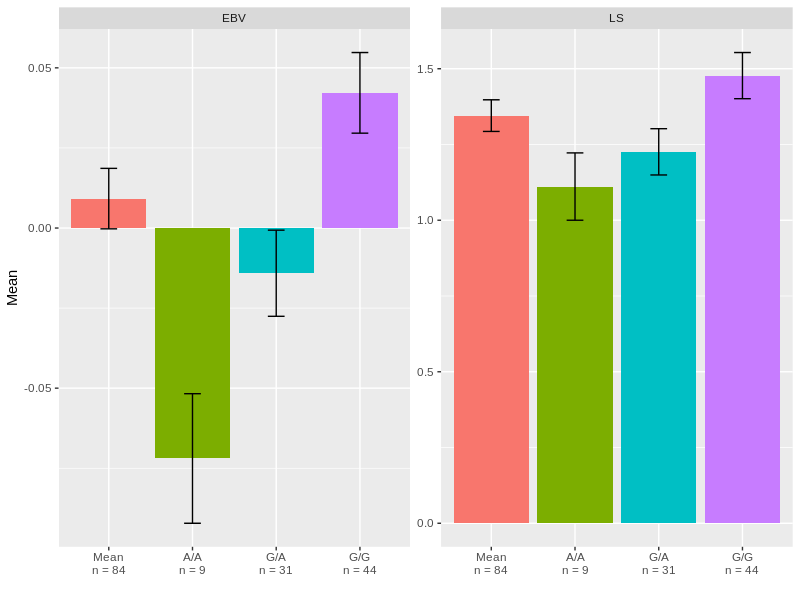

4)现在，我们可以绘制它：

library(ggplot2)
ggplot(DF, aes(x = SNP_code, y = Mean, fill = SNP_code))+
  geom_bar(stat = "identity", show.legend = FALSE)+
  geom_errorbar(aes(ymin = Mean-SEM, ymax = Mean+SEM), width = 0.2)+
  facet_wrap(.~Variable, scales = "free")+
  scale_x_discrete(name = "",labels = levels(DF$Labels))

​

​

B部分:在条形图上添加统计量

为了添加统计信息，可以使用geom_signif函数从ggsignif包中添加来自外部输出的统计信息。

1)首先为EBV上的Tukey测试的输出创建数据：

Anova.fit <- aov(EBV ~ SNP_code, data = sig_snp)
t <- TukeyHSD(Anova.fit)
stat <- t$SNP_code
Stat_EBV <- stat %>% as.data.frame() %>%
  mutate(Variable = "EBV") %>%
  mutate(Group = rownames(stat)) %>%
  rowwise() %>%
  mutate(Group1 = unlist(strsplit(Group,"-"))[1]) %>%
  mutate(Group2 = unlist(strsplit(Group,"-"))[2]) %>%
  mutate(labels = round(`p adj`,4))

Stat_EBV$y_pos <- c(0.06,0.08,0.1)

2) LS的Tukey测试也是一样的。

Anova.fit <- aov(LS ~ SNP_code, data = sig_snp)
t <- TukeyHSD(Anova.fit)
stat <- t$SNP_code
Stat_LS <- stat %>% as.data.frame() %>%
  mutate(Variable = "LS") %>%
  mutate(Group = rownames(stat)) %>%
  rowwise() %>%
  mutate(Group1 = unlist(strsplit(Group,"-"))[1]) %>%
  mutate(Group2 = unlist(strsplit(Group,"-"))[2]) %>%
  mutate(labels = round(`p adj`,4))
Stat_LS$y_pos = c(1.7,1.9,2.1)

3)这两种统计数据的绑定：

library(tidyverse)
STAT <- bind_rows(Stat_EBV,Stat_LS)

# A tibble: 6 x 10
    diff      lwr   upr  `p adj` Variable Group Group1 Group2 labels y_pos
   <dbl>    <dbl> <dbl>    <dbl> <chr>    <chr> <chr>  <chr>   <dbl> <dbl>
1 0.0578 -0.0130  0.129 0.132    EBV      GA-AA GA     AA     0.132   0.06
2 0.114   0.0457  0.183 0.000431 EBV      GG-AA GG     AA     0.0004  0.08
3 0.0563  0.0125  0.100 0.00821  EBV      GG-GA GG     GA     0.0082  0.1
4 0.115  -0.303   0.532 0.790    LS       GA-AA GA     AA     0.790   1.7
5 0.366  -0.0373  0.770 0.0832   LS       GG-AA GG     AA     0.0832  1.9
6 0.251  -0.00716 0.510 0.0585   LS       GG-GA GG     GA     0.0585  2.1

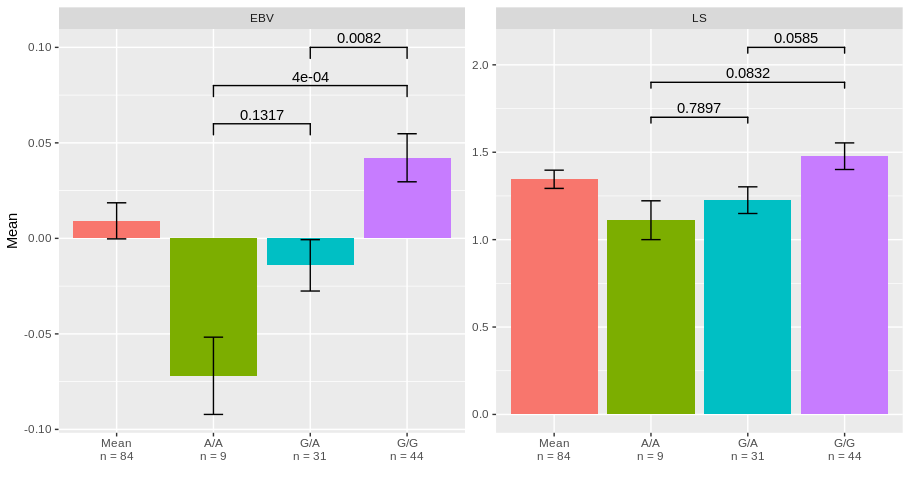

4)获取条形图并添加统计结果：

library(ggplot2)
library(ggsignif)
ggplot(DF, aes(x = SNP_code, y = Mean, fill = SNP_code))+
  geom_bar(stat = "identity", show.legend = FALSE)+
  geom_errorbar(aes(ymin = Mean-SEM, ymax = Mean+SEM), width = 0.2)+
  geom_signif(inherit.aes = FALSE, data = STAT,
              aes(xmin=Group1, xmax=Group2, annotations=labels, y_position=y_pos),
              manual = TRUE)+
  facet_wrap(.~Variable, scales = "free")+
  scale_x_discrete(name = "",labels = levels(DF$Labels))

​

​

我希望这看起来像你期望的那样。
