如何在WPF中删除LineGraph周围的边框？

Question

如何删除如图像所示的边框？

​

我试图移除图像周围的边框，并尝试了一些解决方案，如BorderBrush="Transparent" BorderThickness="0"，但这些解决方案不起作用。我只想要橱窗里的图形部分。我正在提供XAML和CS代码。请帮我解决这个问题。

XAML :

<Window x:Class="WpfToolkitChart.MainWindow"
        xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
        xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
        Title="MainWindow" Height="308.796" Width="436.419" Background="White"
        xmlns:chartingToolkit="clr-namespace:System.Windows.Controls.DataVisualization.Charting;assembly=System.Windows.Controls.DataVisualization.Toolkit">


    <Window.Resources>
        <Style x:Key="DataPointStyle1" TargetType="{x:Type chartingToolkit:LineDataPoint}">
            <Setter Property="Template">
                <Setter.Value>
                    <ControlTemplate TargetType="chartingToolkit:LineDataPoint">
                        <Grid Margin="0,0,0,0">
                            <Ellipse Fill="#617D99" ToolTip="{Binding Y}"/>
                            <Canvas>
                                <Image Source="/Images/marker.png" Cursor="Hand" Height="40" Width="20" Margin="-6,-33,0,0" Visibility="{Binding BindingInfo}" ToolTip="You!!" />
                                <Ellipse  Fill="{Binding Info}" Height="10px" Width="10px" Margin="0,-20,0,0" />
                            </Canvas>
                        </Grid>
                    </ControlTemplate>
                </Setter.Value>
            </Setter>
            <Setter Property="Background" Value="#33557A"></Setter>
        </Style>
    </Window.Resources>

    <Grid Margin="0,0,0,0">
        <chartingToolkit:Chart  Name="lineChart" Title=""  VerticalAlignment="Top" Margin="0,0,0,0" FontSize="10px" Height="269" Foreground="Black"  Background="Transparent"
                                BorderBrush="Transparent">
            <chartingToolkit:LineSeries Name="lp"
                                        DependentValuePath="Y" Margin="0,0,0,0"  IndependentValuePath="X"
                                        ItemsSource="{Binding}" IsSelectionEnabled="True"
                                        DataPointStyle="{StaticResource DataPointStyle1}">
            </chartingToolkit:LineSeries>
            <chartingToolkit:Chart.Axes>
                <chartingToolkit:LinearAxis Orientation="Y" Visibility="Hidden"/>
            </chartingToolkit:Chart.Axes>
            <chartingToolkit:Chart.LegendStyle>
                <Style x:Name="LegendHideStyle1" TargetType="Control">
                    <Setter Property="Width" Value="0"/>
                    <Setter Property="Height" Value="0"/>
                </Style>
            </chartingToolkit:Chart.LegendStyle>
            <chartingToolkit:Chart.PlotAreaStyle>
                <Style TargetType="Grid">
                    <Setter Property="Background" Value="Transparent" />
                </Style>
            </chartingToolkit:Chart.PlotAreaStyle>
        </chartingToolkit:Chart>
    </Grid>
</Window>

CS:

    public partial class MainWindow : Window
    {
        public MainWindow()
        {
            InitializeComponent();

            showColumnChart();
        }

        private void showColumnChart()
        {
            double y1 = 5, y2 = 1, y3 = 3, y4 =2;
            ObservableCollection<MyDataModelClass> data = new ObservableCollection<MyDataModelClass>{
            new MyDataModelClass {X = "A", Y = y1, BindingInfo = "Hidden" },
            new MyDataModelClass {X = "B", Y = y2, BindingInfo = "Hidden" },
            new MyDataModelClass {X = "C", Y = y3, BindingInfo = "Hidden" },
            new MyDataModelClass {X = "D", Y = y4, BindingInfo = "Visible" }
            };

            double max = data.Max(m => m.Y);
            double min = data.Min(m => m.Y);
            double Percentage = 15;

            double diff = max - min;
            double percetage = (Math.Abs(diff) / 100) * Percentage;
            double minVal = min - percetage;
            double maxVal = max + percetage;
            LinearAxis axis = new LinearAxis();
            axis.Orientation = AxisOrientation.Y;
            axis.Maximum = maxVal;
            axis.Minimum = minVal;
            axis.Visibility = Visibility.Hidden;

            //and use it:
            LineSeries ls = lineChart.Series.First() as LineSeries;
            ls.DependentRangeAxis = axis;

            //lineChart.Visibility = Visibility.Hidden;
            ls.BorderBrush = Brushes.Transparent;


            lineChart.DataContext = data;

        }
    }
}

Answer 1

经过大量的搜索和实验，我找到了一个简单的解决方案。我们需要更改图表模板，只需在XAML文件和一个引用中添加以下代码：

xmlns:chartingprimitives="clr-namespace:System.Windows.Controls.DataVisualization.Charting.Primitives;assembly=System.Windows.Controls.DataVisualization.Toolkit"


<chartingToolkit:Chart.Template>
                <ControlTemplate TargetType="chartingToolkit:Chart">
                    <Border
                BorderBrush="Transparent"
                BorderThickness="0">
                        <Grid>
                            <chartingprimitives:EdgePanel x:Name="ChartArea" Style="{TemplateBinding ChartAreaStyle}">
                                <Grid Canvas.ZIndex="-1" Style="{TemplateBinding PlotAreaStyle}" />
                            </chartingprimitives:EdgePanel>
                        </Grid>
                    </Border>
                </ControlTemplate>
            </chartingToolkit:Chart.Template>

Answer 2

此控件没有提供一种方便的方法来执行此操作。但无论如何，总有一种方法可以做到这一点，尽管这段代码会更加脆弱。

首先，可以使用Visual调试器探索控件的结构。在VS 2019年中，有：

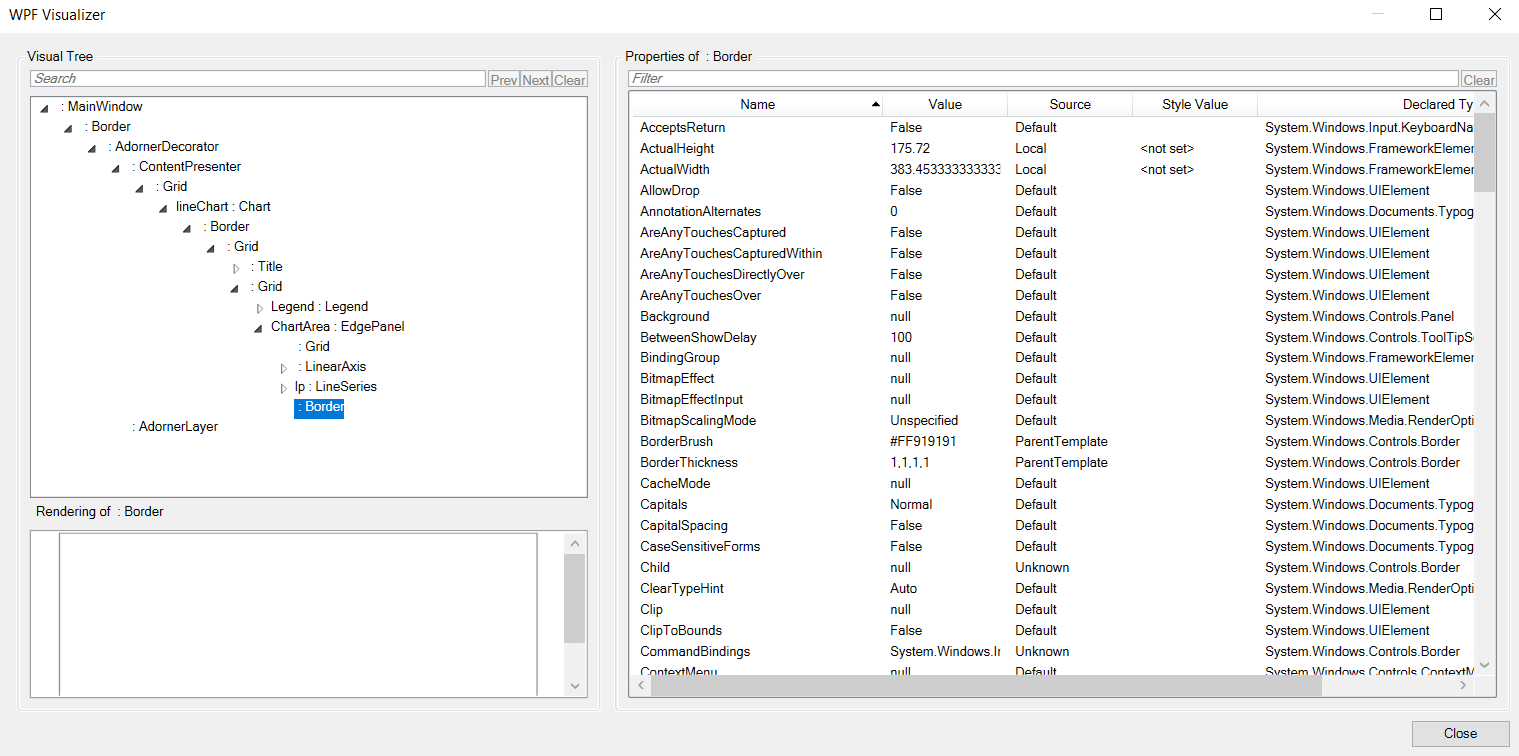

在以前的版本中，您可以在调试器中找到它：

还有很多其他类似的工具来自第三方。一旦您在结构中找到需要更改的控件(在本例中，它是EdgePanel中的一个边框)。然后，您可以从后面的代码中更改此控件。您不能在构造函数中这样做，因为视觉树尚未在构造时加载。你可以在上膛的时候做。因此，您需要订阅图表控件上加载的事件(也可能订阅LayoutUpdate事件，因为在布局更新时，它可以恢复其原始值)。函数FindVisualChild帮助在可视树中按类型和名称查找控件。当我们找到边框时，我们要么使其透明(更安全的选项)，要么使其厚度为0，但它可能会影响布局。我们也可以移除它，但是依赖它的东西可能会被打破。请注意，如果您更改主题，此代码可能会停止工作，因为它可能有不同的视觉树。

    void LineChart_OnLoaded(object sender, RoutedEventArgs e) {
        if (sender is Chart chart) {
            RemoveBorder(chart);
        }
    }

    void RemoveBorder(Chart chart) {
        EdgePanel ep = FindVisualChild<EdgePanel>(chart, "ChartArea");
        Border border = FindVisualChild<Border>(ep);
        border.BorderBrush = Brushes.Transparent;
    }

    static T FindVisualChild<T>(DependencyObject obj, string name = null) where T : FrameworkElement {
        int childrenCount = VisualTreeHelper.GetChildrenCount(obj);
        for (int i = 0; i < childrenCount; i++) {
            DependencyObject child = VisualTreeHelper.GetChild(obj, i);
            if (child is T element && (name == null || name == element.Name)) {
                return element;
            }
            T childOfChild = FindVisualChild<T>(child, name);
            if (childOfChild != null) {
                return childOfChild;
            }
        }
        return null;
    }
