与模板参数包一起使用natvis

Question

我有一个大致像这样的数据结构

struct Column
{
    void* data;
};

template <class... T>
struct Table
{
    size_t count;
    std::vector<Column> columns; // columns.size() == sizeof...(T)
};

我试着用下面的方式来想象

+ Table
  + Column 0
      item 1
      item 2
      ...
  + Column 1
      item 1
      item 2
      ...

到目前为止，这就是我所拥有的：

<Type Name="Table&lt;*&gt;">
    <Expand>
        <Synthetic Name="Column 0">
            <Expand>
                <ArrayItems>
                    <Size>count</Size>
                    <ValuePointer>($T1*) columns[0].data</ValuePointer>
                </ArrayItems>
            </Expand>
        </Synthetic>

        <Synthetic Name="Column 1" Condition="columns.size() > 1">
            <Expand>
                <ArrayItems>
                    <Size>count</Size>
                    <ValuePointer>($T2*) columns[1].data</ValuePointer>
                </ArrayItems>
            </Expand>
        </Synthetic>
    </Expand>
</Type>

很明显，这个比例真的很差。我的任务是复制粘贴每一列的代码，并添加一个Condition来启用或禁用它。最后，我将获得最大数量的受支持列，之后，可视化将停止显示列。

有什么办法能更聪明地展示这一点吗？如果我能够用像$T$i这样的表达式对模板参数进行索引，我可以想象几种方法来做到这一点。

我真正想做的是这样的事情：

<Type Name="Table&lt;*&gt;">
    <Expand>
        <ArrayItems>
            <Size>columns.size()</Size>
            <Value>
                <Synthetic Name="Column %i">
                <Expand>
                    <ArrayItems>
                        <Size>count</Size>
                        <ValuePointer>($T$i2*) columns[$i2].data</ValuePointer>
                    </ArrayItems>
                </Expand>
            </Synthetic>
            </Value>
        </ArrayItems>
    </Expand>
</Type>

Answer 1

看来，唯一的选择是在代码中创建一个助手类型，该类型进行递归模板扩展，逐个剥离模板参数。您必须强制编译器实例化模板，使其可供natvis使用。

我刚开始的数据

struct ColumnStorage
{
    void* data;
};

struct TableStorage
{
    size_t rowCount;
    std::vector<ColumnStorage> columns;
};

template <class Table, class... TableColumns>
struct TableAccessor
{
    TableStorage* tableStorage;
};

这就是我需要补充的东西，以获得体面的自然

// The helper type that allows natvis to work. The first template parameter keeps track of the
// column index so we know where to index into TableStorage::columns. The second parameter isn't
// used here. The third parameter is the concrete types of each column.
template <int i, class Table, class... TableColumns>
struct NatvisColumnView;

template <class Table, class... TableColumns>
struct TableAccessor
{
    TableStorage* tableStorage;

    // Used by natvis to cast `this`
    using NatvisView = NatvisColumnView<0, Table, TableColumns...>;

    // Force the compiler to instantiate the template or it won't be available to natvis
    TableAccessor() { (NatvisView*) this; }
};

// End the template recursion. Inherit from TableAccessor so that tableStorage can be used
template <int i, class Table, class Column>
struct NatvisColumnView<i, Table, Column> : TableAccessor<Table, Column> {};

// Recursive template to peel off column types one-by-one
template <int i, class Table, class FirstColumn, class... RestColumns>
struct NatvisColumnView<i, Table, FirstColumn, RestColumns...> : NatvisColumnView<i + 1, Table, RestColumns...>
{
    using base = typename NatvisColumnView<i + 1, Table, RestColumns...>;
};

<Type Name="TableAccessor&lt;*,*&gt;">
    <DisplayString>Table</DisplayString>
    <Expand>
    <Item Name="Count">tableStorage->rowCount</Item>
    <!-- Cast `this` to the view type and use the for visualization -->
    <ExpandedItem>*(NatvisView*) this</ExpandedItem>
    </Expand>
</Type>

<!-- Bottom out the recursive view -->
<Type Name="NatvisColumnView&lt;*,*,*&gt;">
    <DisplayString>NatvisColumnView</DisplayString>
    <Expand>
    <Synthetic Name="Column">
        <Expand>
        <ArrayItems>
            <Size>tableStorage->rowCount</Size>
            <ValuePointer>($T3*) tableStorage->columns[$T1].data</ValuePointer>
        </ArrayItems>
        </Expand>
    </Synthetic>
    </Expand>
</Type>

<!-- Display the first column then recurse -->
<Type Name="NatvisColumnView&lt;*,*,*,*&gt;">
    <DisplayString>NatvisColumnView</DisplayString>
    <Expand>
    <Synthetic Name="Column">
        <Expand>
        <ArrayItems>
            <Size>tableStorage->rowCount</Size>
            <!-- Show the correct column using the column index (first template parameter)
                 and the column type (third template parameter) -->
            <ValuePointer>($T3*) tableStorage->columns[$T1].data</ValuePointer>
        </ArrayItems>
        </Expand>
    </Synthetic>
    <ExpandedItem>*(base*) this</ExpandedItem>
    </Expand>
</Type>

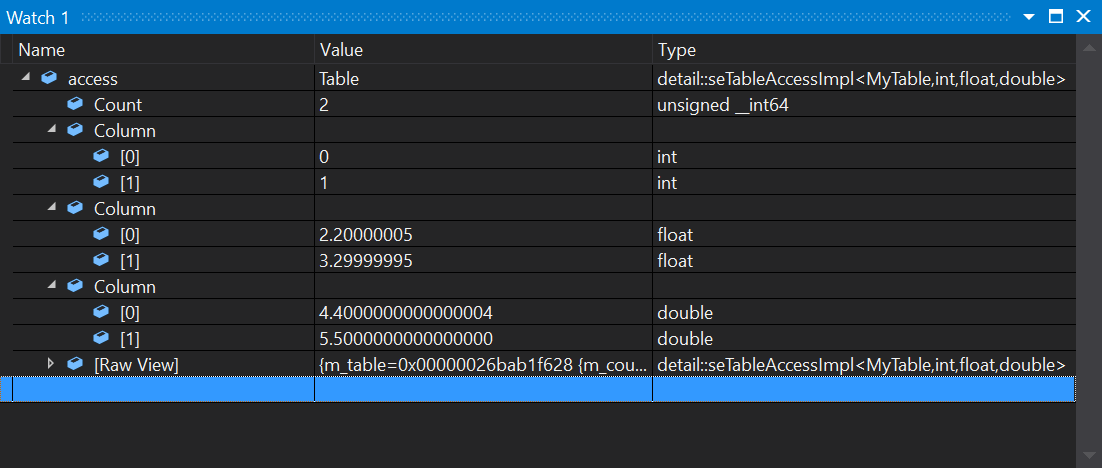

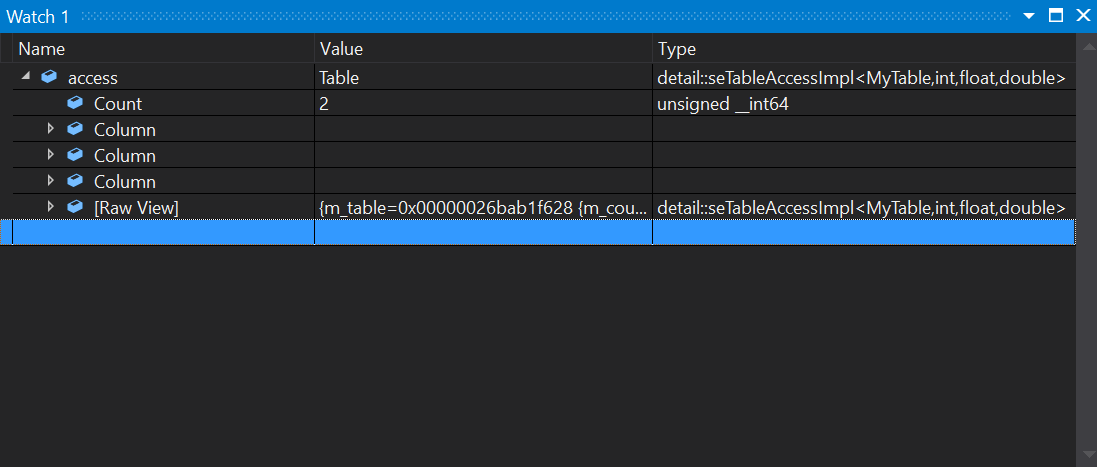

最后看起来是这样的：

​

我尝试了各种其他方法，例如：

• 使用IndexListItems。如果不能索引模板参数$T$i.
• Using CustomListItems，就无法工作。同样，如果不能将模板parameters.
• Using索引为TableAccessor中的变量模板以获取类型和索引，则无法工作。显然，natvis不能访问可变模板。

将来，我会直接使用natvis DLL，而不是纠缠于严格限制的XML。
