接入蔚蓝计费API

Question

我想创建一个仪表板，其中包含关于我的蓝色资源成本的图表(尽可能详细)。意思是，单单每月发票是不够的(但我已经非常高兴，如果我能做到这一点！)

无论如何，我注意到的第一件事是，如果您找到一个示例，端点urls看起来如下

 https://management.azure.com/subscriptions/${subscriptionId}/resourcegroups?api-version=2016-09-01

查看url 2016-09-01的末尾，看起来不太像up2date。这中间帖子是我能找到的最好的文章，但它也使用这些urls。此外，我无法按照所描述的步骤进行操作，首先它使用postman检索access_token (因为我需要它的自动化，所以对我不是很有用)，其次，在中间的某个地方检索到了access_token，但从未使用过。

因此，我找到了一个像[azure-arm-billing][2]这样的npm包，我可以从它编写以下程序(主要是复制粘贴)：

const msRestAzure = require('ms-rest-azure');
const BillingManagement = require('azure-arm-billing')

const clientId = process.env['CLIENT_ID'];
const secret = process.env['APPLICATION_SECRET'];
const domain = process.env['DOMAIN'];
const subscriptionId = process.env['AZURE_SUBSCRIPTION_ID'];

// Retrieve access_token
const app = new msRestAzure.ApplicationTokenCredentials(clientId, domain, secret);
app.getToken((err, token) => {
    console.log(token.accessToken);
});

// =======
msRestAzure
  .interactiveLogin( { domain }) // The argument here is nowhere documented
  .then(credentials => {
      console.log(credentials);
      let client = new BillingManagement(credentials, subscriptionId);
      return client.invoices.list();
  })
  .then(invoices => {
      console.log('List of invoices:');
      console.dir(invoices, { depth: null, colors: true });
  });

运行这个显示了一个很好的access_token和发票

...
List of invoices:
[
  {
    id: '/subscriptions/../providers/Microsoft.Billing/invoices/....',
    name: '...',
    type: 'Microsoft.Billing/invoices',
    invoicePeriodStartDate: 2019-08-25T00:00:00.000Z,
    invoicePeriodEndDate: 2019-09-24T00:00:00.000Z,
    billingPeriodIds: [
      '/subscriptions/.../pr..s/Micro..ing/bill..ods/201910-1'
    ]
  },
  {
    id: '/subscriptions/9ea...3d/providers/Microsoft.Billing/invoices/201909-...',
    name: '....',
    type: 'Microsoft.Billing/invoices',
    invoicePeriodStartDate: 2019-07-25T00:00:00.000Z,
    invoicePeriodEndDate: 2019-08-24T00:00:00.000Z,
    billingPeriodIds: [
      '/subscriptions/..../providers/Microsoft.Billing/billingPeriods/201909-1...'
    ]
  }
]

虽然我有发票，但没有号码。我想收回每一项资源的成本。

因此，这些文档似乎已经过时，以至于我想要的东西已经不存在了(看上去是这样的)。我的问题是，如果有人能够检索到这样的信息？我真的很想知道怎么做！！

更新这似乎是一个权限问题。所以，下面我分享一些截图，展示我现在所拥有的。也许从这些可以清楚地看出我错过了什么，或者设置错了。首先，这里是我最新的nodejs应用程序：

const msRestAzure = require("ms-rest-azure");
const ConsumptionManagementClient = require("azure-arm-consumption");

const clientId = '76d79....';          // App registration ID
const secret = '****...';              // App registration secret
const domain =  'dc36...';             // tenantId
const subscriptionId = '9ea2d...';     // subscription ID

const AzureServiceClient = msRestAzure.AzureServiceClient;

//an example to list resource groups in a subscription
msRestAzure.loginWithServicePrincipalSecret(clientId, secret, domain).then((creds) => {
    const client = new ConsumptionManagementClient(creds, subscriptionId);
    const expand = '';
    const filter = '';
    const skiptoken = '';
    const top = 1000;
    const apply = '';
    return client.usageDetails.list(expand, filter, skiptoken, top, apply).then(result => {
    console.log('The result is:', result);
  });
}).catch((err) => {
  console.log('An error occurred:');
  console.dir(err, { depth: null, colors: true });
});

，它输出statusCode 401

Error: Unauthorized. Request ID: e6b127...
...

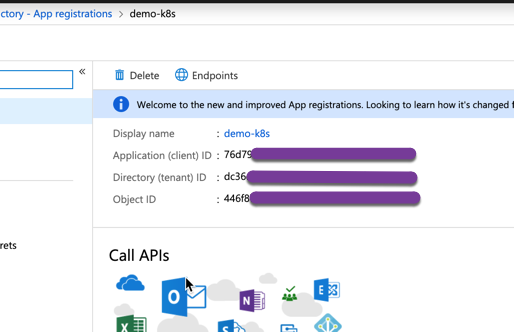

所以，我在AD中注册了应用程序

​

​

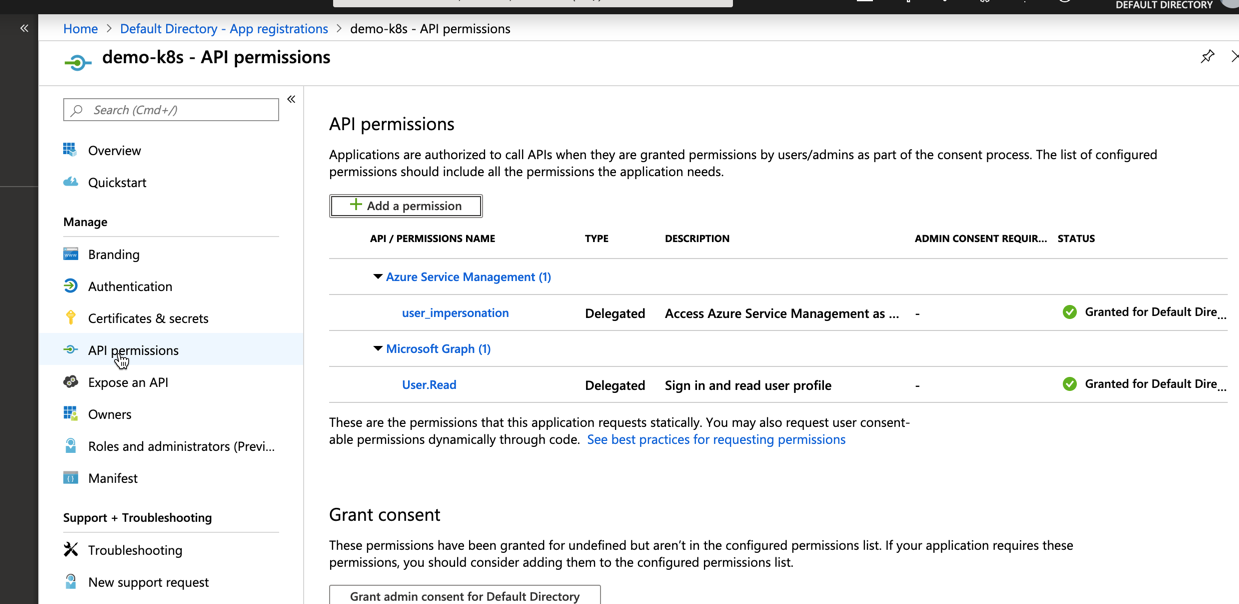

它的API权限是

​

​

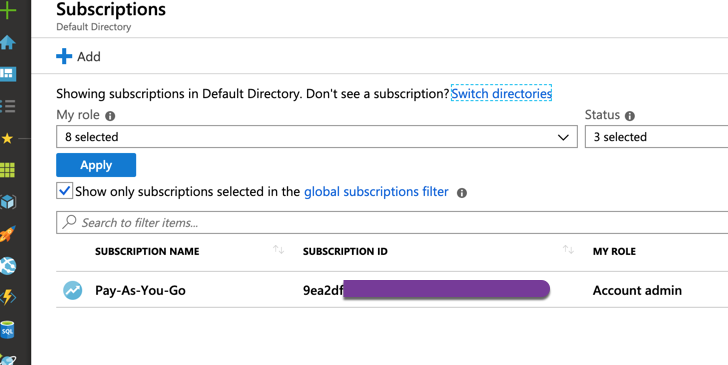

最后，我只有一个订阅

​

​

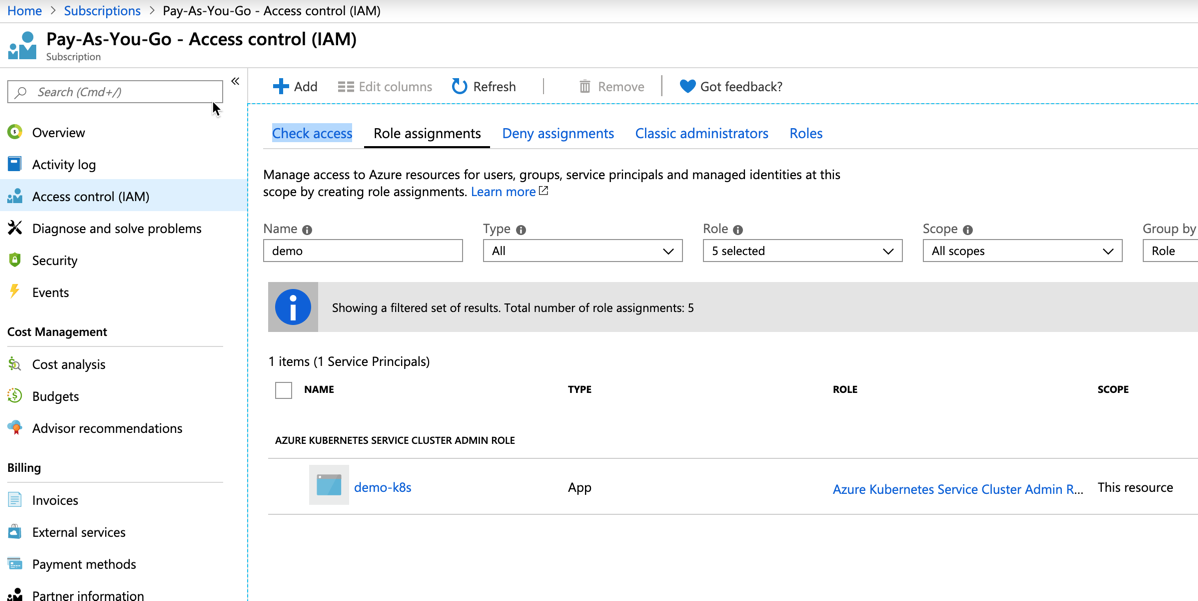

具有下列IAM设置

​

​

有可疑吗？

Answer 1

如果您正在寻找资源成本，我建议您查看一下Consumption API - List Usage Details。这会让你消耗掉所有的资源。

您需要安装azure-arm-consumption包。

下面是示例代码：

const msRestAzure = require("ms-rest-azure");
const ConsumptionManagementClient = require("azure-arm-consumption");
msRestAzure.interactiveLogin().then((creds) => {
    const subscriptionId = "<your subscription id>";
    const client = new ConsumptionManagementClient(creds, subscriptionId);
    const expand = "";
    const filter = "";
    const skiptoken = "";
    const top = 1000;
    const apply = "";
    return client.usageDetails.list(expand, filter, skiptoken, top, apply).then((result) => {
      console.log("The result is:");
      console.log(result);
    });
}).catch((err) => {
  console.log('An error occurred:');
  console.dir(err, {depth: null, colors: true});
});

这是从这里拍摄的：https://github.com/Azure/azure-sdk-for-node/tree/master/lib/services/consumptionManagement。
