如何正确地将PySide2和pytransitions结合起来，以实现GUI应用程序的状态机

Question

背景:我想使用PySide2实现一个GUI来控制一群客户端(这些客户端通过RPC调用与“服务器”控制硬件(如马达、摄像机等)对话)。

以前的方法:通常，我要做的是创建我的GUI，并将UI信号连接到客户端插槽，然后反过来。对于更简单的应用程序来说，这是非常好的。

问题:我希望我的GUI能够正确地表示对客户端的允许调用。最简单的例子是:在执行client1.doXY()之后，我想禁用执行该命令的按钮，只有在doZY()完成后才能重新激活它。虽然上面的方法是完全可能的，但是当事情变得更加复杂时，感觉是错误的:例如，当GUI元素依赖于多个客户端的状态时。

方法:因此，我认为使用有限状态机作为客户端和GUI之间的中间层是个好主意，并遇到了跃迁，这看起来非常有希望。然而，我很难找到将这两个世界结合在一起的正确方法。

问题：

• 一般来说，这是一种有效的设计方法吗？
• 特别是，如工作代码示例所示，在客户端执行阻塞调用时，我必须将客户端移动到单独的线程，以避免GUI冻结。虽然我的代码运行良好，但在创建额外的qt信号以连接ClientState和Client对象时，它需要一些开销。这是否可以做得更优雅(即没有额外的xy_requested信号，但不知怎么地，直接调用Client函数，仍然是在Client线程中调用Client函数，而不是主线程？)

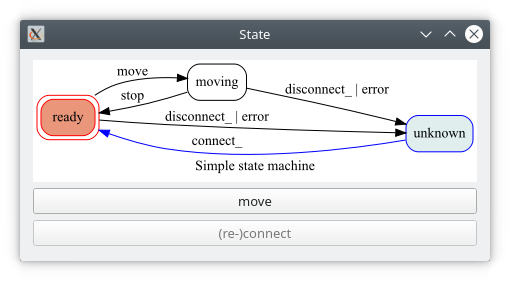

工作实例：

​

​

代码：

import io
import logging
from time import sleep

import numpy as np
from PySide2 import QtSvg, QtWidgets
from PySide2.QtCore import Signal, Slot, QObject, QThread
from PySide2.QtWidgets import QWidget, QPushButton, QApplication
from transitions.extensions import GraphMachine

logging.basicConfig(level=logging.DEBUG)


class Client(QObject):
    # Client signals
    sig_move_done = Signal()
    sig_disconnected = Signal()
    sig_connected = Signal()

    def __init__(self, *args, **kwargs):
        super().__init__(*args, **kwargs)

    @Slot(int)
    def client_move(self, dest):
        print(f'Client moving to {dest}...')
        sleep(3)  # some blocking function
        if np.random.rand() < 0.5:
            print("Error occurred during movement...")
            self.sig_disconnected.emit()
        else:
            print("Movement done...")
            self.sig_move_done.emit()

    @Slot()
    def client_disconnect(self):
        # do something then...  on success do:
        self.sig_disconnected.emit()

    @Slot()
    def client_connect(self):
        # do something ... on success do:
        self.sig_connected.emit()


# define states, transitions and extra args for transitions state machine:
states = ['ready', 'moving', 'unknown']

transitions = [
    {'trigger': 'move', 'source': 'ready', 'dest': 'moving'},
    {'trigger': 'stopped', 'source': 'moving', 'dest': 'ready'},
    {'trigger': 'disconnect_', 'source': ['ready', 'moving'], 'dest': 'unknown'},
    {'trigger': 'error', 'source': ['ready', 'moving'], 'dest': 'unknown'},
    {'trigger': 'connect_', 'source': 'unknown', 'dest': 'ready'}

]

extra_args = dict(initial='unknown', title='Simple state machine',
                  show_conditions=True, show_state_attributes=True)


class ClientState(QObject):
    # machine signals
    sig_update_available = Signal()
    sig_move_requested = Signal(int)  # can this be avoided ? see self.on_enter_moving
    sig_connect_requested = Signal()  # can this be avoided ?

    def __init__(self, client, *args, **kwargs):
        super().__init__(*args, **kwargs)
        self.client = client
        # move client to seperate thread
        self.worker_thread = QThread()
        self.client.moveToThread(self.worker_thread)
        self.worker_thread.start()

        self.machine = GraphMachine(model=self, states=states, transitions=transitions,
                                    show_auto_transitions=False, **extra_args, after_state_change="update_available",
                                    send_event=True)

        # connecting Client signals to state machine triggers
        self.client.sig_disconnected.connect(self.disconnect_)
        self.client.sig_connected.connect(self.connect_)
        self.client.sig_move_done.connect(self.stopped)
        self.update_available = lambda *args, **kwargs: self.sig_update_available.emit()

        # can this be avoided ? see self.on_enter_moving
        self.sig_move_requested.connect(self.client.client_move)
        self.sig_connect_requested.connect(self.client.client_connect)

    def on_enter_moving(self, event):
        print(event.kwargs)
        dest = event.kwargs.get('dest', 0)
        # calling self.client_move() directly will cause self.client_move to be called from main thread...
        # calling it via a helper signal instead:
        self.sig_move_requested.emit(dest)

    def show_graph(self, **kwargs):
        stream = io.BytesIO()
        self.get_graph(**kwargs).draw(stream, prog='dot', format='svg')
        return stream.getvalue()


class GUI(QWidget):
    def __init__(self, client_state):
        super().__init__()
        self.client_state = client_state

        # setup UI
        self.setWindowTitle("State")
        self.svgWidget = QtSvg.QSvgWidget()
        self.layout = QtWidgets.QVBoxLayout()
        self.layout.addWidget(self.svgWidget)
        self.btn_move = QPushButton("move")
        self.btn_connect = QPushButton("(re-)connect")
        self.layout.addWidget(self.btn_move)
        self.layout.addWidget(self.btn_connect)

        self.setLayout(self.layout)

        # Connect Slots/Signals
        ## machine -> GUI
        self.client_state.sig_update_available.connect(self.update_gui)

        ## GUI --> machine
        self.btn_move.clicked.connect(lambda: self.client_state.move(dest=np.random.randint(1, 100)))
        self.btn_connect.clicked.connect(
            self.client_state.connect_)

        # update UI
        self.update_gui()

    def update_gui(self):
        print("Update model graph and GUI...")
        self.svgWidget.load(self.client_state.show_graph())

        if self.client_state.is_ready():
            self.btn_move.setEnabled(True)
            self.btn_connect.setDisabled(True)
        if self.client_state.is_moving():
            self.btn_move.setDisabled(True)
            self.btn_connect.setDisabled(True)
        if self.client_state.is_unknown():
            self.btn_move.setDisabled(True)
            self.btn_connect.setEnabled(True)


if __name__ == "__main__":
    import sys

    app = QApplication(sys.argv)
    client = Client()
    client_state = ClientState(client)
    gui = GUI(client_state)
    gui.show()
    sys.exit(app.exec_())

Answer 1

一般来说，这是一种有效的设计方法吗？

是的，它是有效的，在复杂的应用程序中，FSM是实现的，因为它们简化了逻辑。

关于IMHO简化，我更愿意验证Qt中是否存在类似的工具，因为它们通过事件或信号与Qt元素友好地交互。在这种情况下，至少有两个选项：

​

国家机器框架：

​

import time
from functools import partial
from PySide2 import QtCore, QtGui, QtWidgets
import numpy as np


class Client(QtCore.QObject):
    # Client signals
    sig_move_done = QtCore.Signal()
    sig_disconnected = QtCore.Signal()
    sig_connected = QtCore.Signal()

    @QtCore.Slot(int)
    def client_move(self, dest):
        print(f"Client moving to {dest}...")
        time.sleep(3)  # some blocking function
        if np.random.rand() < 0.5:
            print("Error occurred during movement...")
            self.sig_disconnected.emit()
        else:
            print("Movement done...")
            self.sig_move_done.emit()

    @QtCore.Slot()
    def client_disconnect(self):
        # do something then...  on success do:
        self.sig_disconnected.emit()

    @QtCore.Slot()
    def client_connect(self):
        # do something ... on success do:
        self.sig_connected.emit()


class GUI(QtWidgets.QWidget):
    def __init__(self, parent=None):
        super().__init__(parent)
        self.setWindowTitle("State")

        self.btn_move = QtWidgets.QPushButton("move")
        self.btn_connect = QtWidgets.QPushButton("(re-)connect")

        self.client = Client()
        self._thread = QtCore.QThread(self)
        self._thread.start()
        self.client.moveToThread(self._thread)

        lay = QtWidgets.QVBoxLayout(self)
        lay.addWidget(self.btn_move)
        lay.addWidget(self.btn_connect)
        self.resize(320, 120)

        # states
        self.unknown_state = QtCore.QState()
        self.ready_state = QtCore.QState()
        self.moving_state = QtCore.QState()

        # transitions
        self.ready_state.addTransition(self.btn_move.clicked, self.moving_state)
        self.moving_state.addTransition(self.client.sig_move_done, self.ready_state)
        self.ready_state.addTransition(self.client.sig_disconnected, self.unknown_state)
        self.moving_state.addTransition(self.client.sig_disconnected, self.unknown_state)
        self.unknown_state.addTransition(self.btn_connect.clicked, self.ready_state)
        self.unknown_state.addTransition(self.client.sig_connected, self.ready_state)

        self.unknown_state.entered.connect(self.on_unknown_state_enter)
        self.ready_state.entered.connect(self.on_ready_state_enter)
        self.moving_state.entered.connect(self.on_moving_state_enter)

        state_machine = QtCore.QStateMachine(self)
        state_machine.addState(self.ready_state)
        state_machine.addState(self.moving_state)
        state_machine.addState(self.unknown_state)

        state_machine.setInitialState(self.unknown_state)
        state_machine.start()

    def on_unknown_state_enter(self):
        print("unknown_state")
        self.btn_move.setDisabled(True)
        self.btn_connect.setEnabled(True)

    def on_ready_state_enter(self):
        print("ready_state")
        self.btn_move.setEnabled(True)
        self.btn_connect.setDisabled(True)

    def on_moving_state_enter(self):
        print("moving_state")
        self.btn_move.setDisabled(True)
        self.btn_connect.setDisabled(True)
        dest = np.random.randint(1, 100)
        wrapper = partial(self.client.client_move, dest)
        QtCore.QTimer.singleShot(0, wrapper)

    def closeEvent(self, event):
        self._thread.quit()
        self._thread.wait()
        super().closeEvent(event)


if __name__ == "__main__":
    import sys

    app = QtWidgets.QApplication(sys.argv)

    w = GUI()
    w.show()

    sys.exit(app.exec_())

​

：

​

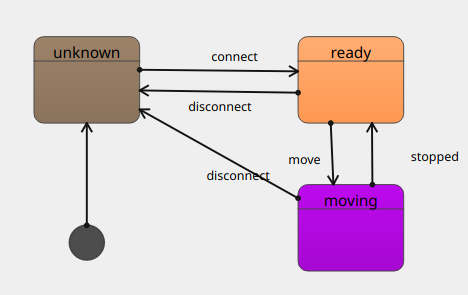

Simple_State_Machine.scxml

<?xml version="1.0" encoding="UTF-8"?>
<scxml xmlns="http://www.w3.org/2005/07/scxml" version="1.0" binding="early" xmlns:qt="http://www.qt.io/2015/02/scxml-ext" name="Simple_State_Machine" qt:editorversion="4.10.0" initial="unknown">
    <qt:editorinfo initialGeometry="150.82;359.88;-20;-20;40;40"/>
    <state id="ready">
        <qt:editorinfo stateColor="#ff974f" geometry="425.83;190.46;-60;-50;120;100" scenegeometry="425.83;190.46;365.83;140.46;120;100"/>
        <transition type="internal" event="move" target="moving">
            <qt:editorinfo endTargetFactors="35.02;9.52" movePoint="-34.84;14.59" startTargetFactors="32.33;90.16"/>
        </transition>
        <transition type="internal" event="disconnect" target="unknown">
            <qt:editorinfo endTargetFactors="91.87;60.92" movePoint="9.38;9.36" startTargetFactors="6.25;63.37"/>
        </transition>
    </state>
    <state id="unknown">
        <qt:editorinfo stateColor="#89725b" geometry="150.82;190.46;-60;-50;120;100" scenegeometry="150.82;190.46;90.82;140.46;120;100"/>
        <transition type="internal" target="ready" event="connect">
            <qt:editorinfo endTargetFactors="6.34;41.14" movePoint="0;7.30" startTargetFactors="91.13;39.41"/>
        </transition>
    </state>
    <state id="moving">
        <qt:editorinfo stateColor="#a508d0" geometry="425.83;344.53;-60;-50;120;100" scenegeometry="425.83;344.53;365.83;294.53;120;100"/>
        <transition type="internal" event="disconnect" target="unknown">
            <qt:editorinfo movePoint="2.08;17.72"/>
        </transition>
        <transition type="internal" event="stopped" target="ready">
            <qt:editorinfo endTargetFactors="68.30;90.08" movePoint="62.50;10.32" startTargetFactors="68.69;5.74"/>
        </transition>
    </state>
</scxml>

​

​

import os
import time
from functools import partial
from PySide2 import QtCore, QtGui, QtWidgets, QtScxml
import numpy as np


class Client(QtCore.QObject):
    # Client signals
    sig_move_done = QtCore.Signal()
    sig_disconnected = QtCore.Signal()
    sig_connected = QtCore.Signal()

    @QtCore.Slot(int)
    def client_move(self, dest):
        print(f"Client moving to {dest}...")
        time.sleep(3)  # some blocking function
        if np.random.rand() < 0.5:
            print("Error occurred during movement...")
            self.sig_disconnected.emit()
        else:
            print("Movement done...")
            self.sig_move_done.emit()

    @QtCore.Slot()
    def client_disconnect(self):
        # do something then...  on success do:
        self.sig_disconnected.emit()

    @QtCore.Slot()
    def client_connect(self):
        # do something ... on success do:
        self.sig_connected.emit()


class GUI(QtWidgets.QWidget):
    def __init__(self, parent=None):
        super().__init__(parent)
        self.setWindowTitle("State")

        self.btn_move = QtWidgets.QPushButton("move")
        self.btn_connect = QtWidgets.QPushButton("(re-)connect")

        self.client = Client()
        self._thread = QtCore.QThread(self)
        self._thread.start()
        self.client.moveToThread(self._thread)

        lay = QtWidgets.QVBoxLayout(self)
        lay.addWidget(self.btn_move)
        lay.addWidget(self.btn_connect)
        self.resize(320, 120)

        current_dir = os.path.dirname(os.path.realpath(__file__))
        filename = os.path.join(current_dir, "Simple_State_Machine.scxml")

        machine = QtScxml.QScxmlStateMachine.fromFile(filename)
        machine.setParent(self)

        for error in machine.parseErrors():
            print(error.toString())

        machine.connectToState("unknown", self, QtCore.SLOT("on_unknown_state_enter(bool)"))
        machine.connectToState("ready", self, QtCore.SLOT("on_ready_state_enter(bool)"))
        machine.connectToState("moving", self, QtCore.SLOT("on_moving_state_enter(bool)"))


        self.btn_connect.clicked.connect(partial(machine.submitEvent, "connect"))
        self.btn_move.clicked.connect(partial(machine.submitEvent, "move"))

        self.client.sig_disconnected.connect(partial(machine.submitEvent, "disconnect"))
        self.client.sig_connected.connect(partial(machine.submitEvent, "connect"))
        self.client.sig_move_done.connect(partial(machine.submitEvent, "stopped"))

        machine.start()

    @QtCore.Slot(bool)
    def on_unknown_state_enter(self, active):
        if active:
            print("unknown_state")
            self.btn_move.setDisabled(True)
            self.btn_connect.setEnabled(True)

    @QtCore.Slot(bool)
    def on_ready_state_enter(self, active):
        if active:
            print("ready_state")
            self.btn_move.setEnabled(True)
            self.btn_connect.setDisabled(True)

    @QtCore.Slot(bool)
    def on_moving_state_enter(self, active):
        if active:
            print("moving_state")
            self.btn_move.setDisabled(True)
            self.btn_connect.setDisabled(True)
            dest = np.random.randint(1, 100)
            wrapper = partial(self.client.client_move, dest)
            QtCore.QTimer.singleShot(0, wrapper)

    def closeEvent(self, event):
        self._thread.quit()
        self._thread.wait()
        super().closeEvent(event)


if __name__ == "__main__":
    import sys

    app = QtWidgets.QApplication(sys.argv)

    w = GUI()
    w.show()

    sys.exit(app.exec_())
