是否可以添加包含用geom_text编写的文本的图例框？

Question

我想用多个变量在R中绘制一个NMDS。我已经在geom_point中使用了尺寸、形状和颜色。但是我有另一个变量，所以我把它作为数值包含在geom_text中，问题是我需要在另一个图例中显示每个数字是什么。在不改变大小、形状和颜色传说的情况下，能做到这一点吗？

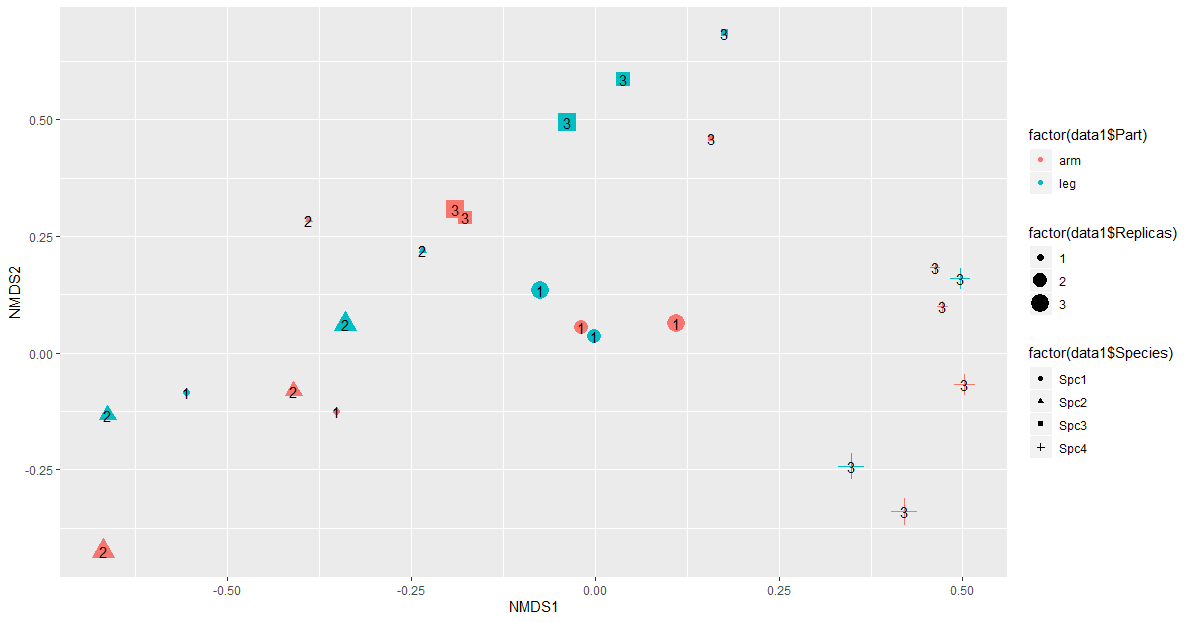

这是我尝试过的

data1<-data.frame("Replicas" = c(1,2,3,1,2,3,1,2,3,1,2,3,1,2,3,1,2,3,1,2,3,1,2,3),
 "Part" = c("leg","leg","leg","arm","arm","arm","leg","leg","leg","arm","arm","arm","leg","leg","leg","arm","arm","arm","leg","leg","leg","arm","arm","arm"),
 "Species" = c("Spc1","Spc1","Spc1","Spc1","Spc1","Spc1","Spc2","Spc2","Spc2","Spc2","Spc2","Spc2","Spc3","Spc3","Spc3","Spc3","Spc3","Spc3","Spc4","Spc4","Spc4","Spc4","Spc4","Spc4"),
 "Habitat" = c("Cali","Cali","Cali","Cali","Cali","Cali","Delhi","Delhi","Delhi","Delhi","Delhi","Delhi","Fiji","Fiji","Fiji","Fiji","Fiji","Fiji","Fiji","Fiji","Fiji","Fiji","Fiji","Fiji"),
 "NMDS1" = c(-0.556,-0.001,-0.074,-0.352,-0.019,0.111,-0.235,-0.663,-0.34,-0.39,-0.41,-0.669,0.176,0.038,-0.038,0.158,-0.177,-0.19,0.462,0.496,0.348,0.472,0.502,0.42),               "NMDS2" = c(-0.085,0.035,0.134,-0.124,0.055,0.064,0.22,-0.133,0.061,0.285,-0.082,-0.425,0.686,0.587,0.494,0.46,0.29,0.309,0.183,0.16,-0.242,0.1,-0.067,-0.339)
)
data2 <- as.integer(as.factor(data1$Habitat)) #To assign numerical values to each factor included in Habitat
ggplot(data1, aes(NMDS1, NMDS2)) +
 geom_point(aes(colour=factor(data1$Part), size=factor(data1$Replicas), shape=factor(data1$Species))) +
 geom_text(aes(x=NMDS1,y=NMDS2,label=data2))

​

我想在图例框中包括“生境”，显示一个是卡利，两个是德里，三个是斐济。拜托有人能帮我吗？

Answer 1

下面是一个获取文本图例的黑客。首先，对代码进行一些更改：

• 数据帧名称不应该在aes中被重声明。
• 我已经在data2中创建了一个hab.num列，而不是有一个单独的带有数字的向量。使用单独的向量是危险的，因为它破坏了从给定数据帧到各种情节美学的列映射。
• -- data.frame函数会自动将字符列转换为因子(除非添加参数stringsAsFactors=FALSE)，因此不需要将这些列转换为对ggket.

的调用。

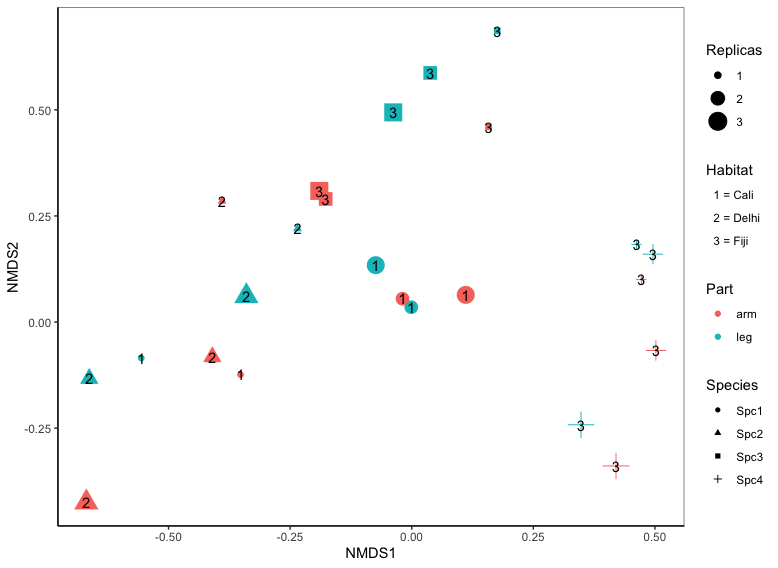

好的，回到眼前的问题:我们将hab.num映射到fill美学，因为我们没有将fill用于其他任何东西。这将创造一个传奇。然后，我们将图例标签设置为所需的值，并去掉填充图例中的点标记，因为我们只需要文本标签。

library(tidyverse)

data1 = data1 %>%
  mutate(hab.num = factor(recode(Habitat, Cali=1, Delhi=2, Fiji=3)))

ggplot(data1, aes(NMDS1, NMDS2)) +
  geom_point(aes(colour=Part, size=factor(Replicas), shape=Species, fill=hab.num)) +
  geom_text(aes(x=NMDS1,y=NMDS2,label=hab.num)) +
  scale_fill_discrete(labels=paste(levels(data1$hab.num), "=", levels(data1$Habitat))) +
  guides(fill=guide_legend(keywidth=unit(0,"mm"), override.aes=list(size=0, colour=NA))) +
  labs(size="Replicas", fill="Habitat") +
  theme_classic()

​

​
