用于创建现有负载均衡器的新入站NAT池的powershell命令

Question

我希望将现有的Azure负载均衡器附加到虚拟机刻度集中，为此，我需要创建入站nat池，以便能够获取入站nat池的资源ID，并将其传递给VMSS的ARM模板。提前谢谢。

Answer 1

根据我的研究，我们可以使用PowerShell命令New-AzLoadBalancerInboundNatPoolConfig创建入站nat池。有关更多细节，请参阅https://learn.microsoft.com/en-us/powershell/module/az.network/New-AzLoadBalancerInboundNatPoolConfig?view=azps-2.8.0。

例如：

Connect-AzAccount

$slb = Get-AzLoadBalancer -Name "testload" -ResourceGroupName "testfun07"
$feIpConfig = Get-AzLoadBalancerFrontendIpConfig -Name "LoadBalancerFrontEnd" -Loadbalancer $slb

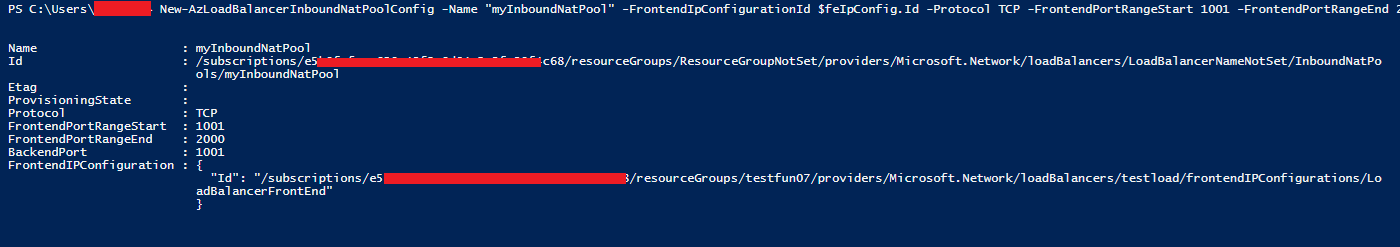

New-AzLoadBalancerInboundNatPoolConfig -Name "myInboundNatPool" -FrontendIpConfigurationId $feIpConfig.Id -Protocol TCP -FrontendPortRangeStart 1001 -FrontendPortRangeEnd 2000 -BackendPort 1001

​

​

更新

如果要使用PowerShell为现有负载均衡器创建入站NAT池，则需要执行以下步骤

1. 创建入站NAT池

$slb = Get-AzureRmLoadBalancer -Name "testload" -ResourceGroupName "testfun07"

$feIpConfig = Get-AzureRmLoadBalancerFrontendIpConfig -Name "LoadBalancerFrontEnd" -Loadbalancer $slb

Add-AzureRmLoadBalancerInboundNatPoolConfig -LoadBalancer $slb -Name "myInboundNatPool" -FrontendIpConfigurationId $feIpConfig.Id -Protocol TCP -FrontendPortRangeStart 1001 -FrontendPortRangeEnd 2000 -BackendPort 1001

1. 为laad平衡器

配置ppol

Set-AzureRmLoadBalancerInboundNatPoolConfig -LoadBalancer $slb -Name "myInboundNatPool" -FrontendIpConfigurationId $feIpConfig.Id -Protocol TCP -FrontendPortRangeStart 1001 -FrontendPortRangeEnd 2000 -BackendPort 1001

1. 更新负载均衡器

Set-AzureRmLoadBalancer -LoadBalancer $slb

例如

$name = "you account"
$password = "password"
$secpasswd = ConvertTo-SecureString $password -AsPlainText -Force
$mycreds = New-Object System.Management.Automation.PSCredential ($name, $secpasswd)
Connect-AzureRmAccount -Credential $mycreds

$slb = Get-AzureRmLoadBalancer -Name "testload" -ResourceGroupName "testfun07"

$feIpConfig = Get-AzureRmLoadBalancerFrontendIpConfig -Name "LoadBalancerFrontEnd" -Loadbalancer $slb

Add-AzureRmLoadBalancerInboundNatPoolConfig -LoadBalancer $slb -Name "myInboundNatPool" -FrontendIpConfigurationId $feIpConfig.Id -Protocol TCP -FrontendPortRangeStart 1001 -FrontendPortRangeEnd 2000 -BackendPort 1001

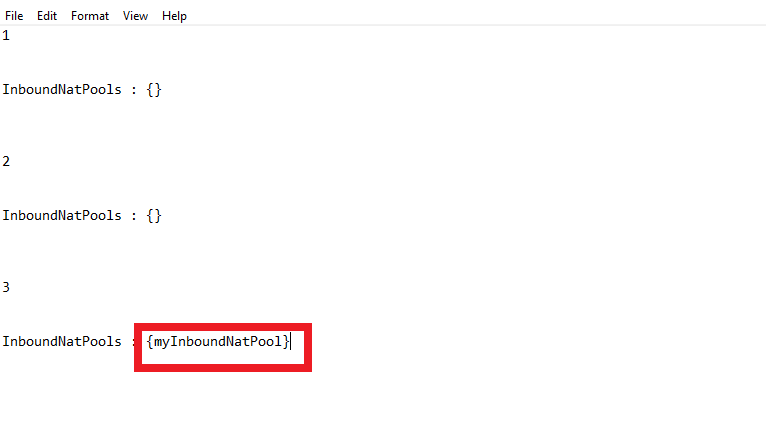

 "1" | Out-File -FilePath E:\mytest.txt -Append -Encoding utf8

Get-AzureRmLoadBalancer -Name "testload" -ResourceGroupName "testfun07" | Select-Object InboundNatPools | fl | Out-File -FilePath E:\mytest.txt -Append -Encoding utf8



Set-AzureRmLoadBalancerInboundNatPoolConfig -LoadBalancer $slb -Name "myInboundNatPool" -FrontendIpConfigurationId $feIpConfig.Id -Protocol TCP -FrontendPortRangeStart 1001 -FrontendPortRangeEnd 2000 -BackendPort 1001

 "2" | Out-File -FilePath E:\mytest.txt -Append -Encoding utf8

Get-AzureRmLoadBalancer -Name "testload" -ResourceGroupName "testfun07" | Select-Object InboundNatPools | fl | Out-File -FilePath E:\mytest.txt -Append -Encoding utf8



Set-AzureRmLoadBalancer -LoadBalancer $slb

"3" | Out-File -FilePath E:\mytest.txt -Append -Encoding utf8

Get-AzureRmLoadBalancer -Name "testload" -ResourceGroupName "testfun07" | Select-Object InboundNatPools | fl | Out-File -FilePath E:\mytest.txt -Append -Encoding utf8

​

​

Answer 2

谢谢你的回复，但最终经过大量的打击和追踪，我找到了答案。

New-AzureRmLoadBalancerInboundNatPoolConfig -Name "natpool3" -Protocol Tcp -FrontendPortRangeStart 50000 -FrontendPortRangeEnd 50119 -BackendPort 3389
$lb= Get-AzureRmLoadBalancer -ResourceGroupName VMSS-RG -Name nbslb
$feip=(Get-AzureRmLoadBalancer -ResourceGroupName VMSS-RG -Name nbslb).FrontendIpConfigurations[0].Id
Add-AzureRmLoadBalancerInboundNatPoolConfig -LoadBalancer $lb -FrontendIpConfigurationId $feip -Name "natpool3" -Protocol Tcp -FrontendPortRangeStart 50000 -FrontendPortRangeEnd 50119 -BackendPort 3389
Set-AzureRmLoadBalancer -LoadBalancer $lb
