在AVComposition中创建背景模糊的iOS

Question

我真的不知道该怎么问这个问题，我希望有任何有益的反馈意见来改进这个问题。我试图制作一个函数，它接受一个视频URL作为输入(本地视频)，然后这个函数尝试创建一个背景模糊的视频，其中心是原始视频，然后缩小。我的问题是，除了使用直接从iPhone摄像机录制的视频之外，我的代码运行良好。

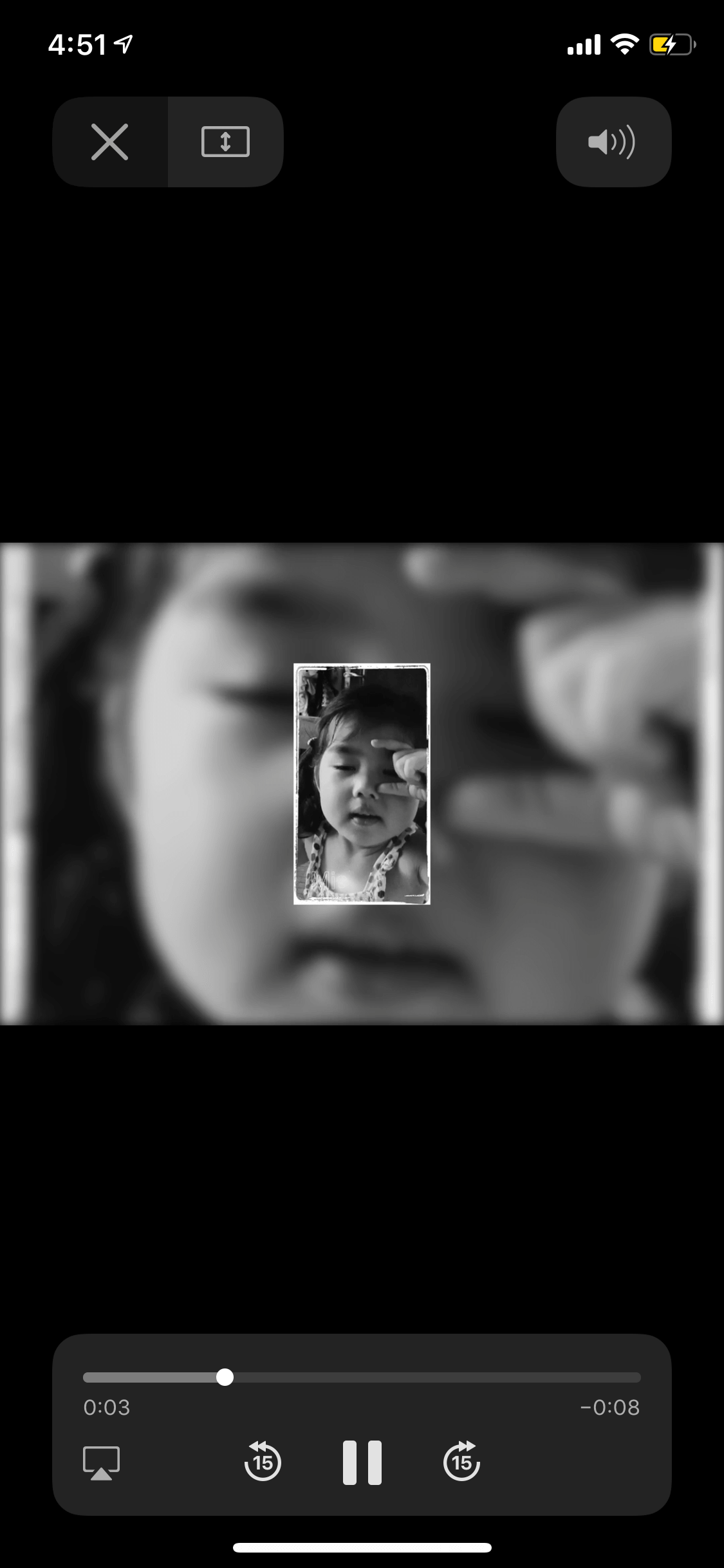

我试图实现的一个例子如下(摘自我的代码)：

​

​

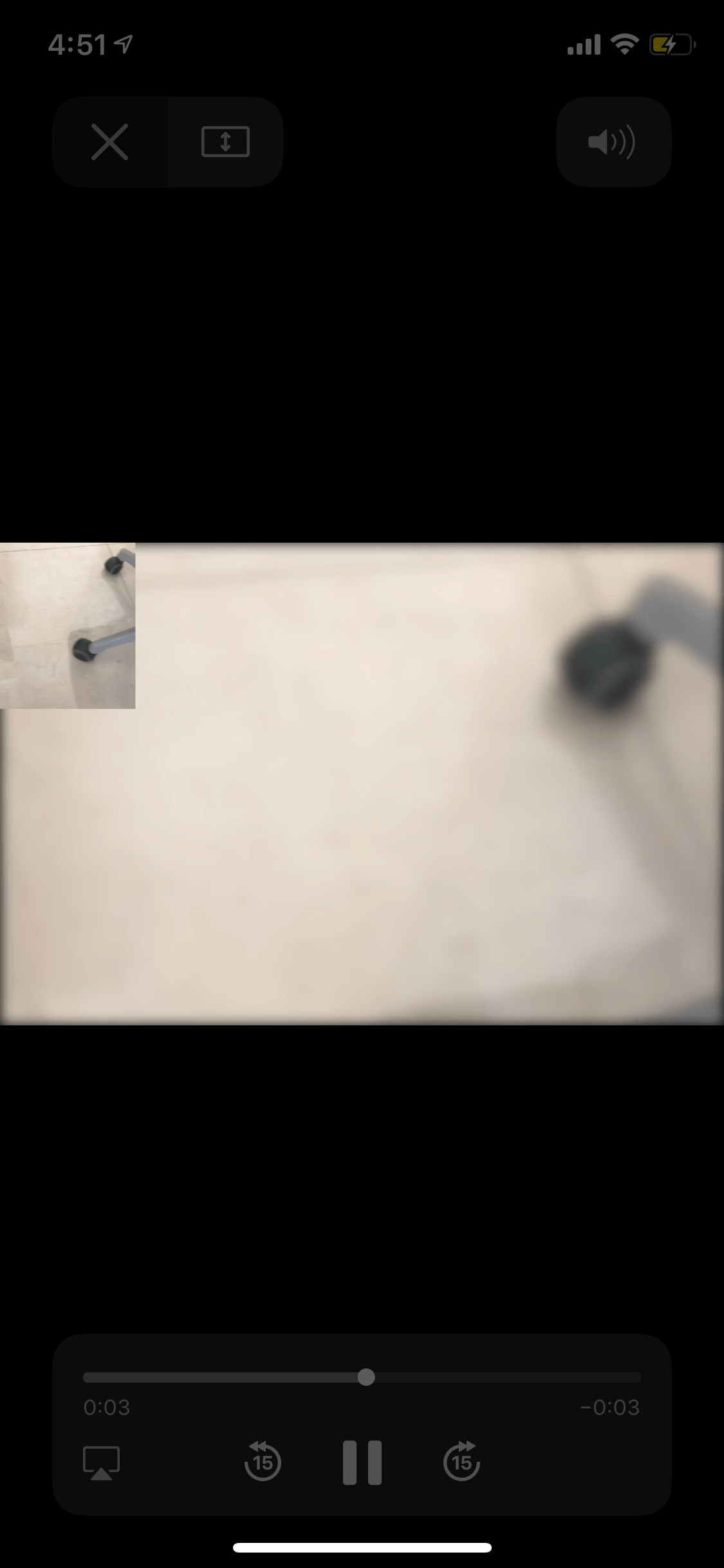

这里的输入视频是一个mp4。我已经能够使代码以及我下载的mov文件在线工作。但是，当我使用从iOS摄像机记录的mov文件时，我的结果是：

(我怎么才能发布在问题中占用较少空间的图片？)

​

​

现在，我不知道如何问这个问题，是因为在这个过程中有相当多的代码，而且我还没有完全缩小问题的范围，但是我相信它是在下面粘贴的函数中。我还将发布到github存储库的链接，在那里，我的项目的一个基本版本已经发布给任何好奇或愿意帮助的人。我必须承认，我使用的代码最初是由名为StackOverflow的TheTiger用户在以下问题上编写的：AVFoundation -在视频中添加模糊背景。我重新分析了这个问题的各个部分，并允许他们在这里发布这个问题。

我的github回购链接在这里：GITHUB回购我的演示用三个不同的视频设置，一个从网络下载的mp4 (工作)，一个从网络下载的mp4(工作)，还有一个我在手机上录制的mov (不工作)。

我所设想的引起问题的代码如下：

fileprivate func addAllVideosAtCenterOfBlur(asset: AVURLAsset, blurVideo: AVURLAsset, scale: CGFloat, completion: @escaping BlurredBackgroundManagerCompletion) {

    let mixComposition = AVMutableComposition()

    var instructionLayers : Array<AVMutableVideoCompositionLayerInstruction> = []

    let blurVideoTrack = mixComposition.addMutableTrack(withMediaType: AVMediaType.video, preferredTrackID: kCMPersistentTrackID_Invalid)

    if let videoTrack = blurVideo.tracks(withMediaType: AVMediaType.video).first {
        let timeRange = CMTimeRange(start: .zero, duration: blurVideo.duration)
        try? blurVideoTrack?.insertTimeRange(timeRange, of: videoTrack, at: .zero)
    }

    let timeRange = CMTimeRange(start: .zero, duration: asset.duration)

    let track = mixComposition.addMutableTrack(withMediaType: AVMediaType.video, preferredTrackID: kCMPersistentTrackID_Invalid)

    if let videoTrack = asset.tracks(withMediaType: AVMediaType.video).first {

        try? track?.insertTimeRange(timeRange, of: videoTrack, at: .zero)
        let layerInstruction = AVMutableVideoCompositionLayerInstruction(assetTrack: track!)

        let properties = scaleAndPositionInAspectFitMode(forTrack: videoTrack, inArea: size, scale: scale)

        let videoOrientation = videoTrack.getVideoOrientation()
        let assetSize = videoTrack.assetSize()

        let preferredTransform = getPreferredTransform(videoOrientation: videoOrientation, assetSize: assetSize, defaultTransform: asset.preferredTransform, properties: properties)

        layerInstruction.setTransform(preferredTransform, at: .zero)

        instructionLayers.append(layerInstruction)
    }

    /// Adding audio
    if let audioTrack = asset.tracks(withMediaType: AVMediaType.audio).first {
        let aTrack = mixComposition.addMutableTrack(withMediaType: AVMediaType.audio, preferredTrackID: kCMPersistentTrackID_Invalid)
        try? aTrack?.insertTimeRange(timeRange, of: audioTrack, at: .zero)
    }


    /// Blur layer instruction
    let layerInstruction = AVMutableVideoCompositionLayerInstruction(assetTrack: blurVideoTrack!)
    instructionLayers.append(layerInstruction)

    let mainInstruction = AVMutableVideoCompositionInstruction()
    mainInstruction.timeRange = timeRange
    mainInstruction.layerInstructions = instructionLayers

    let mainCompositionInst = AVMutableVideoComposition()
    mainCompositionInst.instructions = [mainInstruction]
    mainCompositionInst.frameDuration = CMTimeMake(value: 1, timescale: 30)
    mainCompositionInst.renderSize = size

    //let url = URL(fileURLWithPath: "/Users/enacteservices/Desktop/final_video.mov")
    let url = self.videoOutputUrl(filename: "finalBlurred")
    try? FileManager.default.removeItem(at: url)

    performExport(composition: mixComposition, instructions: mainCompositionInst, stage: 2, outputUrl: url) { (error) in
        if let error = error {
            completion(nil, error)
        } else {
            completion(url, nil)
        }
    }
}

getPreferredTransform()函数也非常相关：

fileprivate func getPreferredTransform(videoOrientation: UIImage.Orientation, assetSize: CGSize, defaultTransform: CGAffineTransform, properties: Properties) -> CGAffineTransform {
    switch videoOrientation {
    case .down:
        return handleDownOrientation(assetSize: assetSize, defaultTransform: defaultTransform, properties: properties)
    case .left:
        return handleLeftOrientation(assetSize: assetSize, defaultTransform: defaultTransform, properties: properties)
    case .right:
        return handleRightOrientation(properties: properties)
    case .up:
        return handleUpOrientation(assetSize: assetSize, defaultTransform: defaultTransform, properties: properties)
    default:
        return handleOtherCases(assetSize: assetSize, defaultTransform: defaultTransform, properties: properties)
    }
}

fileprivate func handleDownOrientation(assetSize: CGSize, defaultTransform: CGAffineTransform, properties: Properties) -> CGAffineTransform {
    let rotateTransform = CGAffineTransform(rotationAngle: -CGFloat(Double.pi/2.0))

    // Scale
    let scaleTransform = CGAffineTransform(scaleX: properties.scale.width, y: properties.scale.height)

    // Translate
    var ytranslation: CGFloat = assetSize.height
    var xtranslation: CGFloat = 0
    if properties.position.y == 0 {
        xtranslation = -(assetSize.width - ((size.width/size.height) * assetSize.height))/2.0
    }
    else {
        ytranslation = assetSize.height - (assetSize.height - ((size.height/size.width) * assetSize.width))/2.0
    }
    let translationTransform = CGAffineTransform(translationX: xtranslation, y: ytranslation)

    // Final transformation - Concatination
    let finalTransform = defaultTransform.concatenating(rotateTransform).concatenating(translationTransform).concatenating(scaleTransform)
    return finalTransform
}

fileprivate func handleLeftOrientation(assetSize: CGSize, defaultTransform: CGAffineTransform, properties: Properties) -> CGAffineTransform {

    let rotateTransform = CGAffineTransform(rotationAngle: -CGFloat(Double.pi))

    // Scale
    let scaleTransform = CGAffineTransform(scaleX: properties.scale.width, y: properties.scale.height)

    // Translate
    var ytranslation: CGFloat = assetSize.height
    var xtranslation: CGFloat = assetSize.width
    if properties.position.y == 0 {
        xtranslation = assetSize.width - (assetSize.width - ((size.width/size.height) * assetSize.height))/2.0
    } else {
        ytranslation = assetSize.height - (assetSize.height - ((size.height/size.width) * assetSize.width))/2.0
    }
    let translationTransform = CGAffineTransform(translationX: xtranslation, y: ytranslation)

    // Final transformation - Concatination
    let finalTransform = defaultTransform.concatenating(rotateTransform).concatenating(translationTransform).concatenating(scaleTransform)

    return finalTransform
}

fileprivate func handleRightOrientation(properties: Properties) -> CGAffineTransform  {
    let scaleTransform = CGAffineTransform(scaleX: properties.scale.width, y: properties.scale.height)

    // Translate
    let translationTransform = CGAffineTransform(translationX: properties.position.x, y: properties.position.y)

    let finalTransform  = scaleTransform.concatenating(translationTransform)
    return finalTransform
}

fileprivate func handleUpOrientation(assetSize: CGSize, defaultTransform: CGAffineTransform, properties: Properties) -> CGAffineTransform {

    return handleOtherCases(assetSize: assetSize, defaultTransform: defaultTransform, properties: properties)
}

fileprivate func handleOtherCases(assetSize: CGSize, defaultTransform: CGAffineTransform, properties: Properties) -> CGAffineTransform {
    let rotateTransform = CGAffineTransform(rotationAngle: CGFloat(Double.pi/2.0))

    let scaleTransform = CGAffineTransform(scaleX: properties.scale.width, y: properties.scale.height)

    var ytranslation: CGFloat = 0
    var xtranslation: CGFloat = assetSize.width
    if properties.position.y == 0 {
        xtranslation = assetSize.width - (assetSize.width - ((size.width/size.height) * assetSize.height))/2.0
    }
    else {
        ytranslation = -(assetSize.height - ((size.height/size.width) * assetSize.width))/2.0
    }
    let translationTransform = CGAffineTransform(translationX: xtranslation, y: ytranslation)

    let finalTransform = defaultTransform.concatenating(rotateTransform).concatenating(translationTransform).concatenating(scaleTransform)
    return finalTransform
}

Answer 1

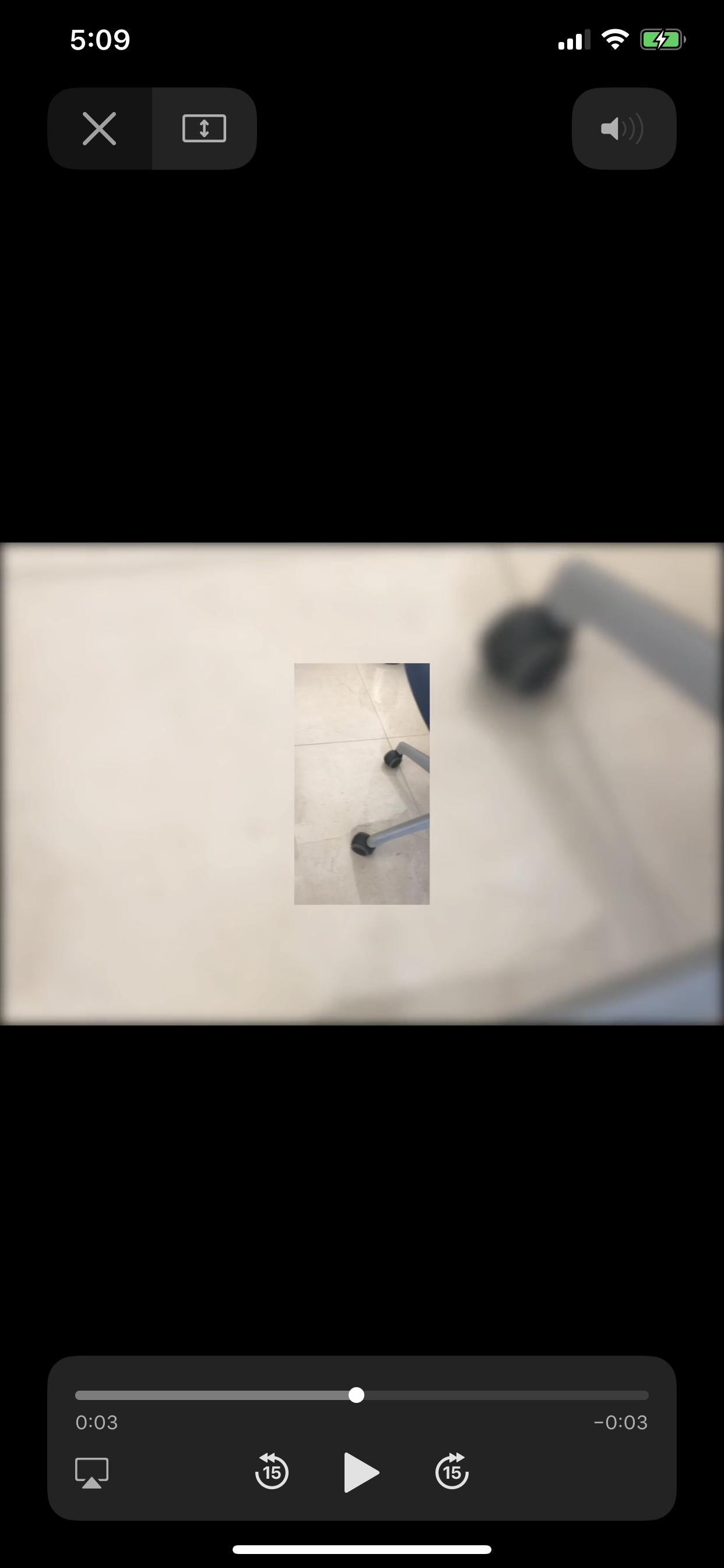

问题在于您的handleOtherCases函数，您在其中创建并返回要应用于框架的CGAffineTransform。所采用的尺度变换和旋转变换都很好。但是你计算出来的翻译变换是不正确的。一定要尝试下面的代码片段，它将产生所需的结果，如所附图像所示。

    fileprivate func handleOtherCases(assetSize: CGSize, defaultTransform: CGAffineTransform, properties: Properties) -> CGAffineTransform {
        let rotateTransform = CGAffineTransform(rotationAngle: CGFloat(Double.pi/2.0))

        let scaleTransform = CGAffineTransform(scaleX: properties.scale.width, y: properties.scale.height)

        let ytranslation: CGFloat = ( self.size.height - ( assetSize.height * properties.scale.height ) ) / 2
        let xtranslation: CGFloat = ( assetSize.width * properties.scale.width ) + ( self.size.width - ( assetSize.width * properties.scale.width ) ) / 2
        let translationTransform = CGAffineTransform(translationX: xtranslation, y: ytranslation)

        let finalTransform = defaultTransform.concatenating(scaleTransform).concatenating(rotateTransform).concatenating(translationTransform)
        return finalTransform
    }

​

​
