Traefik v2中间件未被检测到

Question

中间件没有被检测到，因此路径没有被剥离，从而导致后端api中的404 s。

中间件存在于k8s应用程序名称空间中

$ kubectl get -n apps middlewares
NAME                                                AGE
traefik-middlewares-backend-users-service           1d

中间件的配置与入口路由

---
apiVersion: traefik.containo.us/v1alpha1
kind: IngressRoute
metadata:
  annotations:
    kubernetes.io/ingress.class: traefik
  name: apps-services
  namespace: apps
spec:
  entryPoints:
    - web
  routes:
    - kind: Rule
      match: Host(`example.com`) && PathPrefix(`/users/`)
      middlewares:
        - name: traefik-middlewares-backend-users-service
      priority: 0
      services:
        - name: backend-users-service
          port: 8080
---
apiVersion: traefik.containo.us/v1alpha1
kind: Middleware
metadata:
  name: traefik-middlewares-backend-users-service
  namespace: apps
spec:
  stripPrefix:
    prefixes:
      - /users

静态配置

global:
  checkNewVersion: true
  sendAnonymousUsage: true
entryPoints:
  http:
    address: :80
  traefik:
    address: :8080
providers:
  providersThrottleDuration: 2s
  kubernetesIngress: {}
api:
  # TODO: make this secure later
  insecure: true
ping:
  entryPoint: http
log: {}

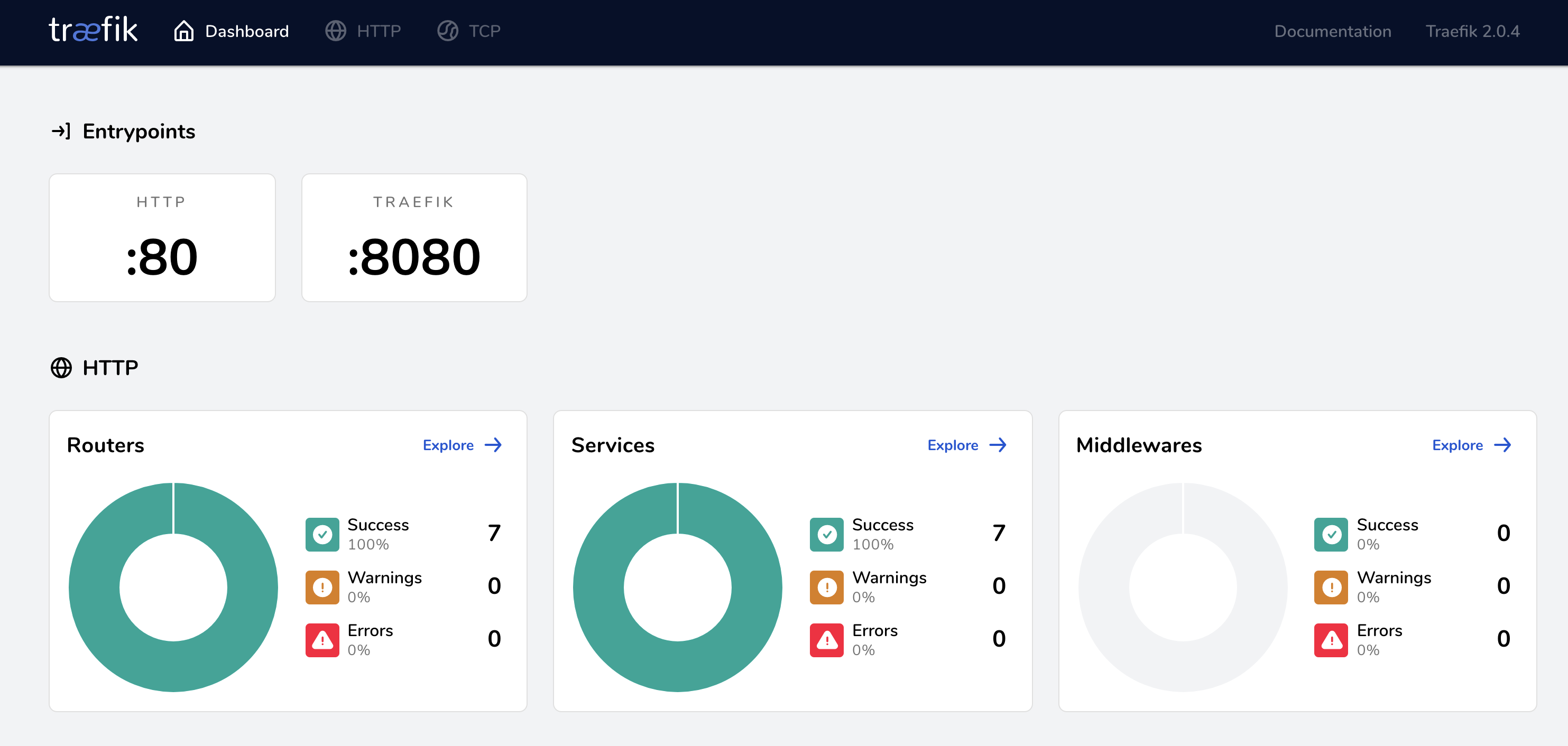

Traefik仪表板没有中间件

​

​

Spring 404页。路由在example.com/ Route /health上

/users并没有被剥夺。这对我在traefik v1的工作非常好。

注意:在示例中，实际域已被example.com和domain.com所取代。

​

​

Answer 1

为了让这件事起作用，我不得不：

1. 添加具有名称空间的Kubernetes CRD提供程序，其中traefik v2的自定义k8s CRD存在
2. 为traefik添加TLSOption资源

集群角色，以具有列出和查看新的v2资源

1. 的权限，确保所有具有新资源的命名空间都配置了

Traefik静态配置文件

providers:
  providersThrottleDuration: 2s
  kubernetesCRD:
    namespaces:
      - apps
      - traefik

TLSOption CRD

---
apiVersion: apiextensions.k8s.io/v1beta1
kind: CustomResourceDefinition
metadata:
  name: tlsoptions.traefik.containo.us
spec:
  group: traefik.containo.us
  version: v1alpha1
  names:
    kind: TLSOption
    plural: tlsoptions
    singular: tlsoption
  scope: Namespaced

更新的Traefik静态配置

global:
  checkNewVersion: true
  sendAnonymousUsage: true
entryPoints:
  http:
    address: :80
  traefik:
    address: :8080
providers:
  providersThrottleDuration: 2s
  kubernetesCRD:
    namespaces:
      - apps
      - traefik
api:
  # TODO: make this secure later
  insecure: true
ping:
  entryPoint: http
log: {}
