with support of microsoft, we were able to pin point the issue. here some recap for the community and my future me.

connection was interrupted during the 3 way handshake process

<ul>
<li>client send a SYN packet</li>
<li>sql instance respond with ACK SYN

<ul>
<li>after several unsuccesful attempts, sql instance send a RESET packet</li>
</ul></li>
</ul>

network

<ul>
<li>x.x.224.8 app service</li>
<li>6.x.x.18 sql server</li>
</ul>

packets

<ol>
<li>SYN </li>
<li>ACK SYNC</li>
<li>RESET</li>
</ol>

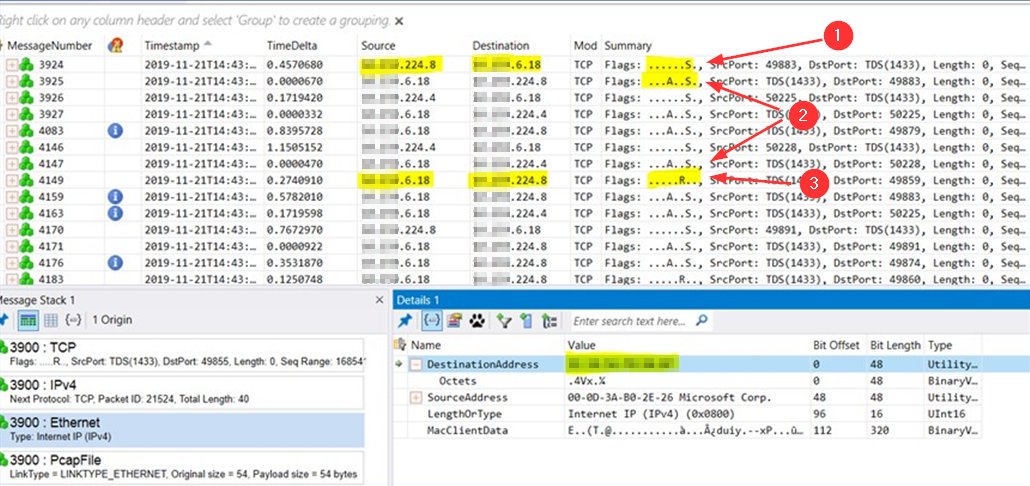

<a href="https://i.stack.imgur.com/nKoGM.png" rel="nofollow noreferrer"><img src="https://i.stack.imgur.com/nKoGM.png" alt="enter image description here"></a>

in our situation, the SYN.ACK seemed to be dropped by a network device

with wireshark, it was then possible to see the MAC address of the device dropping the ACK SYN.
following the breabcrumb from there allowed us to spot a missing route for a point-to-site azure VPN (<a href="https://learn.microsoft.com/en-us/azure/vpn-gateway/point-to-site-about" rel="nofollow noreferrer">https://learn.microsoft.com/en-us/azure/vpn-gateway/point-to-site-about</a>)

<blockquote>
 The timeout period elapsed while attempting to consume the pre-login
 handshake acknowledgement
 This could be because the pre-login handshake failed or the server was
 unable to respond back in time. The duration spent while attempting
 to connect to this server was - [Pre-Login] initialization=30;
 handshake=15004; The wait operation timed out
</blockquote>

infamous pre-login error. it worked before in the same environment and suddenly stopped, pretty sure it's a side effect at database vm level, looking for ideas for investigation before pinging microsoft with premier tickets. our firewall team, even by monitoring didn't spotted any loophole.

context

<ul>
<li>azure app service windows (appservice) : connection worked for months</li>
<li>appservice webjob toward an mssql database (databaseA) hosted on a vm in azure</li>
<li>appservice connected to a vnet</li>
<li>appservice able to connect to other databases (mssql in private datacenter)</li>
<li>webjob &amp; ssms to databaseA working from local dev laptop</li>
<li>database on static 1433</li>
</ul>

<a href="https://i.stack.imgur.com/naArd.png" rel="nofollow noreferrer"><img src="https://i.stack.imgur.com/naArd.png" alt="enter image description here"></a>

<ul>

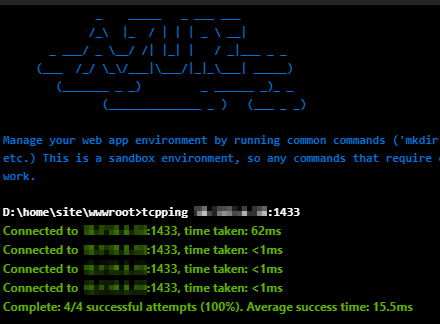

<li>successful tcpping on azure console</li>
</ul>

<a href="https://i.stack.imgur.com/YFw9u.png" rel="nofollow noreferrer"><img src="https://i.stack.imgur.com/YFw9u.png" alt="enter image description here"></a>

any idea where to find more detailled log which could explained the problem.

The underlying provider failed on Open. Connection Timeout Expired
