Mapbox:只有当注释在屏幕上可见时才添加注释

Question

我将注释的数据存储在Firebase上的数据库中。我发现，只要注释没有自定义视图，我就可以下载10,000个注释的数据，并将这些注释添加到我的地图中，而不会有很大的滞后。

然而，对于我的应用程序，我需要使用自定义视图，每个注释视图都是由多个图像片段组成的图像。如果我使用自定义视图(即使自定义视图只是一个UIImage)，应用程序就会结冰，并最终收到“调试器:由于内存问题而终止”的错误消息。我的应用程序的最小缩放级别为15，所以用户大多只能看到他们周围的东西。

我的目标是在离用户10公里的范围内下载所有注释的注释数据(虽然这不是这个问题的重点，但我将使用geohashing来实现这一点)。手机上的地图只能看到一段大约一公里的土地。

我要么只想

 a) add annotations that are visible on the phone

或

b) only load the views for the annotations that are visible.

不过，我希望只要批注在屏幕的边界内就可以看到，这样，如果用户正在滚动地图，他们就会立即看到这些注释。

我的视图控制器中有这个委托函数，它决定了每个注释的视图，当我将其注释掉时，添加注释时会出现轻微的延迟，但并不是很多。

func mapView(_ mapView: MGLMapView, viewFor annotation: MGLAnnotation) -> MGLAnnotationView? {
    if annotation is MGLUserLocation && mapView.userLocation != nil {
        let view = CurrentUserAnnoView(reuseIdentifier: currentUser.uid!)
        self.currentUserAnno = view
        return view
    }
    else if annotation is UserAnnotation{
        let anno = annotation as! UserAnnotation
        let auid = anno.reuseIdentifier //The anno uid
        if let annotationView = mapView.dequeueReusableAnnotationView(withIdentifier: auid) {
            return annotationView
        } else {
            let annotationView = UserAnnotationView(reuseIdentifier: auid, size: CGSize(width: 45, height: 45), annotation: annotation)
            annotationView.isUserInteractionEnabled = true
            anno.view = annotationView
            return annotationView
        }
    }
    return MGLAnnotationView(annotation: annotation, reuseIdentifier: "ShouldntBeAssigned")  //Should never happen
}

示例

如果你看这段youtube视频，你会发现注释并不总是可见的，只有当你缩放或移动它们时，它们才会变得可见。

https://youtu.be/JWUFD48Od4M

MapViewController

class MapViewController: UIViewController {

    @IBOutlet weak var newPostView: NewPostView!
    @IBOutlet var mapView: MGLMapView!
    var data: MapData?
    var currentUserAnno: CurrentUserAnnoView?
    var testCounter = 0

    let geoFire = GeoFire(firebaseRef: Database.database().reference().child("/users/core"))

    @IBAction func tap(_ sender: UITapGestureRecognizer) {
        self.view.endEditing(true)

    }

    override func viewDidAppear(_ animated: Bool) {
        super.viewDidAppear(animated)
        geoFire.setLocation(CLLocation(latitude: 37.7853889, longitude: -122.4056973), forKey: "7")
        self.startup()
    }

    func startup(){
        if CLLocationManager.isOff(){
            let popup = UIAlertController(title: "Location Services are Disabled", message: "Please enable location services in your 'Settings -> Privacy' if you want to use this app", preferredStyle: UIAlertController.Style.alert)
            popup.addAction(UIAlertAction(title: "OK", style: UIAlertAction.Style.default, handler: {(alert: UIAlertAction) in
                self.startup()
            }))
            popup.view.layoutIfNeeded()
            self.present(popup, animated: true, completion: nil)
        }else{
            self.mapView.userTrackingMode = .follow
            self.data = MapData(delegate: self)
        }
    }

    @IBAction func newHidea(_ sender: Any) {
        newPostView.isHidden = false
    }


}

extension MapViewController: MGLMapViewDelegate{

    func mapView(_ mapView: MGLMapView, viewFor annotation: MGLAnnotation) -> MGLAnnotationView? {
        print(testCounter)
        testCounter = testCounter + 1
        if annotation is MGLUserLocation && mapView.userLocation != nil {
            let view = CurrentUserAnnoView(reuseIdentifier: currentUser.uid!)
            self.currentUserAnno = view
            return view
        }
        else if annotation is UserAnnotation{
            let anno = annotation as! UserAnnotation
//            let auid = anno.reuseIdentifier //The anno uid
            if let annotationView = mapView.dequeueReusableAnnotationView(withIdentifier: "UserAnnotationView") {
                return annotationView
            } else {
                let annotationView = UserAnnotationView(reuseIdentifier: "UserAnnotationView", size: CGSize(width: 45, height: 45), annotation: annotation)
                annotationView.isUserInteractionEnabled = true
                //anno.view = annotationView
                return annotationView
            }
        }
        return MGLAnnotationView(annotation: annotation, reuseIdentifier: "ShouldntBeAssigned")  //Should never happen
    }


    func mapView(_ mapView: MGLMapView, calloutViewFor annotation: MGLAnnotation) -> MGLCalloutView? {
    /*The regular anno status box is replaced by one with buttons*/
        let annotationPoint = mapView.convert(annotation.coordinate, toPointTo: nil)
        let viewFrame = CGRect(origin: CGPoint(x: 0, y: -10), size: CGSize(width: 180, height: 400))
        var cView: AnnoCalloutView
        if (annotation as! UserAnnotation).status != nil{
            cView =  StatusCallout(representedObject: annotation, frame: viewFrame, annotationPoint: annotationPoint)
        }else{
            cView = ProfileCallout(representedObject: annotation, frame: viewFrame, annotationPoint: annotationPoint)
        }
        return cView
    }

    func mapView(_ mapView: MGLMapView, annotationCanShowCallout annotation: MGLAnnotation) -> Bool {
        if (annotation is UserAnnotation) {
            return true
        }else{
            return false
        }

    }

    func mapView(_ mapView: MGLMapView, tapOnCalloutFor annotation: MGLAnnotation) {
        mapView.deselectAnnotation(annotation, animated: true)  // Hide the callout.
    }



}

//TODO: Check if there's a better method than a delegate to do this, since it's Model -> Controller
extension MapViewController: MapDataDelegate{
    func addAnnotation(_ anno: UserAnnotation) {
        self.mapView?.addAnnotation(anno)
    }
}

UserAnnotation

class UserAnnotation: NSObject, MGLAnnotation {

    //////////Ignore these, required for MGLAnnotation//////
    var title: String?
    var subtitle: String?
    ////////////////////////////////////////////////////////

    var coordinate: CLLocationCoordinate2D
    var status: Status?{
        didSet{
            //TODO: update annotation
        }
    }
    var reuseIdentifier: String
    var avatar: Avatar
    var uid: String

    //MARK: You could assign these when the profile is viewed once, so if they view it again you have it saved.
    var uName: String?
    var bio: String?

    init(coordinate: CLLocationCoordinate2D, avatar: Avatar, reuseIdentifier: String?, uid: String) {
//    init(coordinate: CLLocationCoordinate2D, reuseIdentifier uid: String?) {
        self.coordinate = coordinate
        self.title = "None"
        self.subtitle = "None"
        self.reuseIdentifier = reuseIdentifier!
        self.uid = uid
        self.avatar = avatar
        super.init()
//        self.setAvatar(avatar: avatar)
    }

    init(coordinate: CLLocationCoordinate2D, title: String?, subtitle: String?){
        print("This shouldn't be printing")
        self.coordinate = coordinate
        self.uName = "ShouldntBeSet"
        self.title = "ShouldntBeSet"
        self.subtitle = "ShouldntBeSet"
        self.reuseIdentifier = "ShouldntBeAssigned"
        self.uid = "ShouldntBeAssigned"
        self.avatar = Avatar(withValues: [0])
    }
}

UserAnnotationView

class UserAnnotationView: MGLAnnotationView {

    var anno: UserAnnotation?
    var statusView: UITextView?
    var imageView: UIImageView?
    var avatarImage: UIImage{
        let ai = AvatarImage()
        ai.update(with: (anno?.avatar.values)!)
        return ai.image!
    }


    init(reuseIdentifier: String, size: CGSize, annotation: MGLAnnotation) {
        super.init(reuseIdentifier: reuseIdentifier)
        // Prevents view from changing size when view tilted
        scalesWithViewingDistance = false
        frame = CGRect(x: 0, y: 0, width: size.width, height: size.height)
        self.anno = annotation as? UserAnnotation
        self.setUpImageView(frame: frame, size: size, annotation: annotation)
        if anno?.status != nil{
            self.createStatus(status: (anno?.status?.status)!)
        }
    }

    func reuseWithDifferentAnno(annotation: UserAnnotation){
        self.anno = annotation
        self.imageView!.image = UIImage(named: "Will")
        //        let av = AvatarImage.newAvatar(values: (anno?.avatar.values)!)
//        self.imageView!.image = av.image
//        if anno?.status != nil{
//            self.createStatus(status: (anno?.status?.status)!)
//        }else{
//            if statusView != nil{
//                deleteStatus()
//            }
//        }
    }

    required init?(coder aDecoder: NSCoder) {
        super.init(coder: aDecoder)
    }

    private func setUpImageView(frame: CGRect, size: CGSize, annotation: MGLAnnotation){
        self.imageView = UIImageView(frame: frame)
        self.imageView!.translatesAutoresizingMaskIntoConstraints = false
        if annotation is UserAnnotation {
//            let av = AvatarImage.newAvatar(values: (anno?.avatar.values)!)
//            self.imageView!.image = av.image
            self.imageView!.image = UIImage(named: "Will")

        }else{
            let image = UIImage()
            self.imageView!.image = image
        }
        addSubview(self.imageView!)
        imageViewConstraints(imageView: self.imageView!, size: size)
    }

    func setImage(to image: UIImage){
        self.imageView!.image = image
    }

    func createStatus(status: String){
        if (status == self.statusView?.text) && (self.subviews.contains(self.statusView!)){
            return
        }else if self.statusView != nil && self.subviews.contains(self.statusView!){
            deleteStatus()
        }
        self.statusView = UITextView()
        self.statusView!.text = status
        self.statusView!.isHidden = false
        self.adjustUITextViewHeight()
        self.statusView!.translatesAutoresizingMaskIntoConstraints = false
        self.statusView!.layer.cornerRadius = 5
        self.statusView!.textAlignment = .center
        addSubview(self.statusView!)
        textViewConstraints(textView: self.statusView!, isAbove: self.imageView!)
    }

    func deleteStatus(){
        self.statusView?.removeFromSuperview()
        self.statusView = nil
    }

    private func adjustUITextViewHeight(){

        self.statusView!.translatesAutoresizingMaskIntoConstraints = true
        self.statusView!.sizeToFit()
        self.statusView!.isScrollEnabled = false
    }

    private func imageViewConstraints(imageView: UIImageView, size: CGSize){
        let widCon = NSLayoutConstraint(item: imageView, attribute: .width, relatedBy: .equal, toItem: nil, attribute: .width, multiplier: 1, constant: size.width)
        let heightCon = NSLayoutConstraint(item: imageView, attribute: .height, relatedBy: .equal, toItem: nil, attribute: .height, multiplier: 1, constant: size.height)
        let cenCon = NSLayoutConstraint(item: imageView, attribute: .centerX, relatedBy: .equal, toItem: self, attribute: .centerX, multiplier: 1, constant: 0)
        NSLayoutConstraint.activate([cenCon, widCon, heightCon])
    }

    private func textViewConstraints(textView status: UITextView, isAbove imageView: UIImageView){
        let cenCon = NSLayoutConstraint(item: status, attribute: .centerX, relatedBy: .equal, toItem: imageView, attribute: .centerX, multiplier: 1, constant: 0)
        let botCon = NSLayoutConstraint(item: status, attribute: .bottom, relatedBy: .equal, toItem: imageView, attribute: .top, multiplier: 1, constant: -10)
        let widCon = NSLayoutConstraint(item: status, attribute: .width, relatedBy: .lessThanOrEqual, toItem: nil, attribute: .width, multiplier: 1, constant: 200)
        NSLayoutConstraint.activate([cenCon, botCon, widCon])
    }

}

MapData

class MapData {
    var annotations = [String:UserAnnotation]()
    var updateTimer: Timer?
    var delegate: MapDataDelegate

    init(delegate: MapDataDelegate){
        self.delegate = delegate
        self.startTimer()
    }

    @objc func getUsers(){
        FBCore.getAllUsers(completion:{(users) in
            for child in users {
                let value = child.value as! NSDictionary
                self.getDataFor(user: value, whoseUidIs: child.key)
            }
        })
    }

    func getDataFor(user: NSDictionary, whoseUidIs annoid: String){
        if annoid != currentUser.uid! && (currentUser.blockedBy?[annoid] ?? false) != true && (currentUser.blocks?[annoid] ?? false) != true{
            guard let (coord, status, avatar) = FBCoreUser.get(forQryVal: user)
                else {return}
            if let anno = self.annotations[annoid]{
                anno.coordinate = coord
                if status != nil{// && anno.view!.isSelected == false {
                    if ((status?.isExpired)!){
                        anno.status = nil
                    }else{
                        anno.status = status
                    }
                }
                if avatar.values != anno.avatar.values{
                    anno.avatar = avatar
                }
            }else{
                let anno = UserAnnotation(coordinate: coord, avatar: avatar, reuseIdentifier: "UserAnnotation", uid: annoid)
                if status != nil{
                    if ((status?.isExpired)!){
                        anno.status = nil
                    }else{
                        anno.status = status
                    }
                }
                self.annotations[annoid] = anno
                //print(anno.reuseIdentifier)
                delegate.addAnnotation(anno)
            }
        }
    }

    func startTimer(){
        // Scheduling timer to Call the function "updateCounting" with the interval of 5 seconds
        if updateTimer != nil{
            updateTimer!.invalidate()
        }
        updateTimer = Timer.scheduledTimer(timeInterval: 5, target: self, selector: #selector(getUsers), userInfo: nil, repeats: true)
    }
}

Answer 1

从您的代码中可以看出，您似乎没有正确地使用reuseIdentifier。

resueIdentifier和去队列视图的目标是永远不要创建更多的实际可见的视图(或者至少最小化它)。

您可以使用它获取与您已经创建的视图相同的视图，但这些视图是不可见的或不再需要的。因此，如果您的自定义视图有一个UIImageView、一个标签和一些布局，您将不再创建它，而是重用已经创建的视图。

一旦您获得了一个可用的视图，就可以将从批注更改到注释的属性分配给注释，而无需创建另一个视图。

这意味着，不管您下载了10,000或10,000个注释，为地图创建的视图数永远不会超过屏幕上可见的视图数。

这么说，您的代码应该如下所示：

func mapView(_ mapView: MGLMapView, viewFor annotation: MGLAnnotation) -> MGLAnnotationView? {
    if annotation is MGLUserLocation && mapView.userLocation != nil {
        let view = CurrentUserAnnoView(reuseIdentifier: "userLocation")
        self.currentUserAnno = view
        return view
    }
    else if annotation is UserAnnotation{
        let anno = annotation as! UserAnnotation
        let reuseIdentifier = "myCustomAnnotationView"
        if let annotationView = mapView.dequeueReusableAnnotationView(withIdentifier: reuseIdentifier) {
        // set view properties for current annotation before returing
            annotationView.image = anno.image
            annotationView.name = anno.name // etc.
            return annotationView
        } else {
            let annotationView = UserAnnotationView(reuseIdentifier: reuseIdentifier, size: CGSize(width: 45, height: 45), annotation: annotation)
            annotationView.isUserInteractionEnabled = true
//          anno.view = annotationView // this is strange, not sure if it makes sense
            annotationView.image = anno.image // set annotation view properties
            annotationView.name = anno.name // etc.
            return annotationView
        }
    }
    return MGLAnnotationView(annotation: annotation, reuseIdentifier: "ShouldntBeAssigned")  //Should never happen
}

Answer 2

Mapbox有确实更改的委托方法，并将更改区域(请选择)。

func mapView(_ mapView: MGLMapView, regionDidChangeAnimated animated: Bool)

当区域发生变化时，您需要将地图上的注释设置为该区域内的注释。最简单的方法似乎是将坐标转换为mapView的空间，然后检查它们是否在mapView的边界内。

let newAnnotations = allAnnotations.filter { annotation in
  let point = mapView.convert(annotation.coordinate, toPointTo: mapView)
  return mapView.bounds.contains(point)
}
if let existingAnnotations = mapView.annotations {
  mapView.removeAnnotations(existingAnnotations)
}
mapView.addAnnotations(newAnnotations)

Answer 3

在处理大量问题时，您描述的问题是一个常见的问题，我担心您的方法不会对您有所帮助。如果/当用户大量使用您的地图，从min放大到最大缩放时，情况尤其如此。所有的积分都会被下载，你会陷入同样的问题。注意:如果您选择在用户缩小时删除注释，这就是所谓的集群，这就是下面的解决方案所提供的，即开箱即用(即，a不要重新发明轮子)

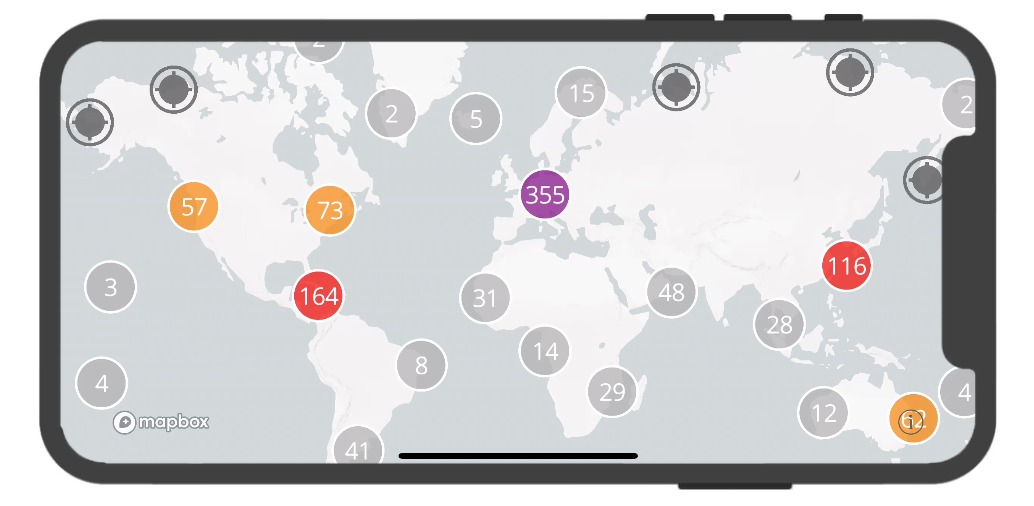

请参阅该主题的帖子 by Mapbox，它适用于GL，但同样的推理也适用于您的情况。对于iOS，mapbox已经发布了一个聚类api，我还没有试过，但它似乎能做到这一点。还有一个广泛的代码示例，您可以从中获得灵感。我不会在这里复制，因为很明显的原因，只是最后结果的一张照片，这样你就可以知道这是否是你所需要的。

​

​

在github上也有大量代码可用于此，请参阅这里

在mapbox代码中

func mapView(_ mapView: MGLMapView, didFinishLoading style: MGLStyle) {
let url = URL(fileURLWithPath: Bundle.main.path(forResource: "ports", ofType: "geojson")!)
let source = MGLShapeSource(identifier: "clusteredPorts",
url: url,
options: [.clustered: true, .clusterRadius: icon.size.width])
style.addSource(source)
[...]
}

换行：

let url = URL(fileURLWithPath: Bundle.main.path(forResource: "ports", ofType: "geojson")!)
let source = MGLShapeSource(identifier: "clusteredPorts",
url: url, options: [.clustered: true, .clusterRadius: icon.size.width])

出自：

let source = MGLShapeSource(identifier: "my points",
shapes: shapes, options: [.clustered: true, .clusterRadius: icon.size.width])

其中shapes是MGLShape，它是从您的路径点创建的。MGLShape是从使用MGLShape : NSObject <MGLAnnotation, NSSecureCoding>的注释派生出来的，参见这里。还请参阅这里中的MGLShapeSource原型。

您必须创建一个方法，从您的路径点实例化这些形状，或者简单地说：

let source = MGLShapeSource(identifier: "my points",
shapes: self.createShapes(from:annotations), options: [.clustered: true, .clusterRadius: icon.size.width])
