stat_fit_glance与广义加性模型误差

Question

我正在尝试将mgcv::gam结果中的p值和R2添加到带有facet的ggplot中。下面是示例数据和代码。是否有一种方法可以成功地将p值和R2粘贴到ggplots上？

DF <- data.frame(Site = rep(LETTERS[20:24], each = 4),
                 Region = rep(LETTERS[14:18], each = 4),
                 time = rep(LETTERS[1:10], each = 10),
                 group = rep(LETTERS[1:4], each = 10),
                 value1 = runif(n = 1000, min = 10, max = 15),
                 value2 = runif(n = 1000, min = 100, max = 150))
DF$time <- as.numeric(DF$time)


GAMFORMULA <- y ~ s(x,bs="cr",k=3)

plot1 <- ggplot(data=DF,
                aes(x=time, y=value2)) +
  geom_point(col="gray", alpha=0.8,
             name="") +
  geom_line(col="gray", alpha=0.8,
            name="",aes(group=group)) +
  geom_smooth(se=T, col="darkorange", alpha=0.8,
              name="", fill="orange",
              method="gam",formula=GAMFORMULA) +
  theme_bw() +
  theme(strip.text.x = element_text(size=10),
        strip.text.y = element_text(size=10, face="bold", angle=0),
        strip.background = element_rect(colour="black", fill="gray90"),
        axis.text.x = element_text(size=10),  # remove x-axis text
        axis.text.y = element_text(size=10), # remove y-axis text
        axis.ticks = element_blank(),  # remove axis ticks
        axis.title.x = element_text(size=18), # remove x-axis labels
        axis.title.y = element_text(size=25), # remove y-axis labels
        panel.background = element_blank(),
        panel.grid.major = element_blank(),  #remove major-grid labels
        panel.grid.minor = element_blank(),  #remove minor-grid labels
        plot.background = element_blank()) +
  labs(y="Value", x="Time", title = "") +
  stat_fit_glance(method = "gam",
                  method.args = list(formula = GAMFORMULA),
                  aes(label = sprintf('R^2~"="~%.3f~~italic(p)~"="~%.2f',
                                      stat(..r.squared..),stat(..p.value..))),
                  parse = TRUE)


plot1 + facet_wrap(Site~group, scales="free_y", ncol=3)

Error in sprintf("R^2~\"=\"~%.3f~~italic(p)~\"=\"~%.2f", r.squared, p.value) :
  object 'r.squared' not found

Answer 1

我的回答解释了为什么不能使用stat_fit_glance()将r.sq添加到绘图中，但恐怕is并没有提供一种替代方法。

stat_fit_glance()是broom:glance()上的一个包装器，它适合模型并将模型fit对象传递给broom:glance()。在gam()的情况下，broom:glance()不返回R2的估计值，因此stat_fit_glance()也无法返回它。

要查看可用的计算值，可以使用包'gginnards‘中的geom_debug()。

library(ggpmisc)
library(gginnards)
library(mgcv)

DF <- data.frame(Site = rep(LETTERS[20:24], each = 4),
                 Region = rep(LETTERS[14:18], each = 4),
                 time = rep(LETTERS[1:10], each = 10),
                 group = rep(LETTERS[1:4], each = 10),
                 value1 = runif(n = 1000, min = 10, max = 15),
                 value2 = runif(n = 1000, min = 100, max = 150))
DF$time <- as.numeric(DF$time)


GAMFORMULA <- y ~ s(x,bs="cr",k=3)

plot1 <- ggplot(data=DF,
                aes(x=time, y=value2)) +
  geom_point(col="gray", alpha=0.8,
             name="") +
  geom_line(col="gray", alpha=0.8,
            name="",aes(group=group)) +
  geom_smooth(se=T, col="darkorange", alpha=0.8,
              name="", fill="orange",
              method="gam",formula=GAMFORMULA) +
  theme_bw() +
  theme(strip.text.x = element_text(size=10),
        strip.text.y = element_text(size=10, face="bold", angle=0),
        strip.background = element_rect(colour="black", fill="gray90"),
        axis.text.x = element_text(size=10),  # remove x-axis text
        axis.text.y = element_text(size=10), # remove y-axis text
        axis.ticks = element_blank(),  # remove axis ticks
        axis.title.x = element_text(size=18), # remove x-axis labels
        axis.title.y = element_text(size=25), # remove y-axis labels
        panel.background = element_blank(),
        panel.grid.major = element_blank(),  #remove major-grid labels
        panel.grid.minor = element_blank(),  #remove minor-grid labels
        plot.background = element_blank()) +
  labs(y="Value", x="Time", title = "") +
  stat_fit_glance(method = "gam",
                  method.args = list(formula = GAMFORMULA),
                  # aes(label = sprintf('R^2~"="~%.3f~~italic(p)~"="~%.2f',
                  #                     stat(..r.squared..),stat(..p.value..))),
                  # parse = TRUE)
                  geom = "debug")


plot1 + facet_wrap(Site~group, scales="free_y", ncol=3)

​

​

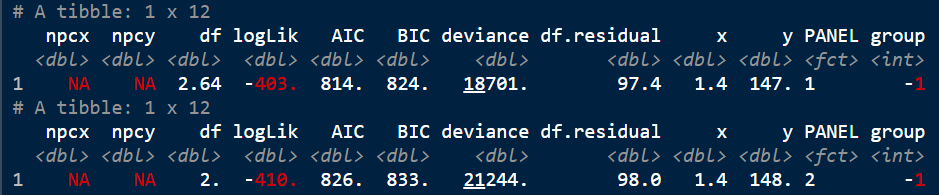

上面显示的是stat_fit_glance()为图中的前两个面板返回的值。

注：似乎没有就R-平方对GAM是否有意义达成一致意见.然而，summary()方法对于gam确实返回一个调整的R-平方估计作为成员r.sq.
