我如何配置我的头盔图表来获取一个兔子社区插件？

Question

目标:在我的“狂犬病”-ha https://www.rabbitmq.com/community-plugins.html头盔图中使用来自的“兔子”社区插件。

任何没有随服务器一起运行的插件都需要安装。插件作为.ez存档(它是带有元数据的压缩文件)分发。这些文件必须复制到$RABBITMQ_PLUGINS_DIR.指定的插件目录之一。

问题:如何将rabbitmq社区插件的.ev文件注入图表以供使用？

背景：

举我的例子，我试图将社区插件rabbitmq_delayed_message_exchange的最新版本安装到最新的稳定版本rabbitmq-ha中。

插件的名称是通过将其添加到我的values.yaml中来标识的。

amqp-rabbitmq:
  extraPlugins: |
    rabbitmq_delayed_message_exchange,

当我

helm install example .  --debug

它产生

# Source: example/charts/amqp-rabbitmq/templates/configmap.yaml
apiVersion: v1
kind: ConfigMap
metadata:
  name: example-amqp-rabbitmq
  namespace: default
  labels:
    app: amqp-rabbitmq
    chart: amqp-rabbitmq-1.38.2
    release: example
    heritage: Helm
data:
  enabled_plugins: |
    [
      rabbitmq_delayed_message_exchange,
      rabbitmq_consistent_hash_exchange,
      rabbitmq_management,
      rabbitmq_peer_discovery_k8s
    ].

  rabbitmq.conf: |
    ## RabbitMQ configuration
    ## Ref: https://github.com/rabbitmq/rabbitmq-server/blob/master/docs/rabbitmq.conf.example

    ## Authentification

    ## Clustering
    cluster_formation.peer_discovery_backend  = rabbit_peer_discovery_k8s
    cluster_formation.k8s.host = kubernetes.default.svc.cluster.local
    cluster_formation.k8s.address_type = hostname
    cluster_formation.node_cleanup.interval = 10
    # Set to false if automatic cleanup of absent nodes is desired.
    # This can be dangerous, see http://www.rabbitmq.com/cluster-formation.html#node-health-checks-and-cleanup.
    cluster_formation.node_cleanup.only_log_warning = true
    cluster_partition_handling = autoheal
    ## The default "guest" user is only permitted to access the server
    ## via a loopback interface (e.g. localhost)
    loopback_users.guest = false

    management.load_definitions = /etc/definitions/definitions.json

    ## Memory-based Flow Control threshold
    vm_memory_high_watermark.absolute = 256MB

    ## Auth HTTP Backend Plugin

    ## LDAP Plugin

    ## MQTT Plugin

    ## Web MQTT Plugin

    ## STOMP Plugin

    ## Web STOMP Plugin

    ## Prometheus Plugin

    ## AMQPS support

并创建3个k8s_amqp-rabbitmq_example-amqp-rabbitmq-n_default_...容器。

每个容器中的日志显示

2020-01-11 01:21:16.826 [info] <0.8.0> Server startup complete; 6 plugins started.

* rabbitmq_management

* rabbitmq_web_dispatch

* rabbitmq_consistent_hash_exchange

* rabbitmq_peer_discovery_k8s

* rabbitmq_management_agent

* rabbitmq_peer_discovery_common

2020-01-11 01:23:06.954 [info] <0.529.0> node 'rabbit@example-amqp-rabbitmq-1.example-amqp-rabbitmq-discovery.default.svc.cluster.local' up

2020-01-11 01:23:12.776 [info] <0.529.0> rabbit on node 'rabbit@example-amqp-rabbitmq-1.example-amqp-rabbitmq-discovery.default.svc.cluster.local' up

我可以成功地登录到rabbitmq，创建交换，队列等。

然而，所需的rabbitmq_delayed_message_exchange插件在哪里都找不到。

• 在任何地方的日志文件中都没有提到它。
• 它不会与其他插件一起出现在rabbit@example-amqp-rabbitmq-n.example-amqp-rabbitmq-discovery.default.svc.cluster.local-plugins-expand文件夹中。

当我的应用程序尝试使用已安装的舵机(Rabbitmq)创建延迟的交换时，它将获得：

'Error: Connection closed: 503 (COMMAND-INVALID) with message "COMMAND_INVALID - unknown exchange type 'x-delayed-message'"

它适用于非kubernetes的rabbitmq实例，在那里我可以轻松地安装插件。

我花了几天时间在网络上寻找一个清晰的例子，提示，以及如何利用一个社区插件的兔子-ha图表而不是进展的线索。

外面有什么想法吗？我遗漏了什么？

Answer 1

构建自定义图表不再是必要的--我是用这个values.yaml完成的

## Plugins to enable
##
plugins: 'rabbitmq_management rabbitmq_peer_discovery_k8s'

## Community plugins to download during container initialization.
## Combine it with extraPlugins to also enable them.
##
communityPlugins: |
  https://github.com/rabbitmq/rabbitmq-delayed-message-exchange/releases/download/3.8.9/rabbitmq_delayed_message_exchange-3.8.9-0199d11c.ez

## Extra plugins to enable
## Use this instead of `plugins` to add new pluginsmv ra
##
extraPlugins: |
  rabbitmq_auth_backend_ldap
  rabbitmq_delayed_message_exchange

Answer 2

下面是一个安装和启用两个RabbitMQ社区插件的示例

• rabbitmq_delayed_message_exchange
• rabbitmq_message_timestamp

步骤1:获取Helm图表：

$ helm search repo rabbitmq
NAME               CHART VERSION    APP VERSION DESCRIPTION
bitnami/rabbitmq   6.25.4           3.8.3       Open source message broker software that implem...

$ helm pull --untar bitnami/rabbitmq

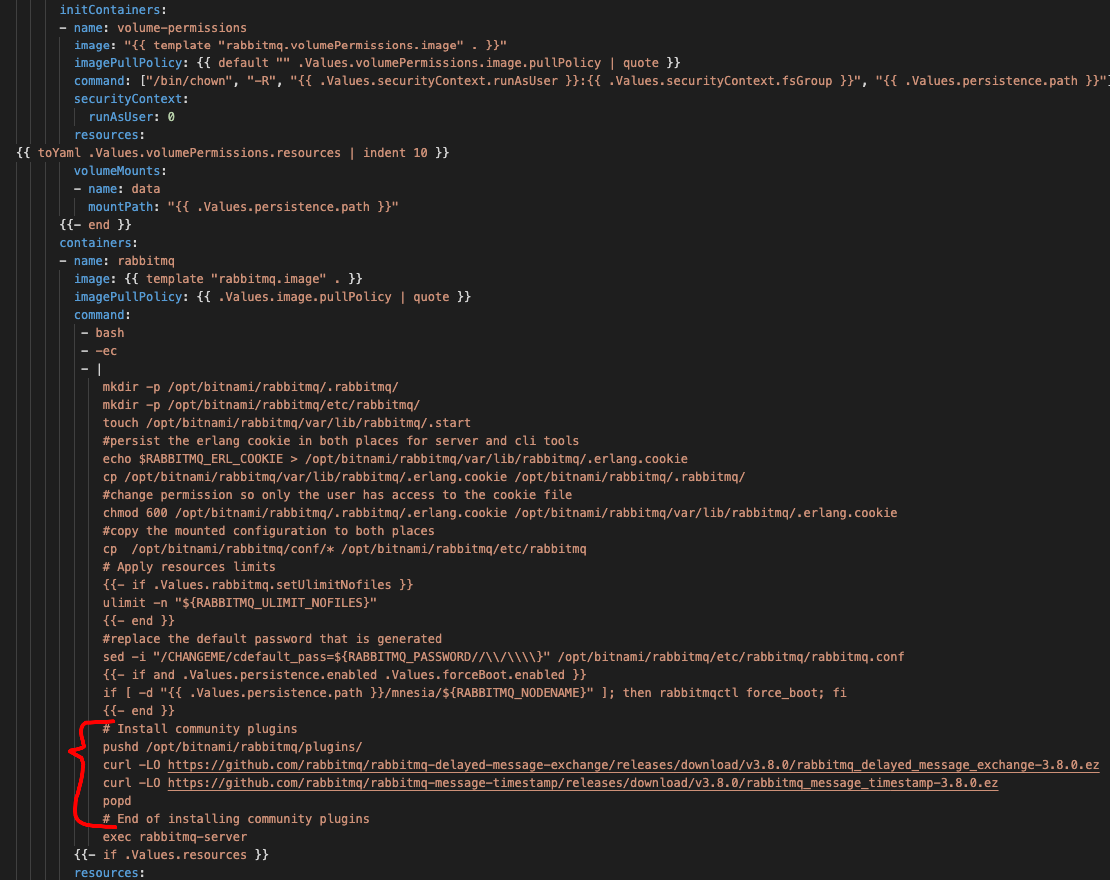

步骤2:更新文件statefulset.yaml

...
# Install community plugins
pushd /opt/bitnami/rabbitmq/plugins/
curl -LO https://github.com/rabbitmq/rabbitmq-delayed-message-exchange/releases/download/v3.8.0/rabbitmq_delayed_message_exchange-3.8.0.ez
curl -LO https://github.com/rabbitmq/rabbitmq-message-timestamp/releases/download/v3.8.0/rabbitmq_message_timestamp-3.8.0.ez
popd
# End of installing community plugins
exec rabbitmq-server
...

​

​

步骤3:在启用两个插件的情况下安装RabbitMQ

$ cd rabbitmq
$ helm install rmq . --set rabbitmq.extraPlugins="rabbitmq_delayed_message_exchange rabbitmq_message_timestamp"

现在，您可以验证已经安装了这两个插件。

$ kubectl get pod
NAME             READY   STATUS    RESTARTS   AGE
rmq-rabbitmq-0   1/1     Running   0          3m32s

$ kubectl exec -it rmq-rabbitmq-0 bash
I have no name!@rmq-rabbitmq-0:/$ rabbitmq-plugins list
Listing plugins with pattern ".*" ...
 Configured: E = explicitly enabled; e = implicitly enabled
 | Status: * = running on rabbit@rmq-rabbitmq-0.rmq-rabbitmq-headless.default.svc.cluster.local
 |/
[  ] rabbitmq_amqp1_0                  3.8.3
[  ] rabbitmq_auth_backend_cache       3.8.3
[  ] rabbitmq_auth_backend_http        3.8.3
[  ] rabbitmq_auth_backend_ldap        3.8.3
[  ] rabbitmq_auth_backend_oauth2      3.8.3
[  ] rabbitmq_auth_mechanism_ssl       3.8.3
[  ] rabbitmq_consistent_hash_exchange 3.8.3
[E*] rabbitmq_delayed_message_exchange 3.8.0
[  ] rabbitmq_event_exchange           3.8.3
[  ] rabbitmq_federation               3.8.3
[  ] rabbitmq_federation_management    3.8.3
[  ] rabbitmq_jms_topic_exchange       3.8.3
[E*] rabbitmq_management               3.8.3
[e*] rabbitmq_management_agent         3.8.3
[E*] rabbitmq_message_timestamp        3.8.0
[  ] rabbitmq_mqtt                     3.8.3
...

注意事项：我的Helm版本是v3.1.1

$ helm version
version.BuildInfo{Version:"v3.1.1", GitCommit:"afe70585407b420d0097d07b21c47dc511525ac8", GitTreeState:"clean", GoVersion:"go1.13.8"}

Answer 3

我认为rabbitmq-ha默认头盔图使用的是官方的rabbitMQ图像，因此它只包含核心插件。

我检查了图表配置，它只是设置了/etc/rabbitmq/enabled_plugins conf文件，插件文件不会自动下载。

有两种解决办法：

• 构建自定义的rabbitmq映像，并随它一起发布rabbitmq_delayed_message_exchange文件。
• 下载initContainer中的插件文件，将其添加到图表值extraInitContainers中
