在ggplot2条形图中添加bar的问题

Question

我试图使用geom_vline在ggplot2中生成的图形中添加一条垂直线，但它没有显示出来。我只想要一条垂直通过x=0的单行。以下是运行的数据和代码：

#Example data for Stack Overflow
sem <- data.frame(brand = c('com','com','com','sus','sus','sus','tol','tol','tol'),
                  rate = c(1,
                           2,
                           3,
                           1,
                           2,
                           3,
                           1,
                           2,
                           3),
                  sem = c(-100.652190547299,
                          -20.9635462903477,
                          -92.887143790098,
                          -32.5321197096671,
                          -10.8046113120258,
                          -103.882668200279,
                          39.1133320990038,
                          50.641868900031,
                          27.3390542856909))

percent_diff <- data.frame(brand = c('com','com','com','sus','sus','sus','tol','tol','tol'),
                           rate = c(1,
                                    2,
                                    3,
                                    1,
                                    2,
                                    3,
                                    1,
                                    2,
                                    3),
                           percent_diff = c(-16.8547043500825,
                                            -123.651964249353,
                                            -70.2307389653605,
                                            -316.119165728843,
                                            -290.448196586088,
                                            -276.236250440114,
                                            23.6027946419299,
                                            35.415138795611,
                                            52.9344042281165))

#Left-join the data into one data frame
library(dplyr)
df <- left_join(percent_diff, sem)

#Generate the graph
library(ggplot2)

ggplot(df, aes(x=brand, y=percent_diff, fill=factor(rate)))+
  geom_bar(stat="identity",width=0.6, position="dodge", col="black")+
  geom_vline(xintercept = 0)+
  scale_fill_discrete(name="Rate", labels=c("1X", "2X", "3X"))+
  xlab("Brand")+ylab("Percent Difference (Compared to nontreated)")+
  geom_errorbar(aes(ymin= percent_diff, ymax=percent_diff+sem), width=0.2, position = position_dodge(0.6))+
  ggtitle("Brand Comparison")+
  scale_fill_brewer(palette='Greys', name="Rate", labels=c("1X", "2X", "3X"))+
  theme(plot.title = element_text(hjust=0.5))+
  coord_flip()+
  geom_vline(aes(xintercept=0, col = 'red', size = 3))

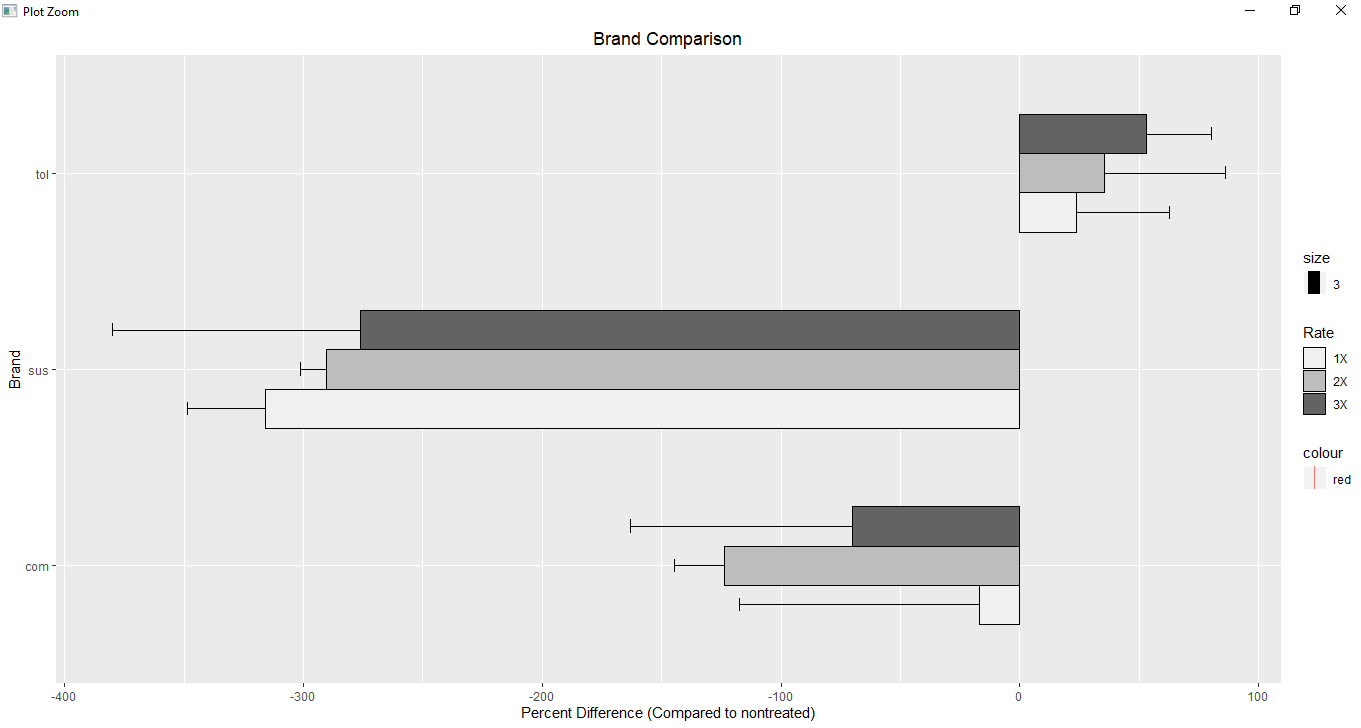

其结果是：

​

​

为什么出现这个输出而不是单行垂直运行？我试着加载library(scales)包，但没有得到我希望的结果。

Answer 1

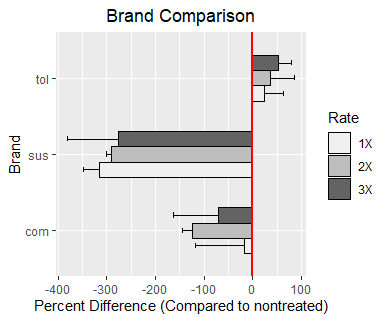

只需将geom_vline更改为geom_hline即可。问题是，所有的东西都是用原始的坐标和轴线绘制的。因此，您想要的行实际上是一条水平线，以后会像使用coord_flip的所有情节一样翻转。下面是我对您的代码所做的唯一修改：

#I also passed col and size outside aes
geom_hline(aes(yintercept=0),col = 'red', size = 1)

​

​

Answer 2

coord_flip()可能会令人困惑。在应用coord_flip之前，您需要用原始的x和y来定义您的绘图。在本例中，这意味着使用geom_hline代替：

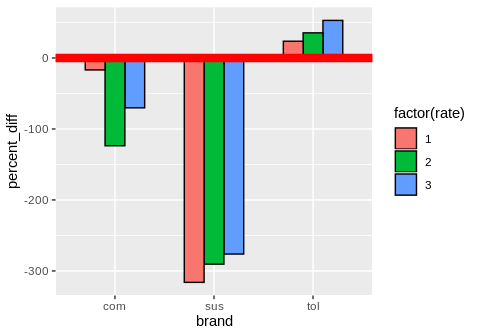

ggplot(df, aes(x=brand, y=percent_diff, fill=factor(rate)))+
  geom_bar(stat="identity",width=0.6, position="dodge", col="black")+
  geom_hline(yintercept=0, col = 'red', size = 3)

​

​

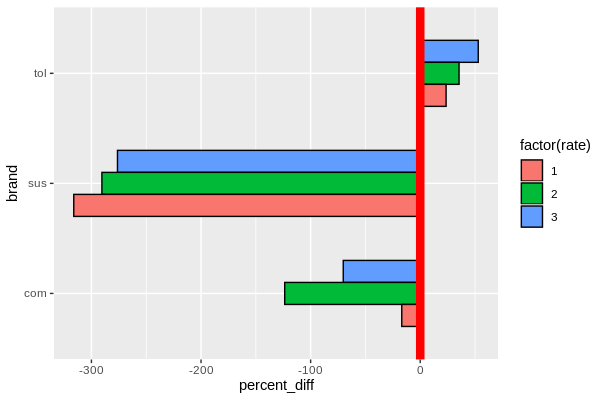

ggplot(df, aes(x=brand, y=percent_diff, fill=factor(rate)))+
  geom_bar(stat="identity",width=0.6, position="dodge", col="black")+
  geom_hline(yintercept=0, col = 'red', size = 3) +
  coord_flip()

​

​

注意，您可以使用geom_col()而不是geom_bar(stat = 'identity')。
