问如何访问Kubernetes部署
EN

Stack Overflow用户

提问于 2020-01-21 06:28:23

回答 4查看 1.4K关注 0票数 3

我已经创建了Docker映像，并在k8s集群中部署了最少数量的机器，设置了一个主服务器和一个工作人员，这两台机器都在同一个VLAN网络上运行和相互交谈。

请查找下面描述状态的吊舱和部署服务。

root@jenkins-linux-vm:/home/admin# kubectl describe services angular-service
Name:                     angular-service
Namespace:                pre-release
Labels:                   <none>
Annotations:              kubectl.kubernetes.io/last-applied-configuration:
                            {"apiVersion":"v1","kind":"Service","metadata":{"annotations":{},"name":"angular-service","namespace":"pre-release"},"spec":{"ports":[{"no...
Selector:                 app=frontend-app
Type:                     NodePort
IP:                       10.96.151.155
Port:                     <unset>  80/TCP
TargetPort:               80/TCP
NodePort:                 <unset>  31000/TCP
Endpoints:                10.32.0.6:80
Session Affinity:         None
External Traffic Policy:  Cluster
Events:                   <none>

root@jenkins-linux-vm:/home/admin# kubectl get pods
NAME                                  READY   STATUS    RESTARTS   AGE
angular-deployment-7b8d45f48d-b59pv   1/1     Running   0          51m

root@jenkins-linux-vm:/home/admin# kubectl get svc
NAME              TYPE       CLUSTER-IP      EXTERNAL-IP   PORT(S)        AGE
angular-service   NodePort   10.96.151.155   <none>        80:31000/TCP   64m


root@jenkins-linux-vm:/home/admin# kubectl get pods --selector="app=frontend-app" --output=wide
NAME                                  READY   STATUS    RESTARTS   AGE   IP          NODE               NOMINATED NODE   READINESS GATES
angular-deployment-7b8d45f48d-b59pv   1/1     Running   0          52m   10.32.0.6   poc-worker2   <none>           <none>

root@jenkins-linux-vm:/home/admin# kubectl describe pods angular-deployment-7b8d45f48d-b59pv
Name:         angular-deployment-7b8d45f48d-b59pv
Namespace:    pre-release
Priority:     0
Node:         poc-worker2/10.0.0.6
Start Time:   Tue, 21 Jan 2020 05:15:49 +0000
Labels:       app=frontend-app
              pod-template-hash=7b8d45f48d
Annotations:  <none>
Status:       Running
IP:           10.32.0.6
IPs:
  IP:           10.32.0.6
Controlled By:  ReplicaSet/angular-deployment-7b8d45f48d
Containers:
  frontend-app:
    Container ID:   docker://751a9fb4a5e908fa1a02eb0460ab1659904362a727a028fdf72489df663a4f69
    Image:          frontend-app:future-master-fix-d1afa608
    Image ID:       docker://sha256:0099587db89de9ef999a7d1f087d4781e73c491b17e89392e92b08d2f935ad27
    Port:           80/TCP
    Host Port:      0/TCP
    State:          Running
      Started:      Tue, 21 Jan 2020 05:15:54 +0000
    Ready:          True
    Restart Count:  0
    Environment:    <none>
    Mounts:
      /var/run/secrets/kubernetes.io/serviceaccount from default-token-r67p7 (ro)
Conditions:
  Type              Status
  Initialized       True
  Ready             True
  ContainersReady   True
  PodScheduled      True
Volumes:
  default-token-r67p7:
    Type:        Secret (a volume populated by a Secret)
    SecretName:  default-token-r67p7
    Optional:    false
QoS Class:       BestEffort
Node-Selectors:  <none>
Tolerations:     node.kubernetes.io/not-ready:NoExecute for 300s
                 node.kubernetes.io/unreachable:NoExecute for 300s
Events:          <none>

现在的问题是我无法使用端口访问我的应用程序，即使它也不能在web浏览器中工作。

curl http://<public-node-ip>:<node-port>

curl http://10.0.0.6:31000

Dockr文件

FROM node:latest as node
WORKDIR /app
COPY . .
RUN npm install
RUN npm run build --prod

# stage 2
FROM nginx:alpine
COPY --from=node /app/dist/hello-angular /usr/share/nginx/html

root@jenkins-linux-vm:/home/admin# kubectl exec -it angular-deployment-7b8d45f48d-b59pv curl 10.96.151.155:80
curl: (7) Failed to connect to 10.96.151.155 port 80: Connection refused
command terminated with exit code 7

root@jenkins-linux-vm:/home/admin/kubernetes# kubectl run busybox --image=busybox --restart=Never -it --rm --command -- /bin/sh -c "wget 10.96.208.252:80;cat index.html"
Connecting to 10.96.208.252:80 (10.96.208.252:80)
saving to 'index.html'
index.html           100% |********************************|   593  0:00:00 ETA
'index.html' saved
<!doctype html><html lang="en"><head><meta charset="utf-8"><title>AngularApp</title><base href="/"><meta name="viewport" content="width=device-width,initial-scale=1"><link rel="icon" type="image/x-icon" href="favicon.ico"><link href="styles.9c0ad738f18adc3d19ed.bundle.css" rel="stylesheet"/></head><body><app-root></app-root><script type="text/javascript" src="inline.720eace06148cc3e71aa.bundle.js"></script><script type="text/javascript" src="polyfills.f20484b2fa4642e0dca8.bundle.js"></script><script type="text/javascript" src="main.11bc84b3b98cd0d00106.bundle.js"></script></body></html>pod "busybox" deleted

root@jenkins-linux-vm:/home/admin/kubernetes# kubectl run busybox --image=busybox --restart=Never -it --rm --command -- /bin/sh -c "wget 10.0.0.6:32331;cat index.html"
Connecting to 10.0.0.6:32331 (10.0.0.6:32331)
wget: can't connect to remote host (10.0.0.6): Connection refused
cat: can't open 'index.html': No such file or directory
pod "busybox" deleted
pod pre-release/busybox terminated (Error)

kubernetes

回答 4

Stack Overflow用户

回答已采纳

发布于 2020-01-21 13:18:29

我是采取一个从码头枢纽预先构建的角度图像感谢https://github.com/nheidloff/web-apps-kubernetes/tree/master/angular-app，我们将使用这个图像作为基线下面。

使用yamls下面的创建、部署和服务

Deployment.yaml

apiVersion: apps/v1
kind: Deployment
metadata:
  name: angular-app
spec:
  replicas: 1
  selector:
    matchLabels:
      run: angular-app
  template:
    metadata:
      labels:
        run: angular-app
    spec:
      containers:
      - name: angular-app
        image: nheidloff/angular-app
        ports:
        - containerPort: 80
        - containerPort: 443

Service.yaml

apiVersion: v1
kind: Service
metadata:
  name: angular-app
  labels:
    run: angular-app
spec:
  type: NodePort
  ports:
  - port: 80
    targetPort: 80
    protocol: TCP
    name: http
  - port: 443
    protocol: TCP
    name: https
  selector:
    run: angular-app

在集群上运行如下所示，以创建资源

$ kubectl create -f Deployment.yaml
$ kubectl create -f Service.yaml

应该会导致下面的部署和服务配置

    $ kubectl get all -o wide
NAME                               READY   STATUS    RESTARTS   AGE     IP            NODE         NOMINATED NODE   READINESS GATES

pod/angular-app-694d97d56c-7m4x4   1/1     Running   0          8m23s   10.244.3.10   k8s-node-3   <none>           <none>

NAME                  TYPE        CLUSTER-IP      EXTERNAL-IP   PORT(S)                      AGE     SELECTOR
service/angular-app   NodePort    10.96.150.136   <none>        80:32218/TCP,443:30740/TCP   8m23s   run=angular-app
service/kubernetes    ClusterIP   10.96.0.1       <none>        443/TCP                      8d      <none>

NAME                          READY   UP-TO-DATE   AVAILABLE   AGE     CONTAINERS    IMAGES                  SELECTOR
deployment.apps/angular-app   1/1     1            1           8m23s   angular-app   nheidloff/angular-app   run=angular-app

NAME                                     DESIRED   CURRENT   READY   AGE     CONTAINERS    IMAGES                  SELECTOR
replicaset.apps/angular-app-694d97d56c   1         1         1       8m23s   angular-app   nheidloff/angular-app   pod-template-hash=694d97d56c,run=angular-app

从上面我们可以看到

正在运行节点-3，所以识别节点3的ip，我们看到服务暴露在端口32218/TCP和30740/TCP下面。

$ kubectl get nodes -o wide
NAME           STATUS   ROLES    AGE   VERSION   INTERNAL-IP       EXTERNAL-IP   OS-IMAGE             KERNEL-VERSION      CONTAINER-RUNTIME
master-1   Ready    master   8d    v1.17.0   111.112.113.107   <none>        Ubuntu 16.04.6 LTS   4.4.0-169-generic   docker://18.6.2
node-1     Ready    <none>   8d    v1.17.0   111.112.113.108   <none>        Ubuntu 16.04.6 LTS   4.4.0-169-generic   docker://18.6.2
node-2     Ready    <none>   8d    v1.17.0   111.112.113.109   <none>        Ubuntu 16.04.6 LTS   4.4.0-169-generic   docker://18.6.2
node-3     Ready    <none>   8d    v1.17.0   111.112.113.110   <none>        Ubuntu 16.04.6 LTS   4.4.0-169-generic   docker://18.6.2

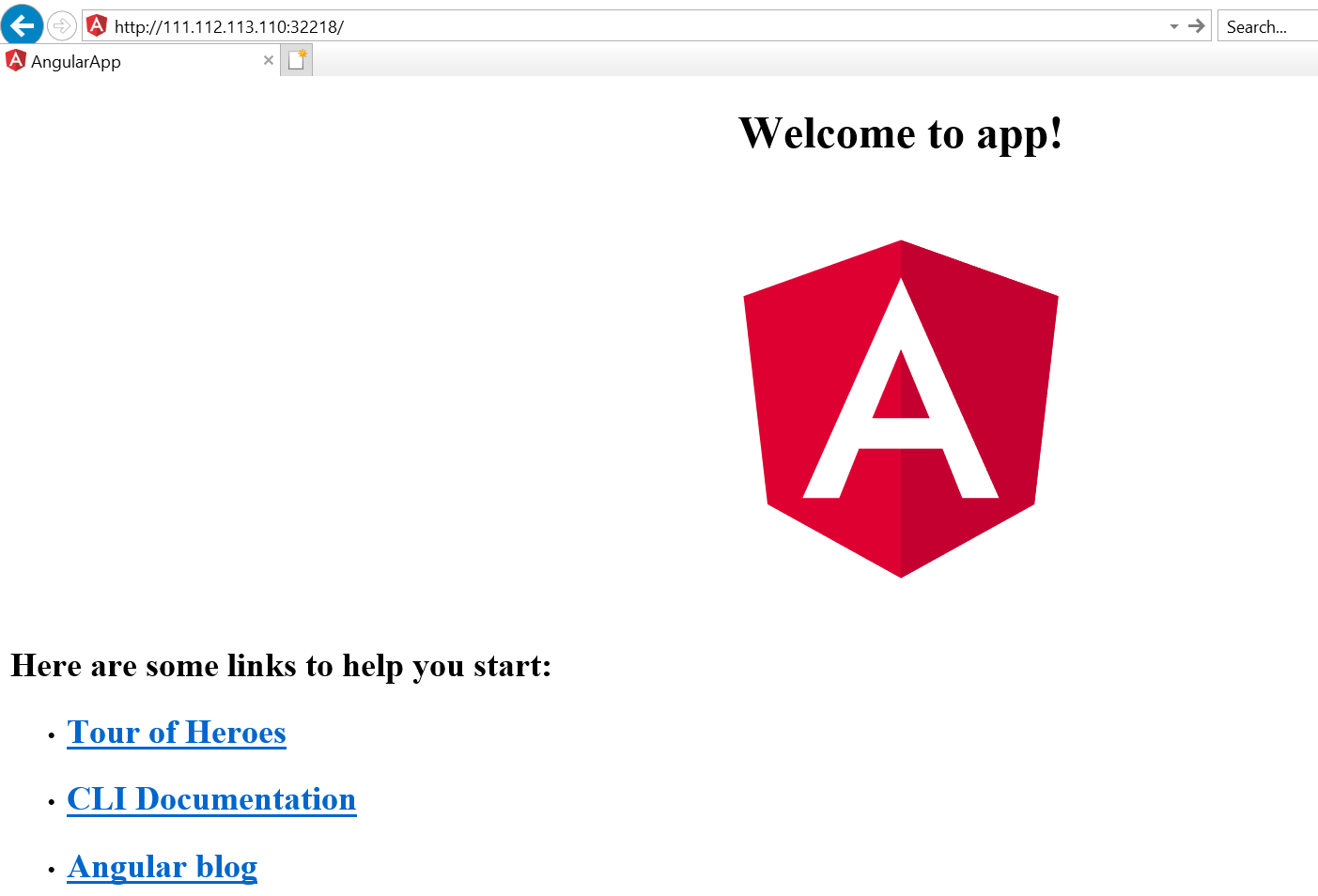

，所以我们需要访问应用程序vi，node3:NodePort，i.111.112.113.110:32218，作为url检查屏幕截图下面，以及我如何访问应用程序。

I在集群级别上打开了以下规则，允许浏览器访问默认的NodePort范围内的应用程序.

注意事项:入口IPv4 TCP 30000 - 32767 0.0.0.0/0

票数 3

Stack Overflow用户

发布于 2020-01-21 08:42:53

为了确保您能够通过浏览器中的nodeport打开您的应用程序，您应该尝试建立

在安全规则上没有阻止默认节点端口范围(即从端口30000到端口32767)的规则，在集群网络上也没有阻止防火墙的规则。

例如，验证在群集网络上打开了以下安全规则，以便节点端口范围在浏览器中工作。

Ingress IPv4    TCP 30000 - 32767   0.0.0.0/0

一旦您确认，您没有安全组规则问题。我将采用下面的方法进行调试，并在节点级别查找端口可达性的错误所在。执行基本测试并检查是否可以通过节点端口在浏览器上安装和访问nginx web服务器：

步骤：

使用下面的nginx.yaml部署NGINX部署

apiVersion: apps/v1
kind: Deployment
metadata:
  name: my-nginx
spec:
  selector:
    matchLabels:
      run: my-nginx
  replicas: 1
  template:
    metadata:
      labels:
        run: my-nginx
    spec:
      containers:
      - name: my-nginx
        image: nginx
        ports:
        - containerPort: 80

验证部署是否已启动并运行

$ kubectl apply -f nginx.yaml

$ kubectl get all
NAME                            READY   STATUS        RESTARTS   AGE
pod/my-nginx-75897978cd-ptqv9   1/1     Running       0          32s

NAME                 TYPE        CLUSTER-IP   EXTERNAL-IP   PORT(S)   AGE
service/kubernetes   ClusterIP   10.96.0.1    <none>        443/TCP   4d11h

NAME                       READY   UP-TO-DATE   AVAILABLE   AGE
deployment.apps/my-nginx   1/1     1            1           33s

NAME                                  DESIRED   CURRENT   READY   AGE
replicaset.apps/my-nginx-75897978cd   1         1         1       33s

现在，创建服务，使用下面的示例公开nginx部署

apiVersion: v1
kind: Service
metadata:
  name: my-nginx
  labels:
    run: my-nginx
spec:
  type: NodePort
  ports:
  - port: 8080
    targetPort: 80
    protocol: TCP
    name: http
  selector:
    run: my-nginx

验证服务已创建，标识指定的节点端口(因为我们没有在service.yaml中提供任何固定端口(如下面的节点端口为32502)

$ kubectl apply -f service.yaml

$ kubectl get svc
NAME         TYPE        CLUSTER-IP      EXTERNAL-IP   PORT(S)          AGE
kubernetes   ClusterIP   10.96.0.1       <none>        443/TCP          4d11h
my-nginx     NodePort    10.96.174.234   <none>        8080:32502/TCP   12s

除了nodeport ，还可以识别主节点的ip，即下面的131.112.113.101

$ kubectl get nodes -o wide
NAME           STATUS   ROLES    AGE     VERSION   INTERNAL-IP       EXTERNAL-IP   OS-IMAGE             KERNEL-VERSION      CONTAINER-RUNTIME
master-1   Ready    master   4d11h   v1.17.0   131.112.113.101   <none>        Ubuntu 16.04.6 LTS   4.4.0-169-generic   docker://18.6.2
node-1     Ready    <none>   4d11h   v1.17.0   131.112.113.102   <none>        Ubuntu 16.04.6 LTS   4.4.0-169-generic   docker://18.6.2
node-2     Ready    <none>   4d11h   v1.17.0   131.112.113.103   <none>        Ubuntu 16.04.6 LTS   4.4.0-169-generic   docker://18.6.2

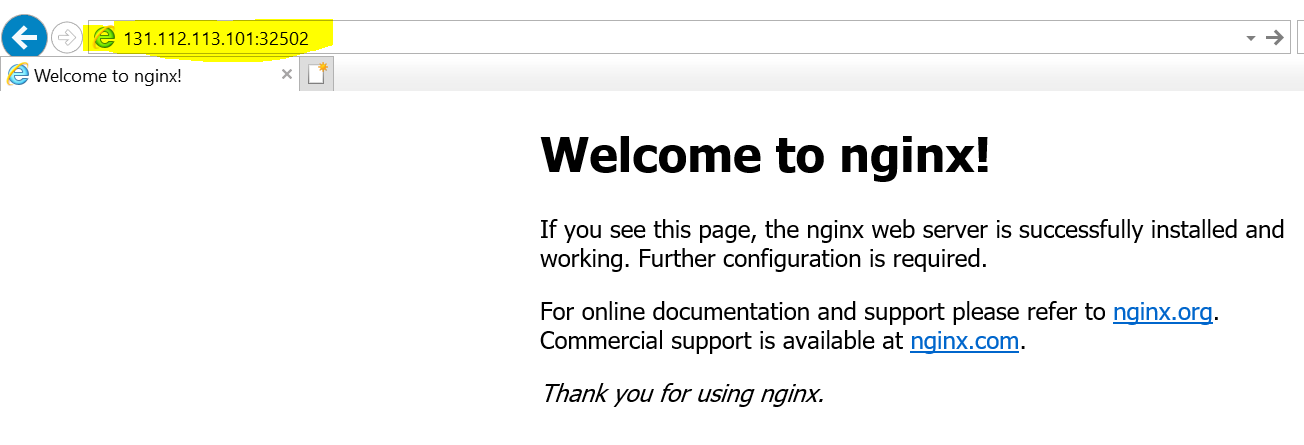

现在，如果您试图在浏览器中使用节点值为<masternode>:<nodeport> (即131.112.113.101:32502)的主节点的IP来访问nginx应用程序，则应该得到如下所示的结果

Note -- nginx.yaml上使用的容器端口和service.yaml上的targetPort (即80) --您应该能够更好地理解这一点。希望这将有助于您在节点/集群级别(如果有的话)了解这个问题。

票数 2

Stack Overflow用户

发布于 2020-01-21 06:52:29

我不知道我是否明白你想做什么。

下面的命令是打开荚中的bash外壳：

kubectl exec -it angular-deployment-7b8d45f48d-b59pv -- /bin/bash

你可以连接到一个吊舱，然后试试卷曲。

票数 1

页面原文内容由Stack Overflow提供。腾讯云小微IT领域专用引擎提供翻译支持

原文链接：

https://stackoverflow.com/questions/59835323
