SAML响应签名为null :SAML2.0

Question

我是SAML认证新手。

SAML Request -
<saml2p:AuthnRequest
    xmlns:saml2p="urn:oasis:names:tc:SAML:2.0:protocol" AssertionConsumerServiceURL="https://host/project/jsp/index.jsp" Destination="https://host/unica/jsp/index.jsp" ForceAuthn="false" ID="_9d2a3a673a4eba881518c4b18f7dcfa0957264fd074f13e72e" IsPassive="false" IssueInstant="2020-01-24T17:12:55.758Z" ProtocolBinding="urn:oasis:names:tc:SAML:2.0:bindings:HTTP-POST" Version="2.0">
    <saml2:Issuer
        xmlns:saml2="urn:oasis:names:tc:SAML:2.0:assertion">https://host/unica
    </saml2:Issuer>
    <saml2p:NameIDPolicy AllowCreate="true" Format="urn:oasis:names:tc:SAML:2.0:nameid-format:transient" SPNameQualifier="https://host/project"/>
    <saml2p:RequestedAuthnContext Comparison="exact">
        <saml2:AuthnContextClassRef
            xmlns:saml2="urn:oasis:names:tc:SAML:2.0:assertion">urn:oasis:names:tc:SAML:2.0:ac:classes:PasswordProtectedTransport
        </saml2:AuthnContextClassRef>
    </saml2p:RequestedAuthnContext>
</saml2p:AuthnRequest>

根据上述要求，我收到的答复如下-

    <samlp:Response
            xmlns:samlp="urn:oasis:names:tc:SAML:2.0:protocol" ID="s294e0dd953d11cd8d7b2f249bb05951070679e9c0" InResponseTo="_9d2a3a673a4eba881518c4b18f7dcfa0957264fd074f13e72e" Version="2.0" IssueInstant="2020-01-24T17:13:03Z" Destination="https://host/project/jsp/index.jsp">
            <saml:Issuer
                xmlns:saml="urn:oasis:names:tc:SAML:2.0:assertion">https://sso-ppd.localhost.com/idp/openam
            </saml:Issuer>
            <samlp:Status
                xmlns:samlp="urn:oasis:names:tc:SAML:2.0:protocol">
                <samlp:StatusCode
                    xmlns:samlp="urn:oasis:names:tc:SAML:2.0:protocol" Value="urn:oasis:names:tc:SAML:2.0:status:Success">
                </samlp:StatusCode>
            </samlp:Status>
            <saml:Assertion
                xmlns:saml="urn:oasis:names:tc:SAML:2.0:assertion" ID="Someid" IssueInstant="2020-01-24T17:13:03Z" Version="2.0">
                <saml:Issuer>https://sso-ppd.localhost.com/idp/openam</saml:Issuer>
                <ds:Signature
                    xmlns:ds="http://www.w3.org/2000/09/xmldsig#">
                    <ds:SignedInfo>
                        <ds:CanonicalizationMethod Algorithm="http://www.w3.org/2001/10/xml-exc-c14n#"/>
                        <ds:SignatureMethod Algorithm="http://www.w3.org/2000/09/xmldsig#rsa-sha1"/>
                        <ds:Reference URI="#s2bd9e70f040ca49643880ee440b0a84ae25f5e557">
                            <ds:Transforms>
                                <ds:Transform Algorithm="http://www.w3.org/2000/09/xmldsig#enveloped-signature"/>
                                <ds:Transform Algorithm="http://www.w3.org/2001/10/xml-exc-c14n#"/>
                            </ds:Transforms>
                            <ds:DigestMethod Algorithm="http://www.w3.org/2000/09/xmldsig#sha1"/>
                            <ds:DigestValue>dd+x9TXVAgDghwv9ADkdTEkXBto=</ds:DigestValue>
                        </ds:Reference>
                    </ds:SignedInfo>
                    <ds:SignatureValue>
    qJn0KfZVrg9uiHvFctdjU/8RzancM0Q==
    </ds:SignatureValue>
                    <ds:KeyInfo>
                        <ds:X509Data>
                            <ds:X509Certificate>
    MIIDdTCCAl2gAwIBAgIEPA8XezANBgkqhkiG9w0BAQsFADBrMQswCQYDVQQGEwJGUjEMMAoGA1UE
    CBMDSURGMQ4wDAYDVQQHEwVNYXNzeTESMBAGA1UEChMJQ2FycmVmb3VyMQwwCgYDVQQLEwNHTlQx
 OD2K1NbH7DLZa+zy/QmBvvIxraovhmpW3U2j/
    XAFtVXOL5Pln23c1L9c9BzqGMMDHu3v98w65aoJI1FMkiQ==
    </ds:X509Certificate>
                        </ds:X509Data>
                    </ds:KeyInfo>
                </ds:Signature>
                <saml:Subject>
                    <saml:NameID Format="urn:oasis:names:tc:SAML:2.0:nameid-format:transient" NameQualifier="https://sso-ppd.localhost.com/idp/openam" SPNameQualifier="https://host/unica">gregory_picano</saml:NameID>
                    <saml:SubjectConfirmation Method="urn:oasis:names:tc:SAML:2.0:cm:bearer">
                        <saml:SubjectConfirmationData InResponseTo="_9d2a3a673a4eba881518c4b18f7dcfa0957264fd074f13e72e" NotOnOrAfter="2020-01-24T17:23:03Z" Recipient="https://host/project/jsp/index.jsp"/>
                    </saml:SubjectConfirmation>
                </saml:Subject>
                <saml:Conditions NotBefore="2020-01-24T17:03:03Z" NotOnOrAfter="2020-01-24T17:23:03Z">
                    <saml:AudienceRestriction>
                        <saml:Audience>https://host/project</saml:Audience>
                    </saml:AudienceRestriction>
                </saml:Conditions>
                <saml:AuthnStatement AuthnInstant="2020-01-24T17:13:02Z" SessionIndex="s2d78f7647bbdfe8b5d241ff924944d3afc7f34005">
                    <saml:AuthnContext>
                        <saml:AuthnContextClassRef>urn:oasis:names:tc:SAML:2.0:ac:classes:PasswordProtectedTransport</saml:AuthnContextClassRef>
                    </saml:AuthnContext>
                </saml:AuthnStatement>
                <saml:AttributeStatement>
                    <saml:Attribute Name="uid">
                        <saml:AttributeValue
                            xmlns:xs="http://www.w3.org/2001/XMLSchema"
                            xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:type="xs:string">gregory_picano
                        </saml:AttributeValue>
                    </saml:Attribute>
                    <saml:Attribute Name="cn">
                        <saml:AttributeValue
                            xmlns:xs="http://www.w3.org/2001/XMLSchema"
                            xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:type="xs:string">pG
                        </saml:AttributeValue>
                    </saml:Attribute>
                    <saml:Attribute Name="sn">
                        <saml:AttributeValue
                            xmlns:xs="http://www.w3.org/2001/XMLSchema"
                            xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:type="xs:string">PG
                        </saml:AttributeValue>
                    </saml:Attribute>
                    <saml:Attribute Name="mail">
                        <saml:AttributeValue
                            xmlns:xs="http://www.w3.org/2001/XMLSchema"
                            xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:type="xs:string">pg.com
                        </saml:AttributeValue>
                    </saml:Attribute>
                    <saml:Attribute Name="givenName">
                        <saml:AttributeValue
                            xmlns:xs="http://www.w3.org/2001/XMLSchema"
                            xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:type="xs:string">Gregory
                        </saml:AttributeValue>
                    </saml:Attribute>
                </saml:AttributeStatement>
            </saml:Assertion>
        </samlp:Response>

将XML对象转换为SAML响应对象以进行处理。

Response responseObject = (Response)responseXmlObject;

当试图从响应中获得签名时，我得到的是null。

Signature signature = responseObject.getSignature();

但是我可以看到xml :xml中的签名、ds:SignatureValue和标记。

签名无效的原因是什么？

编辑的

​

​

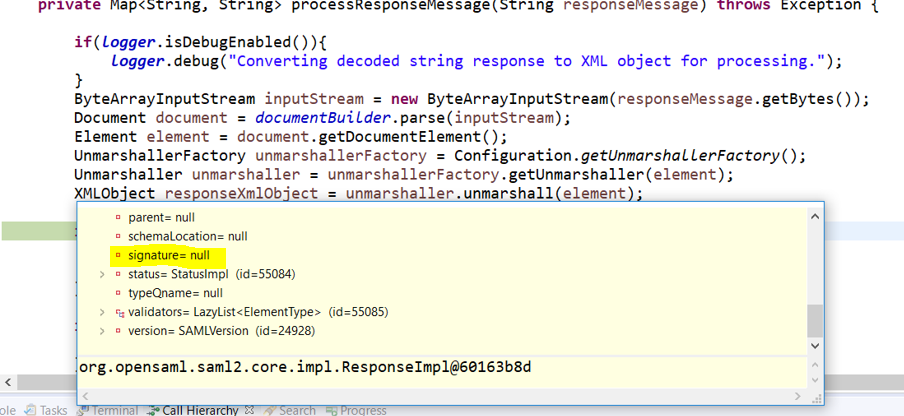

这就是我可以看到签名为空的地方，在解组签名为空之后。

Answer 1

请注意以下内容：

<samlp:Response ... ID="s294e0dd953d11cd8d7b2f249bb05951070679e9c0"
....
<ds:Reference URI="#s2bd9e70f040ca49643880ee440b0a84ae25f5e557">

您已经在SAML响应中插入了一个签名元素，但是没有指定哪个元素被签名(可以是一个完整的响应，也可以是单个断言)。

我认为引用URI需要与saml:Response或saml:断言中的ID相对应(参见https://www.samltool.com/generic_sso_res.php)

注意:如果您正在构建一个客户端，我强烈建议使用一些成熟的开箱即用库(OpenSAML或security SAML 2)来正确生成或验证SAML消息(所有支持的转换算法，防止签名注入攻击，.)
