在QChartView对象上绘制光标

Question

我需要在QChartView对象上画一个光标。就像这样：

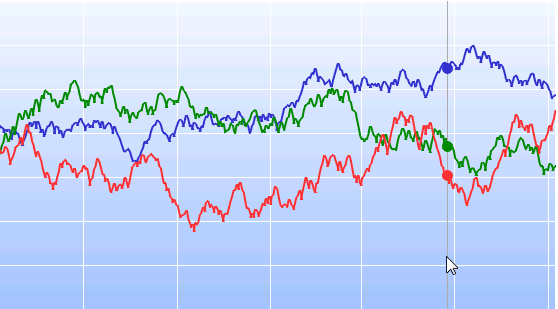

图表上的光标

​

​

每当用户单击图表时，光标都应该移到那里。我不知道这怎么可能。正如我所搜索的，这似乎不是QChartView的内置特性。那我该怎么做？顺便说一句，我是QT的新手。

Answer 1

我也面临着同样的问题。通过引用这位律师，在鼠标位置绘制光标似乎很简单。请注意，我将x.setter中的x.setter代码从self.update()修改为self.scene().update()。这对于更新游标非常重要。老实说，我不知道为什么。如果你知道不同之处，你可以留下评论。

# refer to https://stackoverflow.com/a/67596291/9758790
import sys
import time
from PyQt5.QtCore import Qt, QPointF
from PyQt5.QtGui import QColor, QPainter, QPen
from PyQt5.QtWidgets import QApplication, QMainWindow
from PyQt5.QtChart import (
    QChart,
    QChartView,
    QLineSeries,
)
from PyQt5.Qt import *


class ChartView(QChartView):
    _x = None

    @property
    def x(self):
        return self._x

    @x.setter
    def x(self, x):
        self._x = x
        # self.update()
        self.scene().update()

    def drawForeground(self, painter, rect):
        if self.x is None:
            return
        painter.save()

        pen = QPen(QColor("indigo"))
        pen.setWidth(3)
        painter.setPen(pen)

        # p = self.chart().mapToPosition(QPointF(self.x, 0))
        p = QPointF(self.x, 0)
        r = self.chart().plotArea()

        p1 = QPointF(p.x(), r.top())
        p2 = QPointF(p.x(), r.bottom())
        painter.drawLine(p1, p2)

        painter.restore()

    def mousePressEvent(self, env):
        # refer to https://stackoverflow.com/a/44078533/9758790
        scene_position = self.mapToScene(env.pos())
        chart_position = self.chart().mapFromScene(scene_position)
        value_at_position = self.chart().mapToValue(chart_position)
        if self.chart().axisX().min() < value_at_position.x() < self.chart().axisX().max():
            self.x = scene_position.x()


def main():
    app = QApplication(sys.argv)

    series1 = QLineSeries() << QPointF(0, 3) << QPointF(1, 1) << QPointF(3, 9) << QPointF(4, 1)
    series2 = QLineSeries() << QPointF(0, 9) << QPointF(1, 8) << QPointF(3, 6) << QPointF(4, 6)
    series3 = QLineSeries() << QPointF(0, 4) << QPointF(1, 2) << QPointF(3, 2) << QPointF(4, 3)

    chart = QChart()
    chart.addSeries(series1)
    chart.addSeries(series2)
    chart.addSeries(series3)

    chart.createDefaultAxes()

    chart.legend().setVisible(True)
    chart.legend().setAlignment(Qt.AlignBottom)

    chartView = ChartView(chart)
    chartView.setRenderHint(QPainter.Antialiasing)

    chartView.x = None

    window = QMainWindow()
    window.setCentralWidget(chartView)
    window.resize(420, 300)
    window.show()

    app.exec()


if __name__ == "__main__":
    main()

这意味着：

​

​

然而，我发现很难画出光标的交点和线图。正如这个论坛和这个论坛中提到的，如果光标指向两个数据点之间的插值部分，则很难确定交点的y坐标，因为Qt没有提供内建函数来获得value_at_position.x()处的插值函数值。这个问题也与找到插值值有关。所以我试着用我自己的方式做插值。

下面的代码版本也将绘制交点。

# refer to https://stackoverflow.com/a/67596291/9758790
import sys
import time
from PyQt5.QtCore import Qt, QPointF
from PyQt5.QtGui import QColor, QPainter, QPen
from PyQt5.QtWidgets import QApplication, QMainWindow
from PyQt5.QtChart import (
    QChart,
    QChartView,
    QLineSeries,
)
from PyQt5.Qt import *
import math

class ChartView(QChartView):
    _cursor = None
    _y = []

    @property
    def cursor(self):
        return self._cursor

    @cursor.setter
    def cursor(self, point):
        # refer to https://stackoverflow.com/a/44078533/9758790
        scene_position = self.mapToScene(point)
        chart_position = self.chart().mapFromScene(scene_position)
        value_at_position = self.chart().mapToValue(chart_position)
        if self.chart().axisX().min() < value_at_position.x() < self.chart().axisX().max():
            self._cursor = scene_position
            # self.update()
            self.scene().update()

    def drawForeground(self, painter, rect):
        if self.cursor is None:
            return
        painter.save()

        pen = QPen(QColor("indigo"))
        pen.setWidth(1)
        painter.setPen(pen)

        p = self.cursor
        r = self.chart().plotArea()

        p1 = QPointF(p.x(), r.top())
        p2 = QPointF(p.x(), r.bottom())
        painter.drawLine(p1, p2)

        chart_position = self.chart().mapFromScene(self.cursor)
        value_at_position = self.chart().mapToValue(chart_position)
        for series_i in self.chart().series():
            pen2 = QPen(series_i.color())
            pen2.setWidth(10)
            painter.setPen(pen2)

            # find the nearest points
            min_distance_left = math.inf
            min_distance_right = math.inf
            nearest_point_left = None
            nearest_point_right = None
            exact_point = None
            for p_i in series_i.pointsVector():
                if p_i.x() > value_at_position.x():
                    if p_i.x() - value_at_position.x() < min_distance_right:
                        min_distance_right = p_i.x() - value_at_position.x()
                        nearest_point_right = p_i
                elif p_i.x() < value_at_position.x():
                    if value_at_position.x() - p_i.x() < min_distance_right:
                        min_distance_left = value_at_position.x() - p_i.x()
                        nearest_point_left = p_i
                else:
                    exact_point = p_i
                    nearest_point_left = None
                    nearest_point_right = None
                    break
            if nearest_point_right is not None and nearest_point_left is not None:
                # do linear interpolated by my self
                k = ((nearest_point_right.y() - nearest_point_left.y()) / (nearest_point_right.x() - nearest_point_left.x()))
                point_interpolated_y = nearest_point_left.y() + k * (value_at_position.x() - nearest_point_left.x())
                point_interpolated_x = value_at_position.x()

                point_interpolated = QPointF(point_interpolated_x, point_interpolated_y)

                painter.drawPoint(self.chart().mapToScene(self.chart().mapToPosition(point_interpolated)))
            if exact_point is not None:
                painter.drawPoint(self.chart().mapToScene(self.chart().mapToPosition(exact_point)))

        painter.restore()

    def mousePressEvent(self, env):
        self.cursor = env.pos()


def main():
    app = QApplication(sys.argv)

    series1 = QLineSeries() << QPointF(0, 3) << QPointF(1, 1) << QPointF(3, 9) << QPointF(4, 1)
    series2 = QLineSeries() << QPointF(0, 9) << QPointF(1, 8) << QPointF(3, 6) << QPointF(4, 6)
    series3 = QLineSeries() << QPointF(0, 4) << QPointF(1, 2) << QPointF(3, 2) << QPointF(4, 3)

    chart = QChart()
    chart.addSeries(series1)
    chart.addSeries(series2)
    chart.addSeries(series3)

    chart.createDefaultAxes()

    chart.legend().setVisible(True)
    chart.legend().setAlignment(Qt.AlignBottom)

    chartView = ChartView(chart)
    chartView.setRenderHint(QPainter.Antialiasing)

    chartView.x = None

    window = QMainWindow()
    window.setCentralWidget(chartView)
    window.resize(420, 300)
    window.show()

    app.exec()


if __name__ == "__main__":
    main()

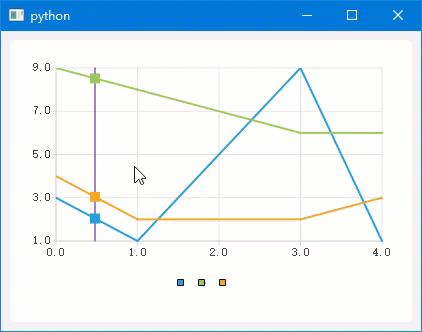

这意味着：

​

​

这个链接提供了一种解决方案，可以找到离鼠标位置最近的数据点，并在那里画一条线，从而避免了插值。我的代码也可以修改以这种方式绘制。
