访问https链接时如何通过JS调用wpf函数

Question

我需要执行wpf项目中定义的函数，该函数是从https网页中的JS调用的。所有代码的演示项目如下：https://github.com/tomxue/WebViewIssueInWpf

JS部件：网页链接是https://cmsdev.lenovo.com.cn/musichtml/leHome/weather/index.html?date=&city=&mark=0&speakerId=&reply=

它包含以下一行：

<script src="js/index.js" type="text/javascript" charset="utf-8"></script>

js/index.js包含以下代码：

setTitle(dataObject.city + weekDay(dataObject.date) +"天气" )

setTitle()的定义如下：window.external.notify()的使用方法

    function setTitle(_str){
        try{
            wtjs.setTitle(_str)
        }catch(e){
            console.log(_str)
            window.external.notify(_str);
        }
    }

函数window.external.notify()将通过ScriptNotify()调用wpf函数。

WPF部分：用于wpf项目中的WebView

        this.wv.IsScriptNotifyAllowed = true;
        this.wv.ScriptNotify += Wv_ScriptNotify;

和

    private void Wv_ScriptNotify(object sender, Microsoft.Toolkit.Win32.UI.Controls.Interop.WinRT.WebViewControlScriptNotifyEventArgs e)
    {
        textBlock.Text = e.Value;
    }

问题：

(1)这里的问题是，如果网页使用https://，那么wpf中的上述函数Wv_ScriptNotify()就不会被触发。但是如果网页链接使用http://，则可以触发wpf中的上述函数Wv_ScriptNotify()。为什么以及如何解决这个问题？

更新： 2020-3-2 17:25:55，刚刚测试过，https有效。我不知道是什么原因导致https以前不起作用。

(2) web页面中的 JS使用一个对象wtjs (由我们自己定义，并很好地使用JSBridge处理项目)。我想使用一个与UWP类似的方法，使用一个桥，这样我就可以添加多个函数/接口供JS调用。ScriptNotify()的缺点是只有一个接口是可用的。为了实现这个目标，我编写了下面的代码，现在注释掉了。

wv.RegisterName("wtjs", new myBridge());

下面定义了更多的函数

    public class myBridge
    {
        public void SetTitle(string title)
        {
            Debug.WriteLine("SetTitle is executing...title = {0}", title);
        }

        public void PlayTTS(string tts)
        {
            Debug.WriteLine("PlayTTS is executing...tts = {0}", tts);
        }
    }

在JS端，将调用相应的函数。

wtjs.playTTS(tts)
wtjs.setTitle(_str)

但是实际上wpf方面没有工作，而使用JSBridge的UWP项目使用了web链接(所以网页和JS脚本是可行的)。如何实现这一目标？

(3)

以上两个问题已经用DK Dhilip的答案解决了。但是发现了一个新的问题。请检查我的GitHub代码，并将其更新为最新提交。https://github.com/tomxue/WebViewIssueInWpf

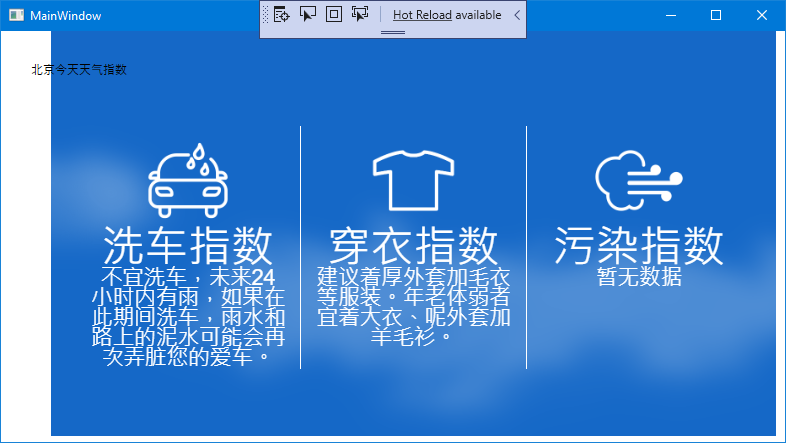

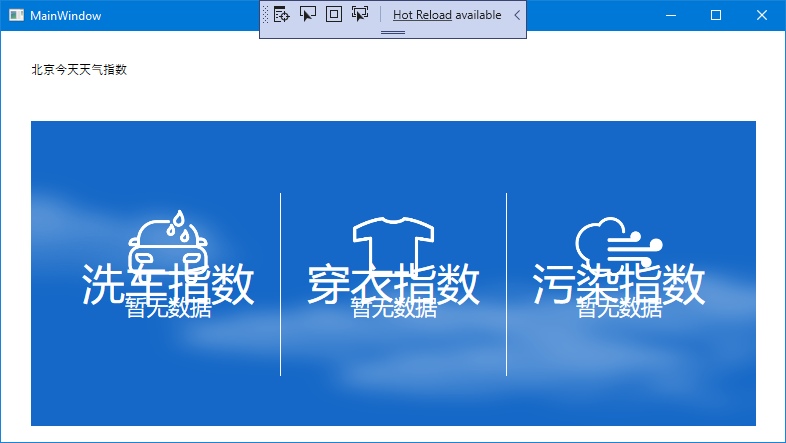

我将一个TextBlock放到WebView上，希望看到文本在web内容上浮动。但事实上，文本是由WebView覆盖的。为什么以及如何解决这个问题？谢谢!

Answer 1

问题(1，2)

HTTPS链接对我来说很好，也许页面加载太慢了？

根据微软(来源)的说法，WebView只支持ScriptNotify。

我可以将本机对象插入到WebViewControl内容中吗？ 不是的。WebBrower (Internet ) ObjectForScripting属性和WebView (UWP) AddWebAllowedObject方法在WebViewControl中都不受支持。作为一种解决办法，您可以使用window.Foreignal.Notification/ ScriptNotify和JavaScript执行来在层之间进行通信，例如：AddAllowedWebObjectWorkaround

但上述建议的解决方案似乎与您的预期不同，因此我只是实现了自己的解决方案，以模仿您所期望的JSBridge约定。

我的自定义解决方案不是经过战斗测试的，它在某些边缘情况下可能会中断，但在几个简单的测试中似乎很好。

支持的内容：

• 多桥对象
• JS到C#方法调用
• JS到C# get/set属性

C#用法：

// Add
webView.AddWebAllowedObject("wtjs", new MyBridge(this));
webView.AddWebAllowedObject("myBridge", new MyOtherBridge());

// Remove
webView.RemoveWebAllowedObject("wtjs");

JS使用：

// Call C# object method (no return value)
wtjs.hello('hello', 'world', 666);
myBridge.saySomething('天猫精灵，叫爸爸！');

// Call C# object method (return value)
wtjs.add(10, 20).then(function (result) { console.log(result); });

// Get C# object property
wtjs.backgroundColor.then(function (color) { console.log(color); });

// Set C# object property
wtjs.niubility = true;

代码

WebViewExtensions.cs

using Microsoft.Toolkit.Win32.UI.Controls.Interop.WinRT;
using Microsoft.Toolkit.Wpf.UI.Controls;
using Newtonsoft.Json;
using System;
using System.Collections.Concurrent;
using System.Linq;
using System.Numerics;
using System.Reflection;
using System.Text;

namespace WpfApp3
{
    // Source: https://github.com/dotnet/orleans/issues/1269#issuecomment-171233788
    public static class JsonHelper
    {
        private static readonly Type[] _specialNumericTypes = { typeof(ulong), typeof(uint), typeof(ushort), typeof(sbyte) };

        public static object ConvertWeaklyTypedValue(object value, Type targetType)
        {
            if (targetType == null)
                throw new ArgumentNullException(nameof(targetType));

            if (value == null)
                return null;

            if (targetType.IsInstanceOfType(value))
                return value;

            var paramType = Nullable.GetUnderlyingType(targetType) ?? targetType;

            if (paramType.IsEnum)
            {
                if (value is string)
                    return Enum.Parse(paramType, (string)value);
                else
                    return Enum.ToObject(paramType, value);
            }

            if (paramType == typeof(Guid))
            {
                return Guid.Parse((string)value);
            }

            if (_specialNumericTypes.Contains(paramType))
            {
                if (value is BigInteger)
                    return (ulong)(BigInteger)value;
                else
                    return Convert.ChangeType(value, paramType);
            }

            if (value is long || value is double)
            {
                return Convert.ChangeType(value, paramType);
            }

            return value;
        }
    }

    public enum WebViewInteropType
    {
        Notify = 0,
        InvokeMethod = 1,
        InvokeMethodWithReturn = 2,
        GetProperty = 3,
        SetProperty = 4
    }

    public class WebAllowedObject
    {
        public WebAllowedObject(WebView webview, string name)
        {
            WebView = webview;
            Name = name;
        }

        public WebView WebView { get; private set; }

        public string Name { get; private set; }

        public ConcurrentDictionary<(string, WebViewInteropType), object> FeaturesMap { get; } = new ConcurrentDictionary<(string, WebViewInteropType), object>();

        public EventHandler<WebViewControlNavigationCompletedEventArgs> NavigationCompletedHandler { get; set; }

        public EventHandler<WebViewControlScriptNotifyEventArgs> ScriptNotifyHandler { get; set; }
    }

    public static class WebViewExtensions
    {
        public static bool IsNotification(this WebViewControlScriptNotifyEventArgs e)
        {
            try
            {
                var message = JsonConvert.DeserializeObject<dynamic>(e.Value);

                if (message["___magic___"] != null)
                {
                    return false;
                }
            }
            catch (Exception) { }

            return true;
        }

        public static void AddWebAllowedObject(this WebView webview, string name, object targetObject)
        {
            if (string.IsNullOrWhiteSpace(name))
                throw new ArgumentNullException(nameof(name));

            if (targetObject == null)
                throw new ArgumentNullException(nameof(targetObject));

            if (webview.Tag == null)
            {
                webview.Tag = new ConcurrentDictionary<string, WebAllowedObject>();
            }
            else if (!(webview.Tag is ConcurrentDictionary<string, WebAllowedObject>))
            {
                throw new InvalidOperationException("WebView.Tag property is already being used for other purpose.");
            }

            var webAllowedObjectsMap = webview.Tag as ConcurrentDictionary<string, WebAllowedObject>;

            var webAllowedObject = new WebAllowedObject(webview, name);

            if (webAllowedObjectsMap.TryAdd(name, webAllowedObject))
            {
                var objectType = targetObject.GetType();
                var methods = objectType.GetMethods();
                var properties = objectType.GetProperties();

                var jsStringBuilder = new StringBuilder();

                jsStringBuilder.Append("(function () {");
                jsStringBuilder.Append("window['");
                jsStringBuilder.Append(name);
                jsStringBuilder.Append("'] = {");

                jsStringBuilder.Append("__callback: {},");
                jsStringBuilder.Append("__newUuid: function () { return ([1e7]+-1e3+-4e3+-8e3+-1e11).replace(/[018]/g, function (c) { return (c ^ crypto.getRandomValues(new Uint8Array(1))[0] & 15 >> c / 4).toString(16); }); },");

                foreach (var method in methods)
                {
                    if (!method.IsSpecialName)
                    {
                        if (method.ReturnType == typeof(void))
                        {
                            webAllowedObject.FeaturesMap.TryAdd((method.Name, WebViewInteropType.InvokeMethod), method);
                        }
                        else
                        {
                            webAllowedObject.FeaturesMap.TryAdd((method.Name, WebViewInteropType.InvokeMethodWithReturn), method);
                        }

                        var parameters = method.GetParameters();
                        var parametersInString = string.Join(",", parameters.Select(x => x.Position).Select(x => "$$" + x.ToString()));

                        jsStringBuilder.Append(method.Name);
                        jsStringBuilder.Append(": function (");
                        jsStringBuilder.Append(parametersInString);
                        jsStringBuilder.Append(") {");

                        if (method.ReturnType != typeof(void))
                        {
                            jsStringBuilder.Append("var callbackId = window['" + name + "'].__newUuid();");
                        }

                        jsStringBuilder.Append("window.external.notify(JSON.stringify({");
                        jsStringBuilder.Append("source: '");
                        jsStringBuilder.Append(name);
                        jsStringBuilder.Append("',");
                        jsStringBuilder.Append("target: '");
                        jsStringBuilder.Append(method.Name);
                        jsStringBuilder.Append("',");
                        jsStringBuilder.Append("parameters: [");
                        jsStringBuilder.Append(parametersInString);
                        jsStringBuilder.Append("]");

                        if (method.ReturnType != typeof(void))
                        {
                            jsStringBuilder.Append(",");
                            jsStringBuilder.Append("callbackId: callbackId");
                        }

                        jsStringBuilder.Append("}), ");
                        jsStringBuilder.Append((method.ReturnType == typeof(void)) ? (int)WebViewInteropType.InvokeMethod : (int)WebViewInteropType.InvokeMethodWithReturn);
                        jsStringBuilder.Append(");");


                        if (method.ReturnType != typeof(void))
                        {
                            jsStringBuilder.Append("var promise = new Promise(function (resolve, reject) {");
                            jsStringBuilder.Append("window['" + name + "'].__callback[callbackId] = { resolve, reject };");
                            jsStringBuilder.Append("});");

                            jsStringBuilder.Append("return promise;");
                        }

                        jsStringBuilder.Append("},");
                    }
                }

                jsStringBuilder.Append("};");

                foreach (var property in properties)
                {
                    jsStringBuilder.Append("Object.defineProperty(");
                    jsStringBuilder.Append("window['");
                    jsStringBuilder.Append(name);
                    jsStringBuilder.Append("'], '");
                    jsStringBuilder.Append(property.Name);
                    jsStringBuilder.Append("', {");

                    if (property.CanRead)
                    {
                        webAllowedObject.FeaturesMap.TryAdd((property.Name, WebViewInteropType.GetProperty), property);

                        jsStringBuilder.Append("get: function () {");
                        jsStringBuilder.Append("var callbackId = window['" + name + "'].__newUuid();");
                        jsStringBuilder.Append("window.external.notify(JSON.stringify({");
                        jsStringBuilder.Append("source: '");
                        jsStringBuilder.Append(name);
                        jsStringBuilder.Append("',");
                        jsStringBuilder.Append("target: '");
                        jsStringBuilder.Append(property.Name);
                        jsStringBuilder.Append("',");
                        jsStringBuilder.Append("callbackId: callbackId,");
                        jsStringBuilder.Append("parameters: []");
                        jsStringBuilder.Append("}), ");
                        jsStringBuilder.Append((int)WebViewInteropType.GetProperty);
                        jsStringBuilder.Append(");");

                        jsStringBuilder.Append("var promise = new Promise(function (resolve, reject) {");
                        jsStringBuilder.Append("window['" + name + "'].__callback[callbackId] = { resolve, reject };");
                        jsStringBuilder.Append("});");

                        jsStringBuilder.Append("return promise;");

                        jsStringBuilder.Append("},");
                    }

                    if (property.CanWrite)
                    {
                        webAllowedObject.FeaturesMap.TryAdd((property.Name, WebViewInteropType.SetProperty), property);

                        jsStringBuilder.Append("set: function ($$v) {");
                        jsStringBuilder.Append("window.external.notify(JSON.stringify({");
                        jsStringBuilder.Append("source: '");
                        jsStringBuilder.Append(name);
                        jsStringBuilder.Append("',");
                        jsStringBuilder.Append("target: '");
                        jsStringBuilder.Append(property.Name);
                        jsStringBuilder.Append("',");
                        jsStringBuilder.Append("parameters: [$$v]");
                        jsStringBuilder.Append("}), ");
                        jsStringBuilder.Append((int)WebViewInteropType.SetProperty);
                        jsStringBuilder.Append(");");
                        jsStringBuilder.Append("},");
                    }

                    jsStringBuilder.Append("});");
                }

                jsStringBuilder.Append("})();");

                var jsString = jsStringBuilder.ToString();

                webAllowedObject.NavigationCompletedHandler = (sender, e) =>
                {
                    var isExternalObjectCustomized = webview.InvokeScript("eval", new string[] { "window.external.hasOwnProperty('isCustomized').toString();" }).Equals("true");

                    if (!isExternalObjectCustomized)
                    {
                        webview.InvokeScript("eval", new string[] { @"
                            (function () {
                                var originalExternal = window.external;
                                var customExternal = {
                                    notify: function (message, type = 0) {
                                        if (type === 0) {
                                            originalExternal.notify(message);
                                        } else {
                                            originalExternal.notify(JSON.stringify({
                                                ___magic___: true,
                                                type: type,
                                                interop: message
                                            }));
                                        }
                                    },
                                    isCustomized: true
                                };
                                window.external = customExternal;
                            })();" });
                    }

                    webview.InvokeScript("eval", new string[] { jsString });
                };

                webAllowedObject.ScriptNotifyHandler = (sender, e) =>
                {
                    try
                    {
                        var message = JsonConvert.DeserializeObject<dynamic>(e.Value);

                        if (message["___magic___"] != null)
                        {
                            var interopType = (WebViewInteropType)message.type;
                            var interop = JsonConvert.DeserializeObject<dynamic>(message.interop.ToString());
                            var source = (string)interop.source.ToString();
                            var target = (string)interop.target.ToString();
                            var parameters = (object[])interop.parameters.ToObject<object[]>();

                            if (interopType == WebViewInteropType.InvokeMethod)
                            {
                                if (webAllowedObjectsMap.TryGetValue(source, out WebAllowedObject storedWebAllowedObject))
                                {
                                    if (storedWebAllowedObject.FeaturesMap.TryGetValue((target, interopType), out object methodObject))
                                    {
                                        var method = (MethodInfo)methodObject;

                                        var parameterTypes = method.GetParameters().Select(x => x.ParameterType).ToArray();

                                        var convertedParameters = new object[parameters.Length];

                                        for (var i = 0; i < parameters.Length; i++)
                                        {
                                            convertedParameters[i] = JsonHelper.ConvertWeaklyTypedValue(parameters[i], parameterTypes[i]);
                                        }

                                        method.Invoke(targetObject, convertedParameters);
                                    }
                                }
                            }
                            else if (interopType == WebViewInteropType.InvokeMethodWithReturn)
                            {
                                var callbackId = interop.callbackId.ToString();

                                if (webAllowedObjectsMap.TryGetValue(source, out WebAllowedObject storedWebAllowedObject))
                                {
                                    if (storedWebAllowedObject.FeaturesMap.TryGetValue((target, interopType), out object methodObject))
                                    {
                                        var method = (MethodInfo)methodObject;

                                        var parameterTypes = method.GetParameters().Select(x => x.ParameterType).ToArray();

                                        var convertedParameters = new object[parameters.Length];

                                        for (var i = 0; i < parameters.Length; i++)
                                        {
                                            convertedParameters[i] = JsonHelper.ConvertWeaklyTypedValue(parameters[i], parameterTypes[i]);
                                        }

                                        var invokeResult = method.Invoke(targetObject, convertedParameters);

                                        webview.InvokeScript("eval", new string[] { string.Format("window['{0}'].__callback['{1}'].resolve({2}); delete window['{0}'].__callback['{1}'];", source, callbackId, JsonConvert.SerializeObject(invokeResult)) });
                                    }
                                }
                            }
                            else if (interopType == WebViewInteropType.GetProperty)
                            {
                                var callbackId = interop.callbackId.ToString();

                                if (webAllowedObjectsMap.TryGetValue(source, out WebAllowedObject storedWebAllowedObject))
                                {
                                    if (storedWebAllowedObject.FeaturesMap.TryGetValue((target, interopType), out object propertyObject))
                                    {
                                        var property = (PropertyInfo)propertyObject;

                                        var getResult = property.GetValue(targetObject);

                                        webview.InvokeScript("eval", new string[] { string.Format("window['{0}'].__callback['{1}'].resolve({2}); delete window['{0}'].__callback['{1}'];", source, callbackId, JsonConvert.SerializeObject(getResult)) });
                                    }
                                }
                            }
                            else if (interopType == WebViewInteropType.SetProperty)
                            {
                                if (webAllowedObjectsMap.TryGetValue(source, out WebAllowedObject storedWebAllowedObject))
                                {
                                    if (storedWebAllowedObject.FeaturesMap.TryGetValue((target, interopType), out object propertyObject))
                                    {
                                        var property = (PropertyInfo)propertyObject;

                                        property.SetValue(targetObject, JsonHelper.ConvertWeaklyTypedValue(parameters[0], property.PropertyType));
                                    }
                                }
                            }
                        }
                    }
                    catch (Exception ex)
                    {
                        // Do nothing
                    }
                };

                webview.NavigationCompleted += webAllowedObject.NavigationCompletedHandler;
                webview.ScriptNotify += webAllowedObject.ScriptNotifyHandler;
            }
            else
            {
                throw new InvalidOperationException("Object with the identical name is already exist.");
            }
        }

        public static void RemoveWebAllowedObject(this WebView webview, string name)
        {
            if (string.IsNullOrWhiteSpace(name))
                throw new ArgumentNullException(nameof(name));

            var allowedWebObjectsMap = webview.Tag as ConcurrentDictionary<string, WebAllowedObject>;

            if (allowedWebObjectsMap != null)
            {
                if (allowedWebObjectsMap.TryRemove(name, out WebAllowedObject webAllowedObject))
                {
                    webview.NavigationCompleted -= webAllowedObject.NavigationCompletedHandler;
                    webview.ScriptNotify -= webAllowedObject.ScriptNotifyHandler;

                    webview.InvokeScript("eval", new string[] { "delete window['" + name + "'];" });
                }
            }
        }
    }
}

MainWindow.xaml.cs

using Microsoft.Toolkit.Win32.UI.Controls.Interop.WinRT;
using System;
using System.Diagnostics;
using System.Windows;

namespace WpfApp3
{
    public partial class MainWindow : Window
    {
        public class MyBridge
        {
            private readonly MainWindow _window;

            public MyBridge(MainWindow window)
            {
                _window = window;
            }

            public void setTitle(string title)
            {
                Debug.WriteLine(string.Format("SetTitle is executing...title = {0}", title));

                _window.setTitle(title);
            }

            public void playTTS(string tts)
            {
                Debug.WriteLine(string.Format("PlayTTS is executing...tts = {0}", tts));
            }
        }

        public MainWindow()
        {
            this.InitializeComponent();

            this.wv.IsScriptNotifyAllowed = true;
            this.wv.ScriptNotify += Wv_ScriptNotify;
            this.wv.AddWebAllowedObject("wtjs", new MyBridge(this));

            this.Loaded += MainPage_Loaded;
        }

        private void Wv_ScriptNotify(object sender, WebViewControlScriptNotifyEventArgs e)
        {
            if (e.IsNotification())
            {
                Debug.WriteLine(e.Value);
            }
        }

        private void setTitle(string str)
        {
            textBlock.Text = str;
        }

        private void MainPage_Loaded(object sender, RoutedEventArgs e)
        {
            this.wv.Source = new Uri("https://cmsdev.lenovo.com.cn/musichtml/leHome/weather/index.html?date=&city=&mark=0&speakerId=&reply=");
        }
    }
}

结果

截图：

​

​

问题(3)

根据(1，2，3.)，不可能在WebView/WebBrowser控件之上覆盖UI元素。

幸运的是，有一个名为CefSharp的替代解决方案，它基于Chromium浏览器，对于您的用例来说已经足够好了，再加上背景动画(在原始的WebView控件中不起作用)。

但是，没有完美的解决方案；WPF设计视图在CefSharp中无法使用(显示无效标记错误)，但程序只需编译和运行。此外，该项目只能使用x86或x64选项构建，AnyCPU将无法工作。

MainWindow.xaml

<Window
        xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
        xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
        xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
        xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
        xmlns:cefSharp="clr-namespace:CefSharp.Wpf;assembly=CefSharp.Wpf"
        x:Class="WpfApp3.MainWindow"
        mc:Ignorable="d"
        Title="MainWindow" Height="450" Width="800">
    <Grid x:Name="grid">
        <cefSharp:ChromiumWebBrowser x:Name="wv" HorizontalAlignment="Left" Height="405" Margin="50,0,0,0" VerticalAlignment="Top" Width="725" RenderTransformOrigin="-0.45,-0.75" />
        <TextBlock x:Name="textBlock" HorizontalAlignment="Left" Margin="30,30,0,0" TextWrapping="Wrap" Text="TextBlock" VerticalAlignment="Top" Height="60" Width="335"/>
    </Grid>
</Window>

MainWindow.xaml.cs

using CefSharp;
using System.Diagnostics;
using System.Windows;

namespace WpfApp3
{
    public partial class MainWindow : Window
    {
        public class MyBridge
        {
            private readonly MainWindow _window;

            public MyBridge(MainWindow window)
            {
                _window = window;
            }

            public void setTitle(string title)
            {
                Debug.WriteLine(string.Format("SetTitle is executing...title = {0}", title));

                _window.setTitle(title);
            }

            public void playTTS(string tts)
            {
                Debug.WriteLine(string.Format("PlayTTS is executing...tts = {0}", tts));
            }
        }

        public MainWindow()
        {
            this.InitializeComponent();

            this.wv.JavascriptObjectRepository.Register("wtjs", new MyBridge(this), true, new BindingOptions() { CamelCaseJavascriptNames = false });
            this.wv.FrameLoadStart += Wv_FrameLoadStart;

            this.Loaded += MainPage_Loaded;
        }

        private void Wv_FrameLoadStart(object sender, FrameLoadStartEventArgs e)
        {
            if (e.Url.StartsWith("https://cmsdev.lenovo.com.cn/musichtml/leHome/weather"))
            {
                e.Browser.MainFrame.ExecuteJavaScriptAsync("CefSharp.BindObjectAsync('wtjs');");
            }
        }

        private void setTitle(string str)
        {
            this.Dispatcher.Invoke(() =>
            {
                textBlock.Text = str;
            });
        }

        private void MainPage_Loaded(object sender, RoutedEventArgs e)
        {
            this.wv.Address = "https://cmsdev.lenovo.com.cn/musichtml/leHome/weather/index.html?date=&city=&mark=0&speakerId=&reply=";
        }
    }
}

截图：

​

​
