带有并发使用者的Springboot RabbitMQ

Question

我有一个简单的体系结构，在这个体系结构中，三个进程(实际上是一个spring引导的停靠容器)之一向一个exchange/队列生成数千条消息，而所有三个进程都使用这些消息。

我希望客户端是多线程的，以达到最大的吞吐量，但用我目前的配置，我没有达到我想要的。

下面是设置：

听众：

  @RabbitListener(
    bindings = @QueueBinding(
      value = @Queue(
                value = RabbitMQConfiguration.BORD_QUEUE,
                durable = "true",
                arguments = @Argument(name = "x-queue-mode", value = "lazy")),
      exchange = @Exchange(value = RabbitMQConfiguration.QUEUE_EXCHANGE),
      key = "B"),
    concurrency = "8-8")

  public void listenBordero(Long bId, Channel channel, @Header(AmqpHeaders.DELIVERY_TAG) long tag) {
    log.info("Received message: {{}}", bId);
    processor.process(bId);
  }

以下是可能相关的springboot application.properties配置：

spring.rabbitmq.listener.type=simple
spring.rabbitmq.listener.simple.prefetch=1
spring.rabbitmq.listener.simple.max-concurrency=8
spring.rabbitmq.listener.simple.concurrency=8

虽然我认为，由于基于@RabbitListener注释的配置，并不是所有这些都是必要的。

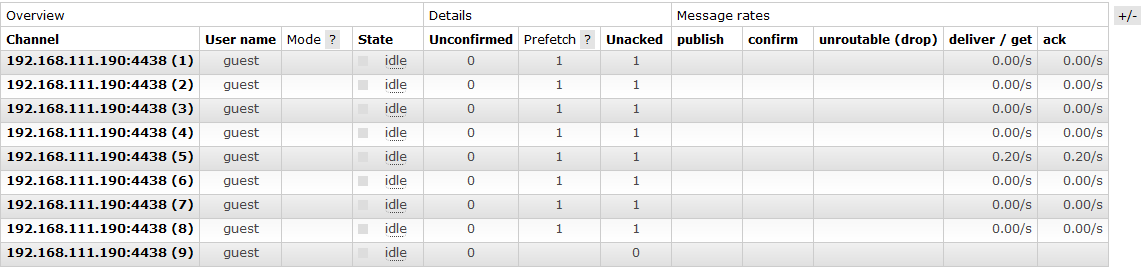

在狂犬病的管理中我看到了

与状态主要是闲置的。

从我的springboot启动日志中，我看到线程很少占据位置(日志中的线程名只在行数之后才会更改，而我预计这会更频繁地切换)。

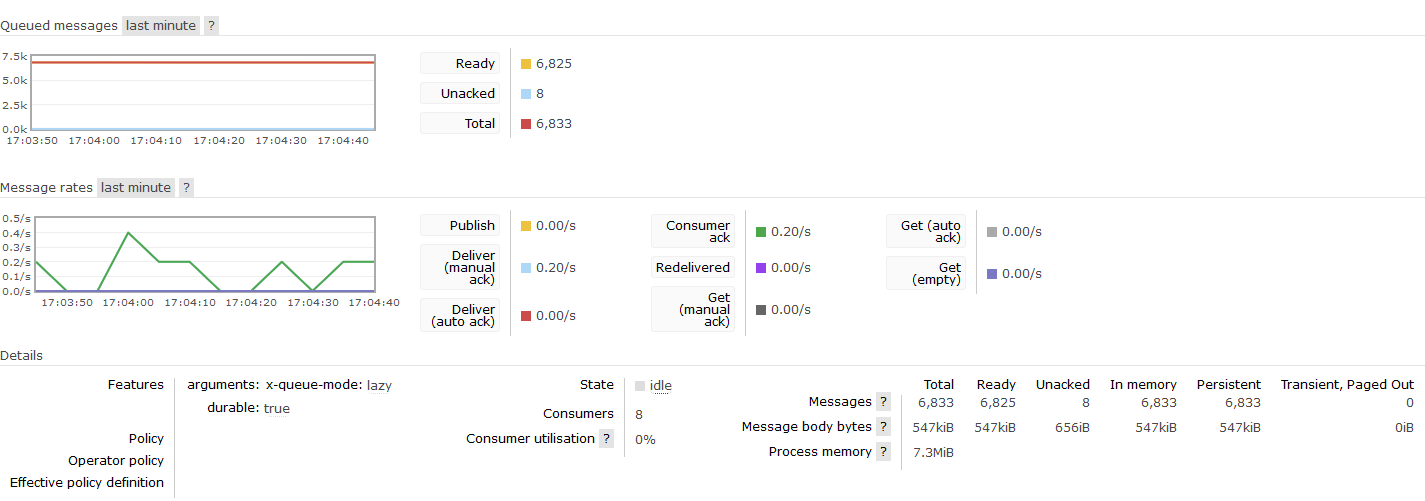

队列显示在管理控制台中：

​

​

我的期望是看到消费者的统计数据在频道页面上更多的是在“运行”。

有人能指点我吗？

提前感谢！

编辑:启动了spring的调试之后，我看到收到了多条消息，但是后来名为“..容器#0-n”的线程只进行了整体处理。我原以为多个正在运行的容器线程的输出会混在一起。这会是一个ThreadPool问题吗？

下面是一个(降低噪音的)日志摘录：

2020-03-05 08:15:21.418  INFO 32960 --- [ntContainer#0-7] d.i.clearing.rabbit.RabbitMQListener     : Received message: {436}
2020-03-05 08:15:21.418  INFO 32960 --- [ntContainer#0-5] d.i.clearing.rabbit.RabbitMQListener     : Received message: {450}
2020-03-05 08:15:21.418  INFO 32960 --- [tContainer#0-12] d.i.clearing.rabbit.RabbitMQListener     : Received message: {414}
2020-03-05 08:15:21.418  INFO 32960 --- [tContainer#0-11] d.i.clearing.rabbit.RabbitMQListener     : Received message: {418}
2020-03-05 08:15:21.418  INFO 32960 --- [ntContainer#0-8] d.i.clearing.rabbit.RabbitMQListener     : Received message: {432}
2020-03-05 08:15:21.418  INFO 32960 --- [ntContainer#0-2] d.i.clearing.rabbit.RabbitMQListener     : Received message: {456}
2020-03-05 08:15:21.418  INFO 32960 --- [tContainer#0-15] d.i.clearing.rabbit.RabbitMQListener     : Received message: {469}
2020-03-05 08:15:21.419  INFO 32960 --- [tContainer#0-16] d.i.clearing.rabbit.RabbitMQListener     : Received message: {394}
2020-03-05 08:15:21.418  INFO 32960 --- [tContainer#0-13] d.i.clearing.rabbit.RabbitMQListener     : Received message: {409}
2020-03-05 08:15:21.419  INFO 32960 --- [ntContainer#0-4] d.i.clearing.rabbit.RabbitMQListener     : Received message: {452}
2020-03-05 08:15:21.418  INFO 32960 --- [ntContainer#0-9] d.i.clearing.rabbit.RabbitMQListener     : Received message: {431}
2020-03-05 08:15:21.419  INFO 32960 --- [tContainer#0-10] d.i.clearing.rabbit.RabbitMQListener     : Received message: {420}
2020-03-05 08:15:21.419  INFO 32960 --- [tContainer#0-14] d.i.clearing.rabbit.RabbitMQListener     : Received message: {350}
2020-03-05 08:15:21.419  INFO 32960 --- [ntContainer#0-1] d.i.clearing.rabbit.RabbitMQListener     : Received message: {400}
2020-03-05 08:15:21.419  INFO 32960 --- [ntContainer#0-3] d.i.clearing.rabbit.RabbitMQListener     : Received message: {453}
2020-03-05 08:15:21.419  INFO 32960 --- [ntContainer#0-6] d.i.clearing.rabbit.RabbitMQListener     : Received message: {449}
... Logging Noise removed
2020-03-05 08:15:26.409  INFO 32960 --- [ntContainer#0-3] de.idslogistik.clearing.api.p2.Clearing  : Calculating {7183042} - {8330}/{5500}
2020-03-05 08:15:26.411  INFO 32960 --- [ntContainer#0-3] de.idslogistik.clearing.api.p2.Clearing  : ... Logging Noise removed
2020-03-05 08:15:26.412 DEBUG 32960 --- [ntContainer#0-3] de.idslogistik.clearing.api.p2.Clearing  : ... Logging Noise removed
2020-03-05 08:15:26.413  INFO 32960 --- [ntContainer#0-3] de.idslogistik.clearing.api.p2.Clearing  : ... Logging Noise removed
2020-03-05 08:15:26.507  INFO 32960 --- [ntContainer#0-3] de.idslogistik.clearing.api.p2.Clearing  : ... Logging Noise removed
2020-03-05 08:15:26.669  WARN 32960 --- [ntContainer#0-3] de.idslogistik.clearing.api.p2.Rddel     : ... Logging Noise removed
2020-03-05 08:15:26.669  INFO 32960 --- [ntContainer#0-3] de.idslogistik.clearing.api.p2.Rddel     : ... Logging Noise removed
2020-03-05 08:15:33.012 DEBUG 32960 --- [ntContainer#0-3] de.idslogistik.clearing.api.p2.Rddel     : ... Logging Noise removed
2020-03-05 08:15:33.013 DEBUG 32960 --- [ntContainer#0-3] d.i.i.util.clearing.VerSendungTools      : ... Logging Noise removed
2020-03-05 08:15:33.013 DEBUG 32960 --- [ntContainer#0-3] d.i.i.util.clearing.VerSendungTools      : ... Logging Noise removed
2020-03-05 08:15:33.013 DEBUG 32960 --- [ntContainer#0-3] d.i.i.util.clearing.VerSendungTools      : ... Logging Noise removed
2020-03-05 08:15:33.014 DEBUG 32960 --- [ntContainer#0-3] d.i.i.util.clearing.VerSendungTools      : ... Logging Noise removed

Answer 1

prefetch =1意味着当前队列中未确认消息的最大数量最多为1。当此消息未被确认时，下一条消息将无法进入消费队列。

或者可以考虑增加用户数量，以加快消息https://www.rabbitmq.com/tutorials/tutorial-two-java.html的处理速度。

​
