(统一C#) NPC不在草丛和其他地形上移动

Question

我已经创建了一个全国人民代表大会，它跟随着主要参与者。当玩家在NPC的某一范围内时，NPC应该根据玩家和NPC之间的距离进行步行、奔跑和攻击。NPC有一个动画，盒对撞机，Nav网格代理，敌人动画和敌人控制器脚本附加。设置为下面是，

我的问题是，如果在地形上有某种草或蕨类植物，NPC就不会追逐玩家。

NPC被设置为使用Nav网格剂运行所有类型的地形，而且烘焙设置与图像中的地形相似。有关这个问题的视频可以在这里上看到。

敌方控制员的代码(尽管我怀疑这是问题所在)如下：

using System.Collections;
using System.Collections.Generic;
using UnityEngine;
using UnityEngine.AI;

public enum EnemyState
{
    PATROL,
    CHASE,
    ATTACK
}

public class EnemyController : MonoBehaviour
{

    private EnemyAnimator enemy_Anim;
    private NavMeshAgent navAgent;

    private EnemyState enemy_State;

    public float walk_Speed = 0.5f;
    public float run_Speed = 4f;

    public float chase_Distance = 7f;
    private float current_Chase_Distance;
    public float attack_Distance = 1.8f;
    public float chase_After_Attack_Distance = 2f;

    public float patrol_Radius_Min = 20f, patrol_Radius_Max = 60f;
    public float patrol_For_This_Time = 15f;
    private float patrol_Timer;

    public float wait_Before_Attack = 2f;
    private float attack_Timer;

    private Transform target;

   public GameObject attack_Point;

    //private EnemyAudio enemy_Audio;

    void Awake()
    {
        enemy_Anim = GetComponent<EnemyAnimator>();
        navAgent = GetComponent<NavMeshAgent>();

        target = GameObject.FindWithTag(Tags.PLAYER_TAG).transform;

      //  enemy_Audio = GetComponentInChildren<EnemyAudio>();

    }

    // Use this for initialization
    void Start()
    {

        enemy_State = EnemyState.PATROL;

        patrol_Timer = patrol_For_This_Time;

        // when the enemy first gets to the player
        // attack right away
        attack_Timer = wait_Before_Attack;

        // memorize the value of chase distance
        // so that we can put it back
        current_Chase_Distance = chase_Distance;

    }

    // Update is called once per frame
    void Update()
    {

        if (enemy_State == EnemyState.PATROL)
        {
            Patrol();
        }

        if (enemy_State == EnemyState.CHASE)
        {
            Chase();
        }

        if (enemy_State == EnemyState.ATTACK)
        {
            Attack();
        }

    }

    void Patrol()
    {

        // tell nav agent that he can move
        navAgent.isStopped = false;
        navAgent.speed = walk_Speed;

        // add to the patrol timer
        patrol_Timer += Time.deltaTime;

        if (patrol_Timer > patrol_For_This_Time)
        {

            SetNewRandomDestination();

            patrol_Timer = 0f;

        }

        if (navAgent.velocity.sqrMagnitude > 0)
        {

            enemy_Anim.Walk(true);

        }
        else
        {

            enemy_Anim.Walk(false);

        }

        // test the distance between the player and the enemy
        if (Vector3.Distance(transform.position, target.position) <= chase_Distance)
        {

            enemy_Anim.Walk(false);

            enemy_State = EnemyState.CHASE;

            // play spotted audio
         //   enemy_Audio.Play_ScreamSound();

        }


    } // patrol

    void Chase()
    {

        // enable the agent to move again
        navAgent.isStopped = false;
        navAgent.speed = run_Speed;

        // set the player's position as the destination
        // because we are chasing(running towards) the player
        navAgent.SetDestination(target.position);

        if (navAgent.velocity.sqrMagnitude > 0)
        {

            enemy_Anim.Run(true);

        }
        else
        {

            enemy_Anim.Run(false);

        }

        // if the distance between enemy and player is less than attack distance
        if (Vector3.Distance(transform.position, target.position) <= attack_Distance)
        {

            // stop the animations
            enemy_Anim.Run(false);
            enemy_Anim.Walk(false);
            enemy_State = EnemyState.ATTACK;

            // reset the chase distance to previous
            if (chase_Distance != current_Chase_Distance)
            {
                chase_Distance = current_Chase_Distance;
            }

        }
        else if (Vector3.Distance(transform.position, target.position) > chase_Distance)
        {
            // player run away from enemy

            // stop running
            enemy_Anim.Run(false);

            enemy_State = EnemyState.PATROL;

            // reset the patrol timer so that the function
            // can calculate the new patrol destination right away
            patrol_Timer = patrol_For_This_Time;

            // reset the chase distance to previous
            if (chase_Distance != current_Chase_Distance)
            {
                chase_Distance = current_Chase_Distance;
            }


        } // else

    } // chase

    void Attack()
    {

        navAgent.velocity = Vector3.zero;
        navAgent.isStopped = true;

        attack_Timer += Time.deltaTime;

        if (attack_Timer > wait_Before_Attack)
        {

            enemy_Anim.Attack();

            attack_Timer = 0f;

            // play attack sound
        //    enemy_Audio.Play_AttackSound();

        }

        if (Vector3.Distance(transform.position, target.position) > attack_Distance + chase_After_Attack_Distance)
        {

            enemy_State = EnemyState.CHASE;

        }


    } // attack

    void SetNewRandomDestination()
    {

        float rand_Radius = Random.Range(patrol_Radius_Min, patrol_Radius_Max);

        Vector3 randDir = Random.insideUnitSphere * rand_Radius;
        randDir += transform.position;

        NavMeshHit navHit;

        NavMesh.SamplePosition(randDir, out navHit, rand_Radius, -1);

        navAgent.SetDestination(navHit.position);

    }

    void Turn_On_AttackPoint()
    {
        attack_Point.SetActive(true);
    }

    void Turn_Off_AttackPoint()
    {
        if (attack_Point.activeInHierarchy)
        {
            attack_Point.SetActive(false);
        }
    }

    public EnemyState Enemy_State
    {
        get; set;
    }

} // class

如果有人能帮忙解决这个问题，我会非常感激的！

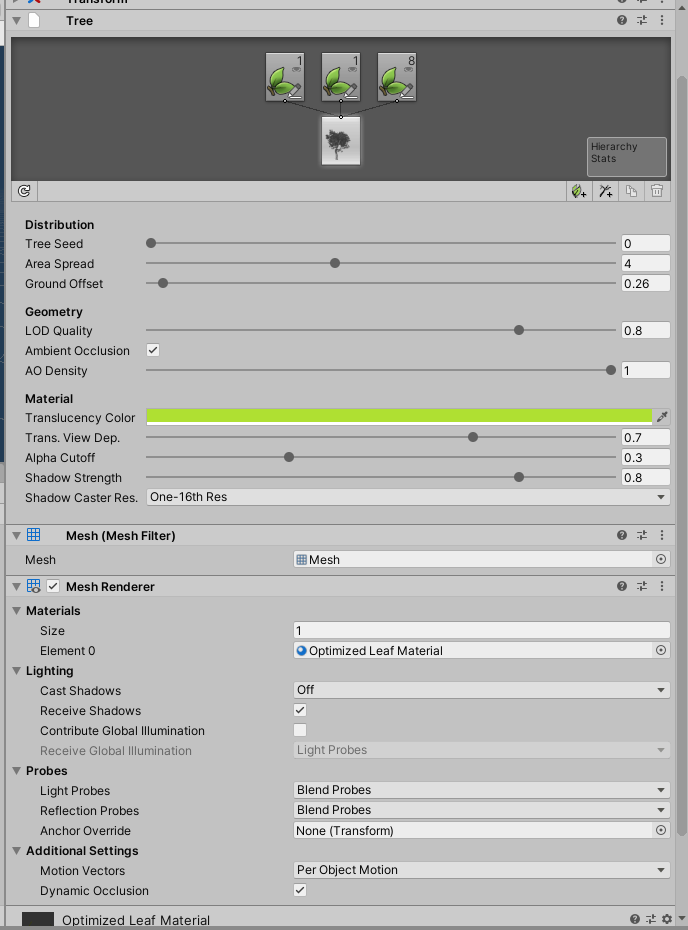

编辑:我忘了添加草设置，如下所示。正如你所看到的，没有对撞机。

​

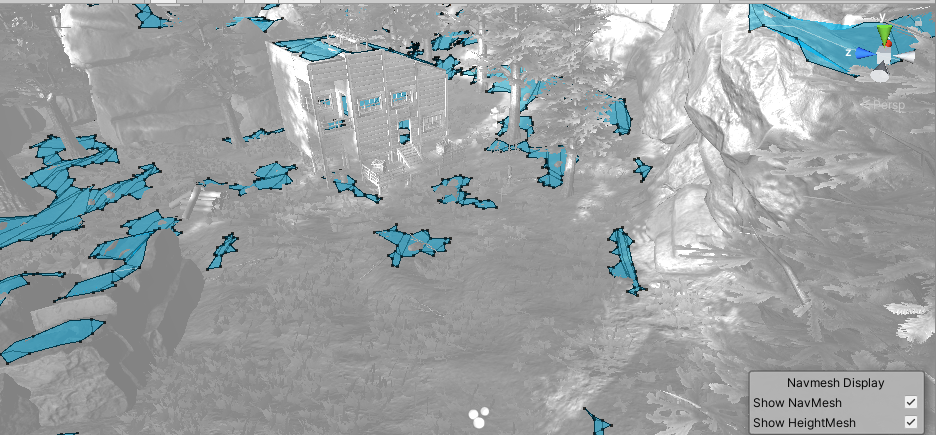

我正在挖掘更多，显然唯一可步行的区域如下(不是整个地图)

我该怎么调整呢？

Answer 1

以下是我所做的事：

1. 用我所需要的各种草和树木来描绘地形。
2. 把所有画好的草和树都撤下来。
3. 将导航网格(Navmesh)烘焙到地形上。
4. 把所有画好的草和树都重做一遍。
5. 轰隆隆！工作完成了。:)

为什么草不能行走？

• 草被漆成树，因此在烘焙过程中被雕刻成树。

技巧：，你必须画草和所有需要的树，然后你必须取消所有的草为树特殊的油漆。在此之后，烘焙地形，并取消过程(按CTRL + Z几次)，直到你看到草重新油漆。
