Plotrix标签，调整大小/字体/位置？

Question

我一直试图创建一个风险雷达使用巧妙的和现在的plotrix，我已经遇到了两种情况下(基于我的需要和我的技能与R)。

巧妙地说，我拥有了我想要的大部分东西，除了不能标记径向轴( A队、B队等)之外。

我的版本使用plotrix几乎是我需要的地方，只是需要一些指导才能让我越界？

我有四个问题：

1. 标题可以移到左边还是右边？
2. 桡骨？标签流进了图表圈，很难读懂，它们能被某种方式调整吗？
3. 是否可以更改标签0/30/60/90/180的字体(大小和/或颜色)？
4. 在我的例子中，我想用RiskID作为标签。

我的图表是这样的：

​

library(plotrix)

# Build sample dataset
aRiskID      <- c(1, 15, 23, 28, 35)
bRiskDays    <- as.numeric(c(28, 15, 85, 153, 100))
cTheta       <- as.integer(c(20, 80, 130, 240, 320))
dConsequence <- c("Major", "Major", "Minor", "Moderate", "Minor")

myRisks <- data.frame(RiskID = aRiskID, RiskDays = bRiskDays, Theta = cTheta, CurrentConsequence = dConsequence)

myLabels <- c("Team A", "Team B", "Team C", "Team D", "Team E", "Team F", "Team G", "Team H")

# Test different point colours
# initializing vector of colors as NA
colors_plot <- rep(NA,length(myRisks))

# set of conditions listed in the plot
colors_plot[myRisks$CurrentConsequence == "Major"]    <- "black"
colors_plot[myRisks$CurrentConsequence == "Moderate"] <- "red"
colors_plot[myRisks$CurrentConsequence == "Minor"]    <- "green"
# add more conditions as needed

# par(mar=c(2,5,5,5))

# plot the chart
radial.plot(myRisks$RiskDays,
            myRisks$Theta,
            start = pi/2,
            clockwise = FALSE,
           # start=pi/2,clockwise=TRUE,
            show.grid.labels=1,
            rp.type="s",
            main="Risk Radar",
            radial.lim=c(0,30,60,90,180),
            radlab = TRUE,
            point.symbols=17,
            point.col=colors_plot,
            cex = 2,
            cex.axis = 0.25,
            cex.lab = 0.25,
            lwd=par("lwd"),mar=c(2,2,3,2),
           # show.centroid=TRUE,
            labels=myLabels)

我不知道还有什么地方可以使用这个，所以任何使用plotrix或其他图表包来实现最终结果的提示都是很棒的。

Answer 1

您应该看看函数radial.plot.labels和radial.grid

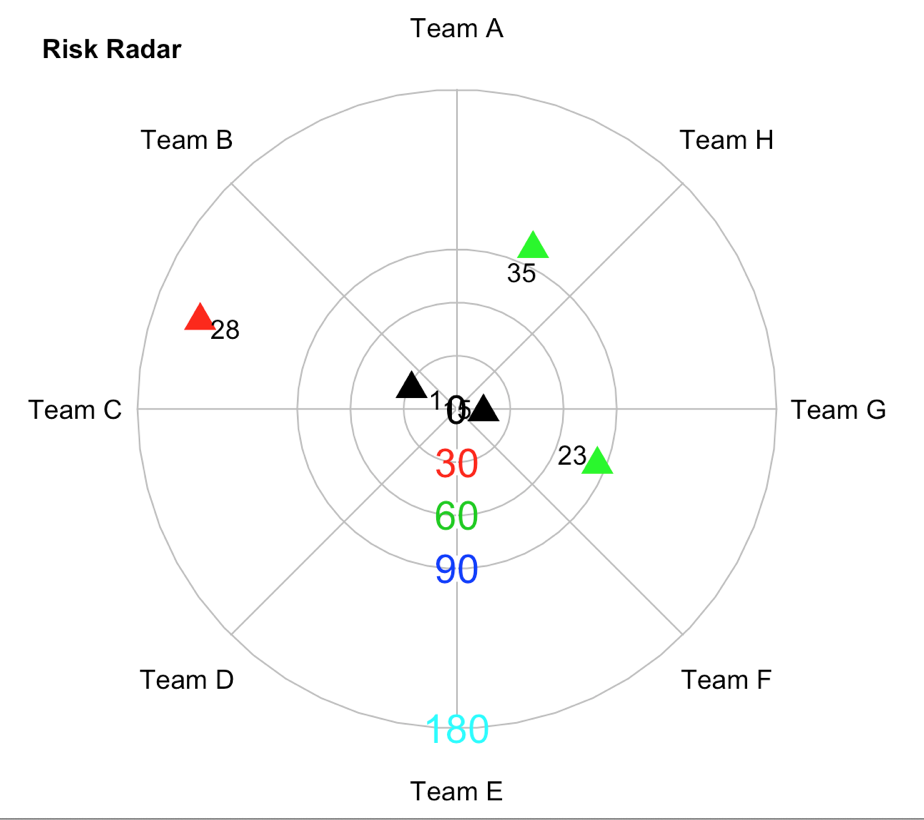

# plot the chart
radial.plot(myRisks$RiskDays,
            myRisks$Theta,
            start = pi/2,
            clockwise = FALSE,
            # start=pi/2,clockwise=TRUE,
            show.grid.labels=1,
            rp.type="s",
            # main="Risk Radar",
            radial.lim=c(0,30,60,90,180),
            radial.labels = '',
            radlab = TRUE,
            point.symbols=17,
            point.col=colors_plot,
            cex = 2,
            cex.axis = 0.25,
            cex.lab = 0.25,
            lwd=par("lwd"),mar=c(2,2,3,2),
            # show.centroid=TRUE,
            labels=NULL, label.pos = pi / 4 * 2:9)

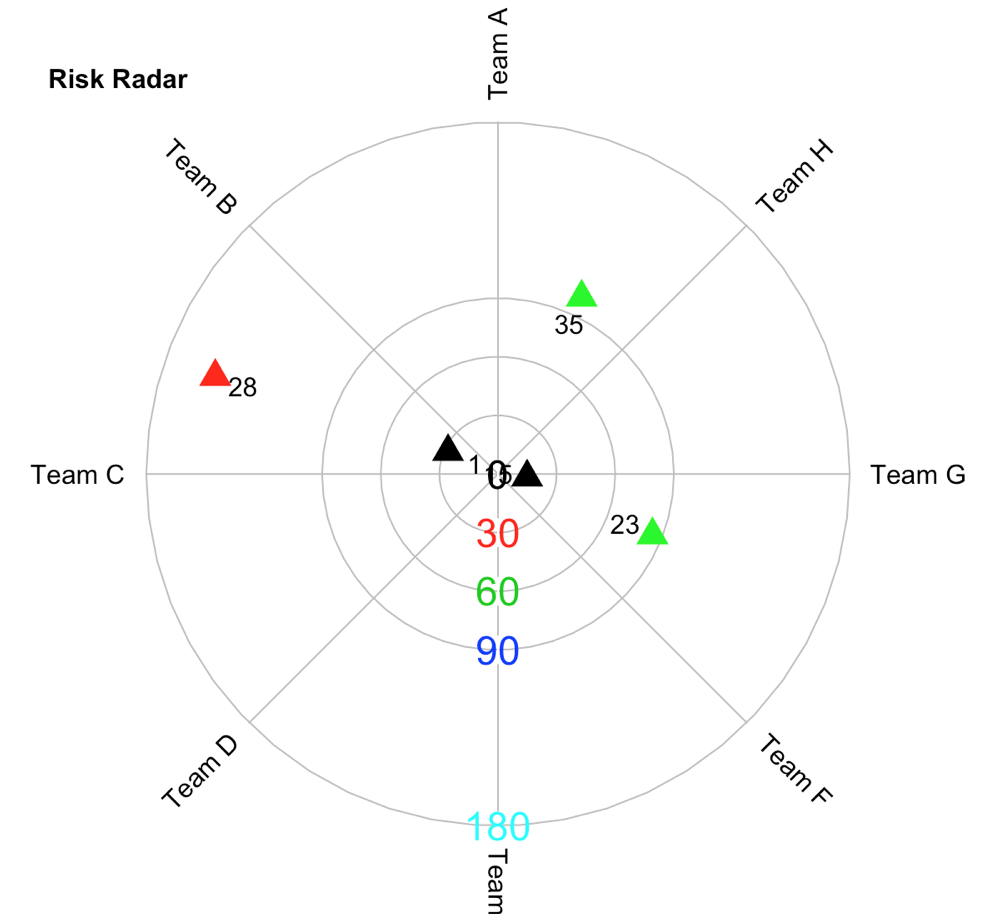

# 1
mtext("Risk Radar", at = par('usr')[1], font = 2)
# 2
at <- c(0,30,60,90,180)
radial.plot.labels(max(at) + 35, pi / 4 * 2:9, labels = myLabels, radial.lim = at)
# 3
radial.plot.labels(at, pi / 2 * 3, labels = at, col = 1:5, cex = 1.5)
# 4
radial.plot.labels(myRisks$RiskDays, myRisks$Theta, start = pi/2,
                   clockwise = FALSE, labels = myRisks$RiskID)

​

​

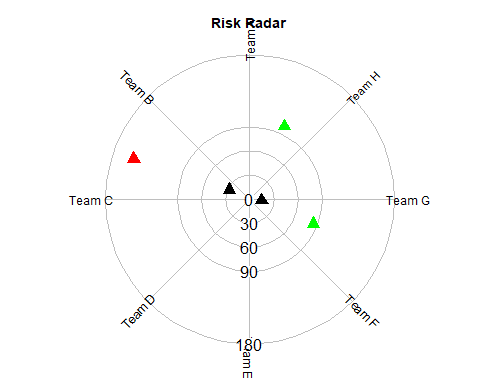

如果您确实需要垂直的标签，您可以使用radial.grid函数或在标签上使用单独的旋转(srt)循环。很遗憾，srt没有在text中被矢量化，这会使这件事变得更容易

th <- pi / 4 * 2:9
sapply(seq_along(th), function(ii) {
  i <- ifelse((th[ii] > pi / 2) & (th[ii] < pi / 2 * 3), pi, 0)
  radial.plot.labels(max(at) + 35, th[ii], labels = myLabels[ii],
                     radial.lim = at, srt = (th[ii] - i) * 180 / pi)
})

​

​

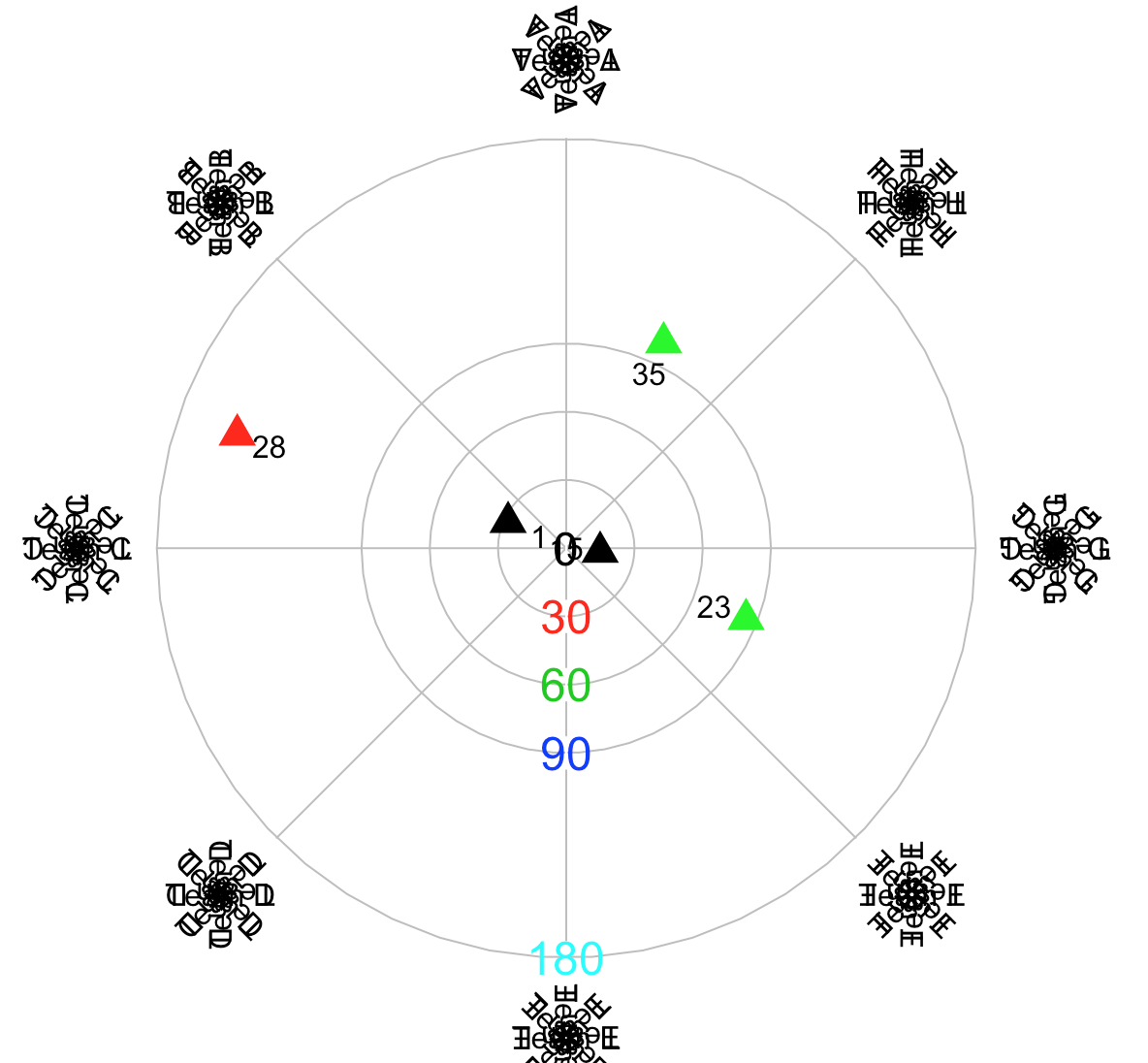

我不小心把这个可爱的雪花做成了aRt

th <- pi / 4 * 2:9
sapply(th, function(x)
  radial.plot.labels(max(at) + 35, pi / 4 * 2:9, labels = myLabels,
                     radial.lim = at, srt = x * 180 / pi))

​

​
