侧面为sns.jointplot "kde"-style的彩色条

Question

我试着用边缘轴在密度图旁边画一个色条。它确实画出了彩色条，但不幸的是，它没有画在一边。到目前为止，这是一个尝试过的：

sns.jointplot(x,y, data=df3, kind="kde", color="skyblue", legend=True, cbar=True,
              xlim=[-10,40], ylim=[900,1040])

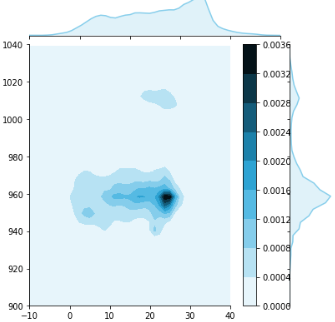

看起来是这样的：

​

​

我也试过这个：

from matplotlib import pyplot as plt
import seaborn as sns
import numpy as np

kdeplot = sns.jointplot(x=tumg, y=pumg, kind="kde")
plt.subplots_adjust(left=0.2, right=0.8, top=0.8, bottom=0.2)
cbar_ax = kdeplot.fig.add_axes([.85, .25, .05, .4])
plt.colorbar(cax=cbar_ax)
plt.show()

但是对于第二个选项，我得到了一个运行时错误：

No mappable was found to use for colorbar creation. First define a mappable such as an image (with imshow) or a contour set (with contourf).

有谁知道如何解决这个问题吗？

Answer 1

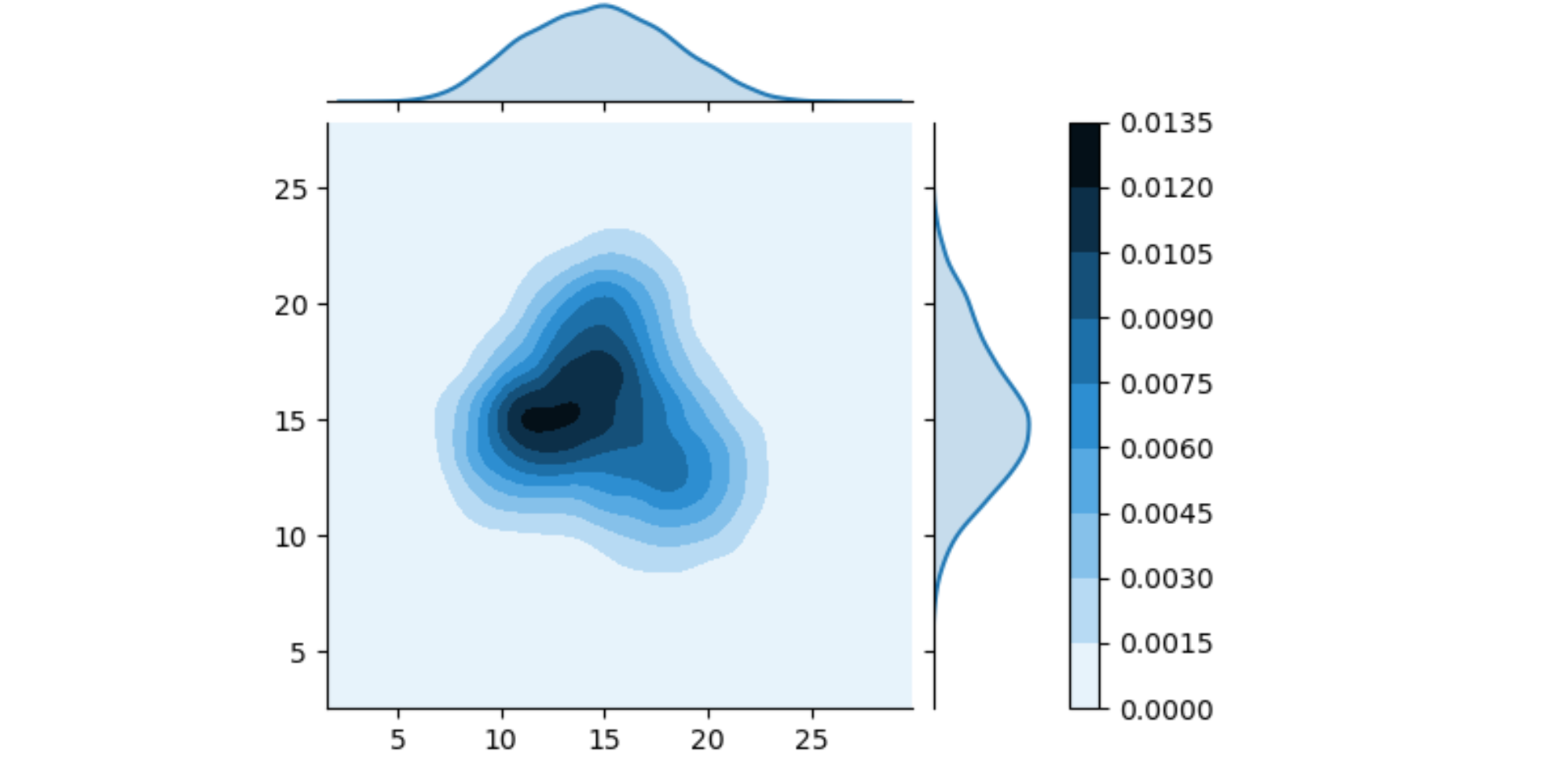

当有效地创建色条时，似乎只有颜色条的信息。因此，一种方法是将这两种方法结合起来:通过kdeplot添加一个颜色条，然后将其移动到所需的位置。这将使主联合地块的宽度不足，因此其宽度也应加以调整：

from matplotlib import pyplot as plt
import seaborn as sns
import numpy as np

# create some dummy data: gaussian multivariate with 10 centers with each 1000 points
tumg = np.random.normal(np.tile(np.random.uniform(10, 20, 10), 1000), 2)
pumg = np.random.normal(np.tile(np.random.uniform(10, 20, 10), 1000), 2)

kdeplot = sns.jointplot(x=tumg, y=pumg, kind="kde", cbar=True)
plt.subplots_adjust(left=0.1, right=0.8, top=0.9, bottom=0.1)
# get the current positions of the joint ax and the ax for the marginal x
pos_joint_ax = kdeplot.ax_joint.get_position()
pos_marg_x_ax = kdeplot.ax_marg_x.get_position()
# reposition the joint ax so it has the same width as the marginal x ax
kdeplot.ax_joint.set_position([pos_joint_ax.x0, pos_joint_ax.y0, pos_marg_x_ax.width, pos_joint_ax.height])
# reposition the colorbar using new x positions and y positions of the joint ax
kdeplot.fig.axes[-1].set_position([.83, pos_joint_ax.y0, .07, pos_joint_ax.height])
plt.show()

​

​
