BotFramework-WebChat -自适应卡

Question

是否有方法将Onchange添加到webchat (版本V4)中呈现的自适应卡输入字段中。例如，在签出屏幕中更改数量值(类型为number的Adaptive输入字段)应更新总值(Adaptive文本字段)。

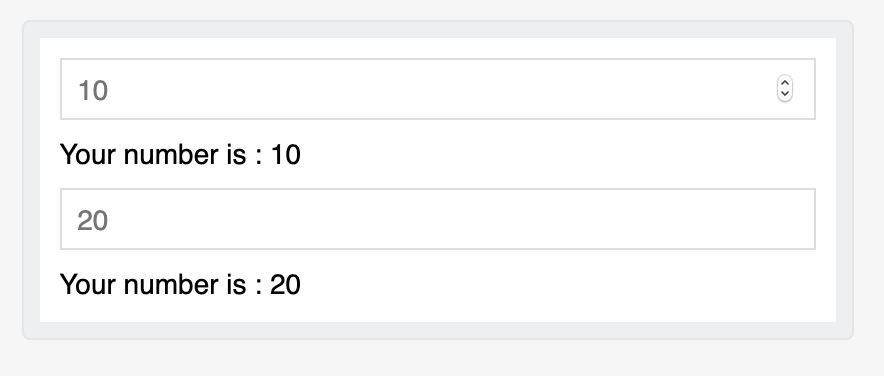

为了保持simple....In，下面的图像，一旦我改变了输入框中的数字，它应该在下面的文本框中更新。所有事情都应该发生在webchat V4(React)客户端。

​

​

下面是我尝试过的选项，这里没有任何代码可供提交：

option1:尝试使用中间件将事件添加到卡片中的quantity输入字段中，但无法找到唯一标识输入字段以添加事件的选项(可以根据卡中没有的项查看多个输入字段)

option2:根据来自机器人的卡片，在前部创建一张新卡，并将事件添加到新卡中。是否有可能中断发送到机器人的信息并从前端发送一张卡片？

option3:向卡添加一个更新按钮，以便在后端计算总数，并将更新卡提交给用户。

以下是有效载荷：

{
    "$schema": "http://adaptivecards.io/schemas/adaptive-card.json",
    "version": "1.0",
    "type": "AdaptiveCard",
    "body": [
        {
            "type": "TextBlock",
            "text": "Output",
            "weight": "Bolder",
            "horizontalAlignment": "Center",
            "size": "Large",
            "id": "output",
            "color": "Good"
        },
        {
            "type": "Container",
            "items": [
                {
                    "$data": "{items}",
                    "type": "Container",
                    "items": [
                        {
                            "type": "TextBlock",
                            "text": " ",
                            "id": "line",
                            "spacing": "None"
                        },
                        {
                            "type": "Image",
                            "altText": "",
                            "id": "myimage",
                            "url": "{imgUrl}",
                            "spacing": "None",
                            "size": "Stretch",
                            "width": "1000px",
                            "height": "100px"
                        },
                        {
                            "type": "ColumnSet",
                            "id": "imgset",
                            "columns": [
                                {
                                    "type": "Column",
                                    "width": 50,
                                    "id": "desc",
                                    "items": [
                                        {
                                            "type": "TextBlock",
                                            "text": "{description}",
                                            "weight": "Bolder",
                                            "spacing": "None",
                                            "id": "desc",
                                            "wrap": true,
                                            "maxLines": 4
                                        }
                                    ],
                                    "spacing": "None"
                                }
                            ],
                            "spacing": "None"
                        },
                        {
                            "type": "ColumnSet",
                            "spacing": "None",
                            "columns": [
                                {
                                    "type": "Column",
                                    "width": 50,
                                    "id": "qty",
                                    "items": [
                                        {
                                            "type": "Input.Number",
                                            "placeholder": "Quantity",
                                            "id": "myquantity",
                                            "min": 0,
                                            "max": 100,
                                            "value": "{quantity}",
                                            "spacing": "None"
                                        }
                                    ],
                                    "horizontalAlignment": "Left",
                                    "verticalContentAlignment": "Center",
                                    "spacing": "None"
                                },
                                {
                                    "type": "Column",
                                    "id": "pricec",
                                    "items": [
                                        {
                                            "type": "TextBlock",
                                            "text": "{price}",
                                            "id": "pricet",
                                            "horizontalAlignment": "Right",
                                            "spacing": "None"
                                        }
                                    ],
                                    "verticalContentAlignment": "Center",
                                    "horizontalAlignment": "Right",
                                    "width": 50,
                                    "spacing": "None"
                                }
                            ],
                            "id": "qtypset"
                        },
                        {
                            "type": "ColumnSet",
                            "spacing": "None",
                            "columns": [
                                {
                                    "type": "Column",
                                    "width": 1,
                                    "items": [
                                        {
                                            "type": "TextBlock",
                                            "text": "Sub Total",
                                            "size": "Medium",
                                            "id": "subtotal00",
                                            "weight": "Bolder",
                                            "spacing": "None"
                                        }
                                    ],
                                    "id": "subtotal1",
                                    "spacing": "None"
                                },
                                {
                                    "type": "Column",
                                    "width": 1,
                                    "items": [
                                        {
                                            "type": "TextBlock",
                                            "horizontalAlignment": "Right",
                                            "text": "{subtotal}",
                                            "size": "Medium",
                                            "weight": "Bolder",
                                            "id": "subtotalt0",
                                            "color": "Accent",
                                            "spacing": "None"
                                        }
                                    ],
                                    "id": "subtotal200",
                                    "spacing": "None"
                                }
                            ],
                            "id": "colsetsubtot00"
                        }
                    ],
                    "id": "itemcontainer",
                    "style": "emphasis",
                    "spacing": "None"
                }
            ],
            "id": "rootcontainer",
            "style": "accent"
        },
        {
            "type": "ColumnSet",
            "id": "totalset",
            "columns": [
                {
                    "type": "Column",
                    "width": 50,
                    "id": "totalcolumn",
                    "items": [
                        {
                            "type": "TextBlock",
                            "text": "Total",
                            "size": "Medium",
                            "isSubtle": true,
                            "weight": "Bolder",
                            "id": "total",
                            "color": "Dark"
                        }
                    ]
                },
                {
                    "type": "Column",
                    "width": 50,
                    "items": [
                        {
                            "type": "TextBlock",
                            "text": "{total}",
                            "size": "Medium",
                            "id": "totaltext",
                            "horizontalAlignment": "Right",
                            "weight": "Bolder",
                            "color": "Accent"
                        }
                    ],
                    "id": "totalcol2"
                }
            ]
        }
    ],
    "id": "final"
}

我使用下面的示例作为起点https://github.com/microsoft/BotFramework-WebChat/tree/master/samples/04.api/e.piping-to-redux

webchat.js：

import React from 'react';

import ReactWebChat, { createDirectLine, createStore } from 'botframework-webchat';
import directLineDisconnect from 'botframework-webchat-core/lib/actions/disconnect';
import dispatchIncomingActivityMiddleware from './dispatchIncomingActivityMiddleware';
import uuid from 'uuid';

export default class extends React.Component {
  constructor(props) {
    super(props);

    this.store = createStore({}, dispatchIncomingActivityMiddleware(props.appDispatch, this));
    this.activityMiddleware = this.setActivityMiddleware();
    this.attachmentMiddleware = this.setAttachmentMiddleware();

    this.state = {};

  }

  componentDidMount() {
    this.fetchToken();
    this.setSendBox();
  }

  componentWillUnmount(){

  }

  async fetchToken() {
    const myHeaders = new Headers();
    const userDetails = uuid.v4();
    myHeaders.append('Authorization', 'Bearer ' + 'mytoken');
    myHeaders.append('Content-type', 'application/json');
    const res = await fetch('https://directline.botframework.com/v3/directline/tokens/generate', {
                        body: JSON.stringify({ user: { id: userDetails, name: userDetails }}),
                        method: 'POST', headers: myHeaders });
    const { token } = await res.json();
    console.log("My Token: " + token);
    this.setState(() => ({
      directLine: createDirectLine({ token })
    }));
  }

  setActivityMiddleware(){
    return () => next => card => {
      return children => (
        <div
          className={card.activity.attachments && (card.activity.attachments[0].content.id === "output") ? card.activity.attachments && card.activity.attachments[0].content.id : ''}
        >
          {next(card)(children)}
        </div>
      );
    };

  }


  setAttachmentMiddleware(){
    return () => next => ({ card, activity, attachment: baseAttachment }) => {
      let attachment = baseAttachment;
      if (baseAttachment.content.body){
      switch (baseAttachment.content.body[0].id) {
        case 'review':
         for (let i = 0; i < attachment.content.body[1].items.length; i++) {
         attachment.content.body[1].items[i].items[3].columns[0].items[0].value = baseAttachment.content.body[1].items[i].items[3].columns[0].items[0].value.toString();
                                                                           } //for loop
         break;

         default:
           break;
        }
    }
    return next({ card, activity, attachment });
    };

  }

  setSendBox() {

    this.store.dispatch({
      type: 'WEB_CHAT/SET_SEND_BOX',
      payload: { text: 'sample:redux-middleware' }
    });
/*

    this.store.dispatch({
      type: 'WEB_CHAT/SEND_EVENT',
      payload: { name: 'membersAdded',
                 value: { language: window.navigator.language }
               }
    }); */
  }


  render() {
    return this.state.directLine ? (
      <ReactWebChat
        activityMiddleware={this.activityMiddleware}
        attachmentMiddleware={this.attachmentMiddleware}
        directLine={this.state.directLine}
        store={this.store}
        styleOptions={{
          backgroundColor: 'Transparent',
          hideUploadButton: true
        }}
      />
    ) : (
      <div>Connecting to bot&hellip;</div>
    );
  }

}

dispatchIncomingActivityMiddleware.js：

export default function(dispatch, thisvariable) {
    return () => next => action => {
      if (action.type === 'DIRECT_LINE/INCOMING_ACTIVITY') {
        const { activity } = action.payload;


        if (activity.from.role === 'bot'){
        var inputBox=document.getElementsByClassName("css-eycyw2");
        if (inputBox.length > 0){
          inputBox[inputBox.length - 1].style.display='block';
        }
                                          }

      }


      if ((action.type === 'WEB_CHAT/SEND_POST_BACK') || (action.type === 'WEB_CHAT/SEND_MESSAGE')) {
        var inputBox=document.getElementsByClassName("css-eycyw2");
        if (inputBox.length > 0){
          inputBox[inputBox.length - 1].style.display='none';
          dispatch(setInputVisibility(true));
        }
      }

      return next(action);
    };
  }

Answer 1

首先要理解的是，Web使用了作为npm包提供的自适应卡JavaScript SDK。Web主要使用SDK的开箱即用的呈现功能，但它改变的一件重要事情是操作的处理方式。如果不提供自定义处理程序，提交操作将不会发送给机器人。

adaptiveCard.onExecuteAction = handleExecuteAction；

这就是应用程序应该如何使用Adaptive。虽然大部分功能都是在SDK端处理的，但是应用程序需要做一些事情才能使Adaptive为特定的应用程序工作。虽然您可以看到Web为特定Adaptive实例的onExecuteAction "event“属性分配函数，但也有一个静态的onExecuteAction对应项可以这样访问：

AdaptiveCard.onExecuteAction = handleExecuteAction;

使用静态事件将为所有Adaptive应用一个处理程序，而不仅仅是一个，但是它将被应用于特定实例的任何处理程序覆盖。我告诉您这一点的原因是因为有更多的静态事件，特别是有一些对您的情况有用的：

静态onAnchorClicked：( CardElement，锚: HTMLAnchorElement) => boolean =空；静态onExecuteAction：(action: Action) => void =空；静态onElementVisibilityChanged：(元素: CardElement) => void =空；静态onImageLoaded：(图像:图像) => void =空；静态onInlineCardExpanded：(action: ShowCardAction，isExpanded: boolean) => void =空；静态onInputValueChanged：(输入:输入) => void =空；静态onInputValueChanged：(元素：=>，json:有错误吗？：) void =空；静态onParseAction：(元素: Action，json: any，Array) => void = null；静态onParseError：(错误: HostConfig.IValidationError) => void = null；静态onProcessMarkdown：(文本:字符串，结果: IMarkdownProcessingResult) => =>= null；

您可以想出一个使用onInputValueChanged事件的解决方案，每当卡片中的任何输入被更改时，该事件都会触发。您的处理程序可以在卡片中搜索它需要用作运算数的其他元素，还需要在卡片中搜索显示结果的元素。与其每次输入字符时做所有这些工作，我更喜欢在卡片开始时搜索一次它在计算中使用的元素的解决方案。除了侦听Adaptive类或Adaptive实例上的事件之外，另一种替代方法是侦听特定元素上的事件，比如输入。因此，我的示例将使用静态onParseElement事件来获取它需要的元素，然后对它找到的特定输入实例使用onValueChanged事件。

在为处理程序编写代码之前，我们需要想出一种方法，以便代码知道要为操作数使用哪些元素以及计算的结果。例如，您可以让代码组合卡片(或容器)中的每个输入，并将结果放在最后找到的文本块中。对于我的例子，我已经提出了代码可以使用的命名模式。有两个关键字，“总计”和“价格”，代码在每个元素ID中查找它们。我想说明这个模式完全是任意的，如果你想要的话，你可以做一些不同的事情。这是我的示例卡：

{
  "type": "AdaptiveCard",
  "version": "1.0",
  "body": [
    {
      "type": "TextBlock",
      "text": "$10.00",
      "id": "foo_a_price"
    },
    {
      "type": "Input.Text",
      "id": "foo_a"
    },
    {
      "type": "TextBlock",
      "text": "$2.00",
      "id": "foo_b_price"
    },
    {
      "type": "Input.Text",
      "id": "foo_b"
    },
    {
      "type": "TextBlock",
      "text": "total",
      "id": "total_foo"
    }
  ],
  "actions": [
    {
      "type": "Action.Submit",
      "title": "Submit"
    }
  ]
}

您可以从这一点中猜测，这个想法是让一个文本块具有一个以"total_“开头的ID，并在其后面有一些标识符。您想要加起来的数量以相同的标识符开始，您希望与每个数量相乘的价格与数量具有相同的ID，但后缀为"_price“。我建议使用数字输入而不是文本输入，但是这个示例显示文本仍然有效。下面是我的示例应用程序的代码，它读取模式：

import * as adaptiveCardsPackage from 'adaptivecards';

adaptiveCardsPackage.AdaptiveCard.onParseElement = element => {
  const PREFIX_TOTAL = 'total_';
  const SUFFIX_PRICE = '_price';

  if (element.id && element.id.startsWith(PREFIX_TOTAL)) {
    const itemPrefix = element.id.slice(PREFIX_TOTAL.length);
    const card = element.getRootElement();
    const inputs = card.getAllInputs().filter(input => input.id.startsWith(itemPrefix));
    const products = {};

    for (const input of inputs) {
      const priceElement = card.getElementById(input.id + SUFFIX_PRICE);
      const price = Number(priceElement.text.replace(/[^0-9.-]+/g, '')) || 0;

      // `sender` will be the same as `input`.
      // You could capture the input const instead of using the argument,
      // but I'm demonstrating that you don't need to.
      input.onValueChanged = sender => {
        const quantity = Number(sender.value) || 0;

        products[sender.id] = price * quantity;

        const sum = Object.values(products).reduce((a, b) => a + b);

        element.setText("$" + sum.toFixed(2));
        element.renderedElement.replaceWith(element.render());
      };
    }
  }
};

我有理由相信，对AdaptiveCard类的更改将自动应用于Web导入的包中的AdaptiveCard类，因为它是同一个包中的同一个类。但是，Web Chat现在允许您将自己的Adaptive包作为属性提供，因此您可以确保Web与您的特殊事件处理程序一起使用该包：

<ReactWebChat
  directLine={createDirectLine({secretOrToken})}
  adaptiveCardsPackage={adaptiveCardsPackage}
/>

​

​
