将点添加到现有几何中

Question

我在AutoCAD中创建了一个2D几何图形的dxf文件，我想在现有几何图形的线条上添加点。要添加的点数列表显示在文本文件中。

​

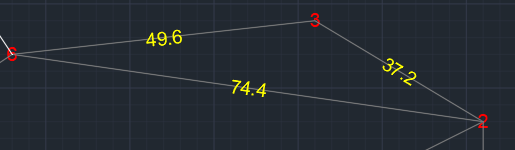

例如，在上面的图像中，我想在3到2之间的直线上添加10个点。这10个点的(x，y)坐标出现在文本文件中。是否有一种方法来导入和抓取靠近边界的坐标(/line)，因为坐标来自于预处理步骤，并且可能与3-2上的实际点有点偏离。

任何建议都会有很大帮助的！

Answer 1

最基本的情况是这样的：

 (defun C:ImportPoints (  / path coordinates askForFile loadPoints draw
 *error* )  (defun *error* ( msg / )
     (if (not (null msg ) ) (progn (princ "\nC:ImportPoints:*error*: " ) (princ msg ) (princ "\n")  ) )
 )
  (defun askForFile (  /
      *error* ) (defun *error* ( msg / )
          (if (not (null msg ) )    (progn (princ "\naskForFile:*error*: " ) (princ msg ) (princ "\n")  ) )
      )
      (getfiled "Select the file with coordinates" "txt" 2)
  )

  (defun loadPoints ( path /
      *error* ) (defun *error* ( msg / )
          (if (not (null msg ) )    (progn (princ "\nLoadPoints:*error*: " ) (princ msg ) (princ "\n")  ) )
      )

    (setq filedesc (open Path "r"))
    (if filedesc(progn
        (setq OutList (list))
        (setq linia(read-line filedesc))
        (while linia
        (progn
            (setq OutList (append OutList (list linia)))
            (setq linia (read-line filedesc))
        ))
        (close filedesc )
    ))
    OutList
  )

  (defun draw ( coordinates /
      *error* ) (defun *error* ( msg / )
          (if (not (null msg ) )    (progn (princ "\ndraw:*error*: " ) (princ msg ) (princ "\n")    ) )
      )
      (setq lastOSMODE (getvar "OSMODE"))
      (setvar "OSMODE" 512) ; 512 nearest
      (foreach % coordinates
        (command "_POINT" %)
      )
      (setvar "OSMODE" lastOSMODE ) ; ensure You didn't change anything in user settings
  )


 (setq path (askForFile) )
 (setq coordinates (LoadPoints path) )
 (draw coordinates)

)

您必须知道这是功能的基本“骨架”。您必须使用的主要功能是：

(getfiled ...) --允许您选择文件

(setvar "OSMODE" 512) --它的作用将是在线上

(command "_POINT" coordinates)将画出点，结果也将取决于文件中坐标的格式。预期的坐标是2或3个坐标，由,分隔，小数点应该用.分隔，我不记得了，但可能取决于您的本地设置。
