wxPython StaticText转义嵌套BoxSizer

Question

充分披露:我是新的wxpython (大约3天)，我并不真正理解更好的点拳击手。

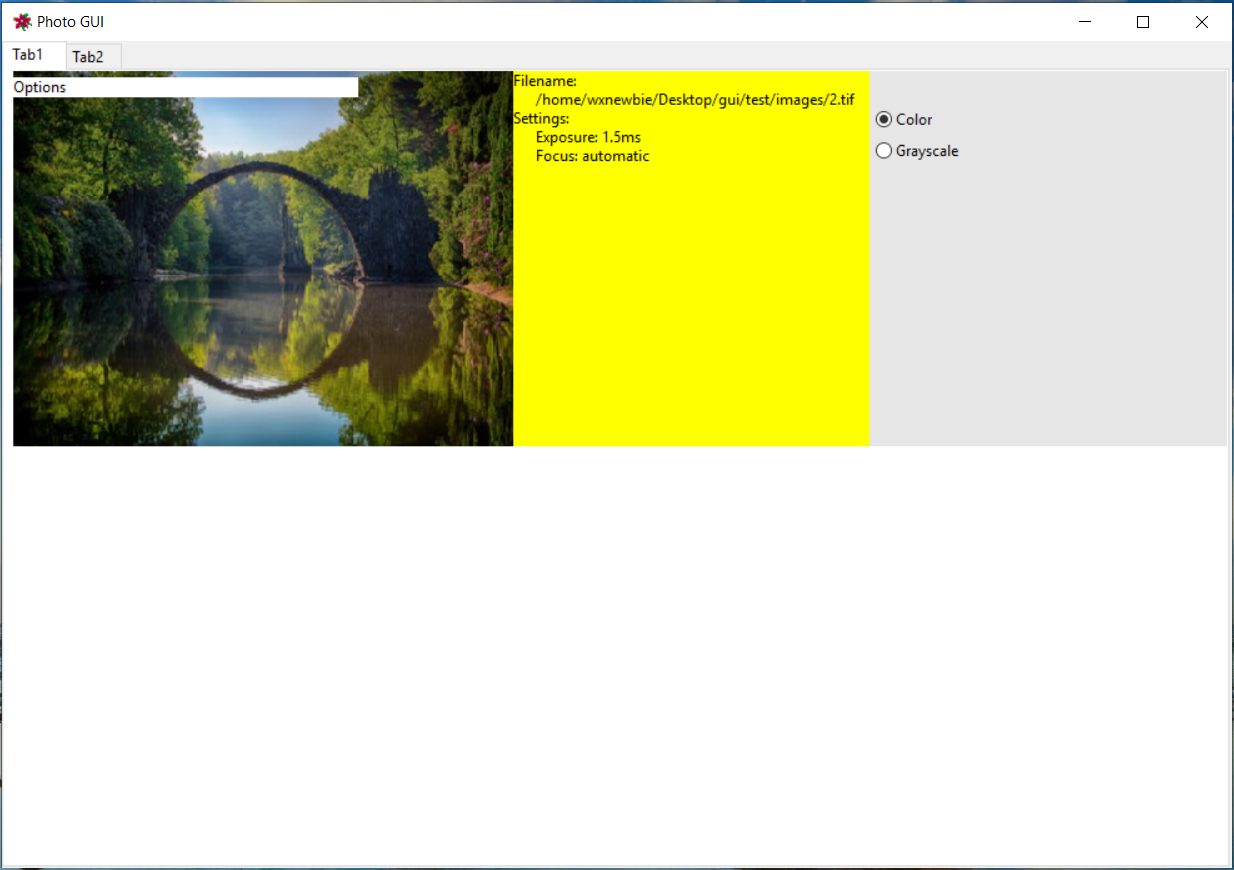

我正在编写一个GUI来显示一张照片和一些相关的细节。我是使用方格筛显示3“部分”水平上的主标签。最左边的项目是图像预览，中间项显示一些信息，最右边有一个StaticText标题和两个单选按钮。不知何故，StaticText似乎在逃离它的BoxSizer。我把不同的部分涂成了艳丽的颜色，这样就更明显了：

​

下面是代码的相关部分：

class MainPanel(wx.Panel):
    def __init__(self, parent):
        wx.Panel.__init__(self, parent=parent)
        self.loadContents()

    def loadContents(self):
        self.loadPreview()
        self.loadImageInfo()
        self.loadColorOptions()

        row0 = wx.BoxSizer(wx.HORIZONTAL)
        row0.Add(self.preview, 1, wx.LEFT, 5)
        row0.Add(self.imageInfo, 1, wx.EXPAND , 5)
        row0.Add(self.colorPanel, 1, wx.EXPAND, 5)

        sizer = wx.BoxSizer(wx.VERTICAL)
        sizer.Add(row0)
        self.SetSizer(sizer)

    def loadColorOptions(self):
        panel = wx.Panel(self)
        panel.SetBackgroundColour((230,230,230))
        self.title = wx.StaticText(self, label="Options", style=wx.TE_READONLY | wx.TE_MULTILINE)
        self.radioButtonColor = wx.RadioButton(panel, label="Color", style=wx.RB_GROUP)
        self.radioButtonGray = wx.RadioButton(panel, label="Grayscale")

        sizer = wx.BoxSizer(wx.VERTICAL)
        sizer.Add(self.title, 0, wx.ALL | wx.EXPAND, 5)
        sizer.Add(self.radioButtonColor, 0, wx.ALL, 5)
        sizer.Add(self.radioButtonGray, 0, wx.ALL, 5)
        panel.SetSizer(sizer)

        self.colorPanel = panel

以及整个背景：

import wx
from wx.lib.wordwrap import wordwrap
import os

from mock_utils import *

ICON_STR = os.path.join(os.path.dirname(os.path.realpath(__file__)), 'flower.ico')
INITIAL_SIZE_X = 1000
INITIAL_SIZE_Y = 700
SCALE_RATIO = 100
PREVIEW_SIZE = [4*SCALE_RATIO, 3*SCALE_RATIO] # 4:3
TITLE="Photo GUI"

class MainPanel(wx.Panel):
    def __init__(self, parent):
        wx.Panel.__init__(self, parent=parent)
        self.loadContents()

    def loadContents(self):
        self.loadPreview()
        self.loadImageInfo()
        self.loadColorOptions()

        row0 = wx.BoxSizer(wx.HORIZONTAL)
        row0.Add(self.preview, 1, wx.LEFT, 5)
        row0.Add(self.imageInfo, 1, wx.EXPAND , 5)
        row0.Add(self.colorPanel, 1, wx.EXPAND, 5)

        sizer = wx.BoxSizer(wx.VERTICAL)
        sizer.Add(row0)
        self.SetSizer(sizer)

    def loadColorOptions(self):
        panel = wx.Panel(self)
        panel.SetBackgroundColour((230,230,230))
        self.title = wx.StaticText(self, label="Options", style=wx.TE_READONLY | wx.TE_MULTILINE)
        self.radioButtonColor = wx.RadioButton(panel, label="Color", style=wx.RB_GROUP)
        self.radioButtonGray = wx.RadioButton(panel, label="Grayscale")

        sizer = wx.BoxSizer(wx.VERTICAL)
        sizer.Add(self.title, 0, wx.ALL | wx.EXPAND, 5)
        sizer.Add(self.radioButtonColor, 0, wx.ALL, 5)
        sizer.Add(self.radioButtonGray, 0, wx.ALL, 5)
        panel.SetSizer(sizer)

        self.colorPanel = panel

    def loadPreview(self):
        fname = getImage()
        self.imageInfo = getImageInfo(fname)
        if fname is not None:
            img = wx.Image(fname, wx.BITMAP_TYPE_ANY)
            img = img.Scale(PREVIEW_SIZE[0],PREVIEW_SIZE[1], wx.IMAGE_QUALITY_HIGH)
        else:
            img = wx.Image(PREVIEW_SIZE)

        self.preview = wx.StaticBitmap(self, wx.ID_ANY, wx.Bitmap(img))

    def loadImageInfo(self):
        imgInfo = wx.StaticText(self, style=wx.TE_READONLY | wx.TE_MULTILINE)
        infoStr = wordwrap("Filename:\n" + "\t" + self.imageInfo.get("name") + \
                "\nSettings:\n" + "\t" + "Exposure: " + self.imageInfo.get("exposure") + \
                           "\n" + "\t" + "Focus: " + self.imageInfo.get("focus"), 350, wx.ClientDC(self))

        imgInfo.SetLabel(infoStr)
        imgInfo.SetBackgroundColour("yellow")
        self.imageInfo = imgInfo

class Panel2(wx.Panel):
    def __init__(self, parent):
        wx.Panel.__init__(self, parent=parent)

class PhotoGuiFrame(wx.Frame):
    def __init__(self):
        wx.Frame.__init__(self, None, wx.ID_ANY, title=TITLE, size=(INITIAL_SIZE_X,INITIAL_SIZE_Y))
        self.SetIcon(wx.Icon(ICON_STR, wx.BITMAP_TYPE_ICO, 16, 16))
        self.Center() # center gui on screen

        self.loadPanels()

    def loadPanels(self):

        p = wx.Panel(self)
        dock = wx.Notebook(p)
        main_panel = MainPanel(dock)
        panel2 = Panel2(dock)

        dock.AddPage(main_panel, "Tab1")
        dock.AddPage(panel2, "Tab2")

        sizer = wx.BoxSizer()
        sizer.Add(dock, 1, wx.EXPAND)
        p.SetSizer(sizer)


if __name__ == "__main__":
    app = wx.App()
    frame = PhotoGuiFrame().Show()
    app.MainLoop()

如果您想要一个最小的“工作”示例(将显示一个空白框而不是加载图像)，则使用一个基本的mock_utils.py：

pth1 = "/home/wxnewbie/Desktop/gui/test/images/img"

def getImage():
    return None

def getImageInfo(fname):
    return {"name": pth1+"2.tif", "exposure":"1.5ms", "focus":"automatic"}

我完全不明白为什么StaticText要逃离BoxSizer。我唯一能想到的是，我需要摆脱它所连接的面板(在这种情况下，我是否还会返回sizer本身？)但我遇到了问题，在sizer中的项目完全消失了，所以我想我只是错过了一些基本的信息，有关如何使用sizer。

Answer 1

这是个经典，看不见树林里的树木，问题。

您正在将self.title放置在self中，而不是在面板中。

这应该能解决问题。

self.title = wx.StaticText(panel, label="Options", style=wx.TE_READONLY | wx.TE_MULTILINE)
