WPF SharedSizeGroup没有正确地调整

Question

在我的应用程序中，我有两个类：、DataObj和SubDataObj。对于这两个类，我想要创建一个ListView，在其中我可以编辑两个类的对象。DataObj持有一个List<SubDataObj>，一些数据修改会对SubDataObj属性产生影响。

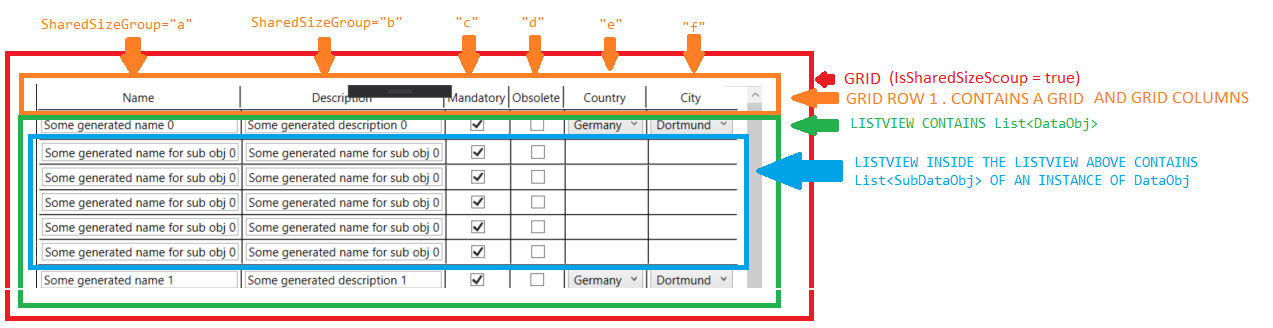

我的方法是像这样构建UI：

​

​

结构如下：

​

​

但是我不能对齐视图的三个部分的边框，我也不知道我做错了什么。

父网格具有Grid.IsSharedSizeScope="True"和所有ColumnDefinitions，在Grid中表示headers的网格和ListView.DataTemplate使用SharedSizeGroup="xxx"中的网格。

我的XAML代码如下所示：

<UserControl
    x:Class="SharedSizeGroupSandBox.Views.SharedSizeGroupView"
    xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
    xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
    xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
    xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
    xmlns:local="clr-namespace:SharedSizeGroupSandBox.Views"
    xmlns:scm="clr-namespace:System.ComponentModel;assembly=WindowsBase"
    xmlns:models="clr-namespace:SharedSizeGroupSandBox.Models.SharedSizeGroup"
    xmlns:vms="clr-namespace:SharedSizeGroupSandBox.ViewModels"
    xmlns:converter="clr-namespace:SharedSizeGroupSandBox.ValueConverter"
    mc:Ignorable="d"
    d:DesignHeight="450"
    d:DesignWidth="800"
    d:DataContext="{x:Type vms:SharedSizeGroupVM}">
    <UserControl.Resources>
        <ResourceDictionary>
            <converter:BoolNotConverter
                x:Key="BoolNotConverter" />

            <Style
                x:Key="baseAlignStyle"
                TargetType="FrameworkElement">
                <Setter
                    Property="HorizontalAlignment"
                    Value="Stretch" />
                <Setter
                    Property="VerticalAlignment"
                    Value="Center" />
            </Style>
            <Style
                x:Key="baseBorderStyle"
                TargetType="Border"
                BasedOn="{StaticResource baseAlignStyle}">
                <Setter
                    Property="Margin"
                    Value="0,0" />
            </Style>
            <Style
                x:Key="headerBorderStyle"
                TargetType="Border"
                BasedOn="{StaticResource baseBorderStyle}">
                <Setter
                    Property="BorderBrush"
                    Value="Black" />
                <Setter
                    Property="VerticalAlignment"
                    Value="Stretch" />
                <Setter
                    Property="BorderThickness"
                    Value="0,0,1,0" />
            </Style>
            <Style
                TargetType="FrameworkElement"
                x:Key="baseMargingStyle"
                BasedOn="{StaticResource baseAlignStyle}">
                <Setter
                    Property="Margin"
                    Value="3" />
            </Style>
            <Style
                x:Key="textBlockHeaderStyle"
                TargetType="{x:Type TextBlock}"
                BasedOn="{StaticResource baseMargingStyle}">
                <Setter
                    Property="TextAlignment"
                    Value="Center" />

            </Style>
            <Style
                x:Key="checkBoxStyle"
                TargetType="CheckBox"
                BasedOn="{StaticResource baseMargingStyle}">
                <Setter
                    Property="HorizontalAlignment"
                    Value="Center" />
            </Style>
        </ResourceDictionary>
    </UserControl.Resources>

    <!--#endregion  Buttons-->
    <ScrollViewer
        Grid.Row="1"
        HorizontalAlignment="Stretch"
        Grid.IsSharedSizeScope="True"
        HorizontalScrollBarVisibility="Auto">
        <Grid
            Grid.Row="1"
            HorizontalAlignment="Left"
            Margin="0">
            <Grid.RowDefinitions>
                <RowDefinition
                    Height="Auto" />
                <RowDefinition />
            </Grid.RowDefinitions>
            <!--#region  Headers-->
            <Grid
                Margin="0,0,0,0"
                Grid.Row="0"
                HorizontalAlignment="Left"
                x:Name="grdlistHeader">
                <Grid.ColumnDefinitions>
                    <ColumnDefinition
                        SharedSizeGroup="a" />
                    <ColumnDefinition
                        SharedSizeGroup="b" />
                    <ColumnDefinition
                        SharedSizeGroup="c" />
                    <ColumnDefinition
                        SharedSizeGroup="d" />
                    <ColumnDefinition
                        SharedSizeGroup="e" />
                    <ColumnDefinition
                        Width="Auto"
                        SharedSizeGroup="f" />
                </Grid.ColumnDefinitions>
                <Border
                    Style="{StaticResource headerBorderStyle}">
                    <TextBlock
                        Text="{Binding NameText}"
                        Style="{StaticResource textBlockHeaderStyle}" />
                </Border>
                <Border
                    Style="{StaticResource headerBorderStyle}"
                    Grid.Column="1">
                    <TextBlock
                        Text="{Binding DescriptionText}"
                        Style="{StaticResource textBlockHeaderStyle}" />
                </Border>
                <Border
                    Style="{StaticResource headerBorderStyle}"
                    Grid.Column="2">
                    <TextBlock
                        Text="{Binding MandatoryText}"
                        Style="{StaticResource textBlockHeaderStyle}" />
                </Border>
                <Border
                    Style="{StaticResource headerBorderStyle}"
                    Grid.Column="3">
                    <TextBlock
                        Text="{Binding ObsoleteText}"
                        Style="{StaticResource textBlockHeaderStyle}" />
                </Border>
                <Border
                    Style="{StaticResource headerBorderStyle}"
                    Grid.Column="4">
                    <TextBlock
                        Text="{Binding CountryText}"
                        Style="{StaticResource textBlockHeaderStyle}" />
                </Border>
                <TextBlock
                    Grid.Column="5"
                    Text="{Binding CityText}"
                    Style="{StaticResource textBlockHeaderStyle}" />
            </Grid>

            <!--#endregion  Headers-->
            <ListView
                Margin="0,0,0,0"
                Padding="0"
                Grid.Row="1"
                BorderThickness="0,0,0,0"
                BorderBrush="Black"
                SelectionMode="Single"
                SelectedItem="{Binding SelectedItem}"
                ItemsSource="{Binding Data}"
                HorizontalAlignment="Stretch"
                ScrollViewer.HorizontalScrollBarVisibility="Hidden"
                ScrollViewer.VerticalScrollBarVisibility="Hidden">
                <ListView.ItemContainerStyle>
                    <Style
                        TargetType="ListViewItem">
                        <Setter
                            Property="HorizontalAlignment"
                            Value="Stretch" />
                        <Setter
                            Property="Padding"
                            Value="0" />
                        <Setter
                            Property="Margin"
                            Value="0" />
                        <Setter
                            Property="BorderThickness"
                            Value="0,1,0,0" />
                        <Setter
                            Property="BorderBrush"
                            Value="Black" />
                    </Style>
                </ListView.ItemContainerStyle>
                <ListView.ItemTemplate>
                    <DataTemplate
                        DataType="{x:Type vms:DataObjVM}">
                        <Grid
                            Margin="0">
                            <Grid.RowDefinitions>
                                <RowDefinition />
                                <RowDefinition />
                            </Grid.RowDefinitions>
                            <!--#region  DataObjVMs-->
                            <Grid
                                Margin="0">
                                <Grid.ColumnDefinitions>
                                    <ColumnDefinition
                                        SharedSizeGroup="a"
                                        Width="Auto" />
                                    <ColumnDefinition
                                        SharedSizeGroup="b" />
                                    <ColumnDefinition
                                        SharedSizeGroup="c" />
                                    <ColumnDefinition
                                        SharedSizeGroup="d" />
                                    <ColumnDefinition
                                        SharedSizeGroup="e" />
                                    <ColumnDefinition
                                        SharedSizeGroup="f" />
                                    <ColumnDefinition
                                        SharedSizeGroup="g" />
                                    <ColumnDefinition
                                        SharedSizeGroup="h" />
                                    <ColumnDefinition
                                        SharedSizeGroup="i" />
                                </Grid.ColumnDefinitions>
                                <Border
                                    Style="{StaticResource headerBorderStyle}"
                                    Grid.Column="0">
                                    <TextBox
                                        Text="{Binding Path=Data.Name, UpdateSourceTrigger=PropertyChanged}"
                                        IsReadOnly="{Binding Path=Obsolete}"
                                        Style="{StaticResource baseMargingStyle}"
                                        Padding="0" />
                                </Border>
                                <Border
                                    Style="{StaticResource headerBorderStyle}"
                                    Grid.Column="1">
                                    <TextBox
                                        Text="{Binding Path=Data.Description}"
                                        IsReadOnly="{Binding Path=Obsolete}"
                                        Style="{StaticResource baseMargingStyle}" />
                                </Border>
                                <Border
                                    Style="{StaticResource headerBorderStyle}"
                                    Grid.Column="2">
                                    <CheckBox
                                        IsEnabled="{Binding Path=Obsolete, Converter={StaticResource BoolNotConverter}}"
                                        IsChecked="{Binding Path=Data.Mandatory}"
                                        Style="{StaticResource checkBoxStyle}" />
                                </Border>
                                <Border
                                    Style="{StaticResource headerBorderStyle}"
                                    Grid.Column="3">
                                    <CheckBox
                                        x:Name="cbObsolete"
                                        IsChecked="{Binding Path=Obsolete}"
                                        Style="{StaticResource checkBoxStyle}" />
                                </Border>
                                <Border
                                    Style="{StaticResource headerBorderStyle}"
                                    Grid.Column="4">
                                    <ComboBox
                                        Style="{StaticResource baseMargingStyle}"
                                        ItemsSource="{Binding Countries}"
                                        SelectedItem="{Binding Data.Country}"
                                        DisplayMemberPath="ExternalName"
                                        IsEnabled="{Binding Obsolete, Converter={StaticResource BoolNotConverter}}" />
                                </Border>
                                <ComboBox
                                    Grid.Column="5"
                                    Style="{StaticResource baseMargingStyle}"
                                    ItemsSource="{Binding Data.Country.Cities}"
                                    SelectedItem="{Binding Data.City}"
                                    DisplayMemberPath="ExternalName"
                                    IsEnabled="{Binding Obsolete, Converter={StaticResource BoolNotConverter}}" />
                            </Grid>
                            <!--#endregion  Temmplates-->
                            <!--#region  SubTemmplates-->
                            <ListView
                                Margin="0,0,0,0"
                                BorderThickness="0"
                                ScrollViewer.HorizontalScrollBarVisibility="Hidden"
                                ScrollViewer.VerticalScrollBarVisibility="Hidden"
                                IsEnabled="{Binding IsEditEnabled}"
                                Padding="0"
                                Grid.Row="1">
                                <ListView.Resources>
                                    <CollectionViewSource
                                        x:Key="SubDataObjs">
                                        <CollectionViewSource.Source>
                                            <Binding
                                                Path="Data.SubDataObjs"
                                                Mode="OneWay"
                                                UpdateSourceTrigger="PropertyChanged" />
                                        </CollectionViewSource.Source>
                                        <CollectionViewSource.SortDescriptions>
                                            <scm:SortDescription
                                                PropertyName="Name"
                                                Direction="Ascending" />
                                        </CollectionViewSource.SortDescriptions>
                                    </CollectionViewSource>
                                </ListView.Resources>
                                <ListView.ItemContainerStyle>
                                    <Style
                                        TargetType="ListViewItem">
                                        <Setter
                                            Property="HorizontalAlignment"
                                            Value="Stretch" />
                                        <Setter
                                            Property="Padding"
                                            Value="0" />
                                        <Setter
                                            Property="Margin"
                                            Value="0" />
                                        <Setter
                                            Property="BorderThickness"
                                            Value="0,1,0,0" />
                                        <Setter
                                            Property="BorderBrush"
                                            Value="Black" />
                                    </Style>
                                </ListView.ItemContainerStyle>
                                <ListView.ItemsSource>
                                    <Binding
                                        Source="{StaticResource SubDataObjs}" />
                                </ListView.ItemsSource>
                                <ListView.ItemTemplate>
                                    <DataTemplate
                                        DataType="{x:Type models:SubDataObj}">
                                        <Grid
                                            Margin="0">
                                            <Grid.ColumnDefinitions>
                                                <ColumnDefinition
                                                    SharedSizeGroup="a" />
                                                <ColumnDefinition
                                                    SharedSizeGroup="b" />
                                                <ColumnDefinition
                                                    SharedSizeGroup="c" />
                                                <ColumnDefinition
                                                    SharedSizeGroup="d" />
                                                <ColumnDefinition
                                                    SharedSizeGroup="e" />
                                                <ColumnDefinition
                                                    SharedSizeGroup="f" />
                                                <ColumnDefinition
                                                    SharedSizeGroup="g" />
                                                <ColumnDefinition
                                                    SharedSizeGroup="h" />
                                                <ColumnDefinition
                                                    SharedSizeGroup="i" />
                                            </Grid.ColumnDefinitions>

                                            <Border
                                                Style="{StaticResource headerBorderStyle}">
                                                <TextBox
                                                    Style="{StaticResource baseMargingStyle}"
                                                    Text="{Binding Path=Name}"
                                                    IsReadOnly="{Binding Path=Obsolete}"
                                                    MaxLength="{Binding MaxNameLength}" />
                                            </Border>
                                            <Border
                                                Style="{StaticResource headerBorderStyle}"
                                                Grid.Column="1">
                                                <TextBox
                                                    Style="{StaticResource baseMargingStyle}"
                                                    IsReadOnly="{Binding Path=Obsolete}"
                                                    BorderThickness="1"
                                                    Text="{Binding Path=Description}" />
                                            </Border>
                                            <Border
                                                Style="{StaticResource headerBorderStyle}"
                                                Grid.Column="2"
                                                Padding="0, 0,0,0">
                                                <CheckBox
                                                    IsEnabled="{Binding Path=Obsolete, Converter={StaticResource BoolNotConverter}}"
                                                    IsChecked="{Binding Path=Mandatory}"
                                                    Style="{StaticResource checkBoxStyle}" />
                                            </Border>
                                            <Border
                                                Style="{StaticResource headerBorderStyle}"
                                                Grid.Column="3">
                                                <CheckBox
                                                    IsChecked="{Binding Path=Obsolete}"
                                                    IsEnabled="{Binding ElementName=cbObsolete, Path=IsChecked, Converter={StaticResource BoolNotConverter}}"
                                                    Style="{StaticResource checkBoxStyle}" />
                                            </Border>
                                            <Border
                                                Style="{StaticResource headerBorderStyle}"
                                                Grid.Column="4" />
                                        </Grid>
                                    </DataTemplate>
                                </ListView.ItemTemplate>
                            </ListView>
                            <!--#endregion  SubTemmplates-->
                        </Grid>
                    </DataTemplate>
                </ListView.ItemTemplate>

            </ListView>
        </Grid>
    </ScrollViewer>
</UserControl>

我已经编写了一个完整的工作沙箱应用，以防XAML本身不够。

提前谢谢你。

Answer 1

创建一个同时包含DataObj和SubDataObj的集合。

加载数据时，循环遍历每个DataObj，并为每个SubDataObj添加自身及其所有的SubDataObj到整个列表中。然后，您可以使用普通的ListView和普通的GridView，并使用整个列表作为ItemsSource。

至于这种“整体收藏”的类型，我认为有三种选择：

• DataObj和SubDataObj显然共享一些属性(因为它们都可以在同一个网格中显示)，因此它们从同一个基类继承或从另一个基类继承可能是有意义的。然后您可以使用SomeCollection<BaseDataObj> (例如)。
• 如果继承不合适，请让它们实现包含它们的共享属性的相同接口。然后使用SomeBaseCollection<IDataInterface> (例如)。
• 如果出于某种原因，您不想做上述任何一件事，只需使用List<Object>。
