用InputGroupAddon在仪表板上垂直对齐
用InputGroupAddon在仪表板上垂直对齐
提问于 2020-06-23 13:03:14

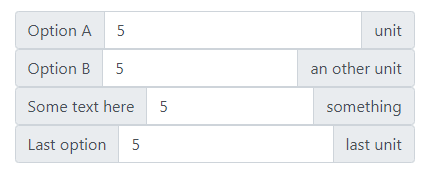

我在做一个仪表板。我正在使用一些dash_bootstrap_components InputGroup。到目前为止，我都是这样做的：

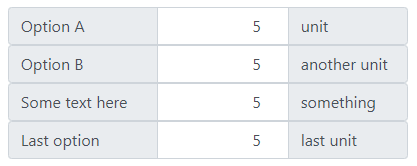

我想垂直对齐InputGroupAddon 'prepend'和InputGroupAddon 'append' of InputGroup，如下所示：
我想扩展dbc.InputGroupAddon 'prepend'和dbc.InputGroupAddon 'append'宽度，让dbc.Input自动调整以填充宽度。
我想保持400的整体宽度。
这是我的代码：
import dash
import dash_html_components as html
import dash_bootstrap_components as dbc
n = 19
v_min = 0
v_max = 10
v_step = 1
v_0 = 5
app = dash.Dash(external_stylesheets = [dbc.themes.BOOTSTRAP])
app.layout = html.Div(id = 'general_div',
children = [html.Div(id = 'options_div',
children = [dbc.InputGroup([dbc.InputGroupAddon(children = 'Option A',
addon_type = 'prepend'),
dbc.Input(id = 't_ON_input',
type = 'number',
min = v_min,
max = v_max,
step = v_step,
value = v_0),
dbc.InputGroupAddon(children = 'unit',
addon_type = 'append')]),
dbc.InputGroup([dbc.InputGroupAddon(children = 'Option B',
addon_type = 'prepend'),
dbc.Input(id = 't_OFF_input',
type = 'number',
min = v_min,
max = v_max,
step = v_step,
value = v_0),
dbc.InputGroupAddon(children = 'an other unit',
addon_type = 'append')]),
dbc.InputGroup([dbc.InputGroupAddon(children = 'Some text here',
addon_type = 'prepend'),
dbc.Input(id = 'T_start_input',
type = 'number',
min = v_min,
max = v_max,
step = v_step,
value = v_0),
dbc.InputGroupAddon(children = 'something',
addon_type = 'append')]),
dbc.InputGroup([dbc.InputGroupAddon(children = 'Last option',
addon_type = 'prepend'),
dbc.Input(id = 'voltage_input',
type = 'number',
min = v_min,
max = v_max,
step = v_step,
value = v_0),
dbc.InputGroupAddon(children = 'last unit',
addon_type = 'append')])],
style = {'display': 'inline-block',
'vertical-align': 'top',
'margin-left': '3vw',
'margin-top': '3vw',
'width': 400})])
if __name__ == "__main__":
app.run_server()我尝试在style参数下指定如下所示的style：
dbc.InputGroupAddon(children = 'Option A',
addon_type = 'prepend',
style = {'width': 200}),
dbc.Input(id = 't_ON_input',
type = 'number',
min = v_min,
max = v_max,
step = v_step,
value = v_0),
dbc.InputGroupAddon(children = 'unit',

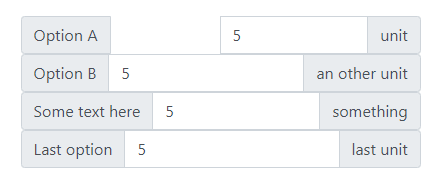

addon_type = 'append')但我明白了：
dbc.InputGroup在dbc.InputGroupAddon和dbc.Input之间被打破。
版本信息
Python 3.7.0
dash 1.12.0
dash-bootstrap-components 0.10.1
dash-html-components 1.0.3回答 1
Stack Overflow用户
回答已采纳
发布于 2020-06-25 08:38:10
我终于设法解决了这个问题。
我为文本跨跨分配了一个类，并链接了一个本地css样式表(位于assets\文件夹中)：
import dash
import dash_html_components as html
import dash_bootstrap_components as dbc
n = 19
v_min = 0
v_max = 10
v_step = 1
v_0 = 5
app = dash.Dash(external_stylesheets = [dbc.themes.BOOTSTRAP, 'box_style.css'])
app.layout = html.Div(id = 'general_div',
children = [html.Div(id = 'options_div',
children = [dbc.InputGroup([dbc.InputGroupAddon(children = html.Span(children = 'Option A',
className = 'prepend-text'),
addon_type = 'prepend'),
dbc.Input(id = 't_ON_input',
type = 'number',
min = v_min,
max = v_max,
step = v_step,
value = v_0),
dbc.InputGroupAddon(children = html.Span(children = 'unit',
className = 'append-text'),
addon_type = 'append')]),
dbc.InputGroup([dbc.InputGroupAddon(children = html.Span(children = 'Option B',
className = 'prepend-text'),
addon_type = 'prepend'),
dbc.Input(id = 't_OFF_input',
type = 'number',
min = v_min,
max = v_max,
step = v_step,
value = v_0),
dbc.InputGroupAddon(children = html.Span(children = 'another unit',
className = 'append-text'),
addon_type = 'append')]),
dbc.InputGroup([dbc.InputGroupAddon(children = html.Span(children = 'Some text here',
className = 'prepend-text'),
addon_type = 'prepend'),
dbc.Input(id = 'T_start_input',
type = 'number',
min = v_min,
max = v_max,
step = v_step,
value = v_0),
dbc.InputGroupAddon(children = html.Span(children = 'something',
className = 'append-text'),
addon_type = 'append')]),
dbc.InputGroup([dbc.InputGroupAddon(children = html.Span(children = 'Last option',
className = 'prepend-text'),
addon_type = 'prepend'),
dbc.Input(id = 'voltage_input',
type = 'number',
min = v_min,
max = v_max,
step = v_step,
value = v_0),
dbc.InputGroupAddon(children = html.Span(children = 'last unit',
className = 'append-text'),
addon_type = 'append')])],
style = {'display': 'inline-block',
'vertical-align': 'top',
'margin-left': '3vw',
'margin-top': '3vw',
'width': 400})])
if __name__ == "__main__":
app.run_server()我从dash默认值中复制了样式表类，并添加了width、border-radius和text-align属性(width是解决上述问题的关键属性，其余用于进一步的美学调整)。这里我的本地css：
.prepend-text {
display: -ms-flexbox;
display: flex;
-ms-flex-align: center;
align-items: center;
padding: .375rem .75rem;
margin-bottom: 0;
font-size: 1rem;
font-weight: 400;
line-height: 1.5;
color: #495057;
text-align: center;
white-space: nowrap;
background-color: #e9ecef;
border: 1px solid #ced4da;
width: 150px;
border-top-left-radius: 0.25rem;
border-top-right-radius: 0rem;
border-bottom-right-radius: 0rem;
border-bottom-left-radius: 0.25rem;
}
.form-control {
display: block;
width: 100%;
height: calc(1.5em + .75rem + 2px);
padding: .375rem .75rem;
font-size: 1rem;
font-weight: 400;
line-height: 1.5;
color: #495057;
background-color: #fff;
background-clip: padding-box;
border: 1px solid #ced4da;
border-radius: 0rem;
transition: border-color .15s ease-in-out,box-shadow .15s ease-in-out;
width: 130px;
text-align: right;
}
.append-text {
display: -ms-flexbox;
display: flex;
-ms-flex-align: center;
align-items: center;
padding: .375rem .75rem;
margin-bottom: 0;
font-size: 1rem;
font-weight: 400;
line-height: 1.5;
color: #495057;
text-align: center;
white-space: nowrap;
background-color: #e9ecef;
border: 1px solid #ced4da;
width: 120px;
border-top-left-radius: 0rem;
border-top-right-radius: 0.25rem;
border-bottom-right-radius: 0.25rem;
border-bottom-left-radius: 0rem;

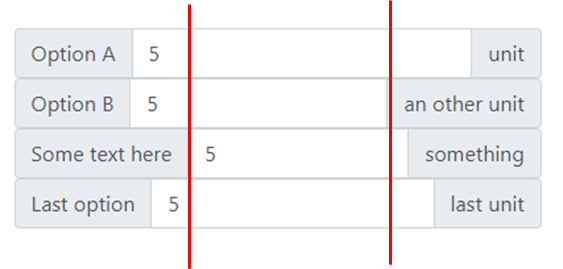

}这给了我这个布局：
页面原文内容由Stack Overflow提供。腾讯云小微IT领域专用引擎提供翻译支持
原文链接：
https://stackoverflow.com/questions/62535418
