如何将绑定到D3中的不同数据的元素分组(与强制模拟一起使用)，以便对它们进行排序

Question

我试图创建一个散点图，使用强制模拟将标签放置在我的数据点周围。到目前为止，这还不错(感谢对堆栈溢出和一些博客的良好帮助:)。这是到目前为止的样子. 散点图

然而，我现在不得不重新排序我的元素，以便每个数据点的圆、线和文本元素在z轴上相邻。

从我目前的情况来看：

<g class="circles">
   <circle dp-1></circle>
   <circle dp-2></circle>
   ...
</g>
<g class="labels">
   <text dp-1></text>
   <text dp-2></text>
   ...
</g>
<g class="links">
   <line dp-1></line>
   <line dp-2></line>
   ...
</g>

我想去..。

<g id="dp-1">
   <circle dp-1></circle>
   <text dp-1></text>
   <line dp-1></line>
</g>
<g id="dp-2">
   <circle dp-2></circle>
   <text dp-2></text>
   <line dp-2></line>
</g>
<g>
...

我知道如何在“静态”的情况下做到这一点，而不用强迫模拟。然而，在我的例子中，我没有办法做到这一点，我在标签(节点)和线(链接)上运行了一个力模拟，而不是在圆圈上。

如何在D3中正确地实现这一点？下面是我代码中最重要的片段。我遇到的主要问题是，对于我的圆圈(数据)和节点(forceData)，我使用不同的数据数组。后者基本上是一个数组，长度是数据的两倍(每个数据点有两个节点)。

我也不知道该怎么做

• 让D3绘制一个绑定到两个不同数据的"g“，或者
• 进行基于数据数组的力模拟(该数据数组仅为节点数组长度的一半)。

当然，解决我的问题的其他想法也是受欢迎的。谢谢你的想法和帮助。

/**
* Updates the chart. To be used when the data stayed the same, but is sliced differently (filter, ...)
*/
public update() {
this.svg.select('.dataPoints')
  .selectAll("circle")
  .data(this.data,
    function (d: any) { return d.category }
  )
  .join(
    function (enter) {
      // what is to be done with new items ...
      return enter
        .append("circle")
        .style("opacity", 0)
    },
    // function (update) { return update },
  )
  .attr("cx", d => this.xScale()(d.x))
  .attr("cy", d => this.yScale()(d.y))
  .style("fill", d => this.color(d.color))
  .style("stroke-width", this.settings.dataPoints.stroke.width)
  .style("stroke-opacity", this.settings.dataPoints.stroke.opacity)
  .style("stroke", this.settings.dataPoints.stroke.color)
  .transition()
  .duration(this.settings.dataPoints.duration)
  .style('opacity', 1)
  .attr("r", d => this.rScale()(d.r))

if (this.settings.labels.show) {
  this.svg.select(".labels")
    .call(this.labelPlacement)
}

private labelPlacement = (g) => {
// we need to create our node and link array. We need two nodes per datapoint. One for the point
// itself which has a fixed x and y (fx/fy) and one for the label, which will be floating ...
var forceData = {
  'nodes': [],
  'links': [],
};

var myXscale = this.xScale()
var myYscale = this.yScale()

this.data.forEach(function (d, i) {
  // doing the two nodes per datapoint ...
  forceData.nodes.push({
    id: d.category,
    label: d.label,
    fx: myXscale(d.x),
    fy: myYscale(d.y)
  });
  forceData.nodes.push({
    id: d.category,
    label: d.label,
    x: myXscale(d.x),
    y: myYscale(d.y),
    dataX: myXscale(d.x),
    dataY: myYscale(d.y)
  });
  // and also adding a link between the datapoint and its label ...
  forceData.links.push({
    source: i * 2,
    target: i * 2 + 1,
  });
});

// now drawing them labels and links ...
if (this.settings.labels.showLinks) {
  var labelLink = this.svg.select('.label-links')
    .selectAll("line")
    .data(forceData.links, (d: any) => { return (d.source + "-" + d.target) })
    .join("line")
    .attr("stroke", this.settings.labels.linkStroke.color)
    .attr("stroke-width", this.settings.labels.linkStroke.width)
    .attr("opacity", this.settings.labels.linkStroke.opacity)
}

var labelNode = this.svg.select('.labels')
  .selectAll("text")
  .data(forceData.nodes, (d: any) => { return d.id })
  .join("text")
  .text((d, i) => { return i % 2 == 0 ? "" : TextService.textLimit(d.label, this.settings.labels.maxTextLength) })
  .style("fill", this.settings.labels.label.fill)
  .style("font-family", this.settings.labels.label.fontFamily)
  .style("font-size", this.settings.labels.label.fontSize)
  .call(d3.drag()
    .on("drag", dragged)
    .on("end", dragended)
  )

// adding and doing the force simulation ...
if (this.settings.labels.force) {
  d3.forceSimulation(forceData.nodes)
    .alphaTarget(this.settings.labels.alphaTarget)
    .alphaDecay(this.settings.labels.alphaDecay)
    .force("charge", d3.forceManyBody().strength(this.settings.labels.chargeStrength))
    .force("link", d3.forceLink(forceData.links)
      .distance(this.settings.labels.linkDistance)
      .strength(this.settings.labels.linkStrength))
    .on("tick", ticked);
}

Answer 1

谢谢大家的阅读。我又过了一个不眠之夜，终于解决了这个问题:)

我跳过了"g“元素，因为它们并不是真正必要的，而是试图获得这样的结构：

<line dp-1></line>
<circle dp-1></circle>
<line dp-2></line>
<circle dp-2></line>
...

为此，我可以使用两个单独的数据绑定和数据数组(这是使用力模拟所必需的)。实现校正排序(行-圆-线-圆-.)我使用了"d3.insert“，而不是用动态计算的”前面“元素来追加。下面是代码中最重要的部分。希望这最终能对某人有所帮助。

问候

// Drawing the data ...
public update() {
this.dataPoints
  .selectAll("circle")
  .data(this.data,
    function (d: any) { return d.category }
  )
  .join(
    enter => enter.append("circle")
      .style('opacity', 0)
  )
  .call(this.drawData)

if (this.settings.labels.showLinks && this.settings.labels.showLinks) {
  this.dataPoints
    .selectAll("line")
    .data(this.forceData.links)
    .join(
      enter => enter.insert('line', (d, i) => {
        console.log("JOIN", d)
        return document.getElementById('dP_' + d.id)
      })
        // .style('opacity', 0)
    )
    .call(this.drawLabelLine)
}
}


/**
   * Draws the data circles ...
   * @param circle
*/
  private drawData = (circle) => {
circle
  .attr("id", (d, i) => { return 'dP_' + d.category })
  .attr("class", "dataPoint")
  .style("fill", d => this.color(d.color))
  .style("stroke-width", this.settings.dataPoints.stroke.width)
  .style("stroke-opacity", this.settings.dataPoints.stroke.opacity)
  .style("stroke", this.settings.dataPoints.stroke.color)
  .transition()
  .duration(this.settings.dataPoints.duration)
  .style('opacity', 1)
  .attr("r", d => this.rScale()(d.r))
  .attr("cx", d => this.xScale()(d.x))
  .attr("cy", d => this.yScale()(d.y))
  }

/**
   * draws the lines to connect labels to data points
   * @param g
   */
private drawLabelLine = (line) => {
line
  .attr("class", "label-link")
  .attr("stroke", this.settings.labels.linkStroke.color)
  .attr("stroke-width", this.settings.labels.linkStroke.width)
  .attr("opacity", this.settings.labels.linkStroke.opacity)
}

// adding and doing the force simulation ...
if (this.settings.labels.force) {
  d3.forceSimulation(forceData.nodes)
    .alphaTarget(this.settings.labels.alphaTarget)
    .alphaDecay(this.settings.labels.alphaDecay)
    .force("charge", d3.forceManyBody().strength(this.settings.labels.chargeStrength))
    .force("link", d3.forceLink(forceData.links)
      .distance(this.settings.labels.linkDistance)
      .strength(this.settings.labels.linkStrength))
    .on("tick", ticked);
}

Answer 2

由于您没有包含您的数据，所以我可以在数据方面给出一种高层次的解决方法：

本质上，将这3个数组合并到一个对象中，按照“color”属性(可以是任何属性)进行归约。然后将每个圆圈、线条和文本附加到我们为每种颜色创建的每一个'g‘元素中。

注意：links数组没有任何意义，因为我们可以从circles和labels数组中获得它们，因此有x1、x2、y1和y2值。此外，如果可能的话，您可以从一开始就像我的combinedData一样定义数据。

​

const circles = [
  {shape: "circle", color: "green", x: 2, y: 2, r: 0.5},
  {shape: "circle", color: "blue", x: 4, y: 4, r: 1},
  {shape: "circle", color: "red", x: 8, y: 8, r: 1.5},
];
const links = [
  {shape: "line", color: "green", x1: 2, y1: 2, x2: 1, y2: 1},
  {shape: "line", color: "blue", x1: 4, y1: 4, x2: 2, y2: 6},
  {shape: "line", color: "red", x1: 8, y1: 8, x2: 9, y2: 4},
];
const labels = [
  {shape: "text", color: "green", x: 1, y: 1, text: "A"},
  {shape: "text", color: "blue", x: 2, y: 6, text: "B"},
  {shape: "text", color: "red", x: 9, y: 4, text: "C"},
];

const combinedData = [...circles, ...links, ...labels].reduce((aggObj, item) => {

  if (!aggObj[item.color]) aggObj[item.color] = {};

  aggObj[item.color][item.shape] = item;

  return aggObj;
}, {});

//console.log(combinedData);

const groups = d3.select('svg').selectAll('g')
  .data(Object.entries(combinedData))
  .enter()
  .append('g')
  .attr('class', ([k,v]) => k);

groups
    .append('circle')
    .attr('fill', ([k,v]) => v.circle.color)
    .attr('r', ([k,v]) => v.circle.r)
    .attr('cx', ([k,v]) => v.circle.x)
    .attr('cy', ([k,v]) => v.circle.y)

groups
    .append('line')
    .attr('stroke', ([k,v]) => v.line.color)
    .attr('stroke-width', 0.1)
    .attr('x1', ([k,v]) => v.line.x1)
    .attr('y1', ([k,v]) => v.line.y1)
    .attr('x2', ([k,v]) => v.line.x2)
    .attr('y2', ([k,v]) => v.line.y2)

groups
    .append('rect')
    .attr('fill', "#cfcfcf")
    .attr('x', ([k,v]) => v.text.x - 0.6)
    .attr('y', ([k,v]) => v.text.y - 0.6)
    .attr('width', 1.1)
    .attr('height', 1.1)

groups
    .append('text')
    .attr('alignment-baseline', "middle")
    .attr('text-anchor', "middle")
    .attr('fill', ([k,v]) => v.text.color)
    .attr('font-size', 1)
    .attr('x', ([k,v]) => v.text.x)
    .attr('y', ([k,v]) => v.text.y)
    .text(([k,v]) => v.text.text)

<script src="https://cdnjs.cloudflare.com/ajax/libs/d3/5.7.0/d3.min.js"></script>
<svg width="100%" viewbox="0 0 12 12">

</svg>

​

分组要素：

​

​

扩大：

<svg width="100%" viewBox="0 0 12 12">
  <g class="green">
    <circle fill="green" r="0.5" cx="2" cy="2"></circle>
    <line stroke="green" stroke-width="0.1" x1="2" y1="2" x2="1" y2="1"></line>
    <rect fill="#cfcfcf" x="0.4" y="0.4" width="1.1" height="1.1"></rect>
    <text alignment-baseline="middle" text-anchor="middle" fill="green" font-size="1" x="1" y="1">A</text>
  </g>
  <g class="blue">
    <circle fill="blue" r="1" cx="4" cy="4"></circle>
    <line stroke="blue" stroke-width="0.1" x1="4" y1="4" x2="2" y2="6"></line>
    <rect fill="#cfcfcf" x="1.4" y="5.4" width="1.1" height="1.1"></rect>
    <text alignment-baseline="middle" text-anchor="middle" fill="blue" font-size="1" x="2" y="6">B</text>
  </g>
  <g class="red">
    <circle fill="red" r="1.5" cx="8" cy="8"></circle>
    <line stroke="red" stroke-width="0.1" x1="8" y1="8" x2="9" y2="4"></line>
    <rect fill="#cfcfcf" x="8.4" y="3.4" width="1.1" height="1.1"></rect>
    <text alignment-baseline="middle" text-anchor="middle" fill="red" font-size="1" x="9" y="4">C</text>
  </g>
</svg>

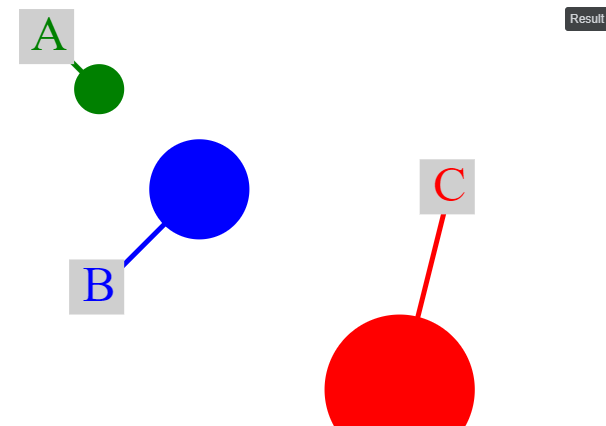

产出(粗略例子)：

​

​
