问快速垂直叠加元素
EN

Stack Overflow用户

提问于 2020-07-26 07:01:59

回答 2查看 229关注 0票数 0

我很难用UIStackView获得想要的效果。这是我的设置：

具有textfield的Field元素：

class NewEditableFuelSheetField: UIView {

    var titleText: String?

    var textFieldText: String?

    init(titleText: String, textFieldText: String) {

        super.init(frame: .zero)
        self.titleText = titleText
        self.textFieldText = textFieldText

        self.addSubview(editableField)
    }

    required init?(coder: NSCoder) {
        fatalError("init(coder:) has not been implemented")
    }

    private lazy var editableField: UIStackView = {
        let title = UILabel()
        title.text = self.titleText

        let textField = UITextField()
        textField.isEnabled = false

        let stack = UIStackView(arrangedSubviews: [title, textField])
        stack.axis = .vertical
        stack.distribution = .fillEqually
        stack.translatesAutoresizingMaskIntoConstraints = false

        return stack
    }()

    private func configureAutoLayout() {
        NSLayoutConstraint.activate([
        editableField.heightAnchor.constraint(equalToConstant: 50)
        ])
    }
}

具有固定值的字段：

class NewFixedFuelSheetField: UIView {

    var title: String?

    var detail: String?

    init(title: String, detail: String) {

        super.init(frame: .zero)

        self.title = title

        self.detail = detail
        configureAutoLayout()

        self.addSubview(fixedField)
    }

    required init?(coder: NSCoder) {
        fatalError("init(coder:) has not been implemented")
    }

    private lazy var fixedField: UIStackView = {

        let title = UILabel()
        let detail = UILabel()

        title.text = self.title
        detail.text = self.detail

        let stack = UIStackView(arrangedSubviews: [title, detail])
        stack.axis = .vertical
        stack.distribution = .fillEqually

        stack.translatesAutoresizingMaskIntoConstraints = false

        self.addSubview(stack)

        return stack
    }()

    private func configureAutoLayout() {
        NSLayoutConstraint.activate([
        fixedField.heightAnchor.constraint(equalToConstant: 50)
        ])
    }
}

包含不可编辑字段堆栈的Header视图：

class NewFuelSheetHeaderView: UIView {

    // MARK:  Init

    override init(frame: CGRect) {
        super.init(frame: .zero)
        self.addSubview(fuelSheetHeaderStack)
        configureAutoLayout()
    }

    required init?(coder: NSCoder) {
        fatalError("init(coder:) has not been implemented")
    }

    // MARK:  Properties

    // 'detail' text will be brought in from API in next ticket

    private lazy var flightNumber: NewFixedFuelSheetField = {
        return NewFixedFuelSheetField(title: "Flight number", detail: "VS0101")
    }()

    private lazy var aircraftReg: NewFixedFuelSheetField = {
        return NewFixedFuelSheetField(title: "Aircraft reg", detail: "GAAAA")
    }()

    private lazy var date: NewFixedFuelSheetField = {
       return NewFixedFuelSheetField(title: "Date", detail: "01.01.21")
    }()

    private lazy var time: NewFixedFuelSheetField = {
       return NewFixedFuelSheetField(title: "Time", detail: "12:01")
    }()

    private let supplier: NewFixedFuelSheetField = {
       return NewFixedFuelSheetField(title: "Supplier", detail: "i6Staging, BAPCO")
    }()

    private let fuelGrade: NewFixedFuelSheetField = {
       return NewFixedFuelSheetField(title: "Fuel grade", detail: "Jet A")
    }()

    private let freezePoint: NewFixedFuelSheetField = {
       return NewFixedFuelSheetField(title: "Freeze point", detail: "-40")
    }()

    private let specificGravity: NewFixedFuelSheetField = {
       return NewFixedFuelSheetField(title: "Specific gravity", detail: "0.793")
    }()

    private lazy var fuelSheetHeaderFirstRow: UIStackView = {
        let stack = UIStackView(arrangedSubviews: [
            flightNumber,
            aircraftReg,
            date,
            time
        ])

        stack.axis = .horizontal
        stack.distribution = .fillEqually
        return stack
    }()

    private lazy var fuelSheetHeaderSecondRow: UIStackView = {
        let stack = UIStackView(arrangedSubviews: [
            supplier,
            fuelGrade,
            freezePoint,
            specificGravity
        ])

        stack.axis = .horizontal
        stack.distribution = .fillEqually
        return stack
    }()

    private lazy var fuelSheetHeaderStack: UIStackView = {
       let stack = UIStackView(arrangedSubviews: [fuelSheetHeaderFirstRow, fuelSheetHeaderSecondRow])
        stack.axis = .vertical
        stack.distribution = .fillEqually
        stack.translatesAutoresizingMaskIntoConstraints = false
        return stack
    }()

    // MARK:  Configuration

    private func configureAutoLayout() {
        NSLayoutConstraint.activate([
            fuelSheetHeaderStack.topAnchor.constraint(equalTo: self.topAnchor, constant: 50),
            fuelSheetHeaderStack.leftAnchor.constraint(equalTo: leftAnchor),
            fuelSheetHeaderStack.rightAnchor.constraint(equalTo: rightAnchor),
            fuelSheetHeaderStack.heightAnchor.constraint(equalToConstant: 200)
        ])
    }
}

第二个视图最终需要放在标题下面：

class NewFuelSheetRefuelInfoView: UIView {

    // MARK:  Init

    override init(frame: CGRect) {
        super.init(frame: .zero)
        self.addSubview(refuelStackView)
        configureAutoLayout()
    }

    required init?(coder: NSCoder) {
        fatalError("init(coder:) has not been implemented")
    }

    // MARK:  Properties

    private lazy var preRefuel: NewEditableFuelSheetField = {
        return NewEditableFuelSheetField(titleText: "A. Pre-refuel FOB", textFieldText: "")
    }()

    private lazy var requiredDepartureFuel: NewEditableFuelSheetField = {
        return NewEditableFuelSheetField(titleText: "B. Required departure fuel", textFieldText: "")
    }()

    private lazy var requiredUplift: NewEditableFuelSheetField = {
        return NewEditableFuelSheetField(titleText: "C. Required uplift (B - A)", textFieldText: "")
    }()

    private lazy var actualUplift: NewEditableFuelSheetField = {
        return NewEditableFuelSheetField(titleText: "D. Actual uplift", textFieldText: "")
    }()

    private lazy var actualDepartureFuel: NewEditableFuelSheetField = {
        return NewEditableFuelSheetField(titleText: "E. Actual departure fuel", textFieldText: "")
    }()

    private lazy var refuelStackView: UIStackView = {
        let stack = UIStackView(arrangedSubviews: [
            preRefuel,
            requiredDepartureFuel,
            requiredUplift,
            actualUplift,
            actualDepartureFuel
        ])

        stack.axis = .vertical
        stack.distribution = .fillEqually
        stack.translatesAutoresizingMaskIntoConstraints = false
        return stack
    }()

    // MARK:  Config

    private func configureAutoLayout() {
        NSLayoutConstraint.activate([
            refuelStackView.topAnchor.constraint(equalTo: topAnchor, constant: 50),
            refuelStackView.leftAnchor.constraint(equalTo: leftAnchor),
            refuelStackView.rightAnchor.constraint(equalTo: rightAnchor),
            refuelStackView.heightAnchor.constraint(equalToConstant: 300)
        ])
    }
}

然后，我有一个主要观点，把这些因素结合在一起：

class NewFuelSheetMainView: UIView {

    override init(frame: CGRect) {
        super.init(frame: .zero)
        self.addSubview(mainStack)
        configureAutoLayout()
    }

    required init?(coder: NSCoder) {
        fatalError("init(coder:) has not been implemented")
    }

    private lazy var flightDetailsHeader: NewFuelSheetHeaderView = {
       return NewFuelSheetHeaderView()
    }()

    private lazy var refuelView: NewFuelSheetRefuelInfoView = {
        return NewFuelSheetRefuelInfoView()
    }()

    private lazy var mainStack: UIStackView = {
        let stack = UIStackView(arrangedSubviews: [flightDetailsHeader, refuelView])
        stack.axis = .vertical
        stack.distribution = .fillEqually
        stack.translatesAutoresizingMaskIntoConstraints = false
        return stack
    }()

    private func configureAutoLayout() {
        NSLayoutConstraint.activate([
            mainStack.topAnchor.constraint(equalTo: topAnchor, constant: 30),
            mainStack.leftAnchor.constraint(equalTo: leftAnchor),
            mainStack.rightAnchor.constraint(equalTo: rightAnchor),
            mainStack.bottomAnchor.constraint(equalTo: bottomAnchor)
        ])
    }
}

最后用VC显示主视图：

class DataEntryViewController: I6ViewController {

    // MARK:  Init

    override init(nibName nibNameOrNil: String?, bundle nibBundleOrNil: Bundle?) {
        super.init(nibName: nil, bundle: nil)
        configureAutoLayout()
    }

    required init?(coder: NSCoder) {
        fatalError("init(coder:) has not been implemented")
    }

    // MARK:  Lifecycle

    override func viewDidLoad() {
        view.backgroundColor = .white
    }

    // MARK:  Properties

    private lazy var mainView: NewFuelSheetMainView = {
        let mainView = NewFuelSheetMainView()
        mainView.translatesAutoresizingMaskIntoConstraints = false
        view.addSubview(mainView)
        return mainView
    }()

    // MARK:  Configuration

    private func configureAutoLayout() {
        NSLayoutConstraint.activate([
            mainView.leftAnchor.constraint(equalTo: view.leftAnchor),
            mainView.rightAnchor.constraint(equalTo: view.rightAnchor),
        ])
    }
}

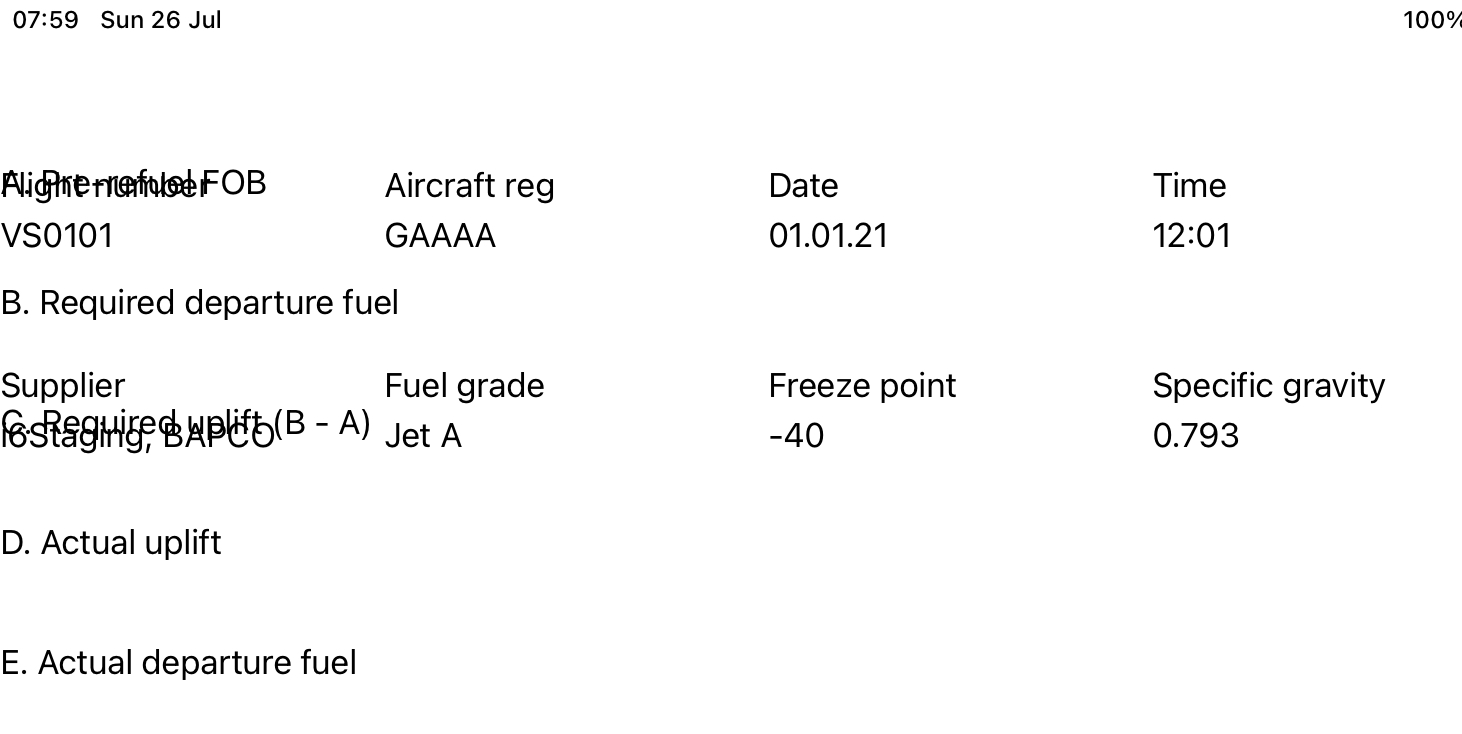

在我的脑海中，(显然，我的逻辑是有缺陷的，因为它不起作用！)这里的关键部分在主视图中，我在其中展示了两个较小视图的堆栈。这里，我清楚地将堆栈设置为.vertical，并将这个垂直堆栈固定在主视图的顶部和底部。然而，第二种观点出现在第一种情况下--这是我所预料到的--相反，它们只是出现在另一种之上：

很明显，我错过了一个关键点，但我不知道在哪里。任何帮助都将不胜感激。

vertical-alignment

uistackview

swift

xcode

autolayout

回答 2

Stack Overflow用户

回答已采纳

发布于 2020-07-26 09:41:50

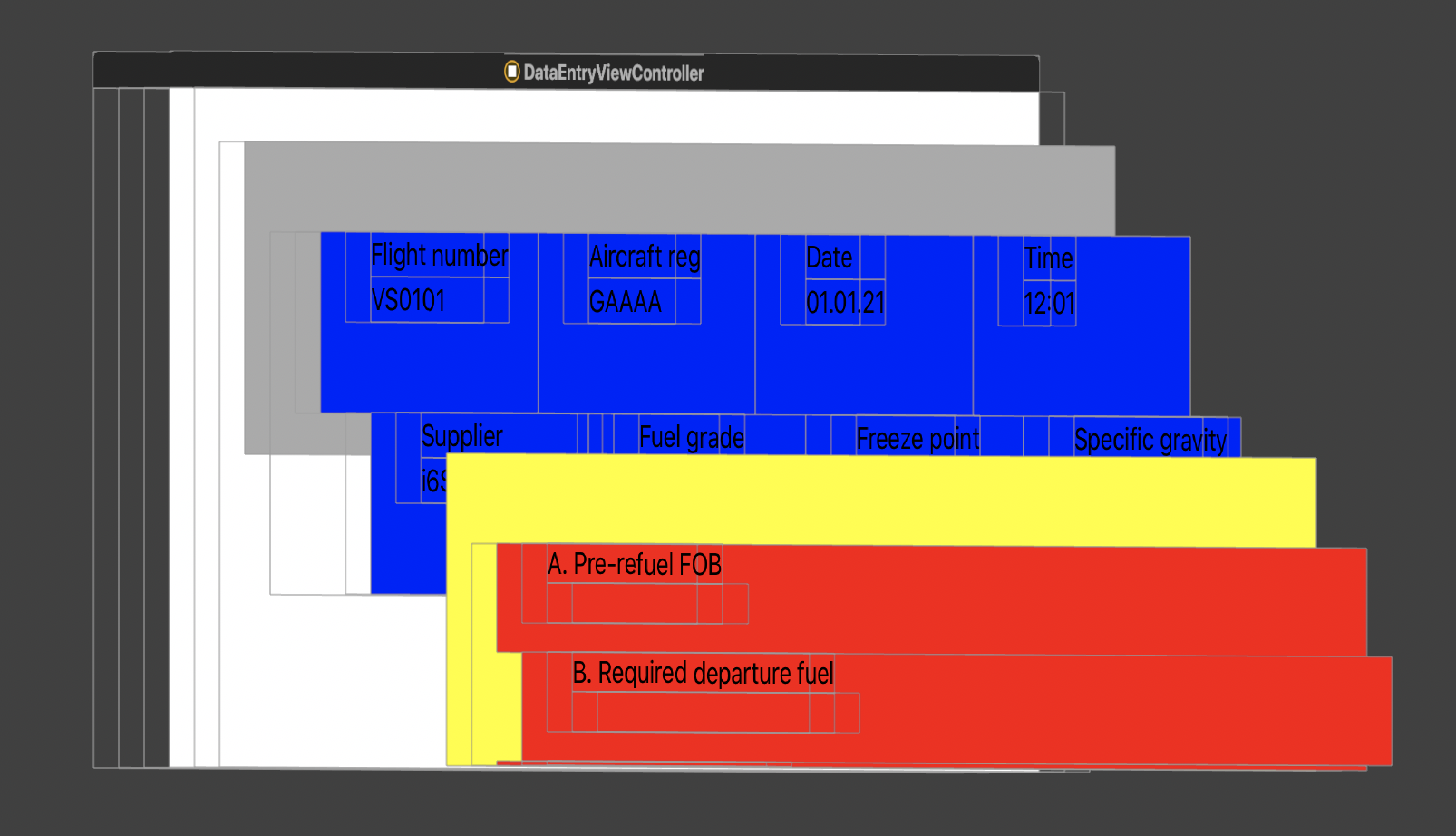

你可以猜到这与你的约束有关。这是您的视图当前的样子。UIstackViews对它们的内容进行了自我调整。需要给出UIViews的高度和宽度信息。

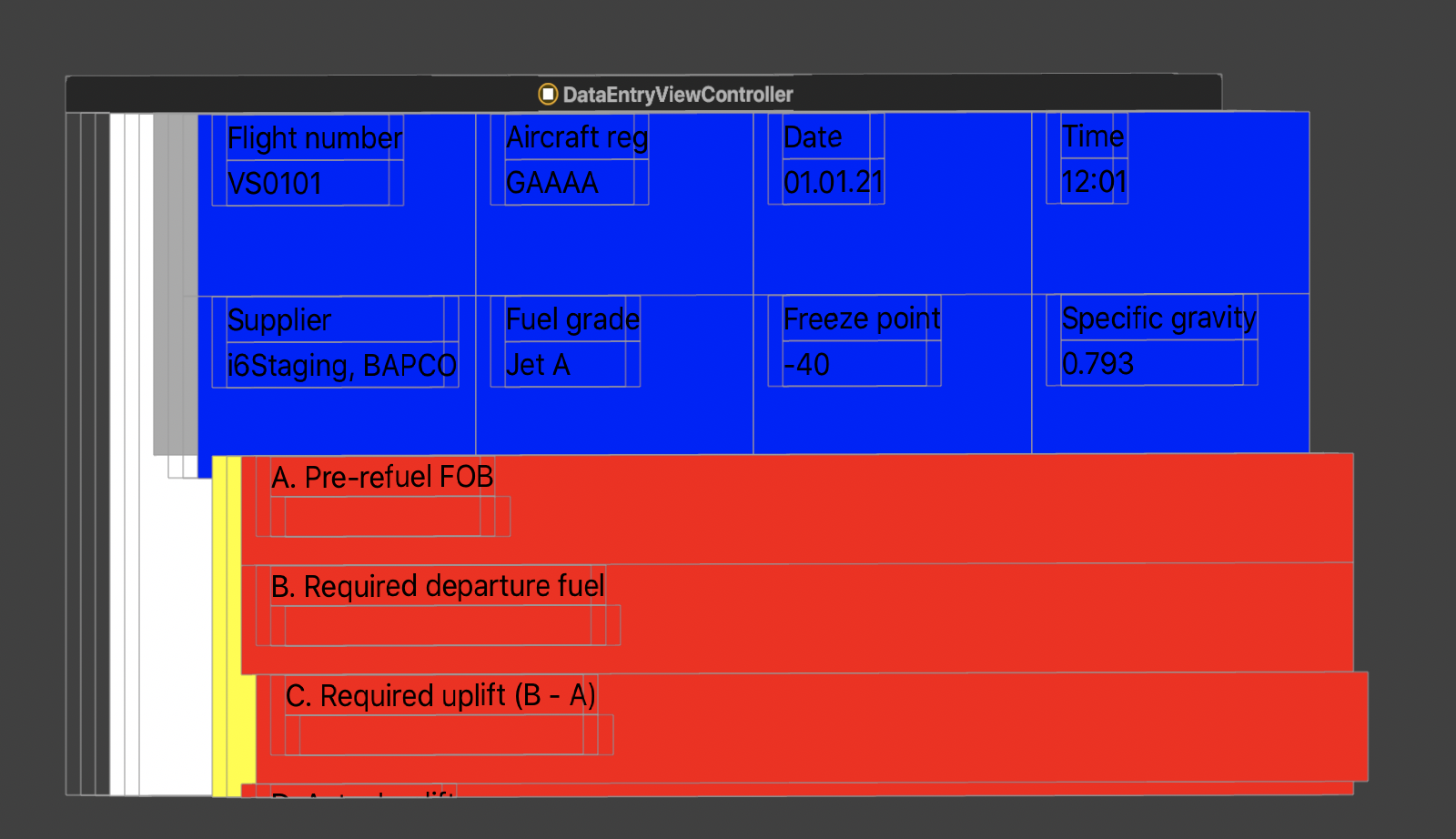

这是在我做出调整之后。

DataEntryViewController
mainView.topAnchor.constraint(equalTo: view.topAnchor),
mainView.leftAnchor.constraint(equalTo: view.leftAnchor),
mainView.rightAnchor.constraint(equalTo: view.rightAnchor),
mainView.bottomAnchor.constraint(equalTo: view.bottomAnchor),

NewFuelSheetMainView
mainStack.topAnchor.constraint(equalTo: view.topAnchor),
mainStack.leftAnchor.constraint(equalTo: view.leftAnchor),
mainStack.rightAnchor.constraint(equalTo: view.rightAnchor),
mainStack.bottomAnchor.constraint(equalTo: view.bottomAnchor),

NewFuelSheetRefuelInfoView
refuelStackView.leftAnchor.constraint(equalTo: leftAnchor),
refuelStackView.rightAnchor.constraint(equalTo: rightAnchor),
refuelStackView.heightAnchor.constraint(equalToConstant: 300)

NewFuelSheetHeaderView
fuelSheetHeaderStack.leftAnchor.constraint(equalTo: leftAnchor),
fuelSheetHeaderStack.rightAnchor.constraint(equalTo: rightAnchor),
fuelSheetHeaderStack.heightAnchor.constraint(equalToConstant: 200)

票数 0

Stack Overflow用户

发布于 2020-07-27 16:41:42

在开发过程中，有几个提示：

为您的UI元素提供对比背景色，使您很容易在运行时
上看到帧，每次都在一个元素上为所有UIView子类设置self.clipsToBounds = true如果它们的子视图不可见，您知道您有约束问题h 210f 211

例如，让我们从你的NewEditableFuelSheetField开始.

创建一个开发/划痕视图控制器：

class ScratchViewController: UIViewController {

    override func viewDidLoad() {
        view.backgroundColor = UIColor(red: 0.5, green: 0.75, blue: 1.0, alpha: 1.0)

        let v = NewEditableFuelSheetField(titleText: "A. Pre-refuel FOB", textFieldText: "")
        view.addSubview(v)
        v.translatesAutoresizingMaskIntoConstraints = false

        // respect safe-area
        let g = view.safeAreaLayoutGuide
        NSLayoutConstraint.activate([
            v.topAnchor.constraint(equalTo: g.topAnchor, constant: 20.0),
            v.leadingAnchor.constraint(equalTo: g.leadingAnchor, constant: 20.0),
            v.trailingAnchor.constraint(equalTo: g.trailingAnchor, constant: -20.0),
        ])

    }

}

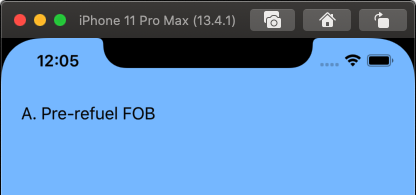

如果没有对NewEditableFuelSheetField类进行任何更改，则输出如下：

文本字段在那里，但是我们从输出中不知道这一点。那么，让我们对你的班级做一些改变：

class NewEditableFuelSheetField: UIView {

    var titleText: String?

    var textFieldText: String?

    init(titleText: String, textFieldText: String) {

        super.init(frame: .zero)
        self.titleText = titleText
        self.textFieldText = textFieldText

        self.addSubview(editableField)

        // this was missing from the code in your question
        configureAutoLayout()

        // so we can see the frame at run-time
        self.backgroundColor = .red
    }

    required init?(coder: NSCoder) {
        fatalError("init(coder:) has not been implemented")
    }

    private lazy var editableField: UIStackView = {
        let title = UILabel()
        title.text = self.titleText

        let textField = UITextField()
        textField.isEnabled = false

        // so we can see the frames at run-time
        title.backgroundColor = .yellow
        textField.backgroundColor = .green
        //

        let stack = UIStackView(arrangedSubviews: [title, textField])
        stack.axis = .vertical
        stack.distribution = .fillEqually
        stack.translatesAutoresizingMaskIntoConstraints = false

        return stack
    }()

    private func configureAutoLayout() {
        NSLayoutConstraint.activate([
            editableField.heightAnchor.constraint(equalToConstant: 50)
        ])
    }
}

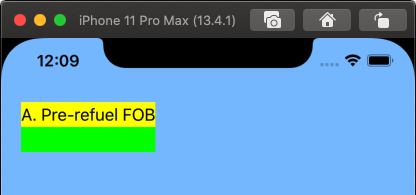

好的..。现在我们看到标签和字段的帧..。，但，我们限制了视图的引导/尾随，两边各有20点。那么，我们为什么不看看红色的背景呢？

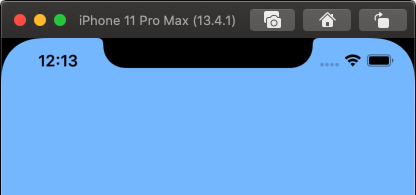

让我们在clipsToBounds中添加init

    self.addSubview(editableField)

    // this was missing from the code in your question
    configureAutoLayout()

    // so we can see the frames at run-time
    self.backgroundColor = .red

    // set clipsToBounds
    self.clipsToBounds = true

新产出：

嗯..。显然不是我们想要的。如果使用Debug View Hierarchy，我们可以看到NewEditableFuelSheetField实例的高度和宽度为零，其内容显示为“超出范围”。

将标签和字段添加到垂直堆栈视图中，将堆栈视图添加到self，并将其高度设置为50.但是，您没有为堆栈视图提供与其superview相关的任何约束。

让我们解决这个问题：

private func configureAutoLayout() {
    NSLayoutConstraint.activate([
        editableField.heightAnchor.constraint(equalToConstant: 50),

        // constraints relative to superview (self)
        editableField.topAnchor.constraint(equalTo: topAnchor),
        editableField.leadingAnchor.constraint(equalTo: leadingAnchor),
        editableField.bottomAnchor.constraint(equalTo: bottomAnchor),
    ])
}

呜呼！看来我们取得了一些进展。

现在，让我们将5个NewEditableFuelSheetField实例添加到垂直堆栈视图中(间距为8以表明清楚)：

class ScratchViewController: UIViewController {

    private lazy var preRefuel: NewEditableFuelSheetField = {
        return NewEditableFuelSheetField(titleText: "A. Pre-refuel FOB", textFieldText: "")
    }()

    private lazy var requiredDepartureFuel: NewEditableFuelSheetField = {
        return NewEditableFuelSheetField(titleText: "B. Required departure fuel", textFieldText: "")
    }()

    private lazy var requiredUplift: NewEditableFuelSheetField = {
        return NewEditableFuelSheetField(titleText: "C. Required uplift (B - A)", textFieldText: "")
    }()

    private lazy var actualUplift: NewEditableFuelSheetField = {
        return NewEditableFuelSheetField(titleText: "D. Actual uplift", textFieldText: "")
    }()

    private lazy var actualDepartureFuel: NewEditableFuelSheetField = {
        return NewEditableFuelSheetField(titleText: "E. Actual departure fuel", textFieldText: "")
    }()

    private lazy var refuelStackView: UIStackView = {
        let stack = UIStackView(arrangedSubviews: [
            preRefuel,
            requiredDepartureFuel,
            requiredUplift,
            actualUplift,
            actualDepartureFuel
        ])

        stack.axis = .vertical
        stack.distribution = .fillEqually
        stack.translatesAutoresizingMaskIntoConstraints = false
        return stack
    }()

    override func viewDidLoad() {
        view.backgroundColor = UIColor(red: 0.5, green: 0.75, blue: 1.0, alpha: 1.0)

        view.addSubview(refuelStackView)

        // for visual example
        refuelStackView.spacing = 8

        // respect safe-area
        let g = view.safeAreaLayoutGuide
        NSLayoutConstraint.activate([
            refuelStackView.topAnchor.constraint(equalTo: g.topAnchor, constant: 20.0),
            refuelStackView.leadingAnchor.constraint(equalTo: g.leadingAnchor, constant: 20.0),
            refuelStackView.trailingAnchor.constraint(equalTo: g.trailingAnchor, constant: -20.0),
        ])

    }

}

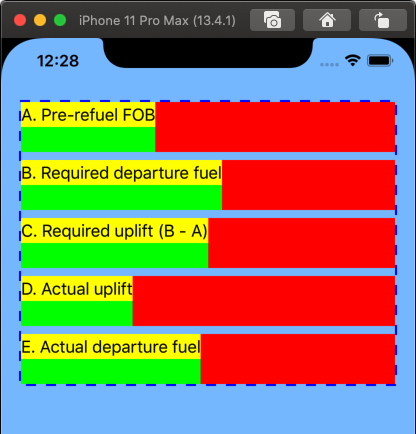

结果(我添加了一个深蓝色虚线轮廓以显示堆栈视图的框架)：

如果您使用每个UIView子类(从最“内部”的视图开始)遵循这个开发过程，那么您应该已经上路了。

附带注意:当将大小(高度或宽度)约束给视图时，要将其添加到堆栈视图(分别为垂直/水平)，然后将堆栈视图.distribution = .fillEqually 和设置为自己的高度/宽度约束。最后你可以说：

make each of 5 arranged subviews 50-pts in height
make the stack view 300-pts in height
fill equally

你得到了5 * 50 = 250 ..。它将与stack view height = 300发生冲突

票数 0

页面原文内容由Stack Overflow提供。腾讯云小微IT领域专用引擎提供翻译支持

原文链接：

https://stackoverflow.com/questions/63097105

复制

相似问题

问快速垂直叠加元素
EN

回答 2

Stack Overflow用户

Stack Overflow用户

社区

活动

圈层

关于

腾讯云开发者

热门产品

热门推荐

更多推荐

问快速垂直叠加元素EN

回答 2

Stack Overflow用户

Stack Overflow用户

社区

活动

圈层

关于

腾讯云开发者

热门产品

热门推荐

更多推荐

问快速垂直叠加元素
EN
