geom_text标签不想在我的条形图上躲避

Question

我的酒吧里的标签有问题。我尝试了不同的解决方案，从这个网站，但没有改变。

以下是我的数据示例：

   <date>     <chr>                     <int>
 1 2019-03-01 Membershiptype1               2
 2 2019-04-01 Membershiptype1               1
 3 2019-07-01 Membershiptype1               1
 4 2019-08-01 Membershiptype1               1
 5 2019-09-01 Membershiptype1               2
 6 2019-10-01 Membershiptype1               1
 7 2019-11-01 Membershiptype1               1
 8 2020-01-01 Membershiptype1               2
 9 2020-01-01 Membershiptype2               2
10 2020-02-01 Membershiptype1               4

我使用了以下软件包:库(Dbplot)库(Modeldb)库(Tidypredict)库(Tidyverse)库(Lubridate)

这是我用来制作条形图的代码：

signupMT <- ggplot(SignupPM, aes(fill=`Membership type`,  y=count_by_Name, x=month)) +
  geom_bar(position=position_dodge(preserve = 'single'), stat="identity") +
  scale_fill_manual(values=c("#2381EB", "#8442D1", "#CF07BA"), name = NULL, labels = c("Student/Unemployed", "Full member", "Online member")) +
  theme_classic() +
  labs( x= NULL, y= "Number of sign-ups", title = "Sing-ups per month by membership type")+
  theme(legend.position="bottom",
        axis.text.x = element_text(angle = 45, hjust = 0.1, vjust = 0))+
  scale_x_date(breaks= "month",date_labels = "%b %Y") +
  geom_text(aes(label= count_by_Name, group = month), position=position_dodge(width = 1), vjust=-0.5)

我也尝试过使用group = 'membership type'或播放宽度值，但是没有什么变化。

我也尝试过这个建议，但随后我得到了错误消息: stat_count()只能具有x或y美学。

geom_text(aes(y=count_by_Name, label = stat(count)), stat = 'count', position=position_dodge(2), vjust=-0.5, size = 3)

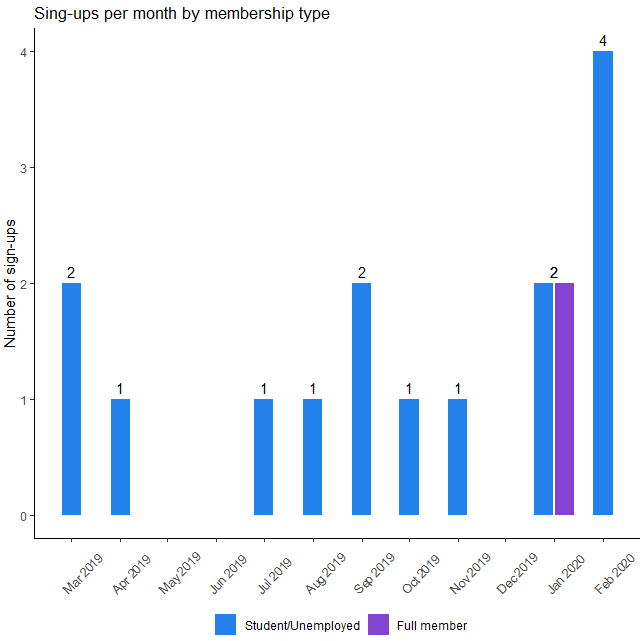

这就是我得到的酒吧情节：

​

​

我在这里错过了什么？

Answer 1

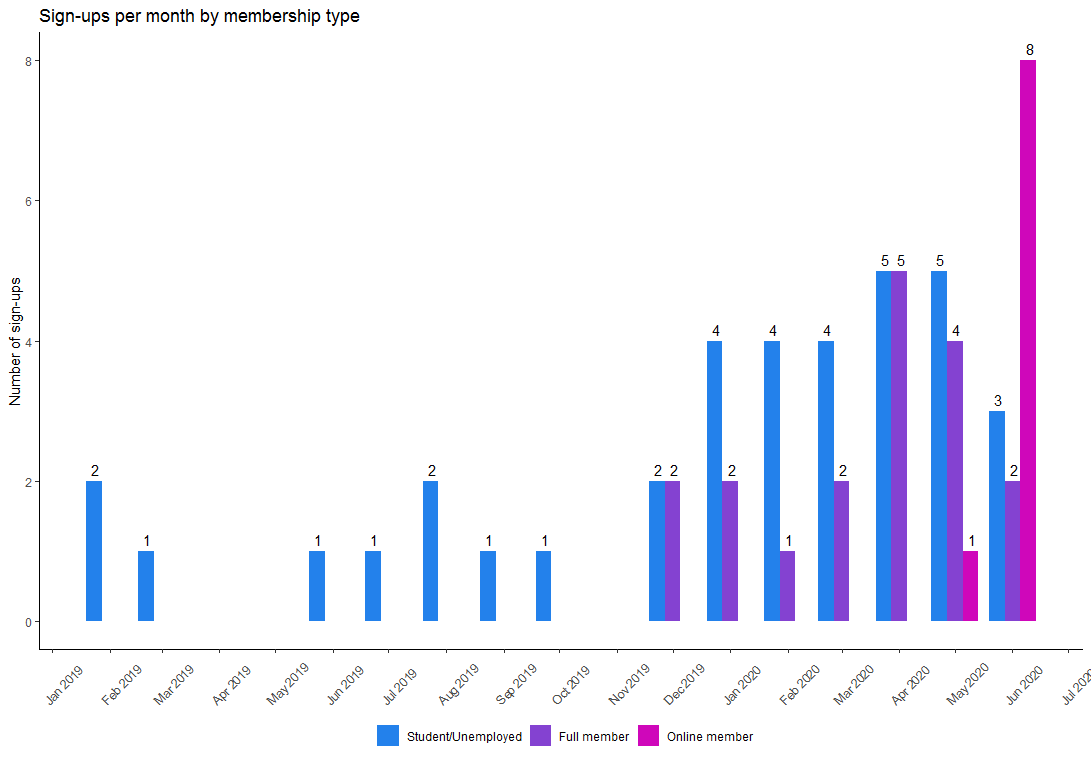

就grid图形系统( ggplot2所基于的)而言，文本元素的宽度为零，因此不能像绘图列那样躲避。一旦解决这一问题的方法是使用hjust作为一种美学映射：

ggplot(SignupPM, aes(y = count_by_Name, x = month)) +
  geom_col(aes(fill = `Membership type`),
            position = position_dodge(preserve = 'single')) +
  geom_text(aes(label= count_by_Name,
                hjust = - 2 * as.numeric(`Membership type`) + 4.3),
            vjust = -0.5) +
  scale_x_date(breaks = "month", date_labels = "%b %Y") +
  scale_fill_manual(values = c("#2381EB", "#8442D1", "#CF07BA"),
                    name = NULL,
                    labels = c("Student/Unemployed",
                               "Full member", "Online member")) +
  labs( x = NULL, y = "Number of sign-ups",
        title = "Sign-ups per month by membership type") +
  theme_classic() +
  theme(legend.position = "bottom",
        axis.text.x     = element_text(angle = 45, hjust = 0.1, vjust = 0))

​

​

数据(从所涉地块推断)

SignupPM <- structure(list(count_by_Name = c(2L, 1L, 1L, 1L, 2L, 1L, 1L,
  2L, 2L, 4L, 2L, 4L, 1L, 4L, 2L, 5L, 5L, 5L, 4L, 1L, 3L, 2L, 8L
  ), month = structure(c(17928, 17956, 18048, 18078, 18109, 18140,
  18170, 18231, 18231, 18262, 18262, 18293, 18293, 18322, 18322,
  18353, 18353, 18383, 18383, 18383, 18414, 18414, 18414), class = "Date"),
      `Membership type` = structure(c(1L, 1L, 1L, 1L, 1L, 1L, 1L,
      1L, 2L, 1L, 2L, 1L, 2L, 1L, 2L, 1L, 2L, 1L, 2L, 3L, 1L, 2L,
      3L), .Label = c("Membershiptype1", "Membershiptype2", "Membershiptype3"
      ), class = "factor")), row.names = c(NA, -23L), class = "data.frame")

Answer 2

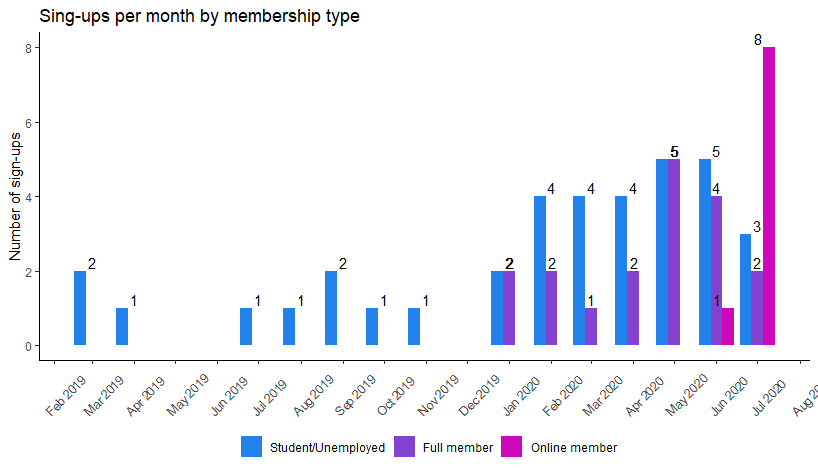

利用@teunbrand的伟大建议，这可能会有所帮助：

library(tidyverse)

#Data
SignupPM <- structure(list(month = structure(c(17956, 17987, 18078, 18109,
18140, 18170, 18201, 18262, 18262, 18293), class = "Date"), Membership_type = c("Membershiptype1",
"Membershiptype1", "Membershiptype1", "Membershiptype1", "Membershiptype1",
"Membershiptype1", "Membershiptype1", "Membershiptype1", "Membershiptype2",
"Membershiptype1"), count_by_Name = c(2L, 1L, 1L, 1L, 2L, 1L,
1L, 2L, 2L, 4L)), row.names = c(NA, -10L), class = "data.frame")

#Code
ggplot(SignupPM, aes(fill=Membership_type,  y=count_by_Name, x=month)) +
  geom_col(position = position_dodge2(width = 0.9, preserve = "single")) +
  scale_fill_manual(values=c("#2381EB", "#8442D1", "#CF07BA"), name = NULL, labels = c("Student/Unemployed", "Full member", "Online member")) +
  theme_classic() +
  labs( x= NULL, y= "Number of sign-ups", title = "Sing-ups per month by membership type")+
  theme(legend.position="bottom",
        axis.text.x = element_text(angle = 45, hjust = 0.1, vjust = 0))+
  scale_x_date(breaks= "month",date_labels = "%b %Y") +
  geom_text(aes(label= count_by_Name, group = month), position=position_dodge(width=0.9), vjust=-0.5)

​

​
