在“统一”中，计算圆角上与直线垂直的给定距离

Question

我制作了一个模型来说明我想要计算的内容。给定两个锚点之间的一条线(向量)，我想将一个或多个游戏对象与该矢量的中点成一定距离的切线，并以指定的角度(弧度？)沿着一个垂直于向量的圆。

在这幅图中，一个虚圆位于中点，垂直于锚1和锚2之间的线。我要计算三个点(P1、P2和P3)的P1位置。其目的是将对象放置在每个点上。整个程序集将是一个可以在空间中旋转的游戏对象。(将有一个游戏对象，每个对象都是一个子对象。)

​

​

我已经搜索了StackOverflow和团结社区，找不到帮助我完成这三个位置的例子。

有什么想法吗？

Answer 1

考虑向量数学和四元数，而不是trig。使用交叉积找到0角偏移量，四元数根据角度旋转它。有关解释，请参见评论。

public void PlaceObjects(Transform anchor1, Transform anchor2, float r,
        List<Transform> objs, List<float> angles)
{
    // lists must be non-null and same size
    Debug.Assert(objs != null);
    Debug.Assert(angles != null);
    Debug.Assert(objs.Count == angles.Count);

    // Find midpoint and axis of rotation
    Vector3 midpoint = 0.5f * (anchor1.position + anchor2.position);
    Vector3 axis = (anchor2.position - anchor1.position).normalized;

    // What direction should the the "zero" offset be based on?
    // Base it on the local up of the "assembly parent" this script is attached to?
    // or Vector3.up if "0 angle" should approximate world up?
    Vector3 upDirection = transform.up;

    // Of directions perpendicular to the axis find the closest to upDirection
    // See https://stackoverflow.com/a/57698547/1092820 for more information
    Vector3 axisRight = Vector3.Cross(upDirection, axis);

    if (axisRight == Vector3.zero)
    {
        // upDirection & axis are colinear, no unique "up-ish" exists.
        // Just give up and don't move anything.
        return;
    }

    Vector3 zeroOffsetDir = Vector3.Cross(axis, axisRight);

    for (int i = 0 ; i < objs.Count ; i++)
    {
        Transform obj = objs[i];
        float angle = angles[i];

        // Find a rotation that describes how to rotate a "0 angle" offset into the one
        // the current object needs
        Quaternion rot = Quaternion.AngleAxis(angle, axis);

        // Find the offset by rotating the "zero" offset, then extending it by the radius
        Vector3 offset = r * (rot * zeroOffsetDir);

        // Set the object's position based on its offset and the location of the midpoint
        obj.position = midpoint + offset;

        // Optionally, set the object's rotation based on its current forward and the new up:
        // obj.rotation = Quaternion.LookRotation(obj.forward, offset);
    }
}

Answer 2

对于那些感兴趣的人，这是我对@Ruzihm的解决方案的组件改编。PlaceObjectsOnCirclePerpendicularToVectorLine组件放置在一个空的游戏对象上。

using System.Collections.Generic;
using UnityEngine;

public class PlaceObjectsOnCirclePerpendicularToVectorLine : MonoBehaviour
{
    // Adapted from https://stackoverflow.com/a/63308834/13052746, by Ruzihm.

    public Transform anchor1;
    public Transform anchor2;
    public float radius;
    public List<Transform> objs;
    public List<float> angles;

    private Vector3 anchor1PriorPosition;
    private Vector3 anchor2PriorPosition;

    // Start is called before the first frame update
    void Start()
    {
        PlaceObjects(
            anchor1,
            anchor2,
            radius,
            objs,
            angles);
    }

    // Update is called once per frame
    void Update()
    {
        PlaceObjects(
            anchor1,
            anchor2,
            radius,
            objs,
            angles);
    }

    public void PlaceObjects(
        Transform anchor1,
        Transform anchor2,
        float radius,
        List<Transform> objs,
        List<float> angles)
    {

        if (anchor1PriorPosition == anchor1.position &&
            anchor2PriorPosition == anchor2.position)
        {
            // The anchors haven't moved.
            return;
        } else
        {
            anchor1PriorPosition = anchor1.position;
            anchor2PriorPosition = anchor2.position;
        }

        // lists must be non-null and same size
        Debug.Assert(objs != null);
        Debug.Assert(angles != null);
        Debug.Assert(objs.Count == angles.Count);

        // Find midpoint and axis of rotation
        Vector3 midpoint = 0.5f * (anchor1.position + anchor2.position);
        Vector3 axis = (anchor2.position - anchor1.position).normalized;

        // What direction should the the "zero" offset be based on?
        // Base it on the local up of the "assembly parent" this script is attached to?
        // or Vector3.up if "0 angle" should approximate world up?
        Vector3 upDirection = transform.up;

        // Of directions perpendicular to the axis find the closest to upDirection
        // See https://stackoverflow.com/a/57698547/1092820 for more information
        Vector3 axisRight = Vector3.Cross(upDirection, axis);

        //if (axisRight == Vector3.zero)
        //{
        //    // upDirection & axis are colinear, no unique "up-ish" exists.
        //    // Just give up and don't move anything.
        //    return;
        //}

        Vector3 zeroOffsetDir = Vector3.Cross(axis, axisRight);

        for (int i = 0; i < objs.Count; i++)
        {
            Transform obj = objs[i];
            float angle = angles[i];

            // Find a rotation that describes how to rotate a "0 angle" offset into the one
            // the current object needs
            Quaternion rot = Quaternion.AngleAxis(angle, axis);

            // Find the offset by rotating the "zero" offset, then extending it by the radius
            Vector3 offset = radius * (rot * zeroOffsetDir);

            // Set the object's position based on its offset and the location of the midpoint
            obj.position = midpoint + offset;
        }
    }
}

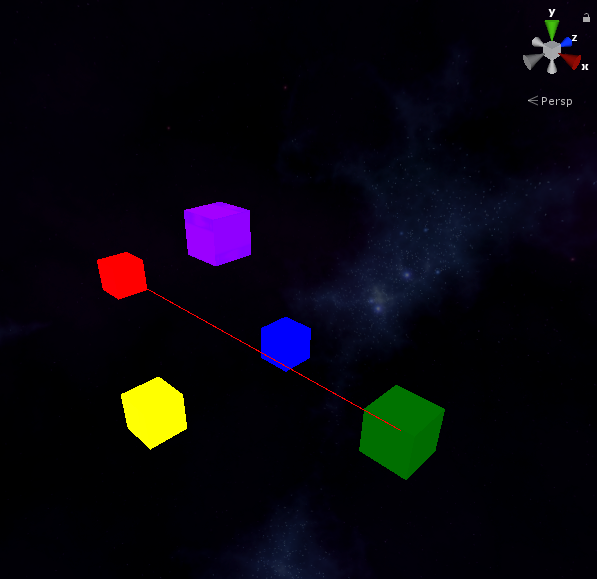

下面是场景视图中的样子：

​

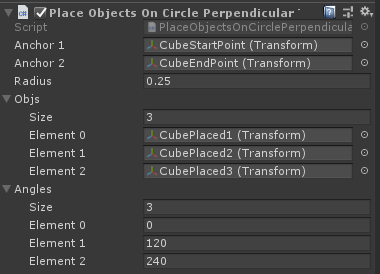

下面是这个组件在检查器中的样子：

​

再来一次，聪明的，鲁兹姆！这正是我想要的！
