ComplexHeatmap中传说顺序的变化

Question

交叉邮政： 问题/557

我无法找到改变ComplexHeatmap传说顺序的解决方案。

示例

library(ComplexHeatmap)

set.seed(100)

ha <- HeatmapAnnotation(foo = rep(c("gr1", "gr2"), each = 5), annotation_label = c("col_an"))

ra <- HeatmapAnnotation(pt = rep(letters[1:2], each = 5), which = "row", annotation_label = c("row_an"))

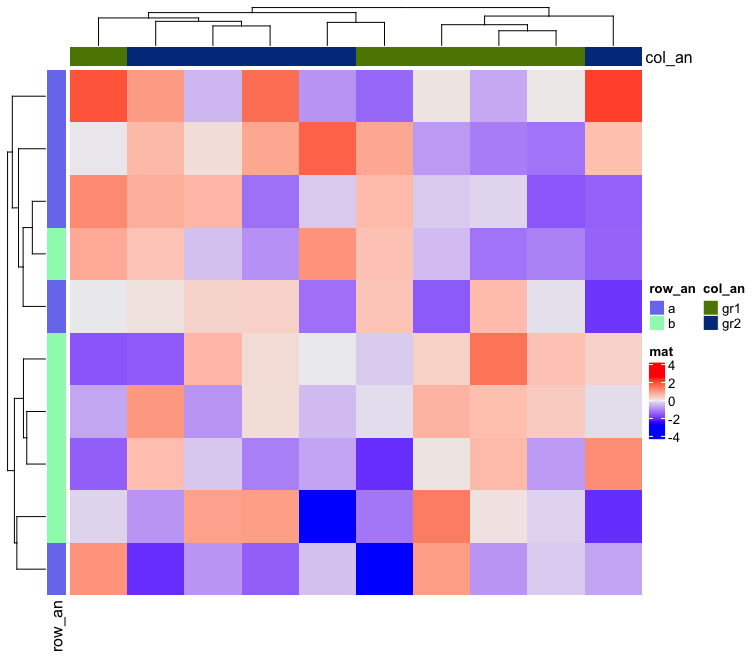

Heatmap(matrix(rnorm(100), 10), name = "mat", top_annotation = ha, left_annotation = ra)

​

​

问题：如何将传说按以下顺序排列，自上而下？

1. col_an
2. row_an
3. mat

SessionInfo

xfun::session_info()

R version 4.0.2 (2020-06-22)
Platform: x86_64-apple-darwin17.0 (64-bit)
Running under: macOS Mojave 10.14.6, RStudio 1.3.1056

Locale: en_US.UTF-8 / en_US.UTF-8 / en_US.UTF-8 / C / en_US.UTF-8 / en_US.UTF-8

Package version:
  assertthat_0.2.1     backports_1.1.8      base64enc_0.1.3      BiocGenerics_0.34.0  circlize_0.4.10
  cli_2.0.2            clue_0.3-57          cluster_2.1.0        colorspace_1.4-1     compiler_4.0.2
  ComplexHeatmap_2.5.4 crayon_1.3.4         curl_4.3             digest_0.6.25        ellipsis_0.3.1
  evaluate_0.14        fansi_0.4.1          GetoptLong_1.0.2     GlobalOptions_0.1.2  glue_1.4.1
  graphics_4.0.2       grDevices_4.0.2      grid_4.0.2           highr_0.8            htmltools_0.5.0
  IRanges_2.22.2       jsonlite_1.7.0       knitr_1.29           lifecycle_0.2.0      magick_2.4.0
  magrittr_1.5         markdown_1.1         methods_4.0.2        mime_0.9             parallel_4.0.2
  pillar_1.4.6         pkgconfig_2.0.3      png_0.1-7            purrr_0.3.4          R.cache_0.14.0
  R.methodsS3_1.8.0    R.oo_1.23.0          R.utils_2.9.2        RColorBrewer_1.1-2   Rcpp_1.0.5
  rematch2_2.1.2       rjson_0.2.20         rlang_0.4.7          rmarkdown_2.3        rprojroot_1.3.2
  rstudioapi_0.11      S4Vectors_0.26.1     shape_1.4.4          stats_4.0.2          stats4_4.0.2
  stringi_1.4.6        stringr_1.4.0        styler_1.3.2         tibble_3.0.3         tinytex_0.25
  tools_4.0.2          utf8_1.1.4           utils_4.0.2          vctrs_0.3.2          withr_2.2.0
  xfun_0.16

Answer 1

以下是作者提供的解决方案：

set.seed(100)

ha <- HeatmapAnnotation(foo = rep(c("gr1", "gr2"), each = 5), annotation_label = c("col_an"),
    annotation_name_side = "left")
ra <- HeatmapAnnotation(pt = rep(letters[1:2], each = 5), which = "row", annotation_label = c("row_an"))

ht = ha %v% Heatmap(matrix(rnorm(100), 10), name = "mat", left_annotation = ra)
draw(ht, merge_legend = TRUE, column_dend_side = "top")

https://github.com/jokergoo/ComplexHeatmap/issues/557#issuecomment-673404750
