Tibble换向坐标

Question

我试图做一个以前看起来很简单的操作，但是我没有在网络上找到一个明确的解决方案。

我有这样的桌子：

tibble(
   block = c(1,1,1,2,2,2),
   tag = letters[1:6],
   start = c(15,54,78,27,45,80),
   end = c(50,80,90,40,76,100),
   direction = c(-1,-1,1,1,1,1),
   anchor = c(FALSE,TRUE,FALSE,FALSE,TRUE,FALSE)
) -> df1
# A tibble: 6 x 6
  block tag   start   end direction anchor
  <dbl> <chr> <dbl> <dbl>     <dbl> <lgl>
1     1 a        15    50        -1 FALSE
2     1 b        54    80        -1 TRUE
3     1 c        78    90         1 FALSE
4     2 d        27    40         1 FALSE
5     2 e        45    76         1 TRUE
6     2 f        80   100         1 FALSE

我在block列中得到了组，一个组中只有一个anchor。给定这个(**direction * -1**)，如果锚方向是，则需要反转块内的坐标，-1 (**direction[anchor] == -1)，也需要保持锚坐标(**start & end**)**，并调整另一个坐标和anchor == FALSE坐标，以保持它们保持新月，但具有相同的比例(长度和距离到上下游标记)。

为了简化，如果组的锚点是-1，则需要重新确定坐标。这意味着，如果anchor == -1那么：

1. ancho * -1
2. tag订单必须是reverted
3. coordinates将被更改，保持标记的长度和在相同的

之间的距离

然后，输出只需要如下所示：

tibble(
  block = c(1,1,1,2,2,2),
  tag = c("c", "b", "a", "d", "e", "f"),
  start = c(44,54,84,27,45,80),
  end = c(56,80,119,40,76,100),
  direction = c(-1,1,1,1,1,1),
  anchor = c(FALSE,TRUE,FALSE,FALSE,TRUE,FALSE)
) -> df2
# A tibble: 6 x 6
  block tag   start   end direction anchor
  <dbl> <chr> <dbl> <dbl>     <dbl> <lgl>
1     1 c        44    56        -1 FALSE
2     1 b        54    80         1 TRUE
3     1 a        84   119         1 FALSE
4     2 d        27    40         1 FALSE
5     2 e        45    76         1 TRUE
6     2 f        80   100         1 FALSE

如下所示，长度和对距离保持不变：

df1 %>%
  group_by(block) %>%
  mutate(
    TagDistance = lead(start) - end,
    len = end - start
  )
# A tibble: 6 x 8
# Groups:   block [2]
  block tag   start   end direction anchor TagDistance   len
  <dbl> <chr> <dbl> <dbl>     <dbl> <lgl>        <dbl> <dbl>
1     1 a        15    50        -1 FALSE            4    35
2     1 b        54    80        -1 TRUE            -2    26
3     1 c        78    90         1 FALSE           NA    12
4     2 d        27    40         1 FALSE            5    13
5     2 e        45    76         1 TRUE             4    31
6     2 f        80   100         1 FALSE           NA    20



df2 %>%
  group_by(block) %>%
  mutate(
    TagDistance = lead(start) - end,
    len = end - start
  )
# A tibble: 6 x 8
# Groups:   block [2]
  block tag   start   end direction anchor TagDistance   len
  <dbl> <chr> <dbl> <dbl>     <dbl> <lgl>        <dbl> <dbl>
1     1 c        44    56        -1 FALSE           -2    12
2     1 b        54    80         1 TRUE             4    26
3     1 a        84   119         1 FALSE           NA    35
4     2 d        27    40         1 FALSE            5    13
5     2 e        45    76         1 TRUE             4    31
6     2 f        80   100         1 FALSE           NA    20

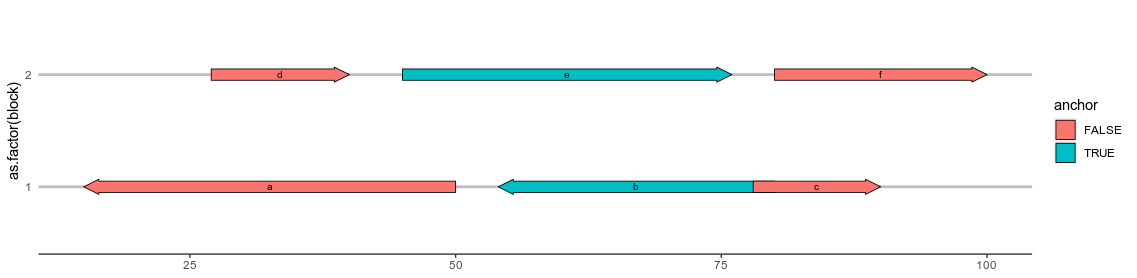

图形表示是这样的：

library(ggplot2)
library(gggenes)
df1 %>%
  ggplot(aes(xmin = start, xmax = end, y = as.factor(block), forward = direction, fill = anchor)) +
  geom_gene_arrow() +
  geom_gene_label(aes(label = tag)) +
  theme_genes()
#

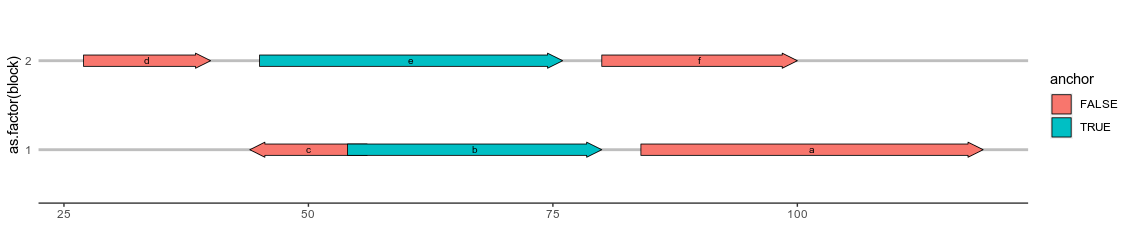

df2 %>%
  ggplot(aes(xmin = start, xmax = end, y = as.factor(block), forward = direction, fill = anchor)) +
  geom_gene_arrow() +
  geom_gene_label(aes(label = tag)) +
  theme_genes()

​

​

提前感谢

Answer 1

我解决了，很蠢，也许还有更好的解决方案？

tibble(
  block = c(1,1,1,2,2,2),
  tag = letters[1:6],
  start = c(15,54,78,27,45,80),
  end = c(50,80,90,40,76,100),
  direction = c(-1,-1,1,1,1,1),
  anchor = c(FALSE,TRUE,FALSE,FALSE,TRUE,FALSE)
) -> a
a
# A tibble: 6 x 6
  block tag   start   end direction anchor
  <dbl> <chr> <dbl> <dbl>     <dbl> <lgl>
1     1 a        15    50        -1 FALSE
2     1 b        54    80        -1 TRUE
3     1 c        78    90         1 FALSE
4     2 d        27    40         1 FALSE
5     2 e        45    76         1 TRUE
6     2 f        80   100         1 FALSE

然后，我按block分组并执行许多算术操作，这些操作是启发式的，如下所示：

a %>%
  group_by(block) %>%
  mutate(
    anchor_direction = direction[anchor],
    position_relative_to_anchor = case_when(
      anchor ~ NA_character_,
      (start < start[anchor]) | (start == start[anchor] && end < end[anchor]) ~ "upstream",
      start > start[anchor] ~ "downstream"
    ),
    TagDistance = if_else(
      position_relative_to_anchor == "upstream",
      start[anchor] - end,
      start - end[anchor]
    ),
    length = end - start,
    newstart = case_when(
      anchor ~ start,
      anchor_direction == 1 ~ start,
      position_relative_to_anchor == "upstream" ~ end[anchor] + TagDistance,
      position_relative_to_anchor == "downstream" ~ start[anchor] - TagDistance
    ),
    newend = case_when(
      anchor ~ end,
      anchor_direction == 1 ~ end,
      position_relative_to_anchor == "upstream" ~ newstart + length,
      position_relative_to_anchor == "downstream" ~ newstart - length
    ),
    start = case_when(
      anchor ~ start,
      anchor_direction == 1 ~ start,
      position_relative_to_anchor == "upstream" ~ newstart,
      position_relative_to_anchor == "downstream" ~ newend
    ),
    end = case_when(
      anchor ~ end,
      anchor_direction == 1 ~ end,
      position_relative_to_anchor == "upstream"    ~ newend,
      position_relative_to_anchor == "downstream"  ~ newstart
    )
  ) %>%
  arrange(block,start,end) %>%
  mutate(
    direction = direction * anchor_direction
  ) %>%
  select(
    -c(
      anchor_direction,
      position_relative_to_anchor,
      TagDistance,
      length,
      newstart,
      newend
    )
  ) -> a
a
# A tibble: 6 x 6
# Groups:   block [2]
  block tag   start   end direction anchor
  <dbl> <chr> <dbl> <dbl>     <dbl> <lgl>
1     1 c        44    56        -1 FALSE
2     1 b        54    80         1 TRUE
3     1 a        84   119         1 FALSE
4     2 d        27    40         1 FALSE
5     2 e        45    76         1 TRUE
6     2 f        80   100         1 FALSE

最后，我与预期的结果进行了比较：

tibble(
  block = c(1,1,1,2,2,2),
  tag = c("c", "b", "a", "d", "e", "f"),
  start = c(44,54,84,27,45,80),
  end = c(56,80,119,40,76,100),
  direction = c(-1,1,1,1,1,1),
  anchor = c(FALSE,TRUE,FALSE,FALSE,TRUE,FALSE)
) -> b
setdiff(a, b)
# A tibble: 0 x 6
# Groups:   block [0]
# … with 6 variables: block <dbl>, tag <chr>, start <dbl>, end <dbl>, direction <dbl>, anchor <lgl>

任何更好的解决办法都是受欢迎的。
