问笔划-达沙雷和中风-达舍夫集，以填补一个进展。
EN

Stack Overflow用户
提问于 2020-09-15 02:30:28
回答 2查看 629关注 0票数 1

我有两个svg，我正在尝试创建一个进度栏。第一个是曲线路径，但是，我已经设法让它使用stroke-dasharray="400 400"和stroke-dashoffset="-110" (在mask上使用它来填充进度)。效果很好。

我遇到的问题是直线，我想创建一个类似的进度条，它可以填充进度，但它不起作用，我一直在试图找出原因，可能已经有3个小时了……改变stroke-dasharray和stroke-dashoffset我无法得到掩码来填充点。我不知道我做错了什么。

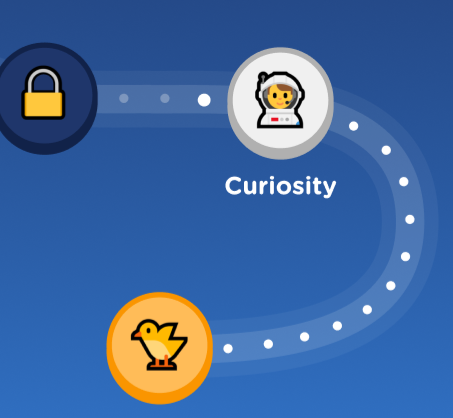

以下是我想要达到的效果的参考

​

​

我附上了我的密码：

​

代码语言：javascript
复制
body {
  background: #171B42;
}

.locked {
  text-align: center;
  margin: 44px auto;
  width: 230px;
  position: relative;
  margin-top: 180px;
  display:inline-block;
}

.locked img {
  width: 60px;
  margin: 0 26px;
}

.locked.row-1 svg {
  width: 163px;
  height: 175px;
  position: absolute;
  top: -130px;
  right: -50px;
  z-index: -1;
}

.locked.row-2 svg {
  width: 77px;
  height: 30px;
  position: absolute;
  top: -54px;
  right: 74px;
  z-index: -1;
}
代码语言：javascript
复制
<!-- CURVED PROGRESS  -->

<div class="locked row-1">

  <svg viewBox="0 0 163 175">
  <defs>
    <mask id="mask">
      <path  stroke-dasharray="400 400" stroke-width="10" stroke-dashoffset="-110" stroke="white" d="M0 16.7246C54 16.7246 145.7 11.6246 146.5 85.2246C147.3 158.825 51 158.225 0 158.225"></path>
    </mask>
    <path id="path" fill="none" d="M0 16.7246C54 16.7246 145.7 11.6246 146.5 85.2246C147.3 158.825 51 158.225 0 158.225"></path>
  </defs>
           <!-- solid wide line -->
  <use href="#path" stroke="rgba(255,255,255,0.05)" stroke-width="30"></use>
  <!-- solid narrow line -->
  <use href="#path" stroke="rgba(255,255,255,0.12)" stroke-width="15"></use>
  <!-- dotted full line -->
  <use href="#path" stroke="rgba(255,255,255,0.2)" stroke-width="5" stroke-dasharray="0 20" stroke-linecap="round"></use>
  <!-- dotted masked line -->
  <use href="#path" stroke="rgba(255,255,255,0.8)" stroke-width="5" stroke-dasharray="0 20" stroke-linecap="round" mask="url(#mask)"></use>

</svg>

  <img src="https://i.imgur.com/h3ElY2f_d.webp?maxwidth=728&fidelity=grand">
</div>


<!-- LINE PROGRESS  -->

<div class="locked row-2">

  <svg viewBox="0 0 77 17">
  <defs>
    <mask id="mask-2">
      <path  stroke-dasharray="400 400" stroke-width="10" stroke-dashoffset="10" stroke="white" d="M76.6841 8.40967H0.551514"></path>
    </mask>
    <path id="path-2" fill="none" d="M76.6841 8.40967H0.551514"></path>
  </defs>
           <!-- solid wide line -->
  <use href="#path-2" stroke="rgba(255,255,255,0.05)" stroke-width="30"></use>
  <!-- solid narrow line -->
  <use href="#path-2" stroke="rgba(255,255,255,0.12)" stroke-width="15"></use>
  <!-- dotted full line -->
  <use href="#path-2" stroke="rgba(255,255,255,0.2)" stroke-width="5" stroke-dasharray="0 20" stroke-linecap="round"></use>
  <!-- dotted masked line -->
  <use href="#path-2" stroke="rgba(255,255,255,0.8)" stroke-width="5" stroke-dasharray="0 20" stroke-linecap="round" mask="url(#mask-2)"></use>

</svg>

  <img src="https://i.imgur.com/h3ElY2f_d.webp?maxwidth=728&fidelity=grand">
</div>

​

有什么想法吗？谢谢!
